Hook 20° Series
Print Profile(1)
Description

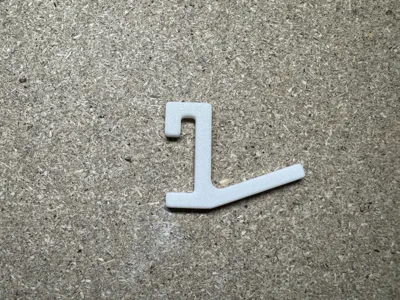

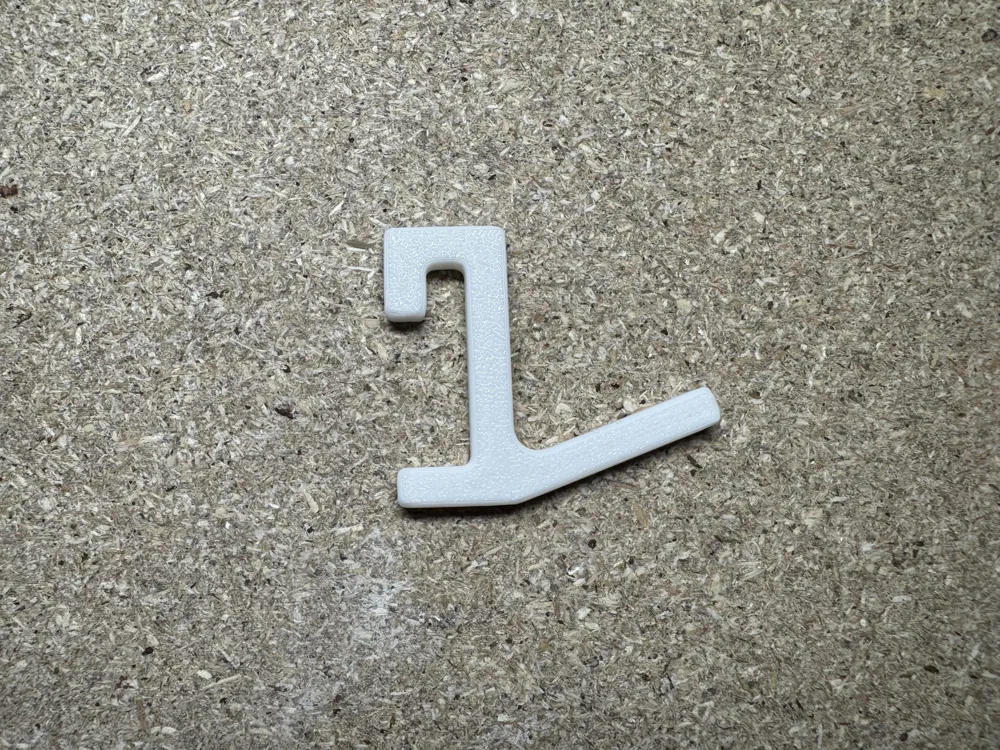

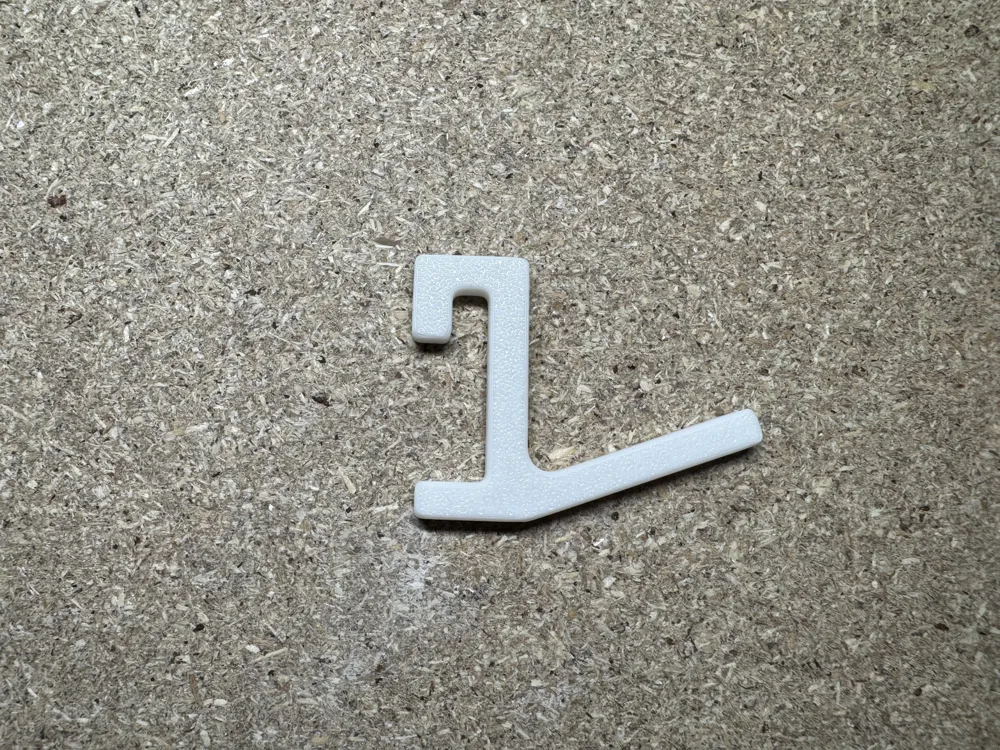

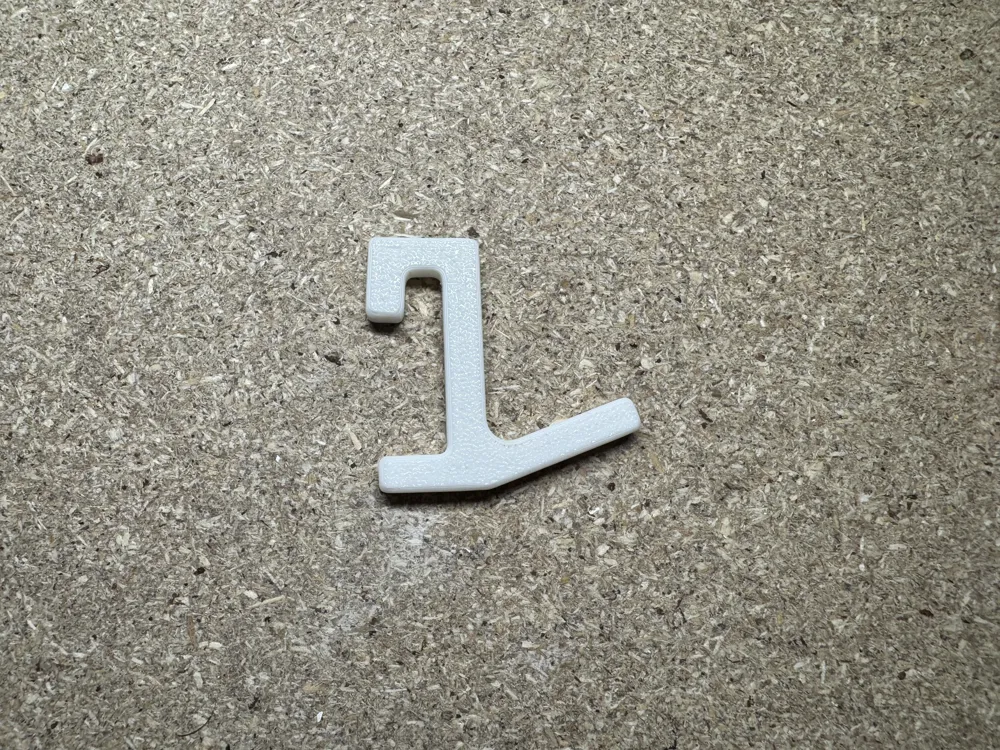

Hook 20° Series — Angled Hooks for Improved Accessibility
This set of angled hooks is designed for situations where a straight hook is less practical. The 20° forward tilt provides easier access, better visibility of stored items, and improved retention when mounted on vertical or slightly recessed surfaces.

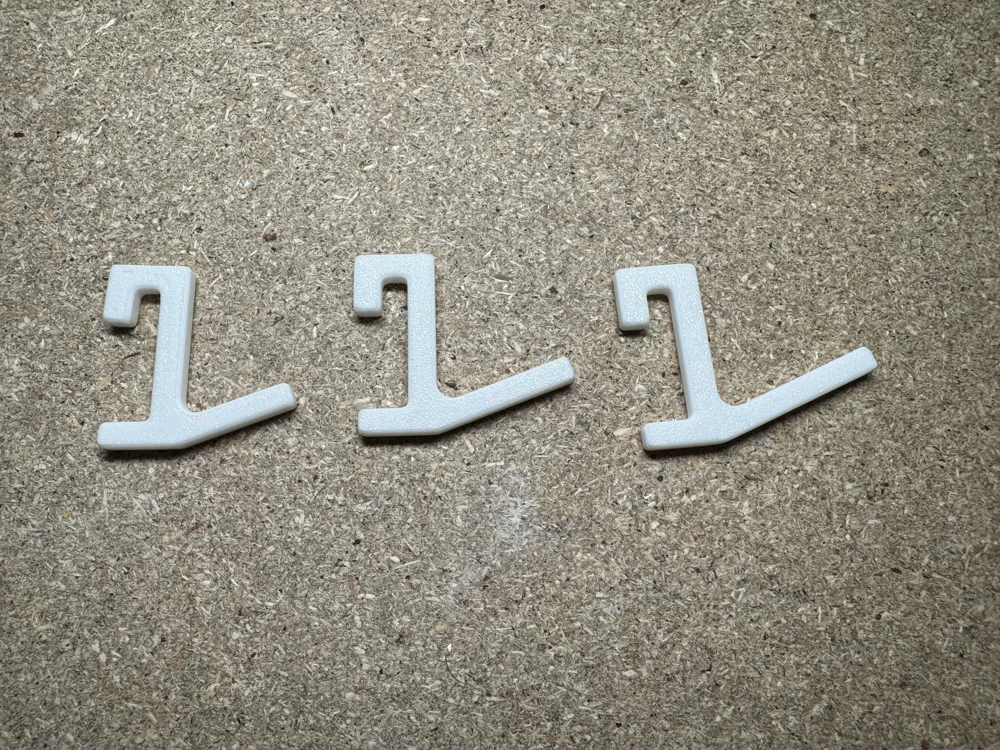

The series includes three lengths—20 mm, 25 mm, and 30 mm—so you can choose the reach that best suits your setup.
Each hook features a reinforced 5 mm body and clean geometry optimized for strength and fast printing. All models print flat on the bed without supports, ensuring reliable, repeatable results.
Included variants:
• Hook 20° — 20 mm
• Hook 20° — 25 mm
• Hook 20° — 30 mm
Typical uses:
• Tools, cables, adapters, small organizers
• Workshops, garages, maker spaces
• Shelving systems, wooden slats, wall panels
• Situations where angled access improves usability
The 20° design is especially helpful when items need to be grabbed quickly or when vertical clearance is limited.
Recommended Print Settings
Material: PLA for general use; PETG for added durability or warmer environments
Orientation: Flat on the back surface (no supports required)
Layer Height: 0.2 mm
Walls/Perimeters: 3 walls (~1.2 mm)
Infill: 20–30% (Gyroid or Grid)
Supports: Not needed
