V-Slot Cable Clips for Power and Ribbon Cables

This is a set of quick, simple clips that lock into a V-slot extrusion to keep your cables neatly routed along the rail. One clip is sized for round power or motor cables and the other is tuned for flat ribbon cables, so you can keep both types held in place without using zip ties or tools.

Versions included

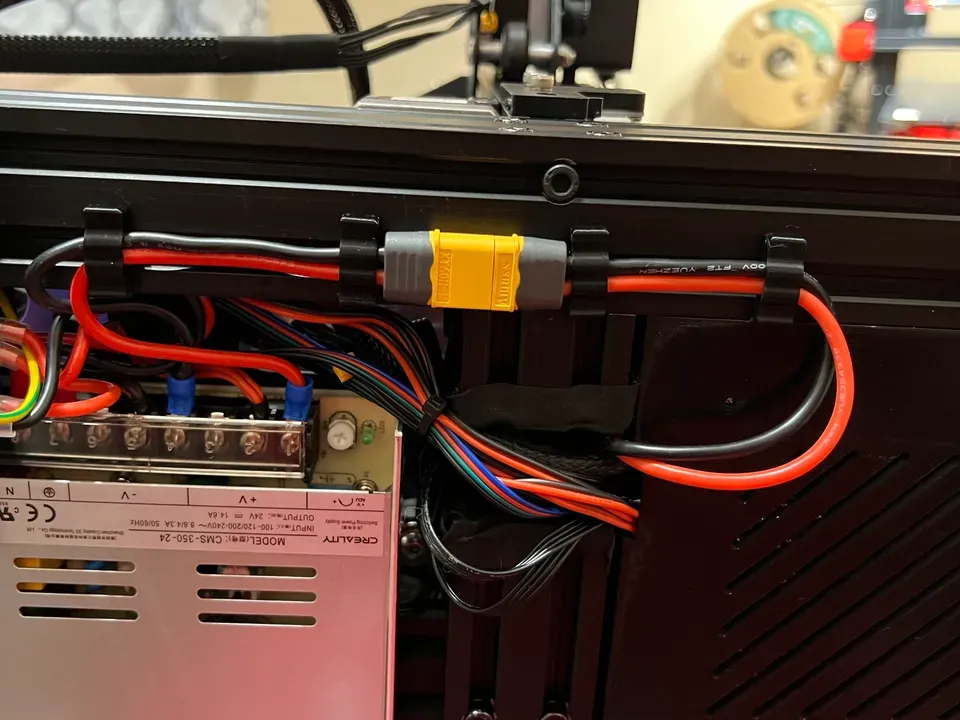

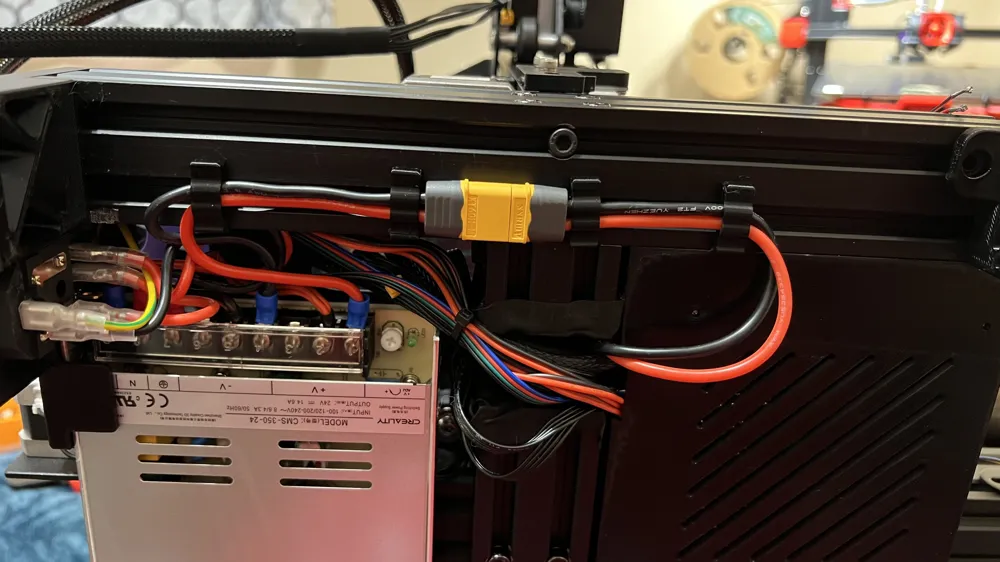

Power cable clip

• Sized for typical round power or motor cables
• Holds the cable firmly while still letting you remove it when needed

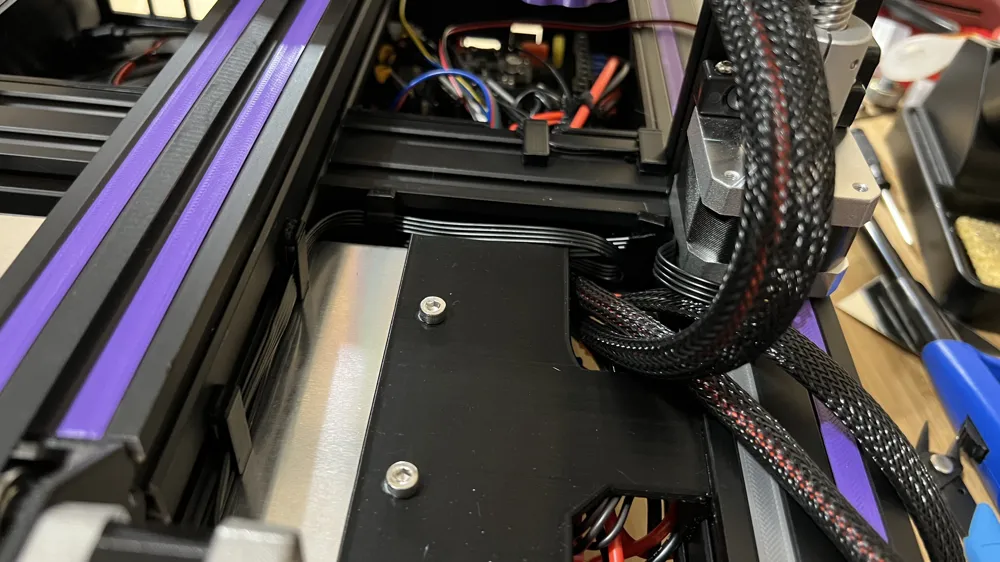

Ribbon cable clip

• Slimmer channel sized for flat ribbon cables
• Helps keep the ribbon flat against the extrusion and away from moving parts

Features

• Tool less installation, clips insert into the V-slot and twist to lock in place
• Low profile so it stays clear of gantries and belts
• Fast to print and easy to replace if one ever breaks
• Use as many as needed along the rail to straighten and secure a cable run

Usage

1. Choose the clip type you need for your cable.
2. Insert the clip into the V-slot extrusion.
3. Twist the clip to lock it into place.
4. Push the cable into the open side of the clip channel.
5. Repeat along the rail until the entire cable path is supported.

Remix attribution

This model is based on the “Cable Clips” design by Harrynibble on Thingiverse and carried over from my V-Slot Cable Clips upload on Printables, adapted specifically for power and ribbon cables on V-slot extrusions.
