Description
Content has been automatically translated.

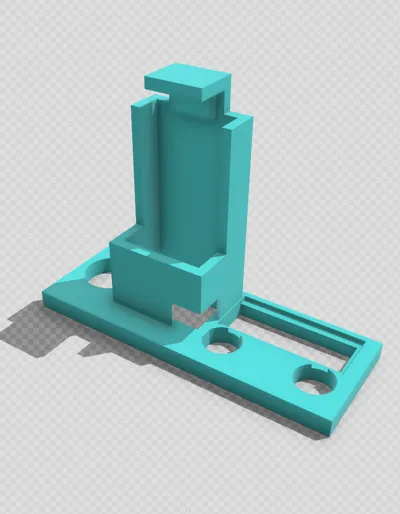

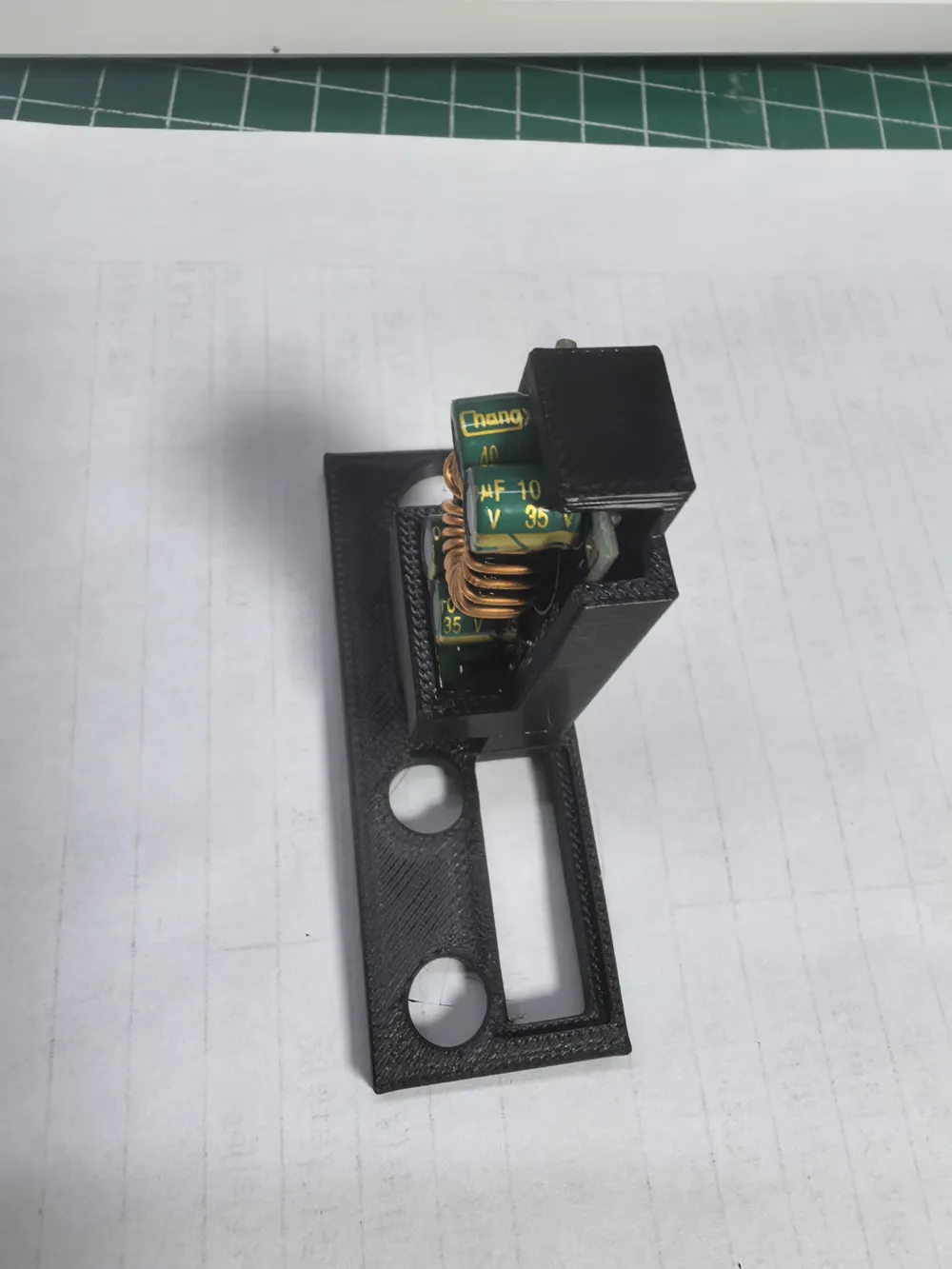

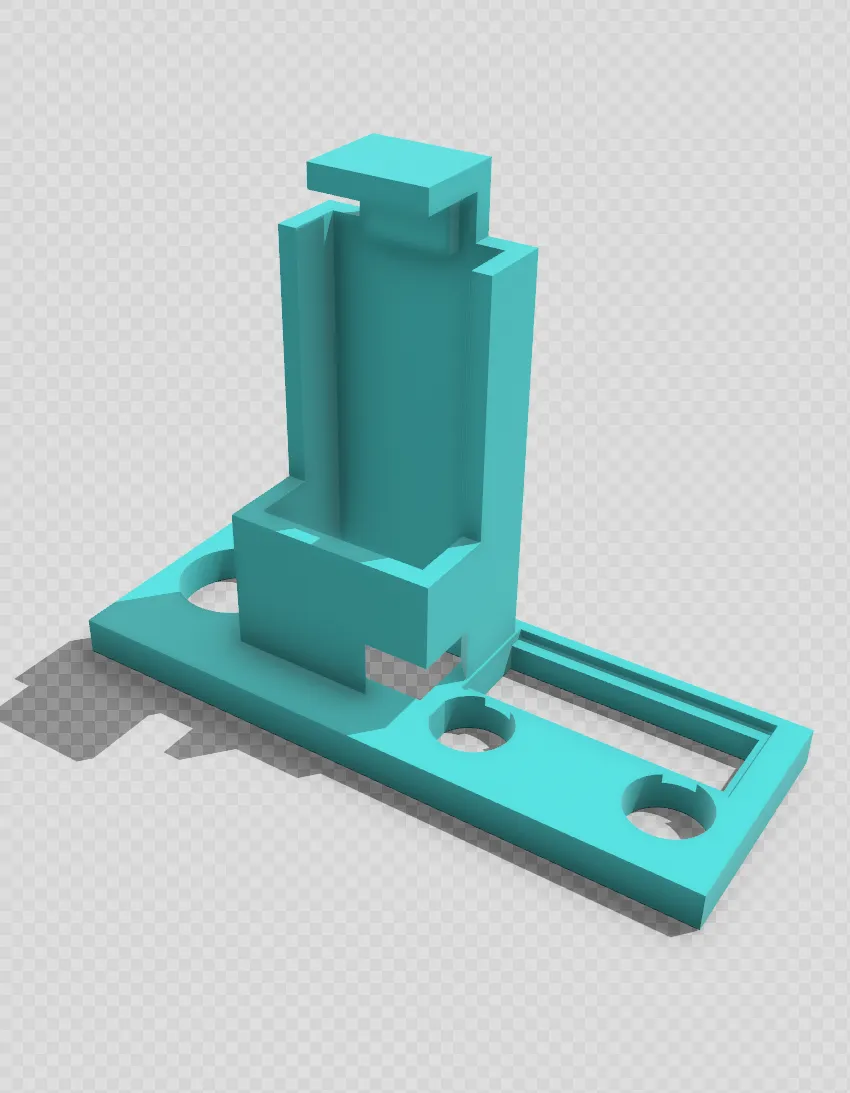

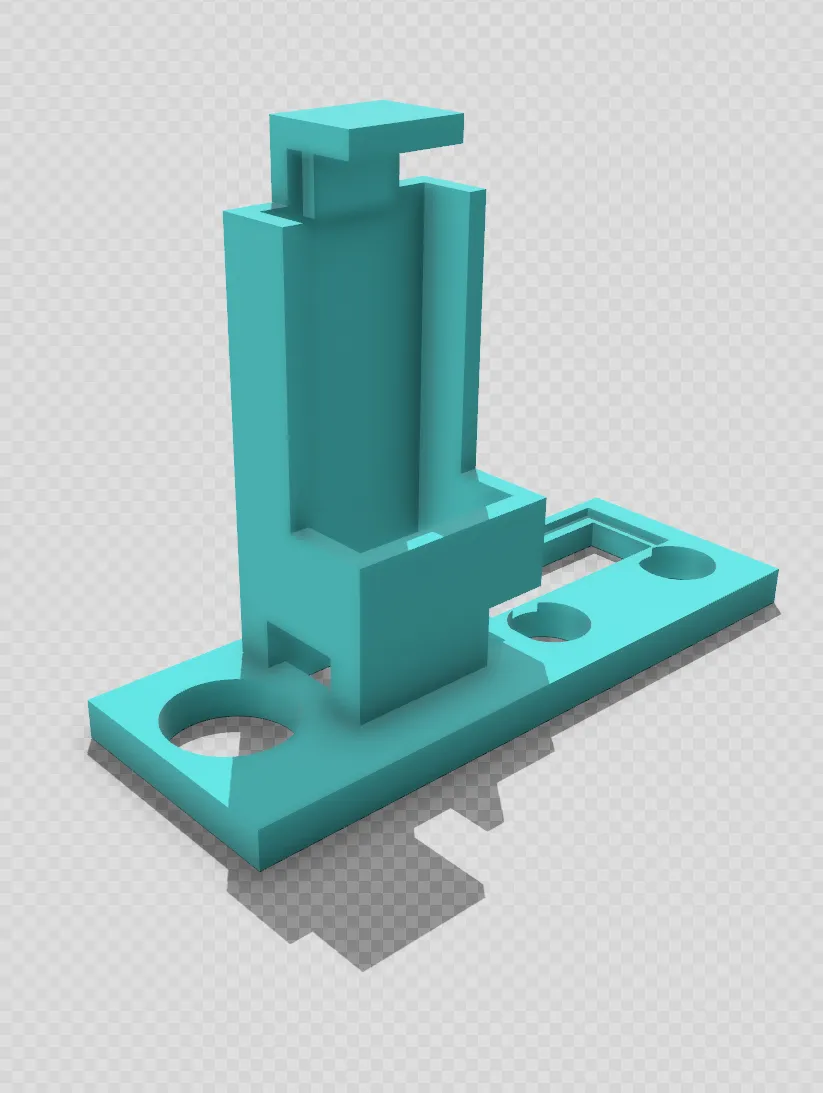

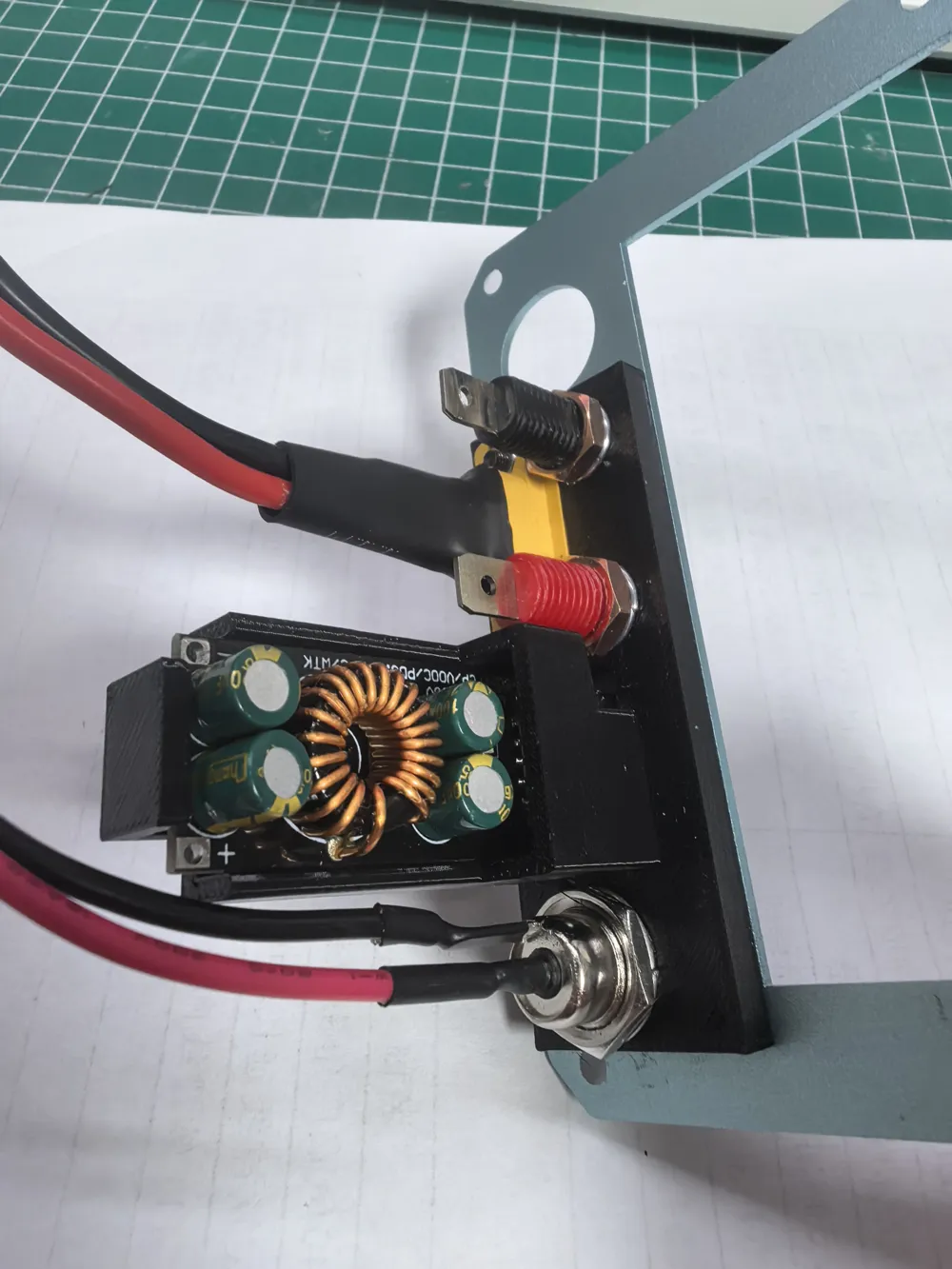

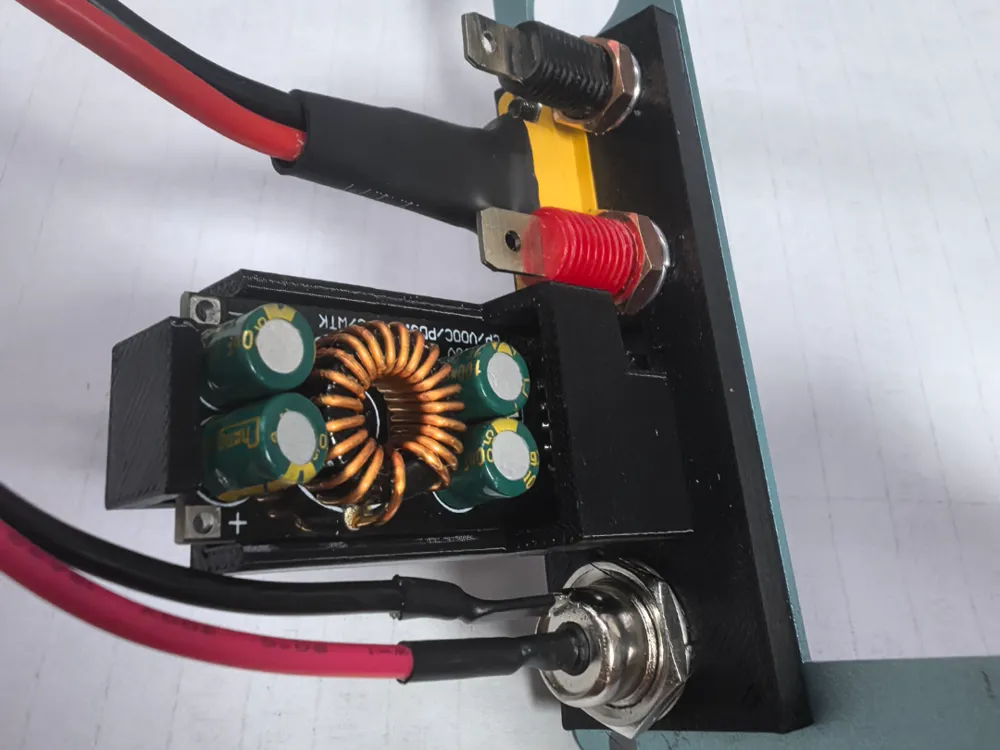

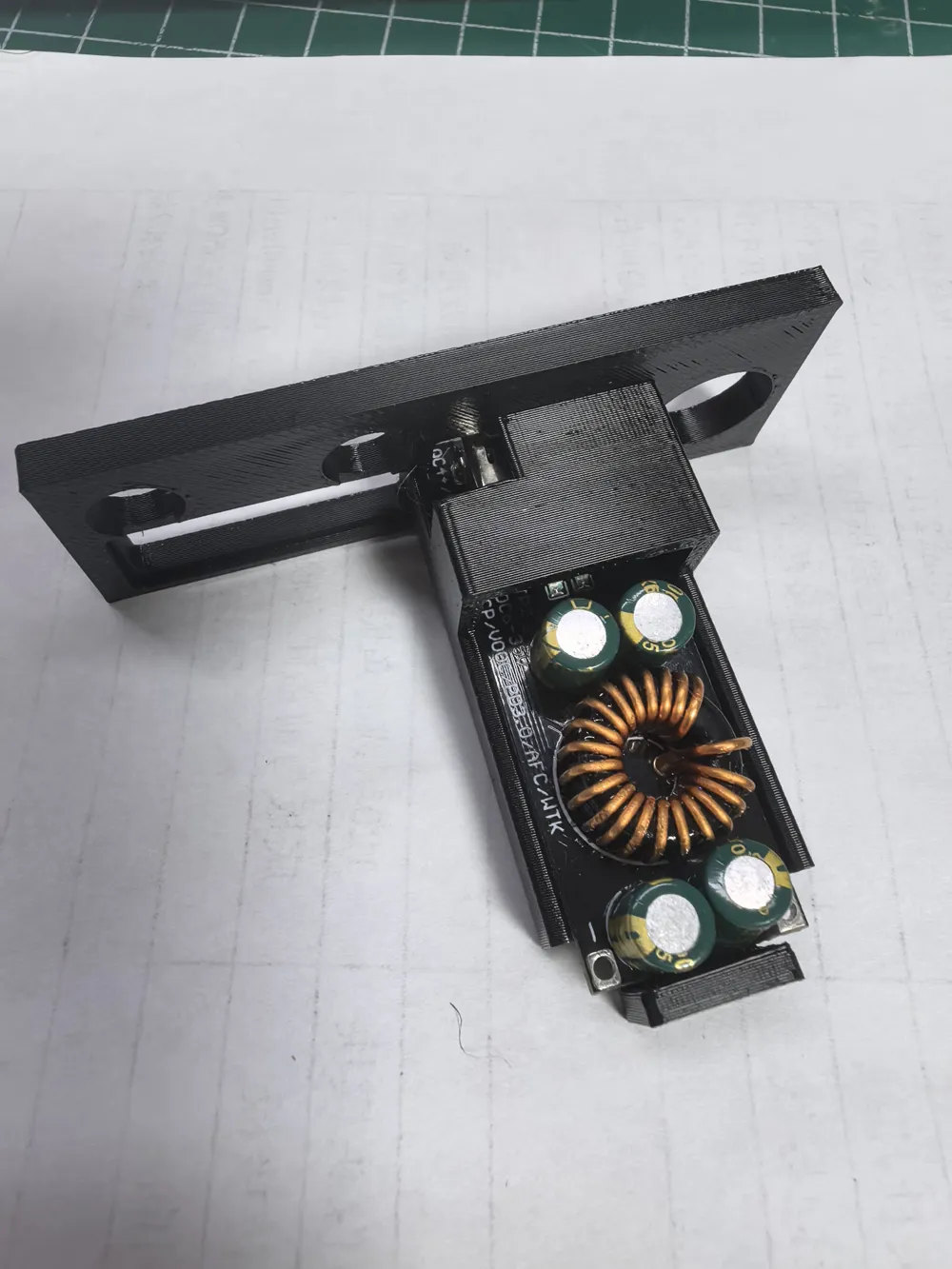

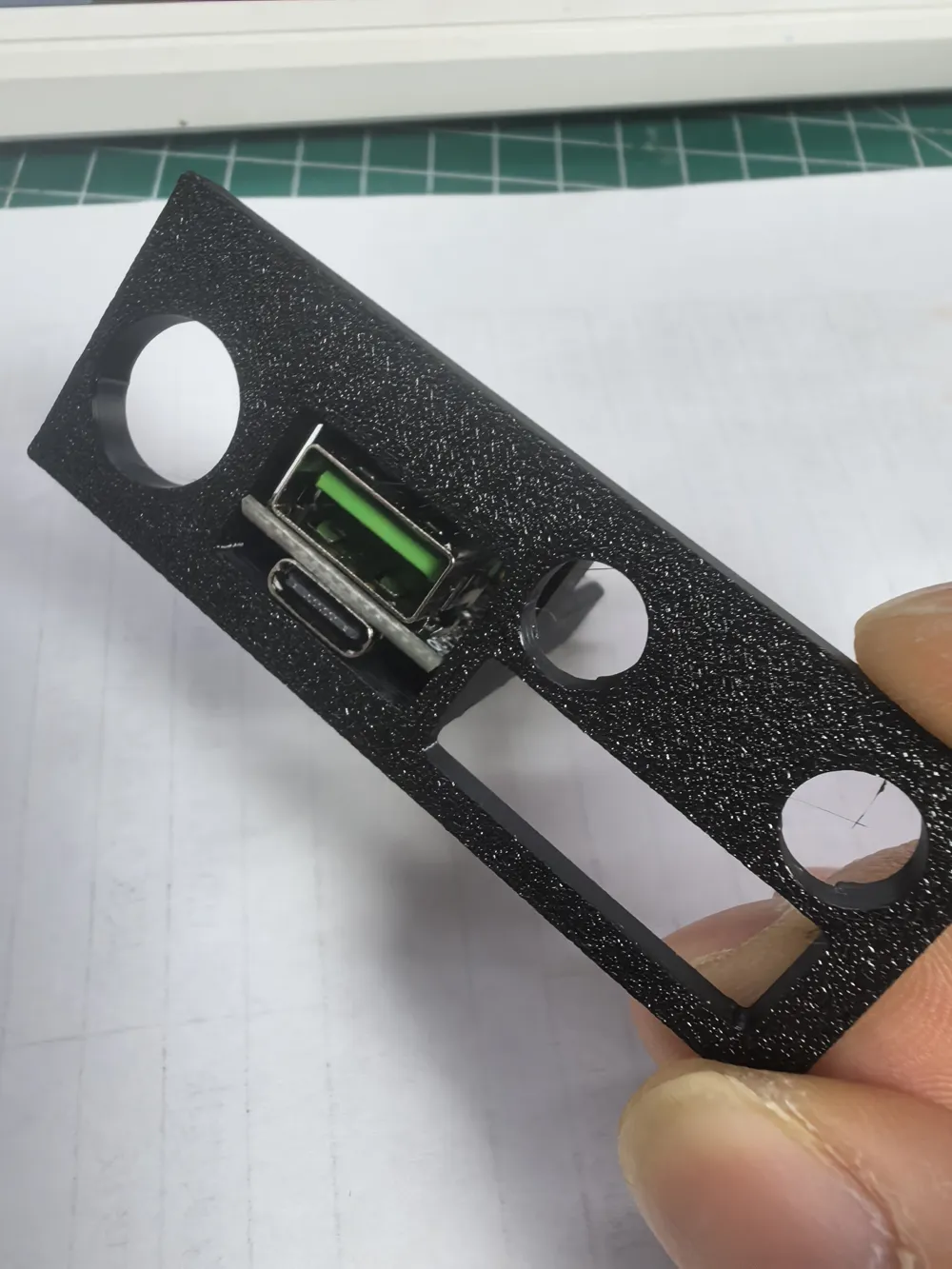

This is a PD fast charge 3518 bracket for an SK120X mobile digital adjustable power supply from JLC Open Source Plaza
Perfect fit, solves the problem of 3158 not being able to be fixed during installation

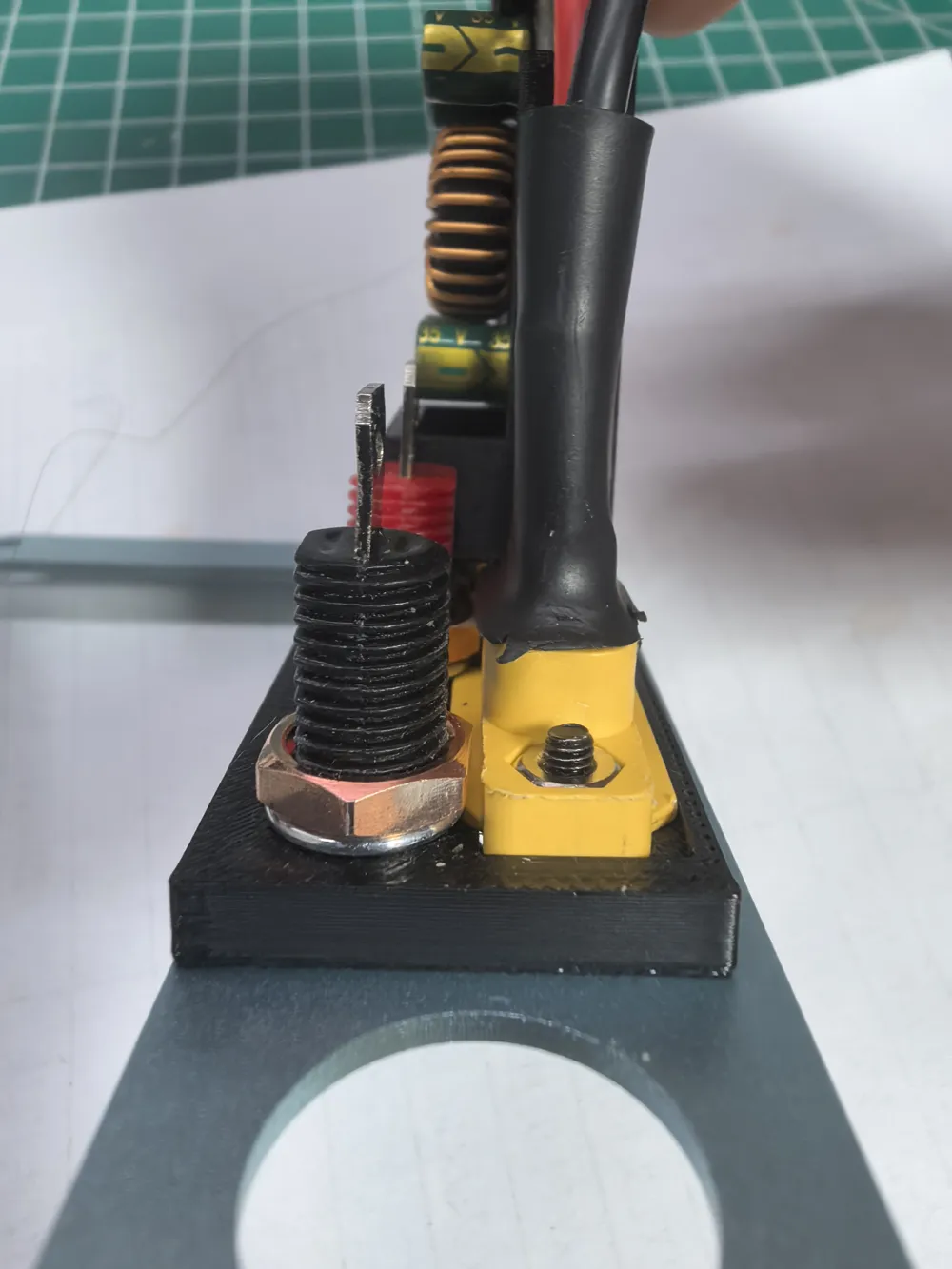

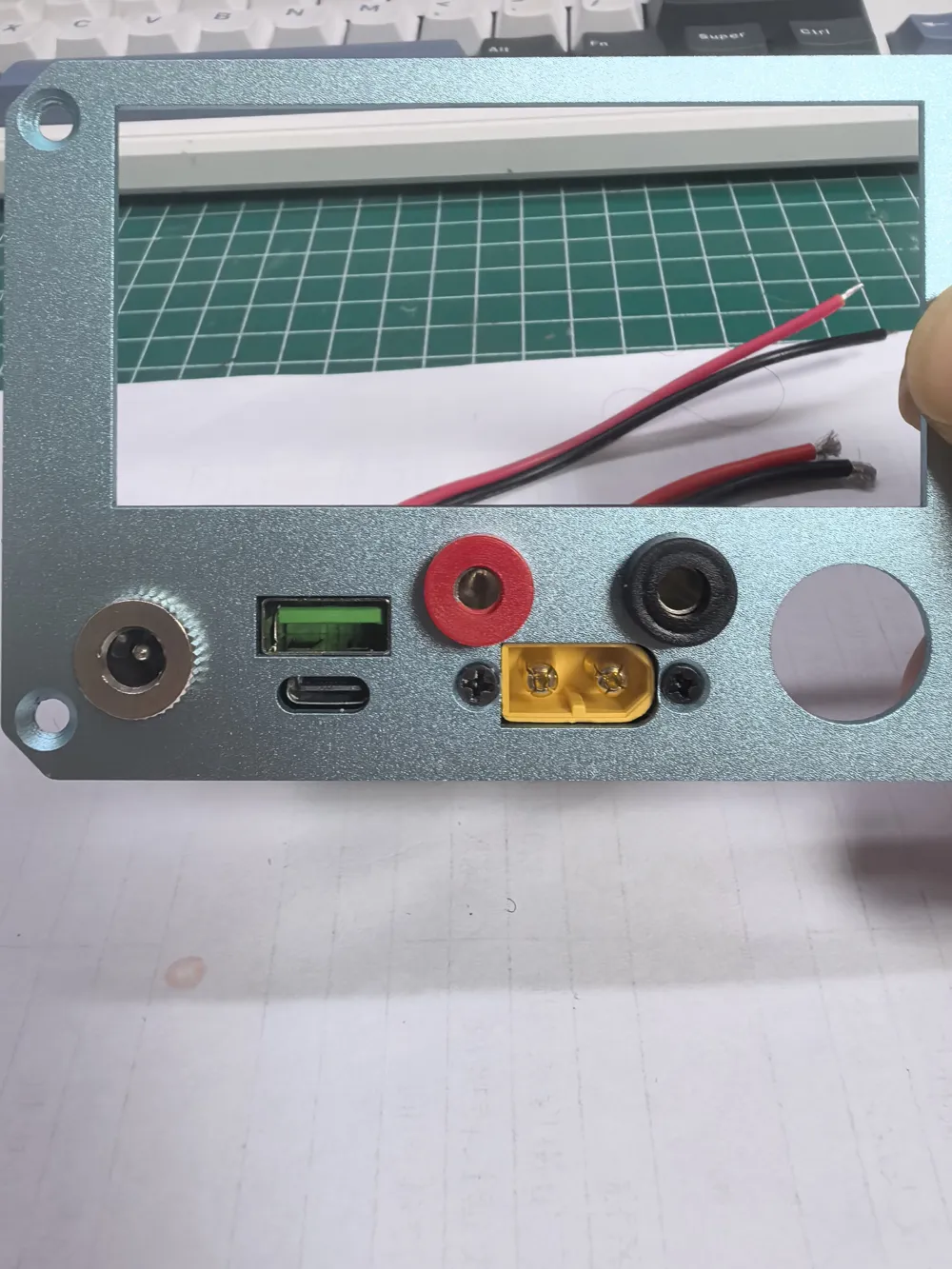

Recommended installation order:

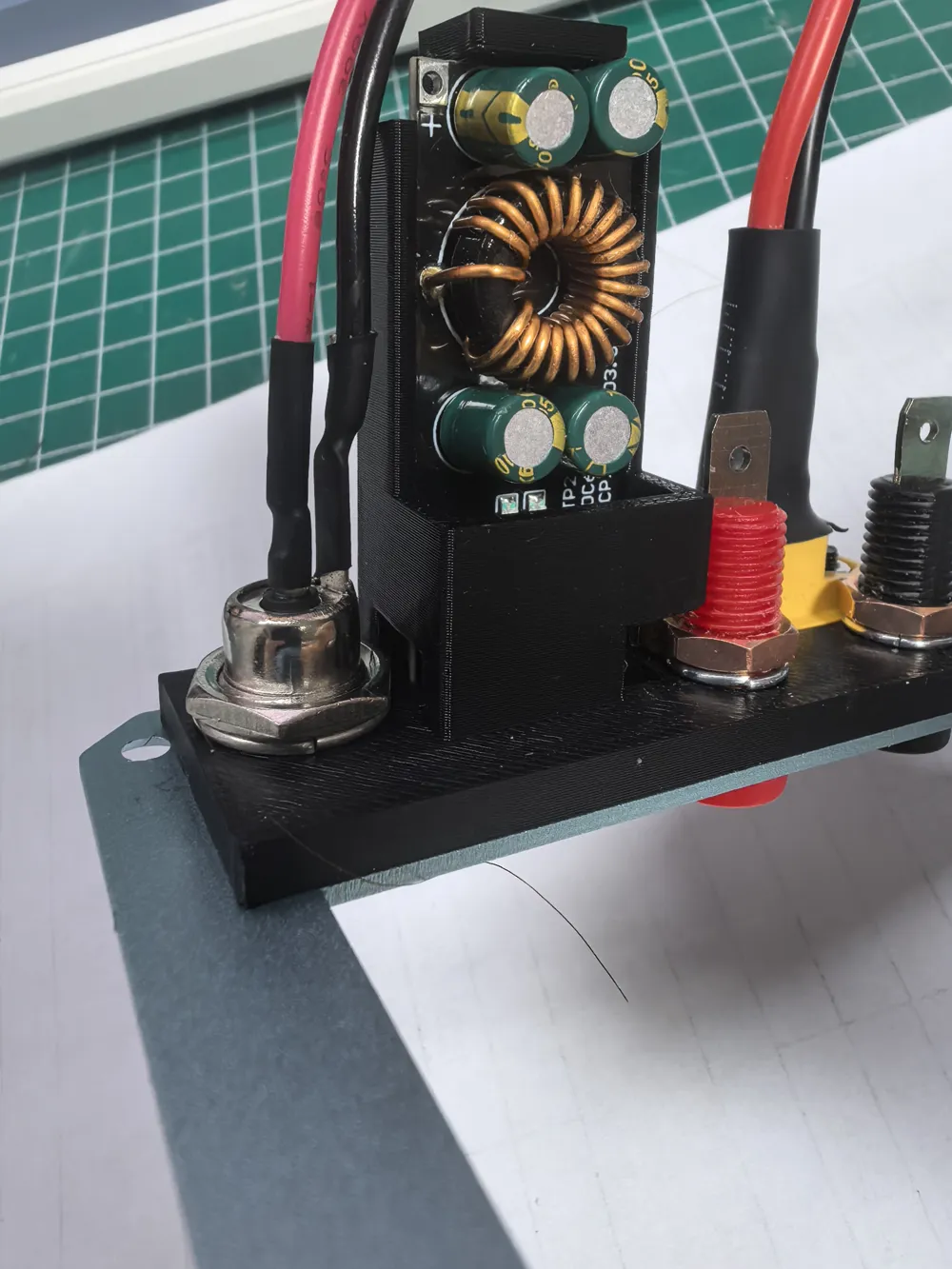

- DC Female Socket

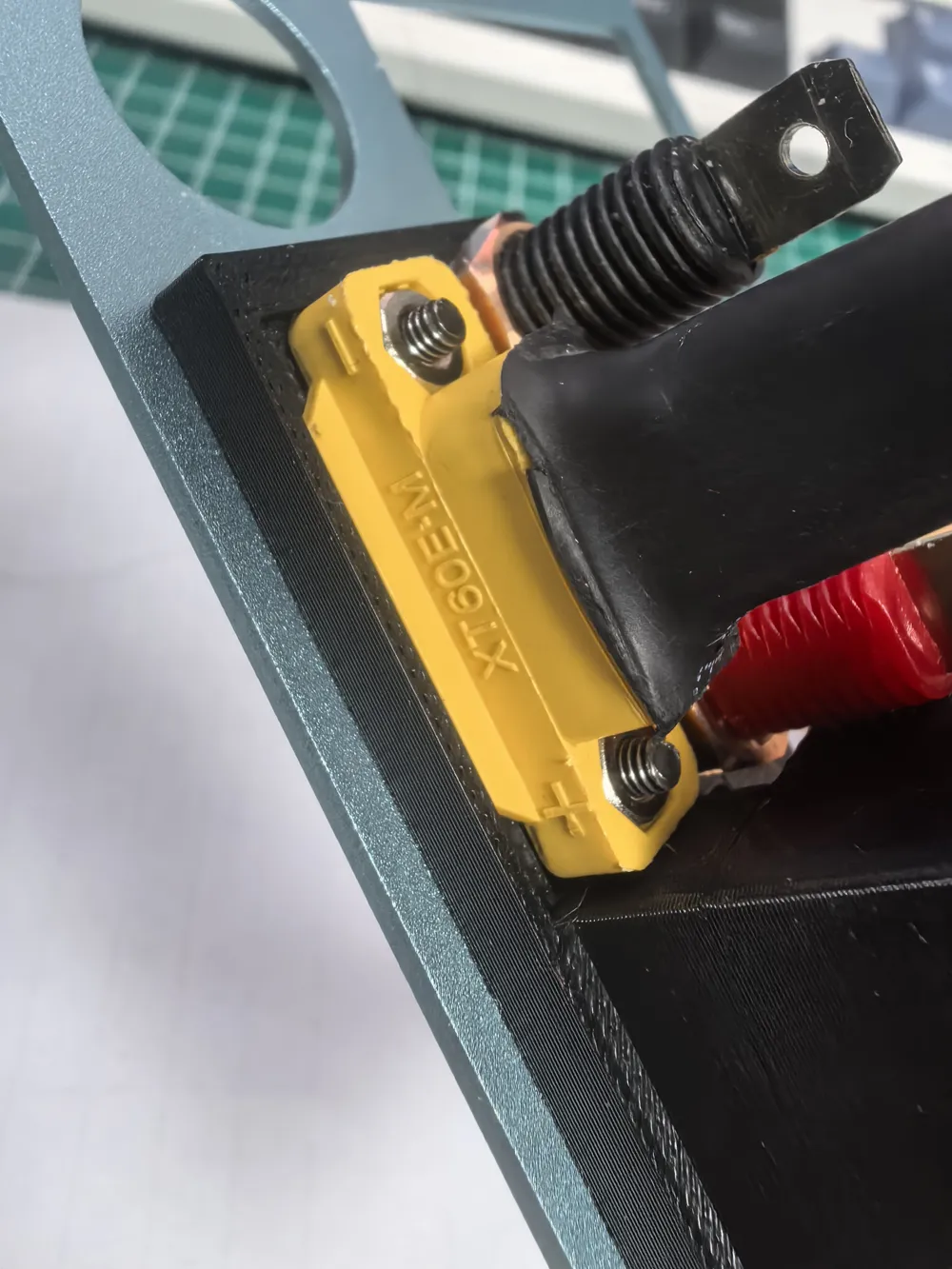

- XT 60 Female Socket

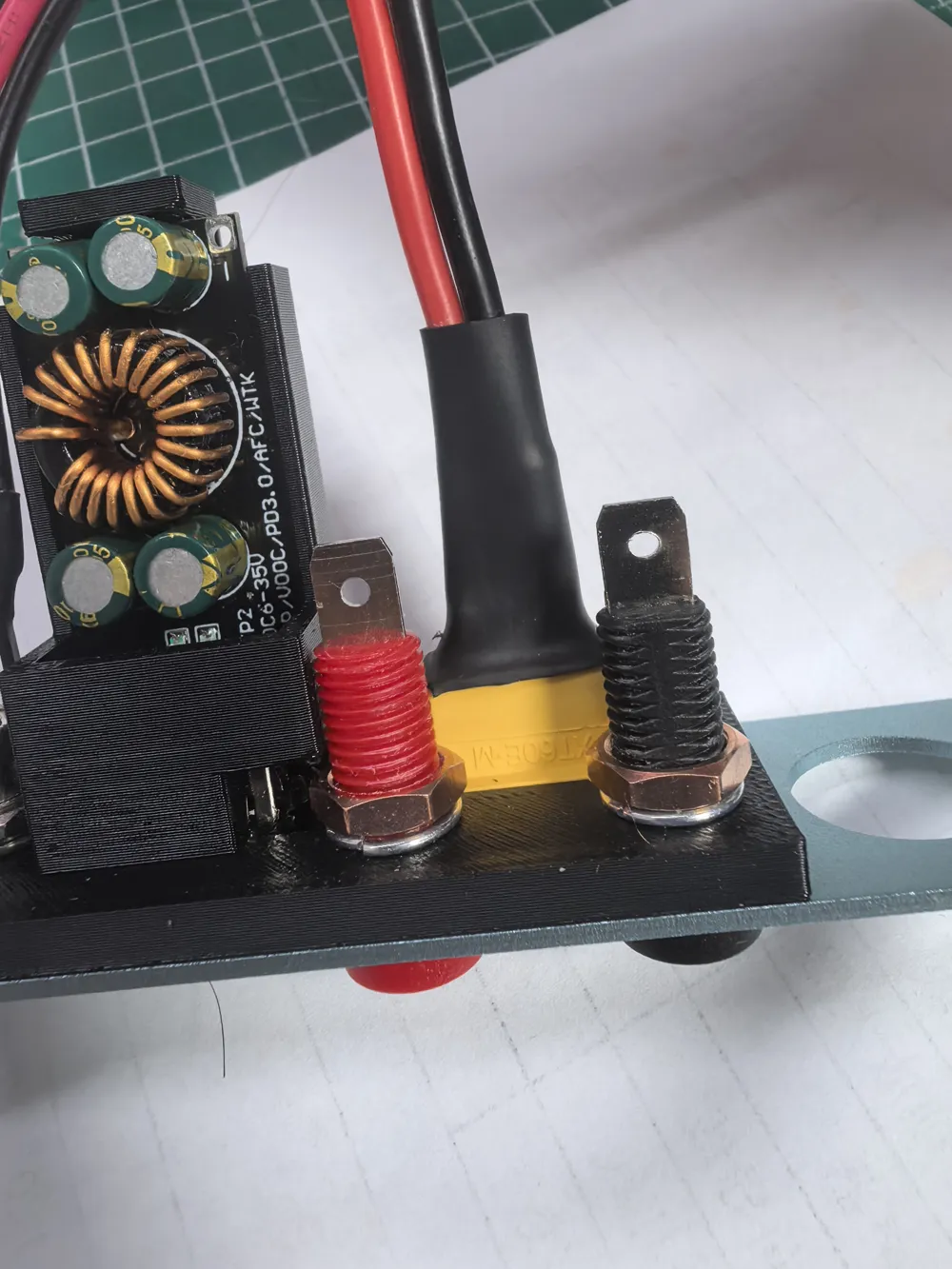

- Red near 3158 side--Positive banana jack (when installing, first place the nut into the reserved nut slot, use pliers or other tools for assistance)
- Outer black--Negative banana jack
JLC address: https://gf.jlcfa.com/machine-detail/473496996027453442
