Shelly Sonoff in the Box Mini
Print Profile(5)
Bill of Materials
Description

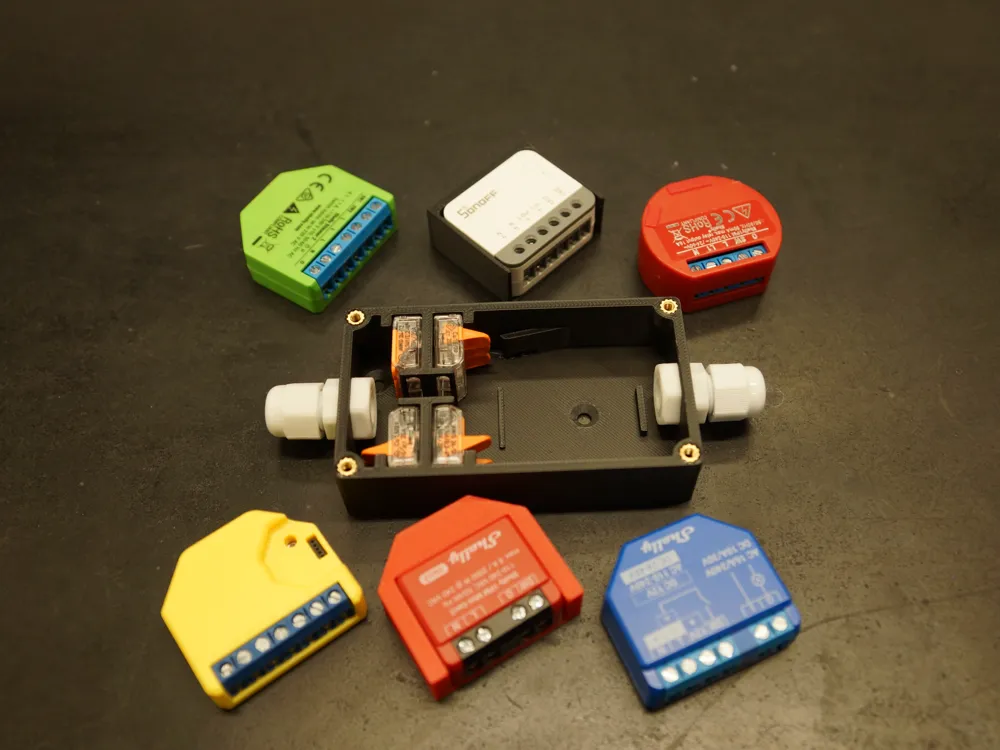

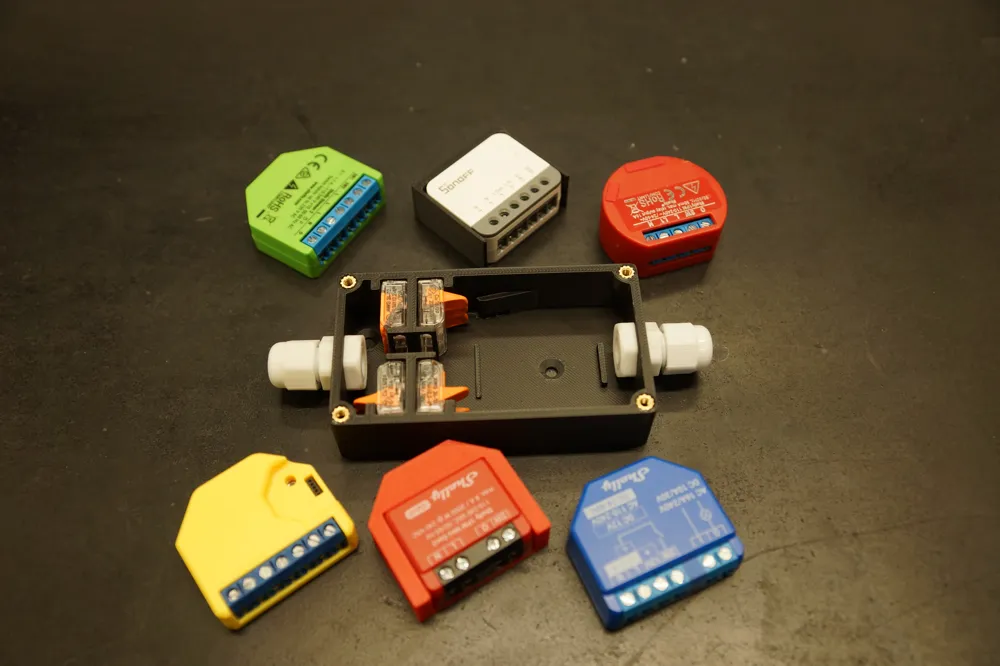

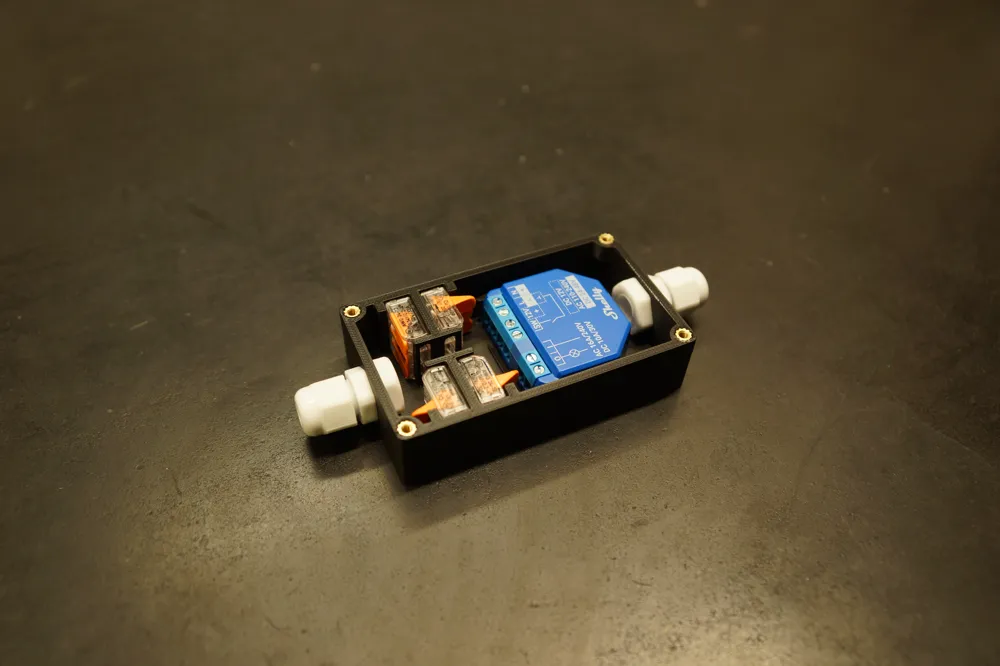

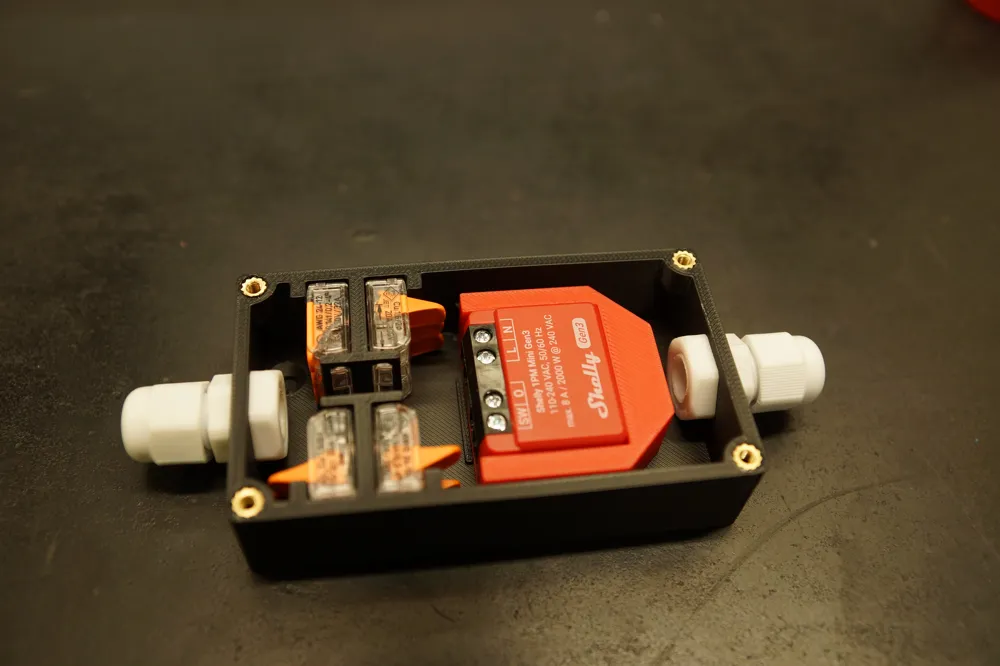

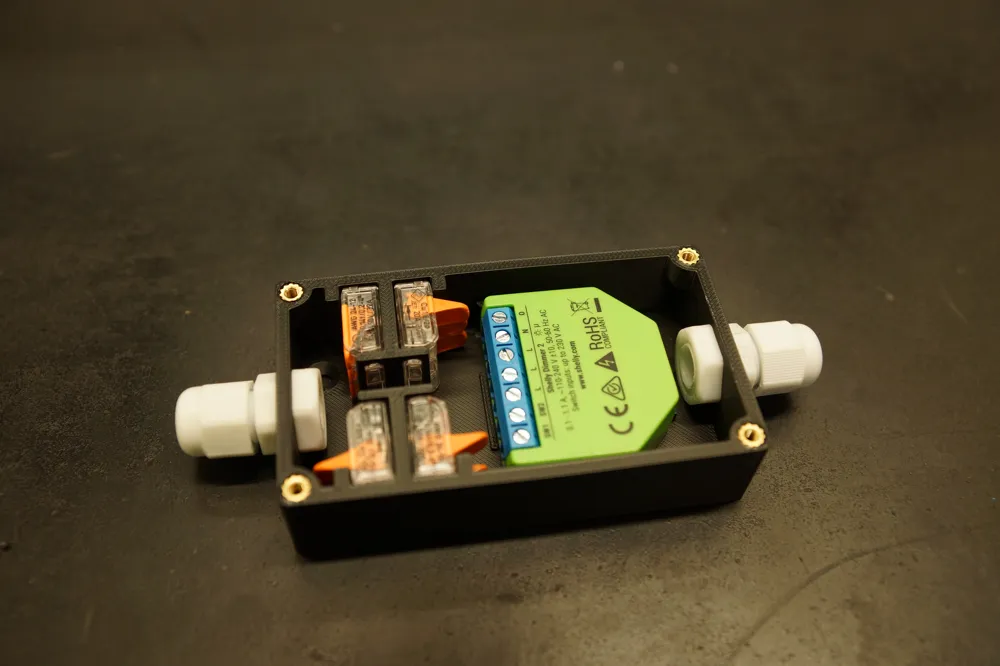

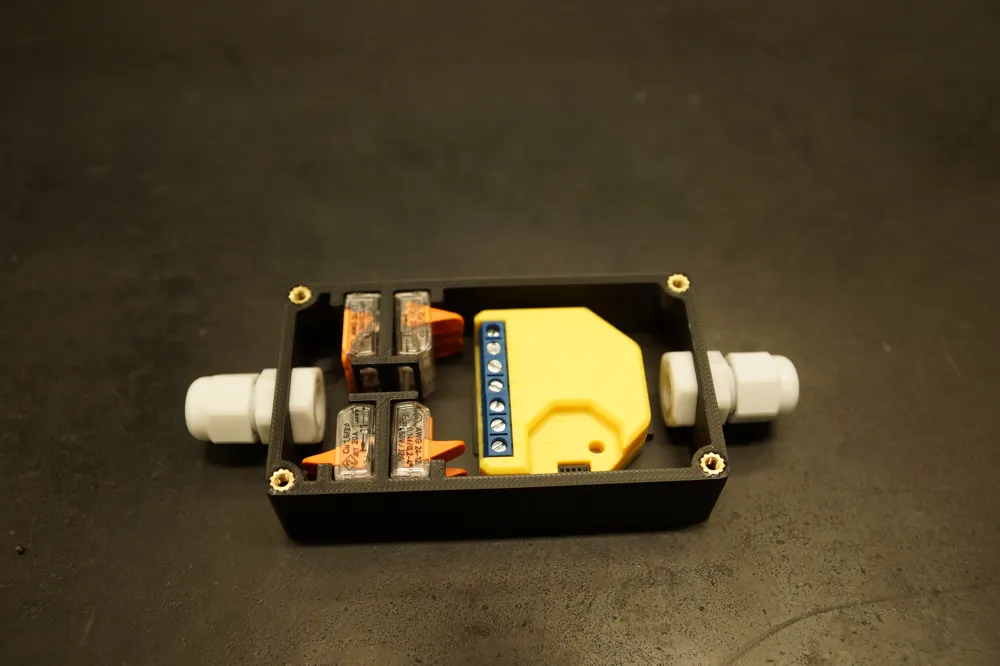

This is an extremely compact box (95mm x 54mm x 25mm) that can accommodate the following Shelly and Sonoff actuators
- Shelly 1st generation with adapter (will be supplied later)
- Shelly RGBW2 and Dimmer 2
- Shelly 3rd Generation
- Shelly Mini with adapter
Shelly 4th Generation

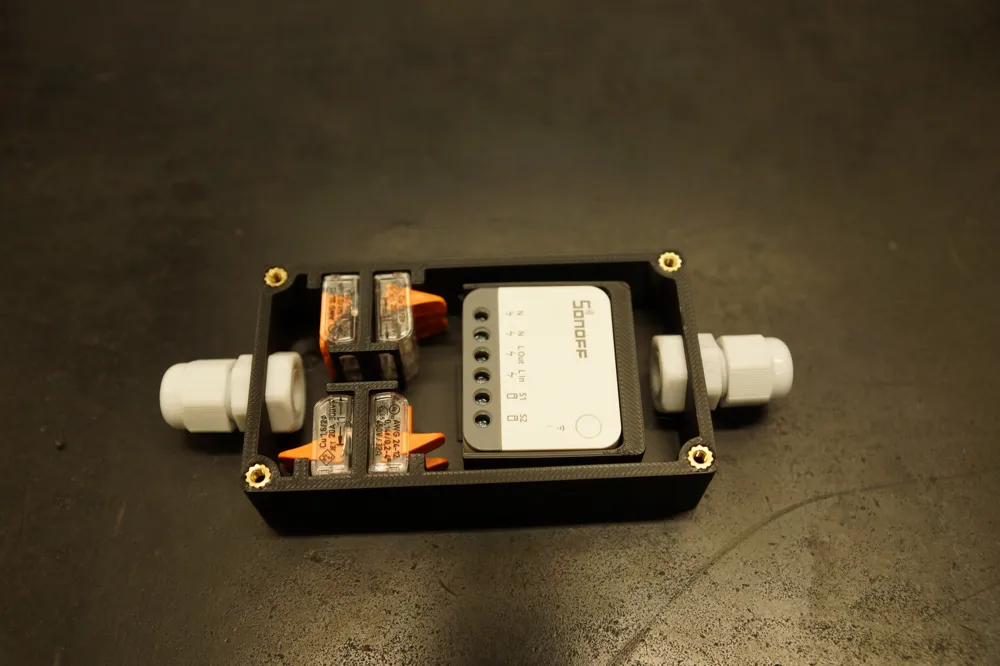

- ZBMINIR2 - with adapter
- ZBMINIL2 - with adapter - not tested but same dimensions according to the internet
- MiniR4M - with adapter - not tested but same dimensions according to the internet

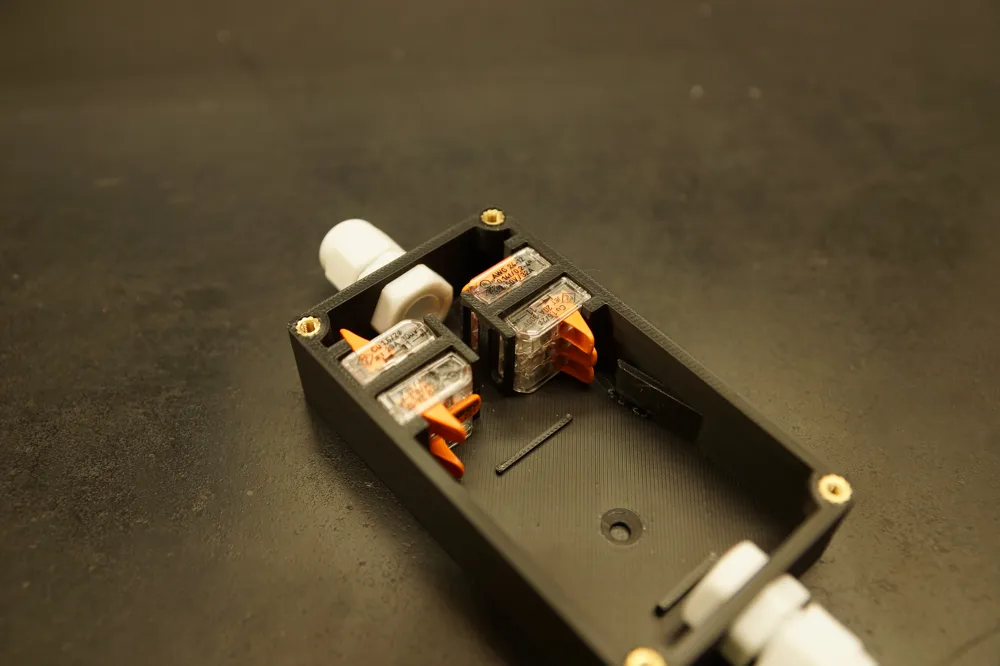

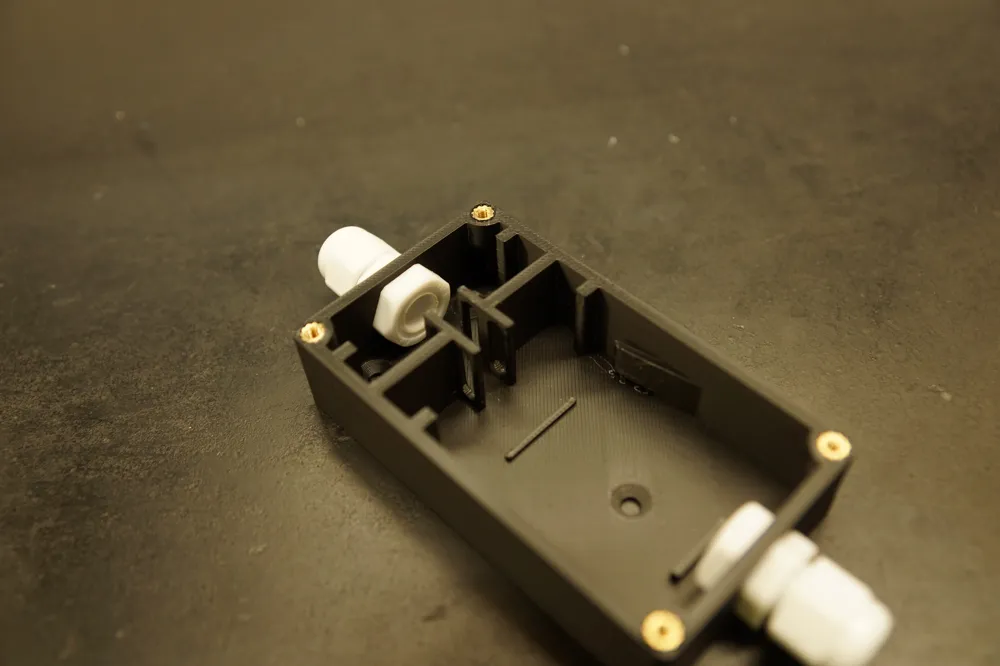

Furthermore, there are slots available for four 3-way Wago terminals (221). Also, currently 2 holes each for strain reliefs with DN12. Larger strain reliefs will probably not work due to the very compact dimensions. In contrast to the large ones (Shelly in the Box and Sonoff in the Box), the holes for the Wago terminals here are designed as elongated holes due to the confined space conditions
https://makerworld.com/de/models/1208113-shelly-in-the-box#profileId-1222379
https://makerworld.com/de/models/2003453-sonoff-in-the-box#profileId-2157414
A standard 1.5mm² cable including insulation can be routed from the back between the actuator and the inner wall to the Wago terminals
A universal box is also available as an additional print profile, where access holes can then be created independently in BambuStudio using modifiers
For optimal sealing, a 0.5mm thick lid gasket is available, which should preferably be printed in TPU

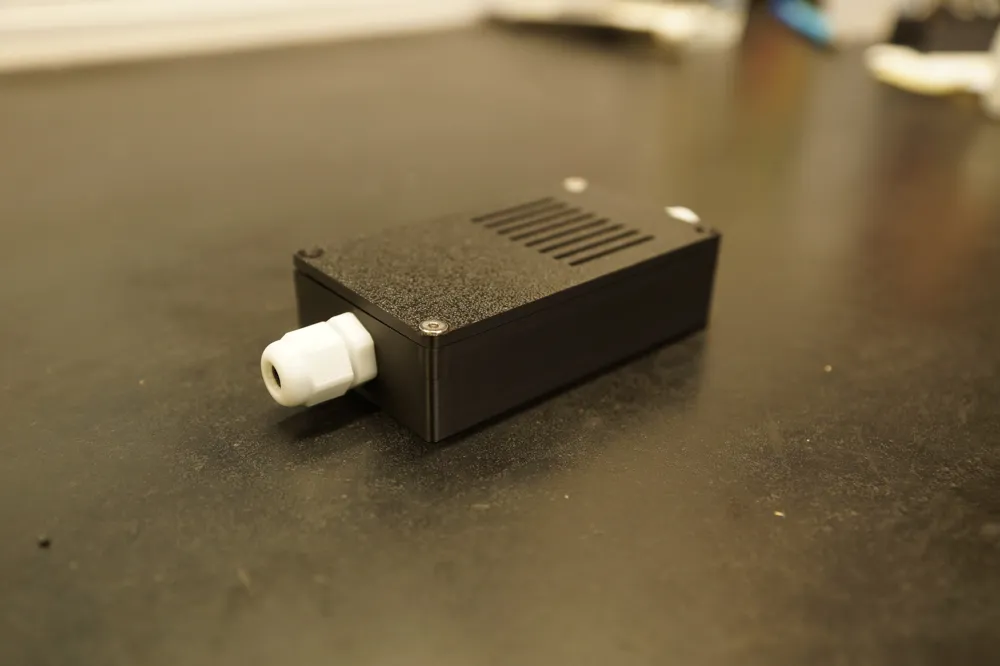

The following variants are available for the lid
- closed

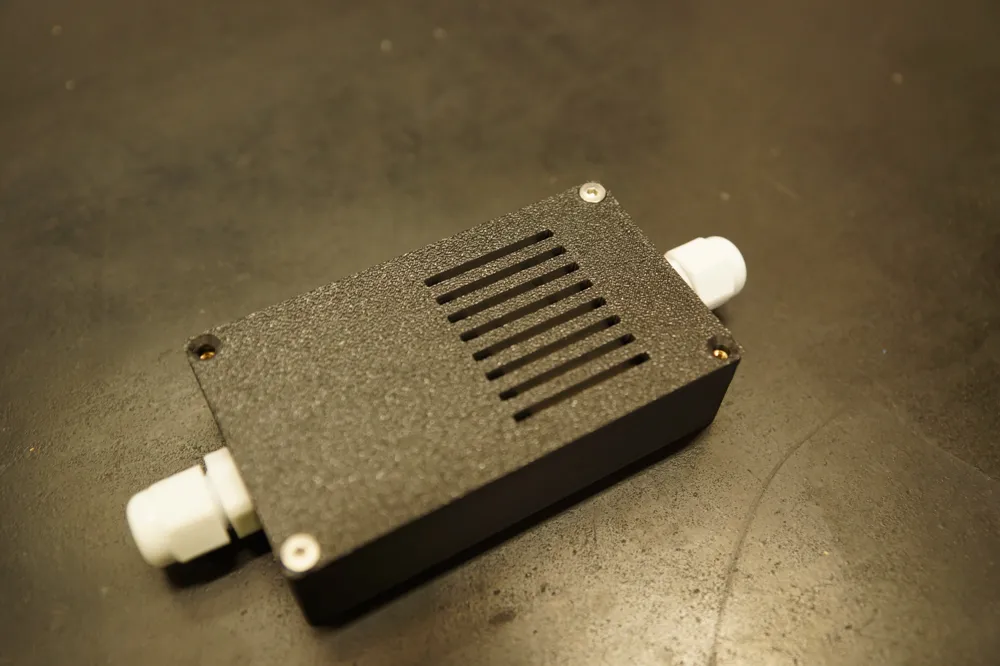

- slotted
For screwing down the lid, 4 M3 press-fit nuts and 4 M3 countersunk screws are required
I would be very happy about a like/boost etc for this work. If something doesn't fit, please let me know, and I will of course adjust it
If you like my work, please leave a like, a comment, and a boost. Even if something doesn't fit, just contact me, because there is a solution for everything. Do you have ideas for a printed part, but cannot operate a CAD program yourself, let me know and I will check the feasibility.
