Connector lock for 4PIN LED - Multi Male & Female
Print Profile(1)
Description
Tired of seeing your LED strip connectors unplug at the slightest movement
I have designed a series of universal securing shells for 4-pin LED connectors.
They cover various variations I have encountered
- short or long round cables
- flat cables
- internal or external male/female plugs
I have only modeled for 4 pins, as these are the most common for powering LED strips, but 3 pins should probably also work (not tested)
👉 Compare your cables to the descriptions below and choose the appropriate solution.
All indicated measurements correspond to the internal length of the connector.
🔰 CONNECTOR SOLUTION 🔰

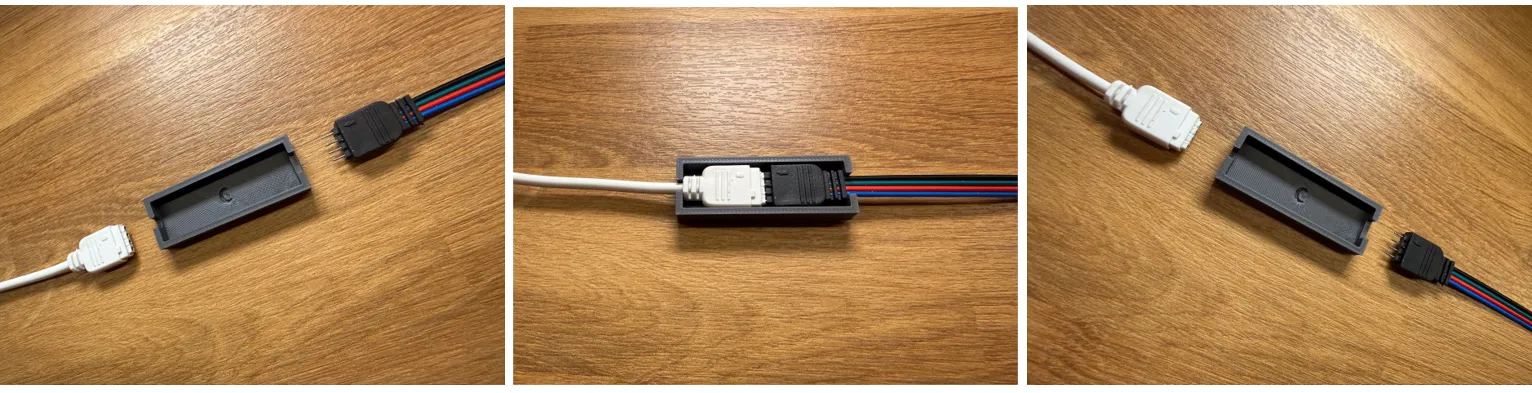

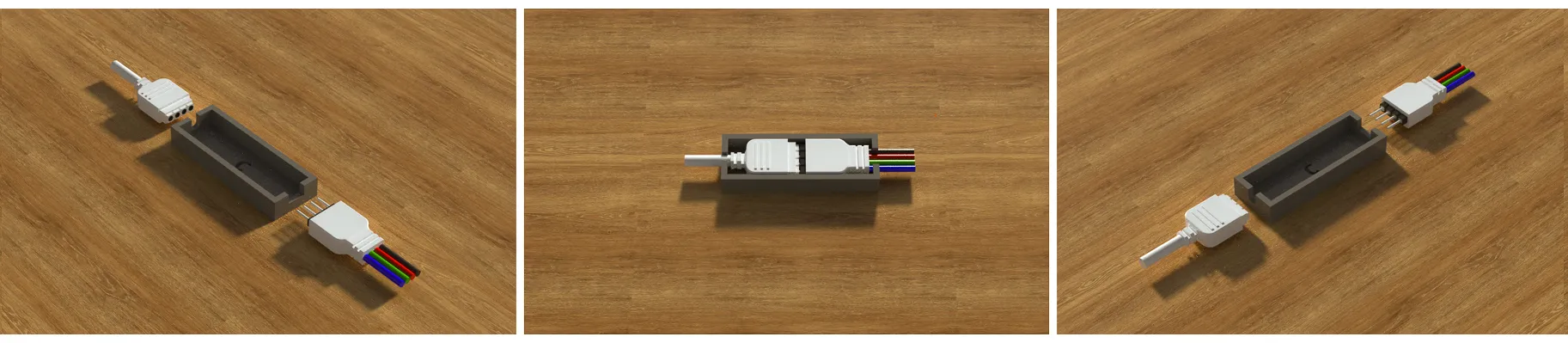

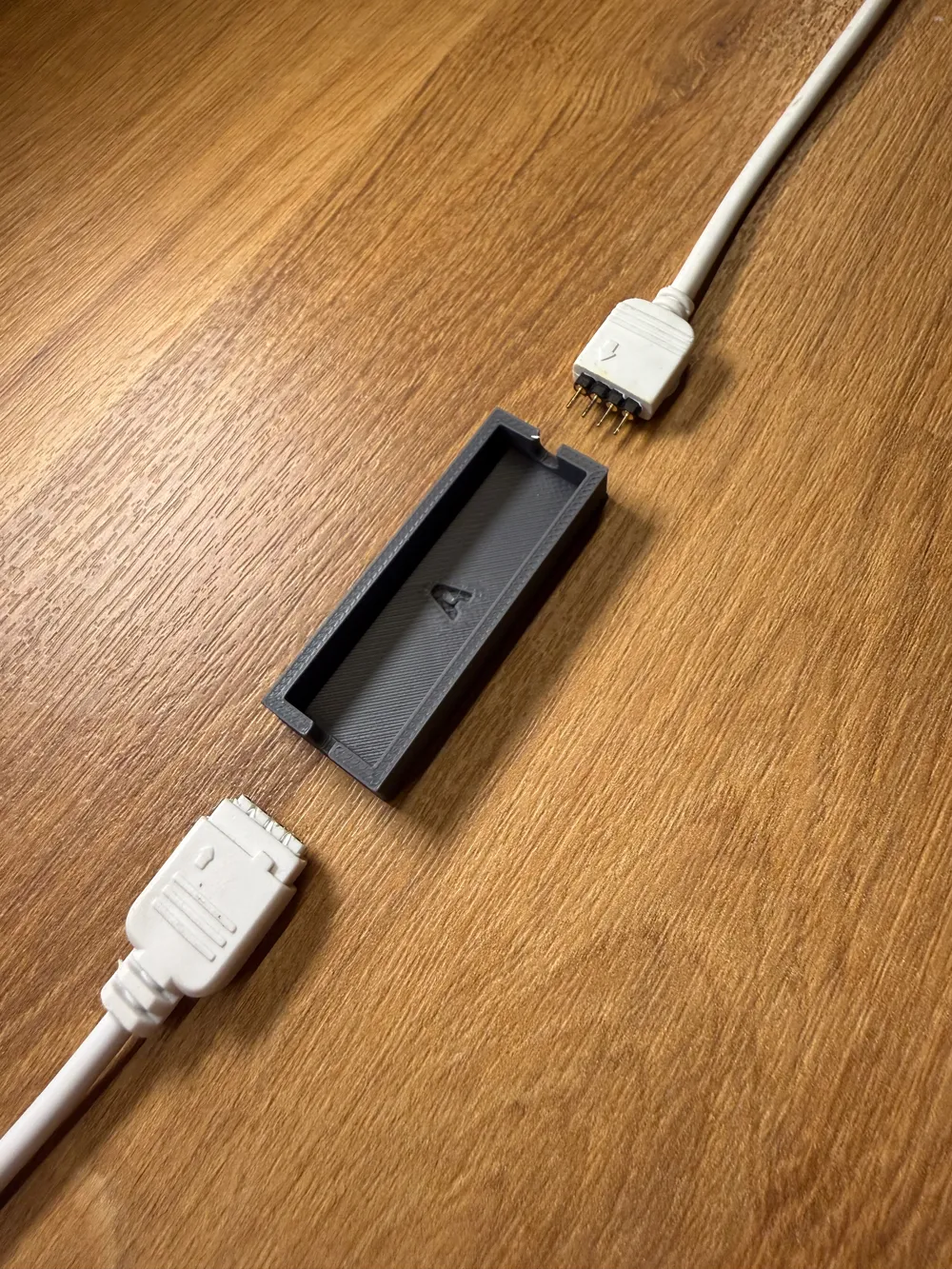

🔰 Solution A

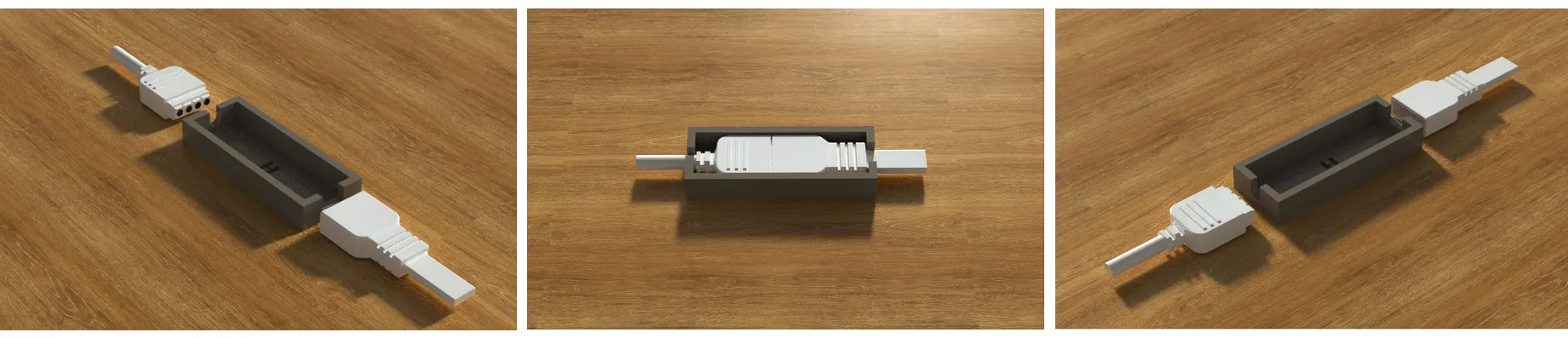

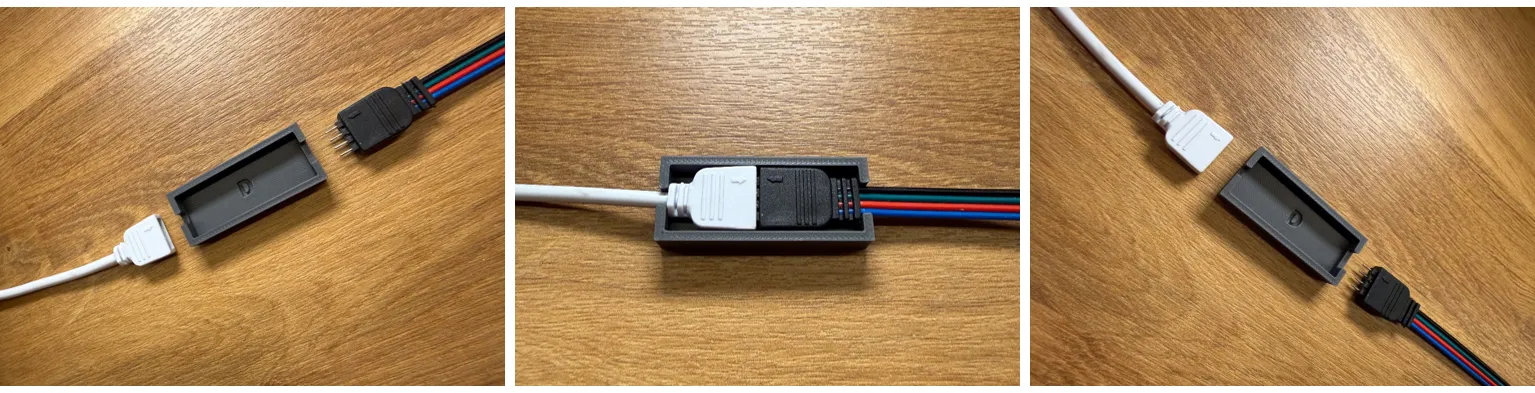

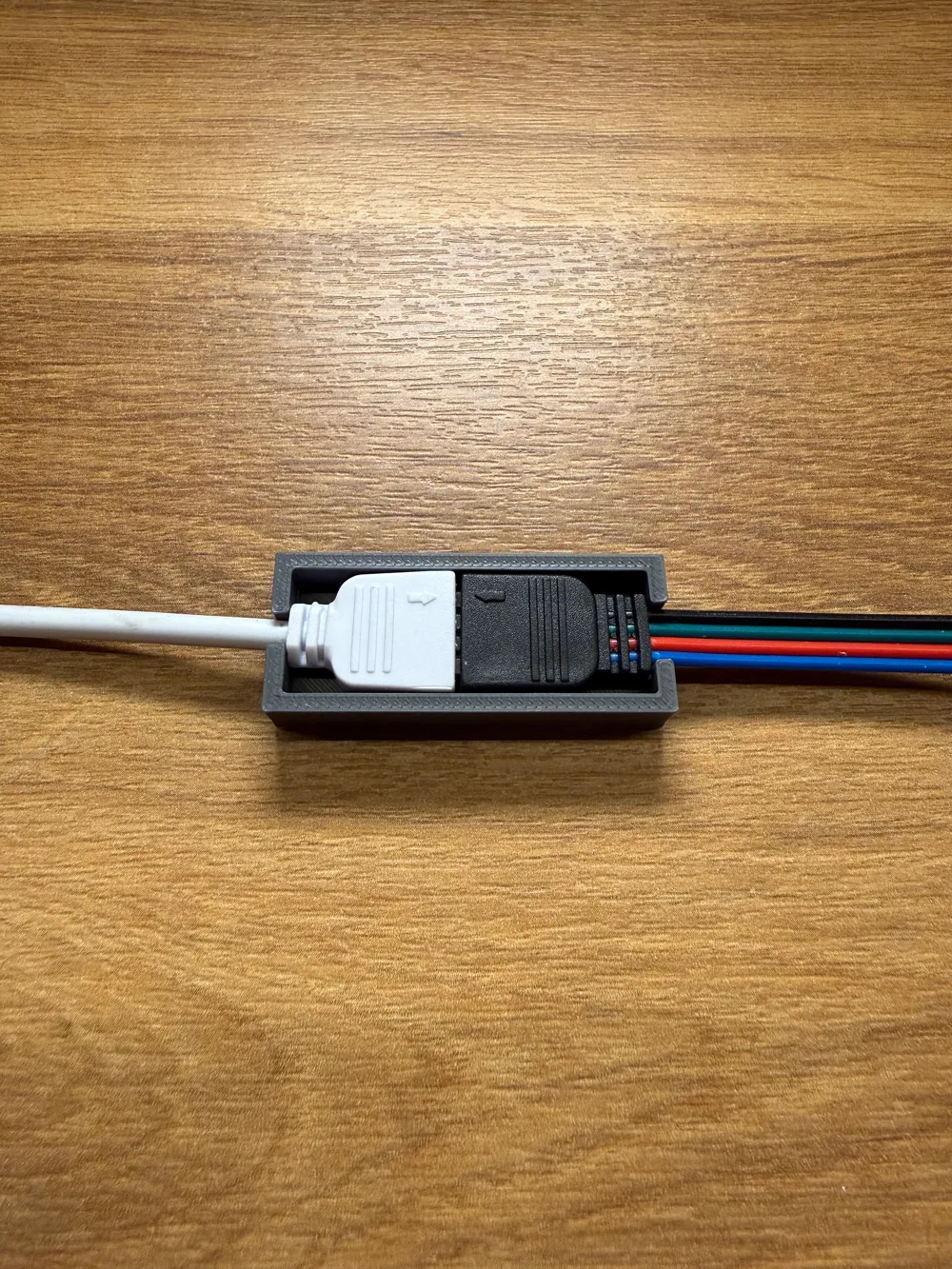

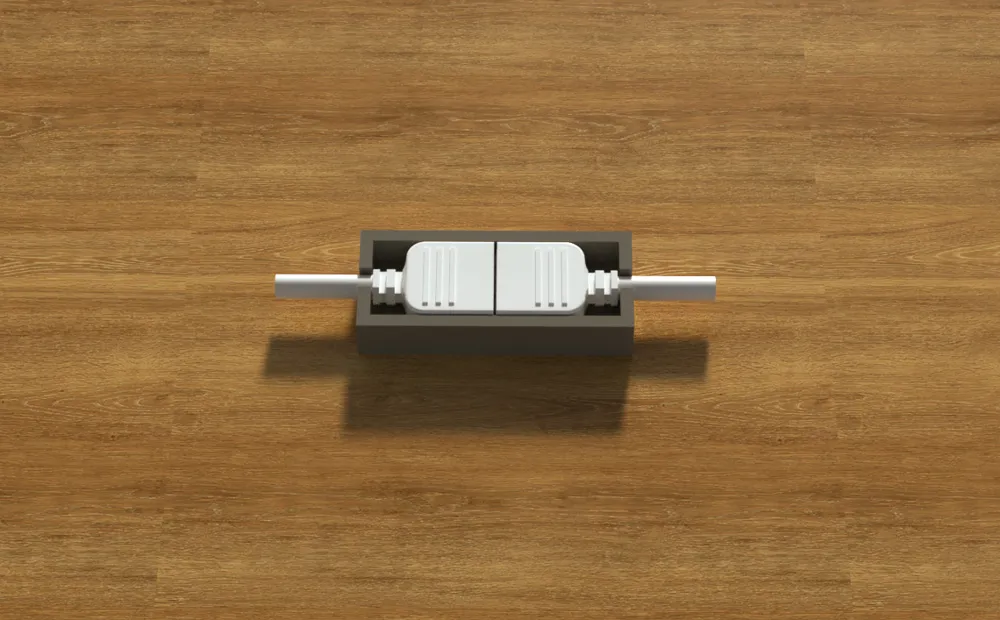

External Female (round cable) → External Male (round cable)
Interior: ~45 mm
- Connect, clip, enjoy!
- No support needed

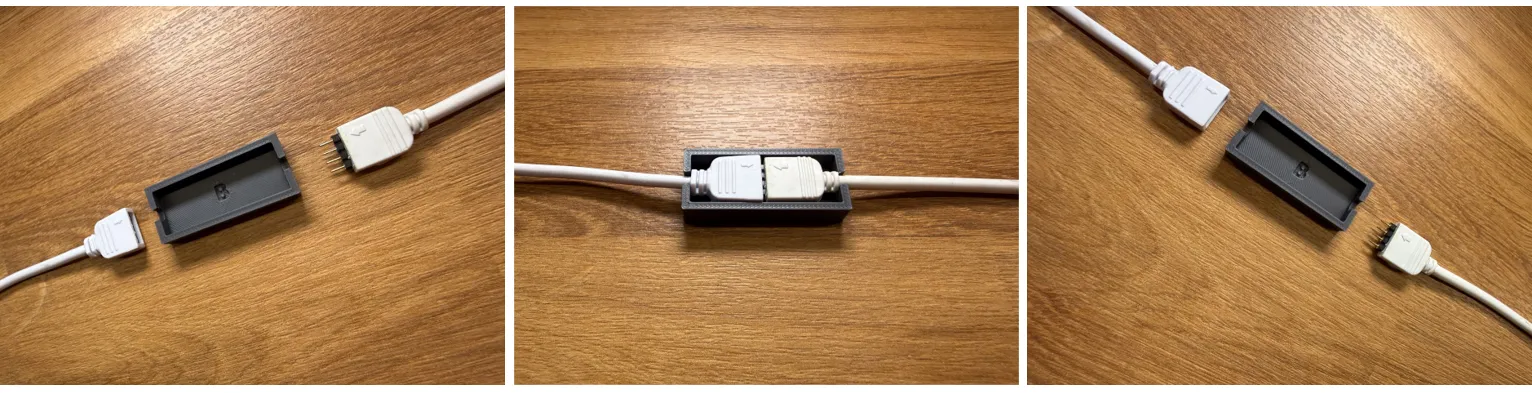

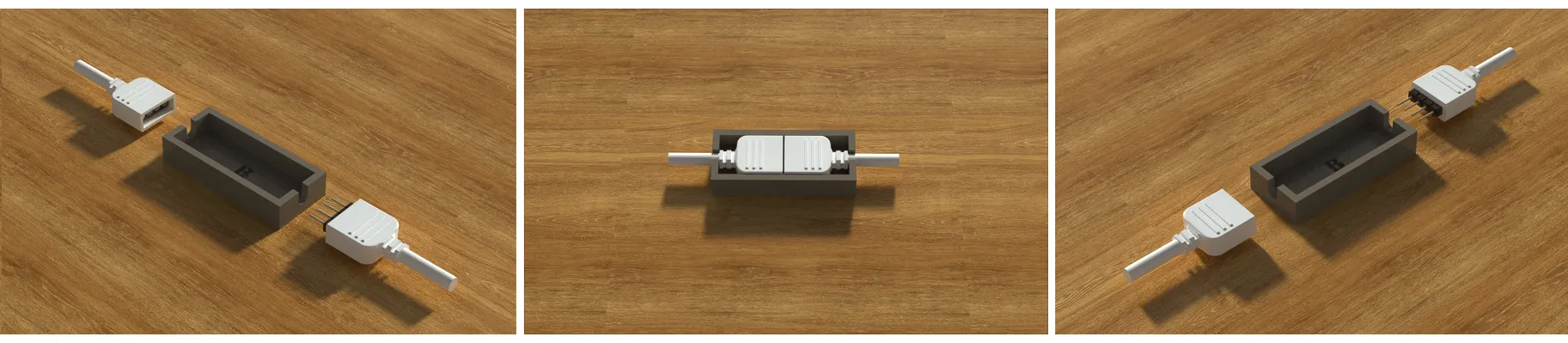

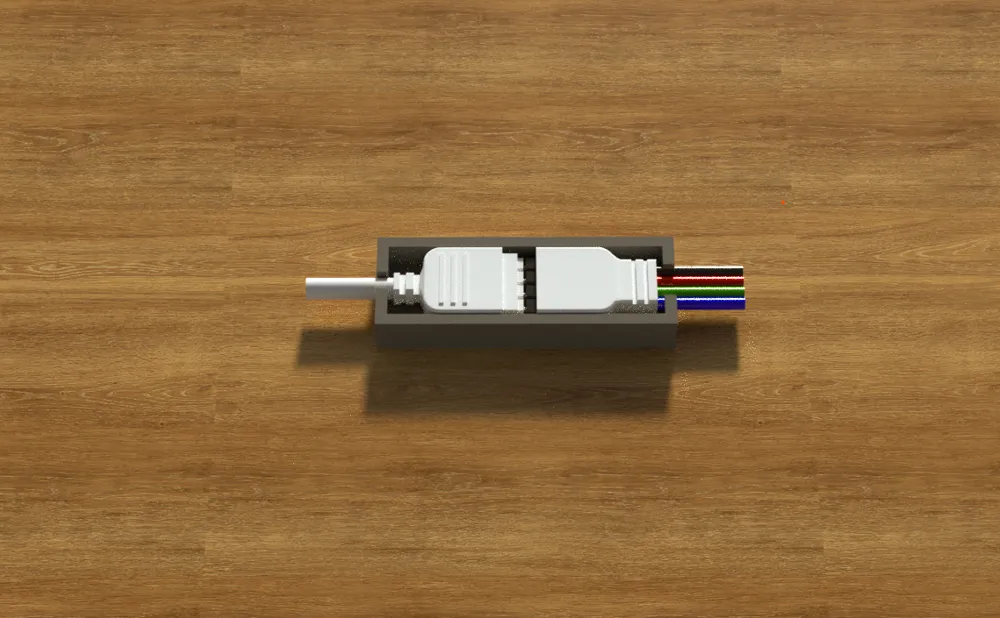

🔰 Solution B

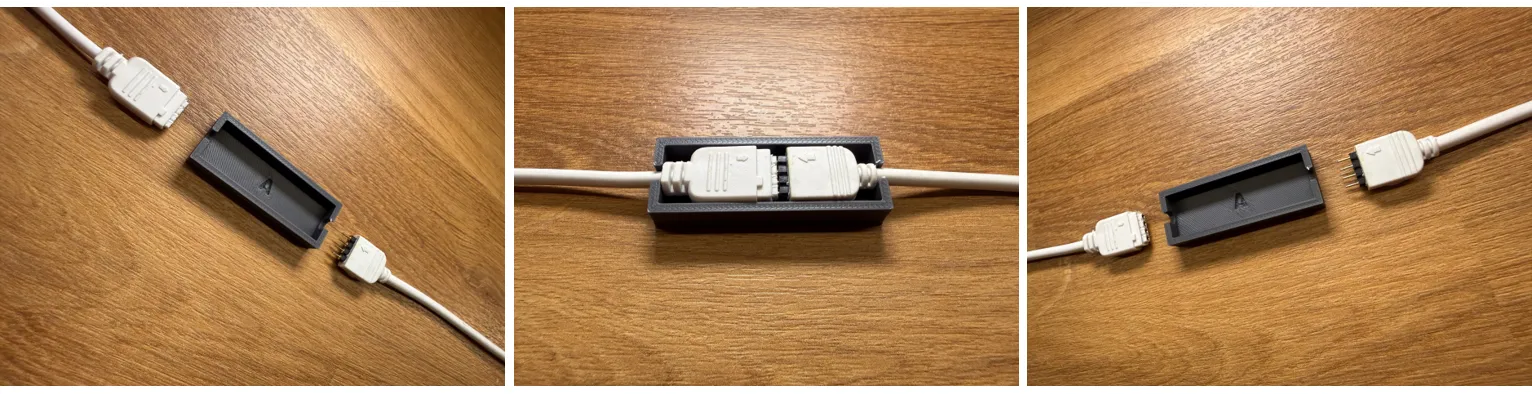

Internal Female (round cable) → External Male (round cable)
Interior: ~38 mm
- Connect, clip, enjoy!
- No support

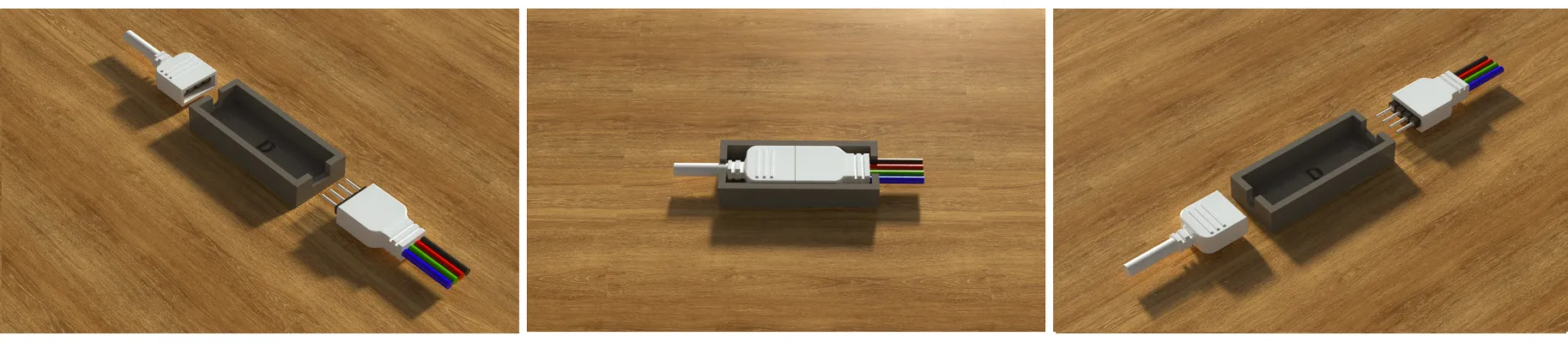

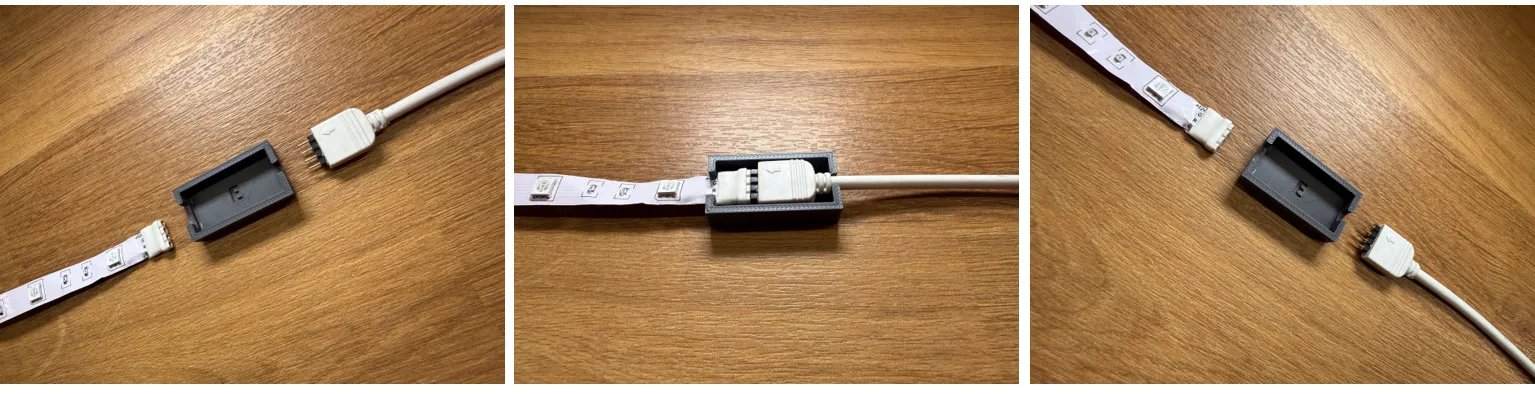

🔰 Solution C

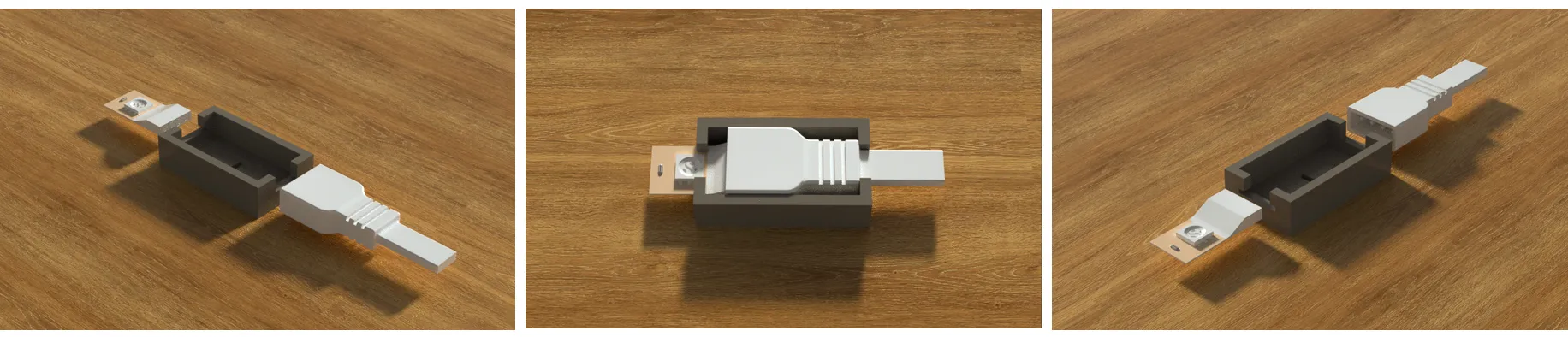

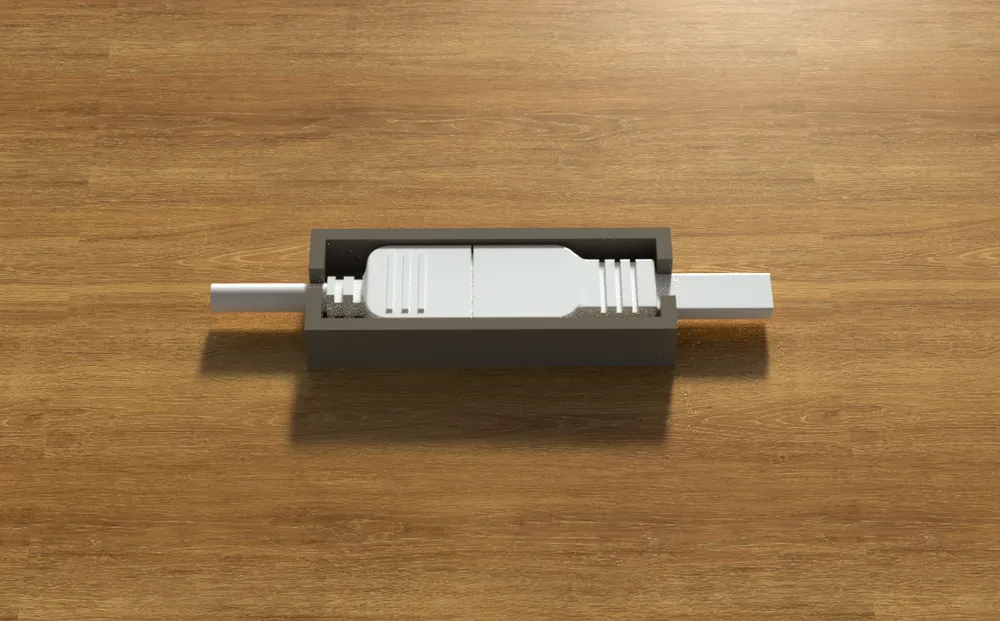

External Female (round cable) → External Male (flat cable 4×1.25 mm)
Interior: ~47 mm
- Connect, clip, enjoy!
- No support

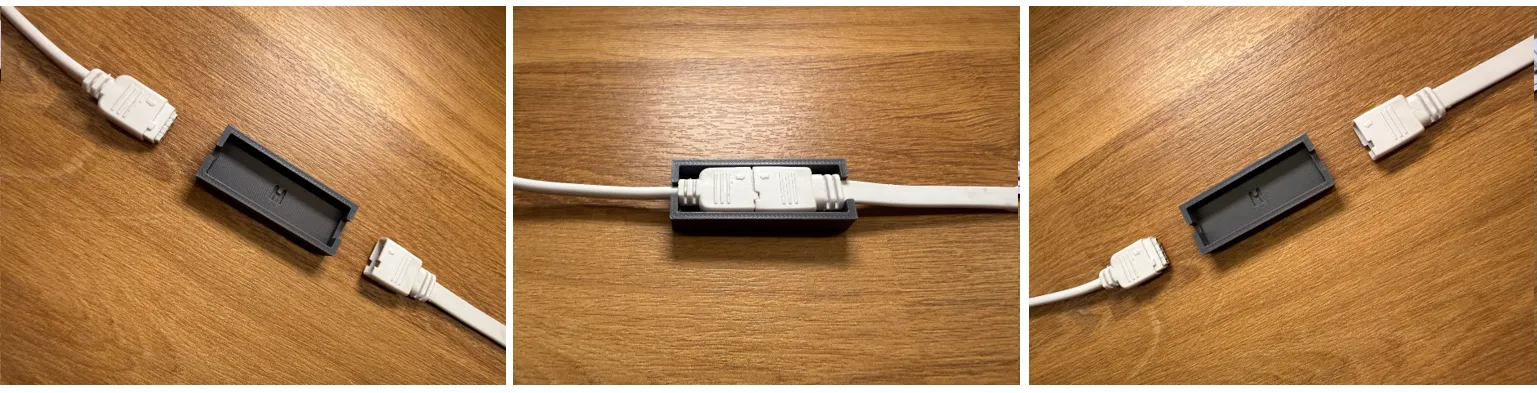

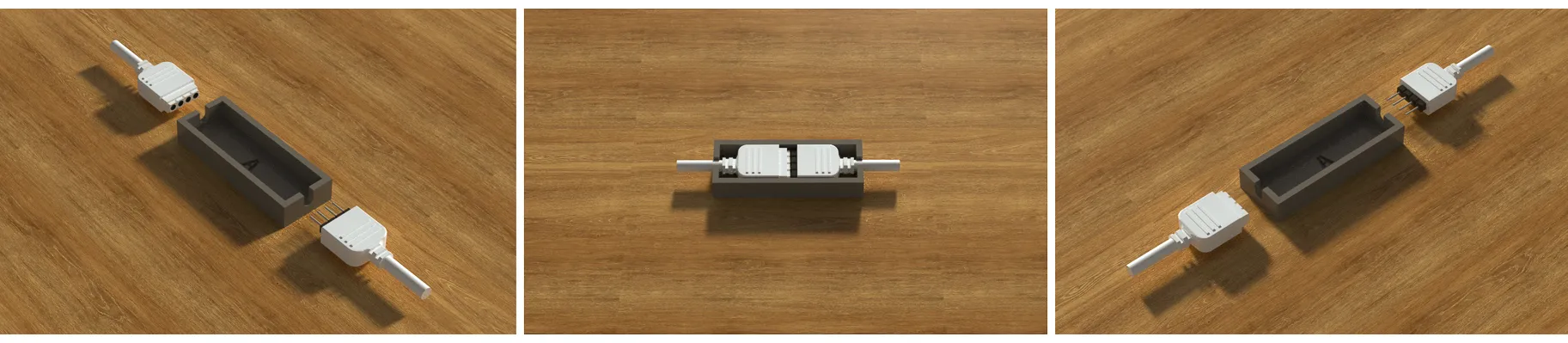

🔰 Solution D
Internal Female (round cable) → External Male (flat cable 4×1.25 mm)
Interior: ~40 mm
- Connect, clip, enjoy!
No support
🔰🔰 LED Solutions (attachment to the LED strip) 🔰🔰

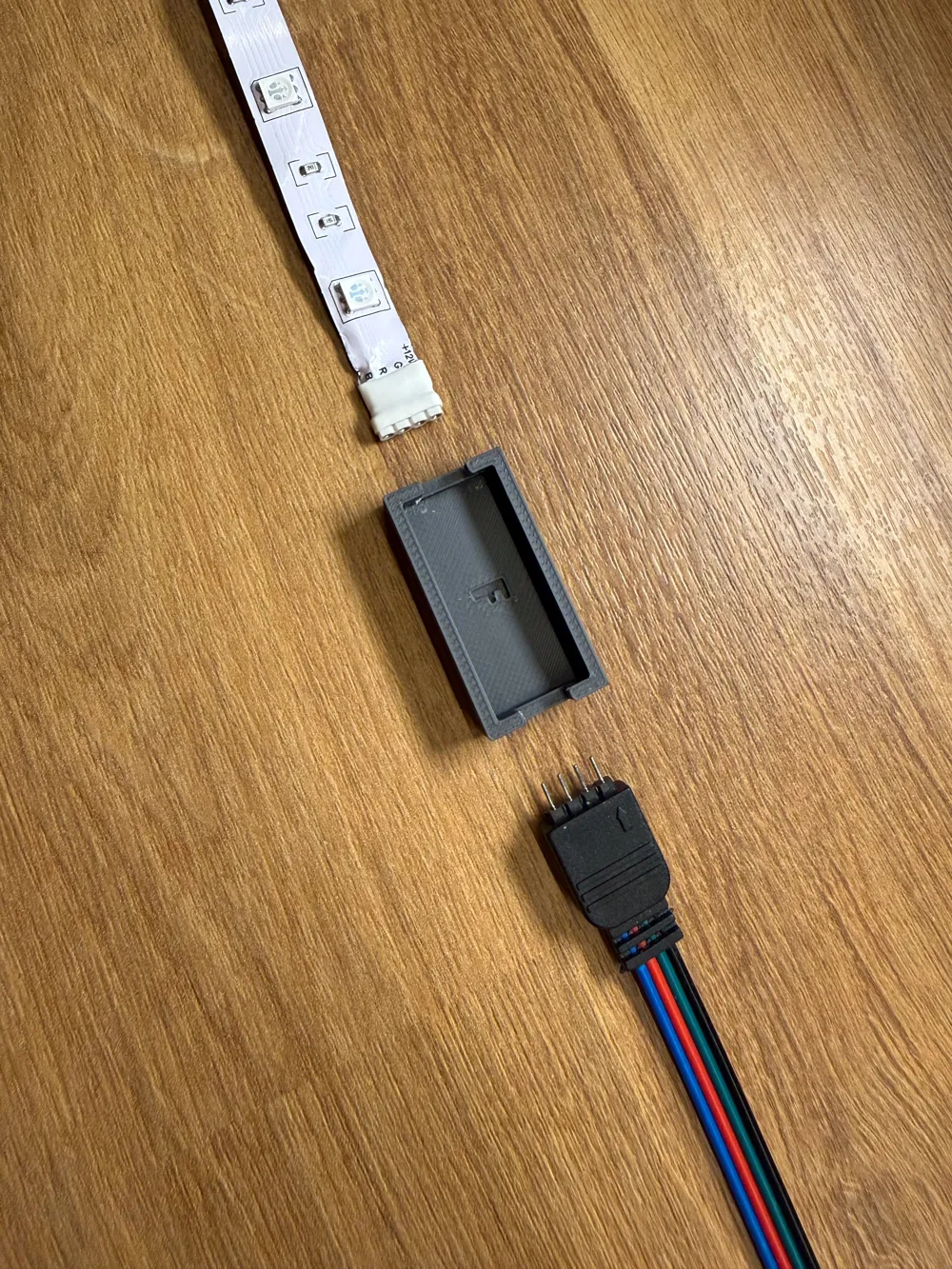

👉 For these versions, first slide the shell 5 cm before the connector, then slide it up until it stops, connect, clip… and enjoy!

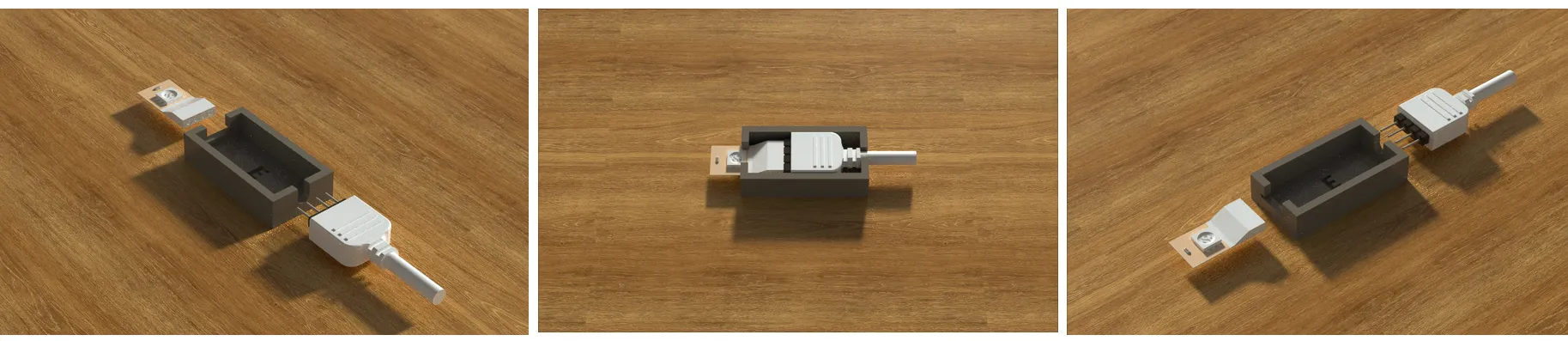

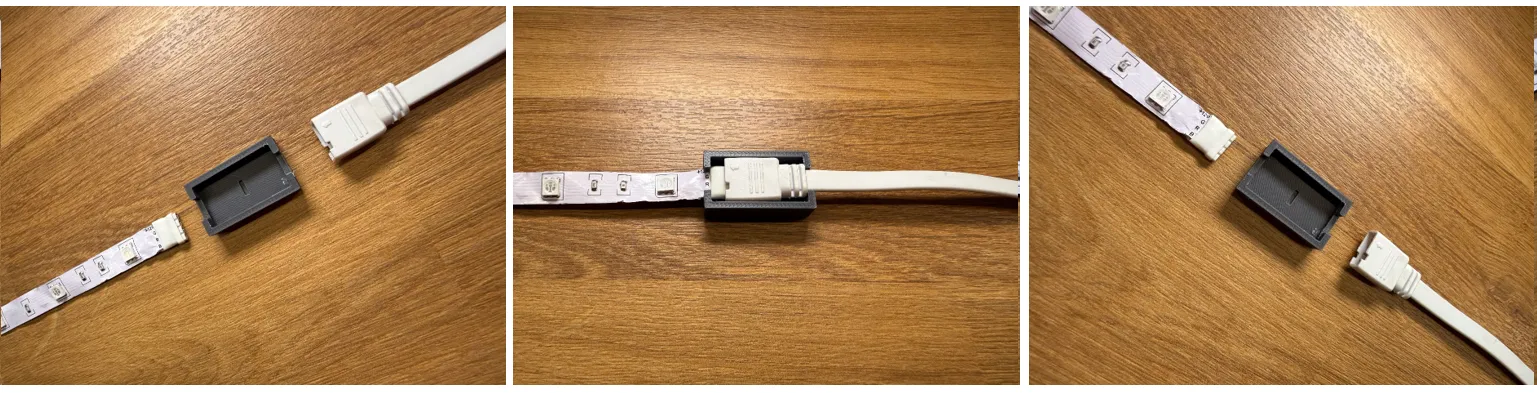

🔰🔰 Solution E

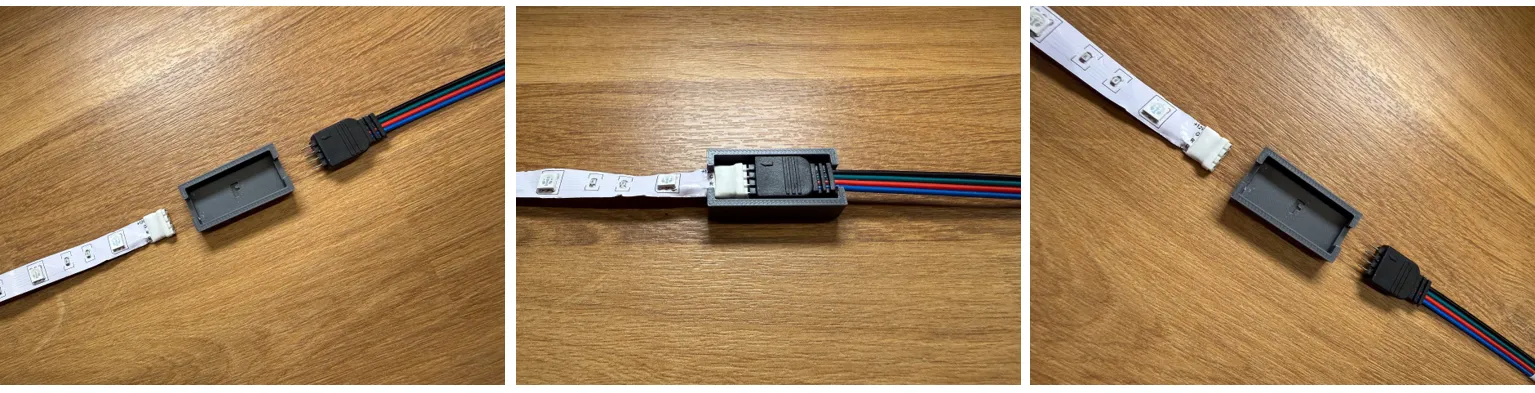

LED Female → External Male (round cable)
Interior: ~30 mm
- Support enabled on LED side only
🔰🔰 Solution F
LED Female → External Male (flat cable 4×1.25 mm)
Interior: ~32 mm
- Support enabled on LED side

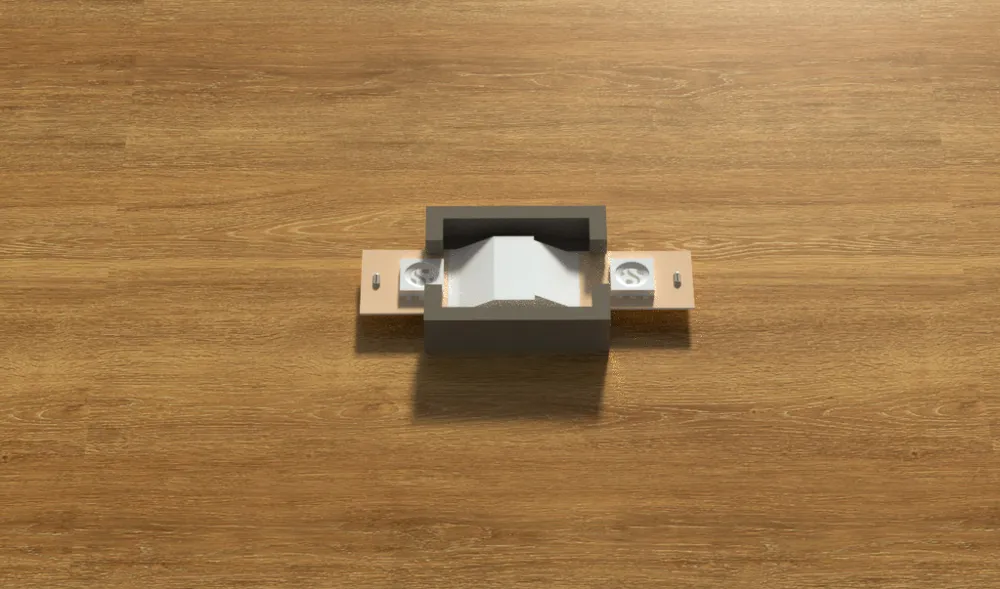

🔰🔰 Solution G

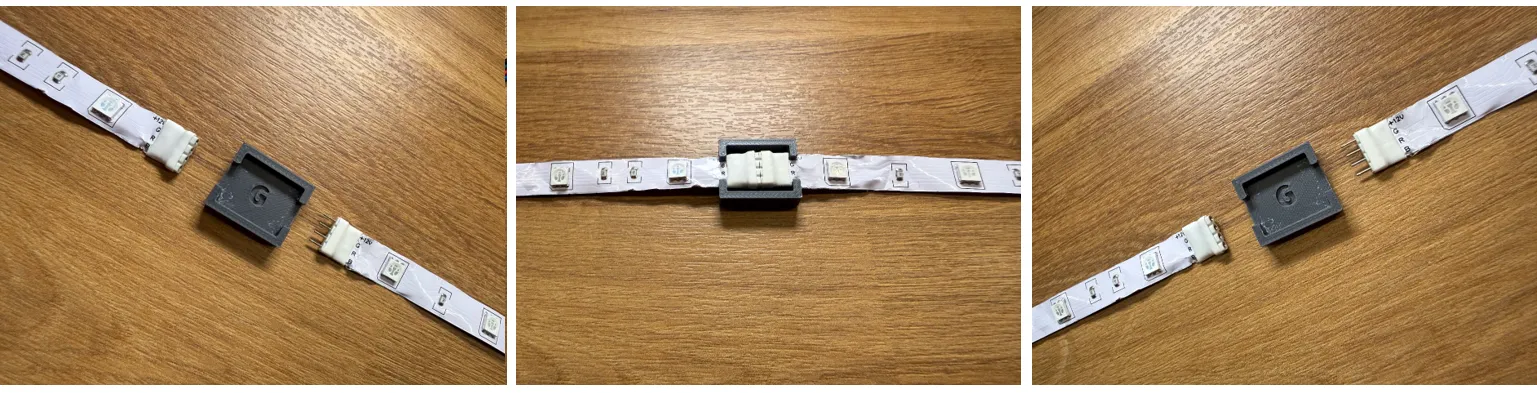

LED Female → LED Male
Interior: ~17 mm
Support enabled on LED side
🔰🔰 Solution H
External Female (round cable) → Internal Male (flat cable)
Interior: ~40 mm
- Connect, clip
- No support

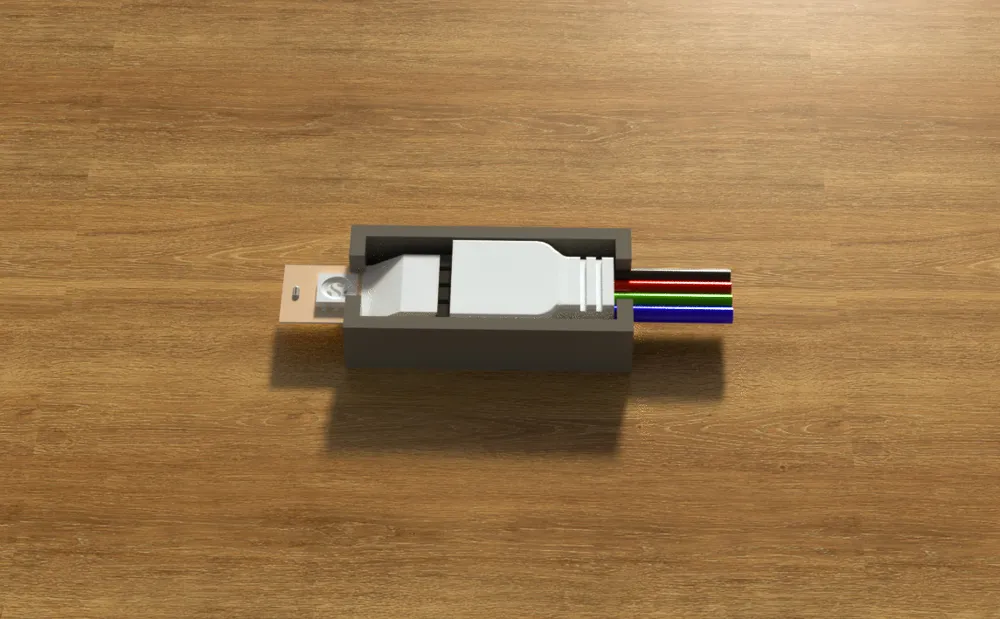

🔰🔰 Solution I
LED Female → Internal Male (flat cable)
Interior: ~23 mm
- Support enabled on LED side

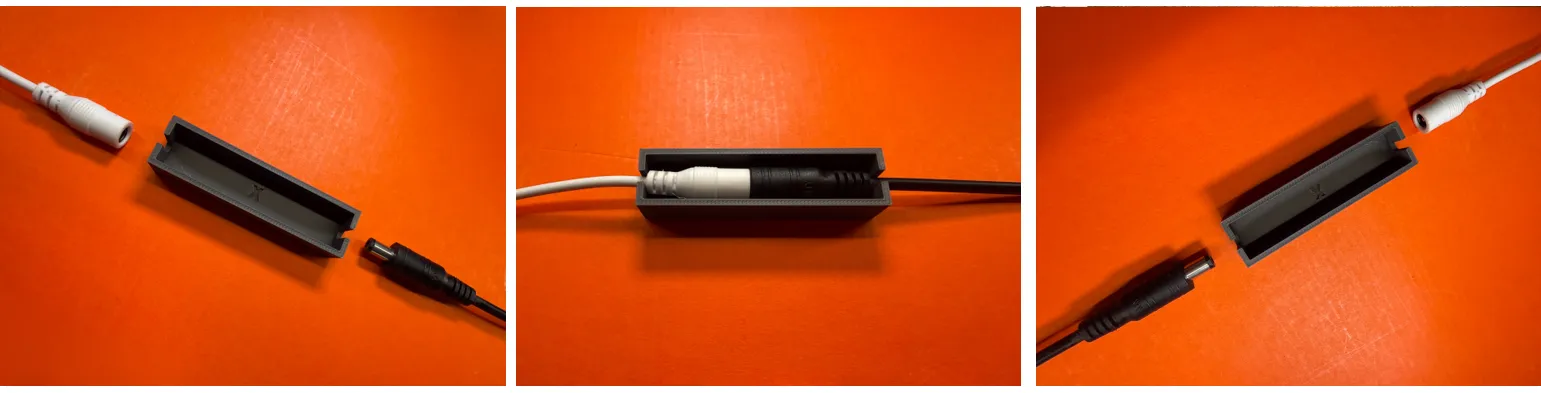

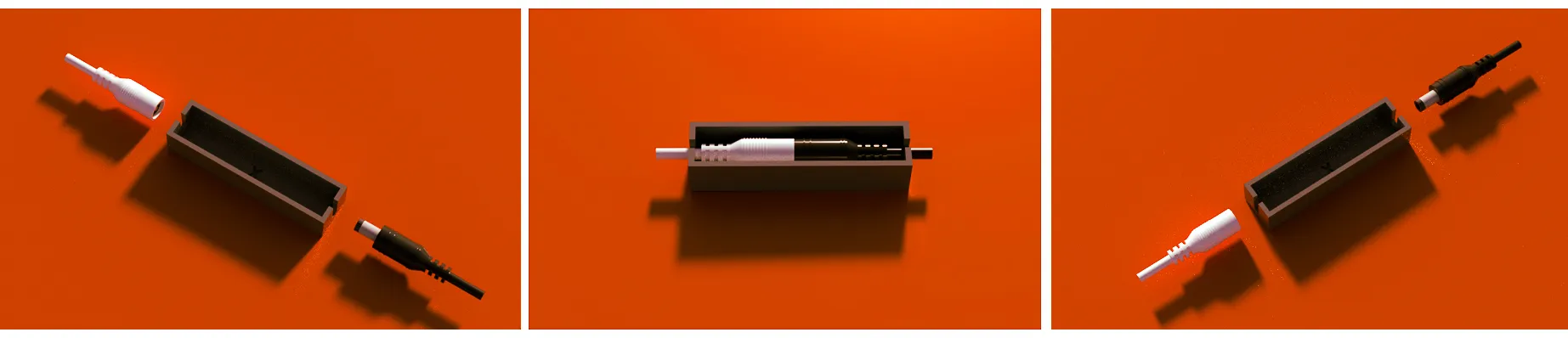

🔰🔰🔰 Bonus X — 5.5 × 2.1 mm Connectors
For power extensions and LED controllers
Interior: ~67 mm
- Connect, clip
- No support
- Start from a similar version
- Modify a dimension on a single axis
- Or create a dedicated print profile
This can be useful to others!
Feel free to leave me a comment, share your photos, drop a like and a boost if you enjoyed it. Happy printing everyone!
