Air Purifier (Docks with X2D/P2S external exhaust duct/Compatible with Xiaomi filter)
Print Profile(1)
Description
Click to download X2D/P2S External Exhaust Port Guide
Assembly Demonstration
---Applicable to Xiaomi Air Purifier 1st/2nd/2S/3rd/Pro filter elements (outer diameter 200mm, height 290mm) with interface diameters: 10/8/6/5cm
---plate 1 is for air purifier, plate 2 is for duct interface. Supports X2D/P2S official external exhaust duct kit, allowing the exhaust pipe to be connected directly to the purifier interface to achieve "0 emissions"
---Note: Please carefully observe the sliced supports; a small amount are inside the base. Use tweezers to clean them thoroughly when removing to avoid abnormal noise. Since the model has a large base, be sure to thoroughly clean the print bed to avoid warping
--accessories list:

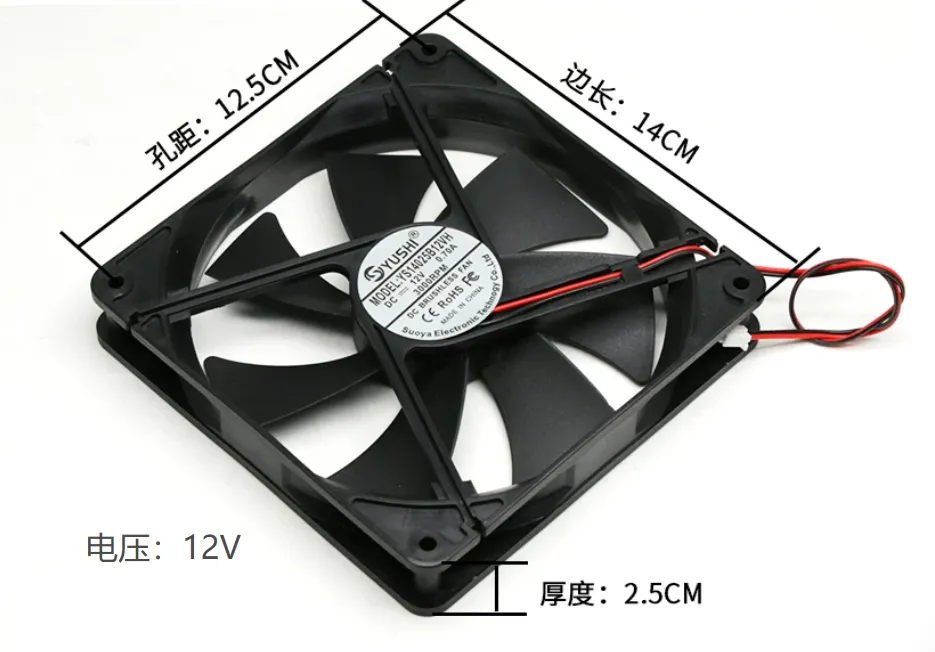

12V-140X140X25mm fan (fans with very sharp corners are not applicable) (1 piece) (compatible with 120X120mm)
PWM DC motor speed controller (1.8-12V adjustable switch) (1 piece)

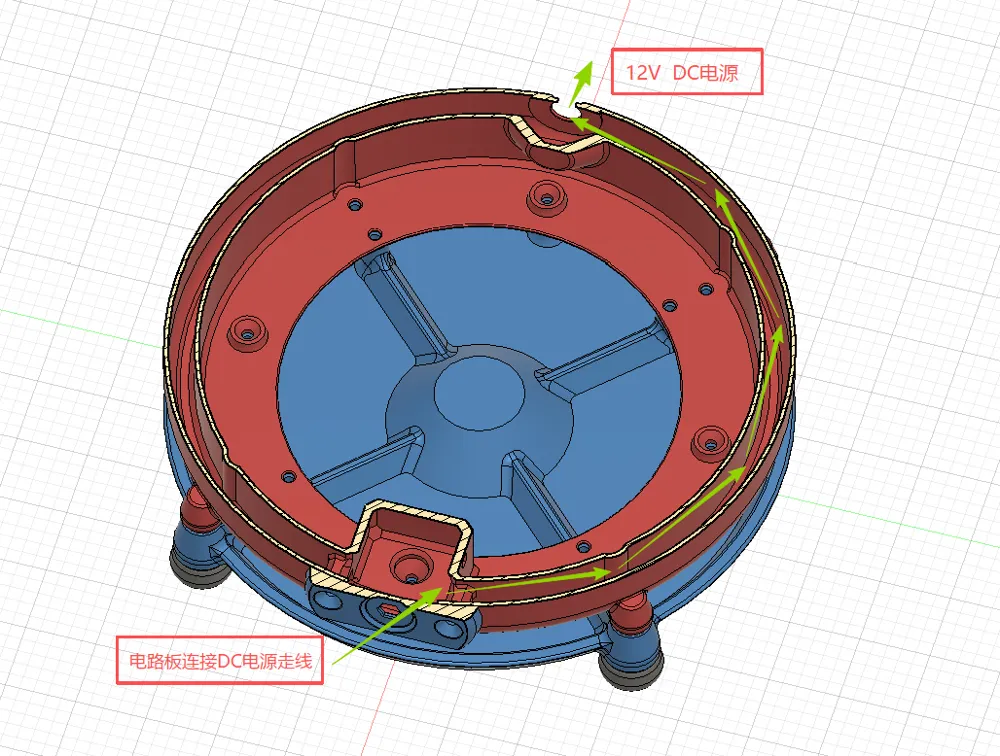

DC power jack 5.5X2.5 - snap-in type - concentric shaft - opening: 11mm (1 piece)
Drywall screws: 3.5X15mm (6 pieces) 3.5X30mm (4 pieces) 3.5X40mm (4 pieces)
2-core wire (300mm)
Auxiliary tools:
Soldering iron related / Mini Phillips screwdriver / Large Phillips screwdriver / Tweezers
Wishing all fellow enthusiasts good health and happy printing
