Stylized Led Strip Christmas Tree - NO SUPPORT

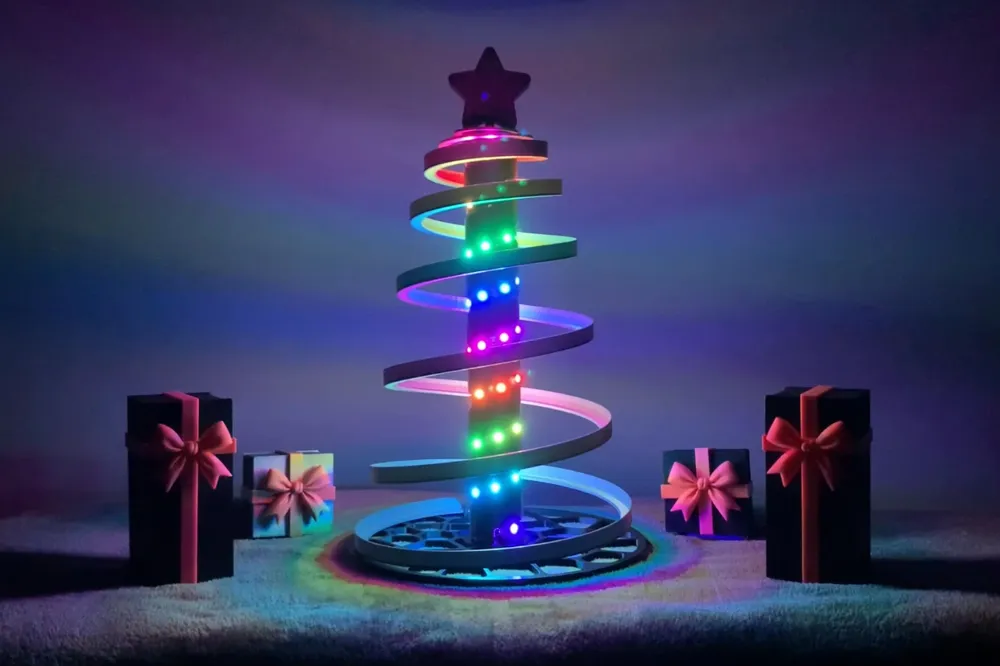

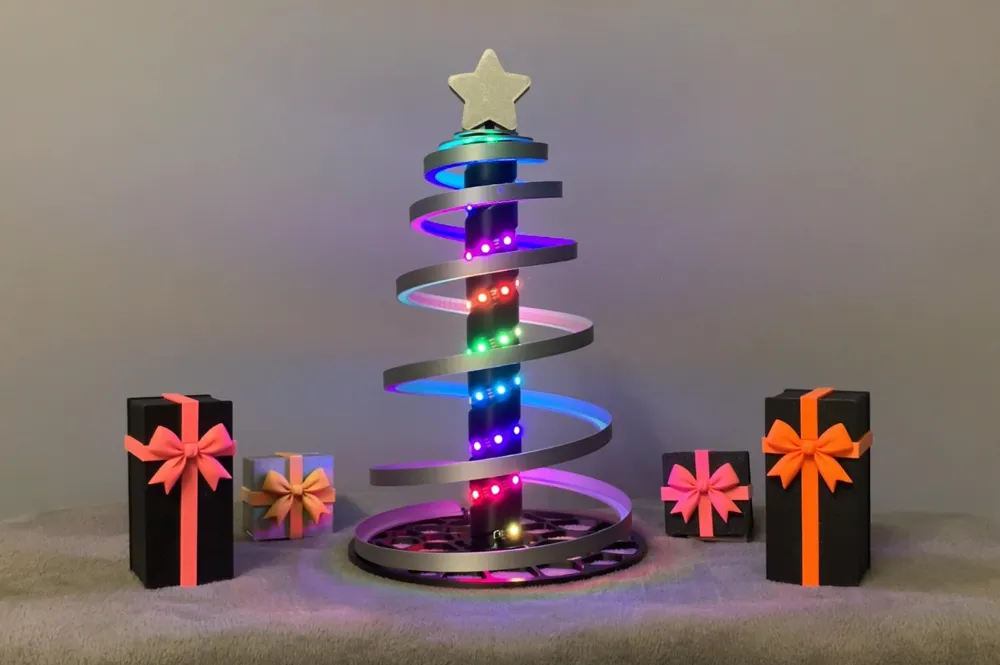

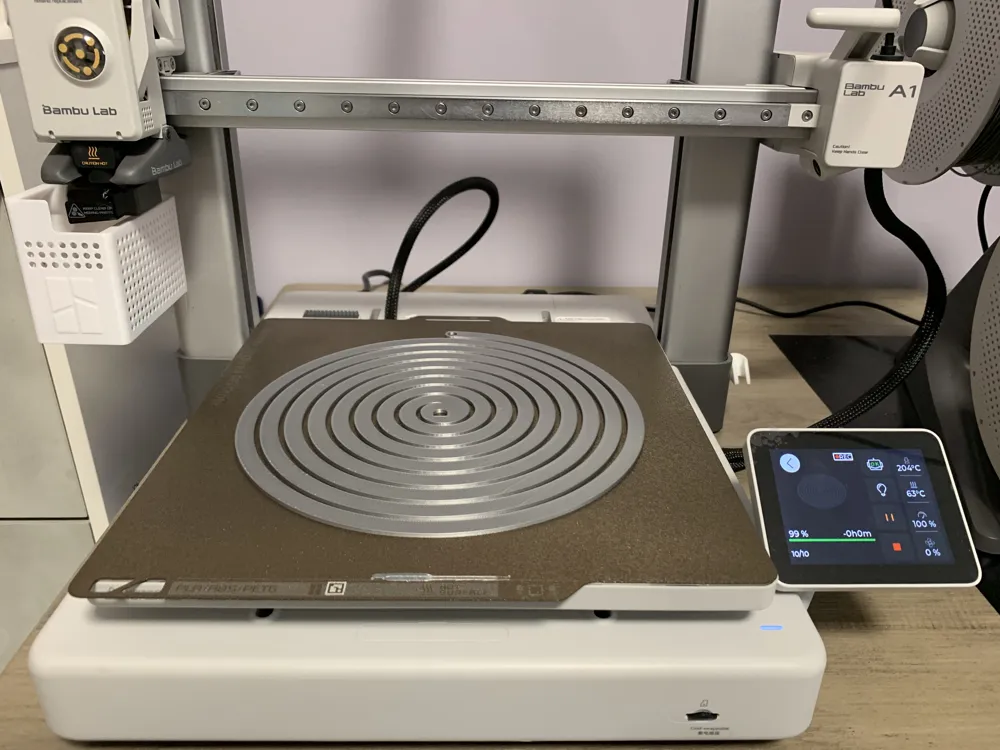

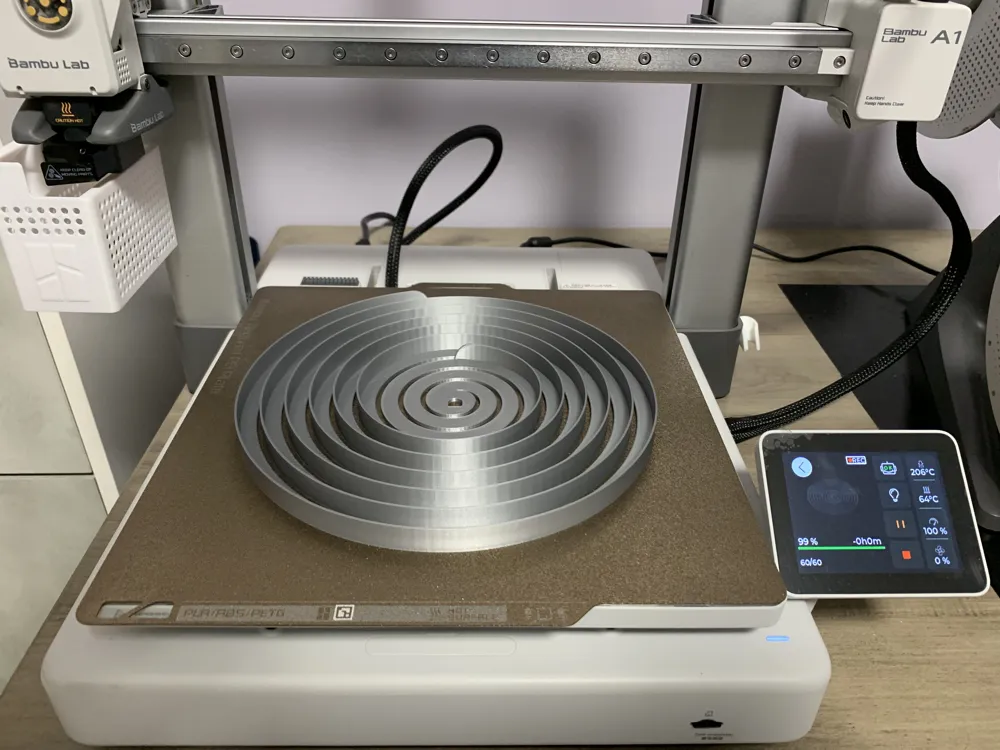

This is a gorgeous Christmas tree designed with Fusion 360. I wanted to create something stylized yet impactful, easy to print and assemble. I also simplified the gluing of the LED strip by building the central pylon 3 mm inward to create the path where the 1-meter LED strip is glued, making gluing really easy. The model is 365.78 mm tall once assembled. The whole thing can be printed without any support, designed down to the smallest detail for simple printing and assembly. I inserted an alternative spiral, in my opinion much better because the reflection of the LED strip on the wall of the spiral is even more noticeable, i used Bambulab black and silver PLA; feel free to vary the colors as you like. I hope you enjoy it...

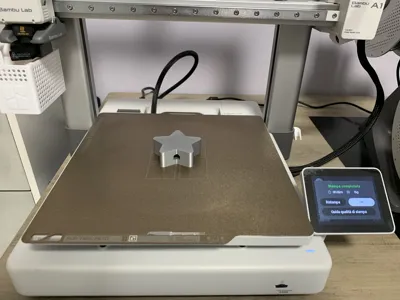

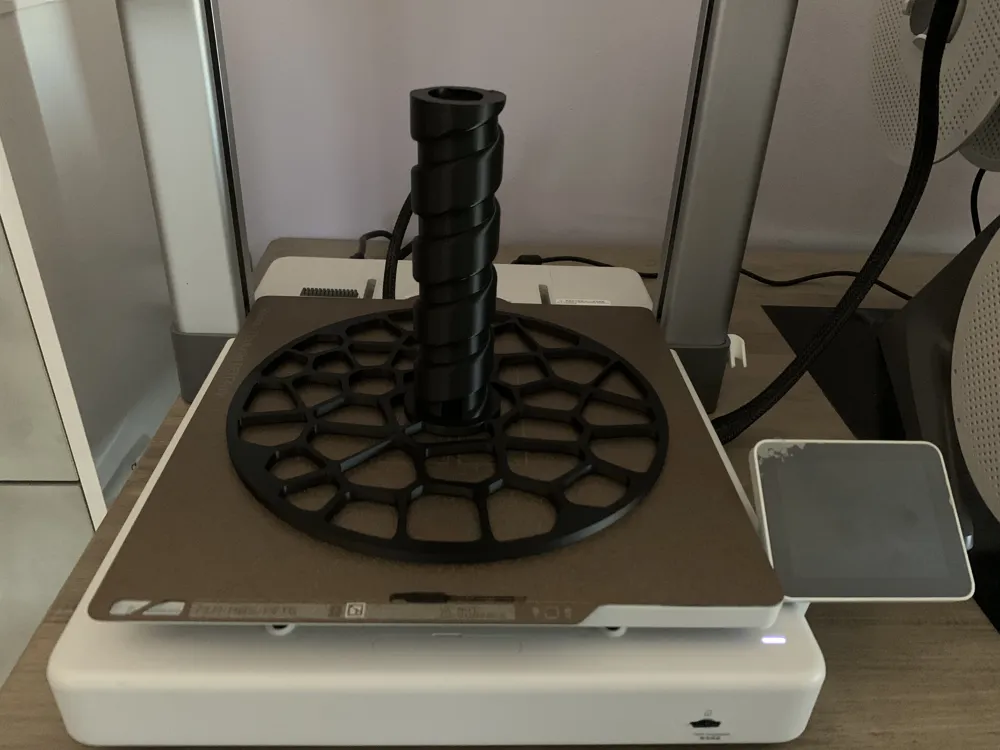

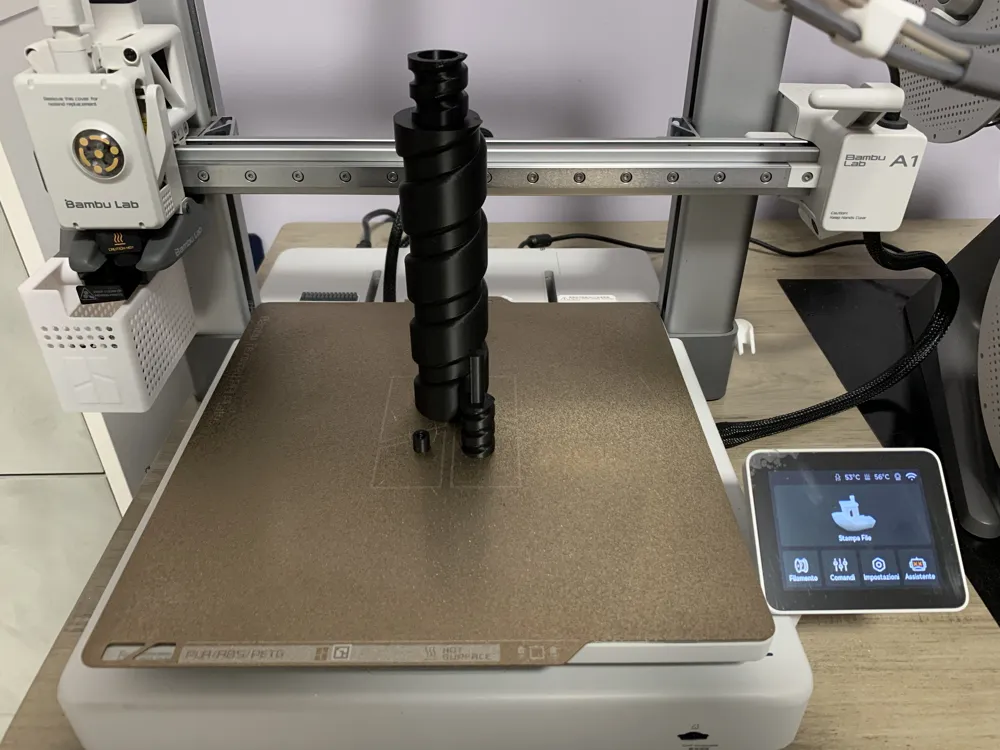

For assembly it is really simple, screw the pillar to the one on the base and using the printed T-key also screw the pin where the spiral at the top and the star will later fit, then unroll the one-meter LED strip completely and pass it from the back side (the back side is the hole closest to the screw where the spiral is positioned, so to speak) and bring it out from the other side of the central pillar, then thanks to the track that I prepared you just have to attach the LED strip up to the top continuing along the track, there will be a few mm of excess strip, so cut the strip where you are allowed to cut it, now insert the spiral as I told you before into the thread positioned on the base and screw well, then take the narrowest part of the spiral and hook it to the pin coming out of the pillar and insert the star, finished!

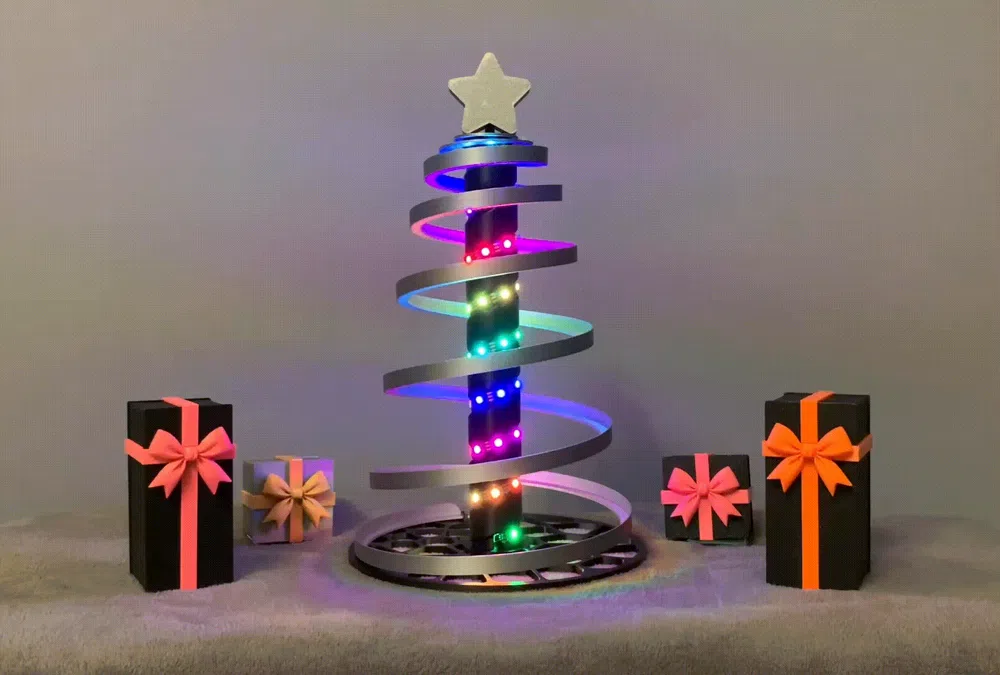

If you like the gift boxes in the moving image they are among my projects…

I hope you enjoyed this project. If so, please download it and leave a nice photo and the appropriate star rating in the comments. It's important to remember this! =)
