55mm Tuning Filter Simson S51/S50
Print Profile(1)
Description
đïž Simson Tuning Air Filter Set for S51 & S50
Increase the performance of your Simson S51 or S50 with this tuning air filter set! This comprehensive package is specifically designed to provide your machine with an optimized air supply and thus lay the foundation for tuned engines.

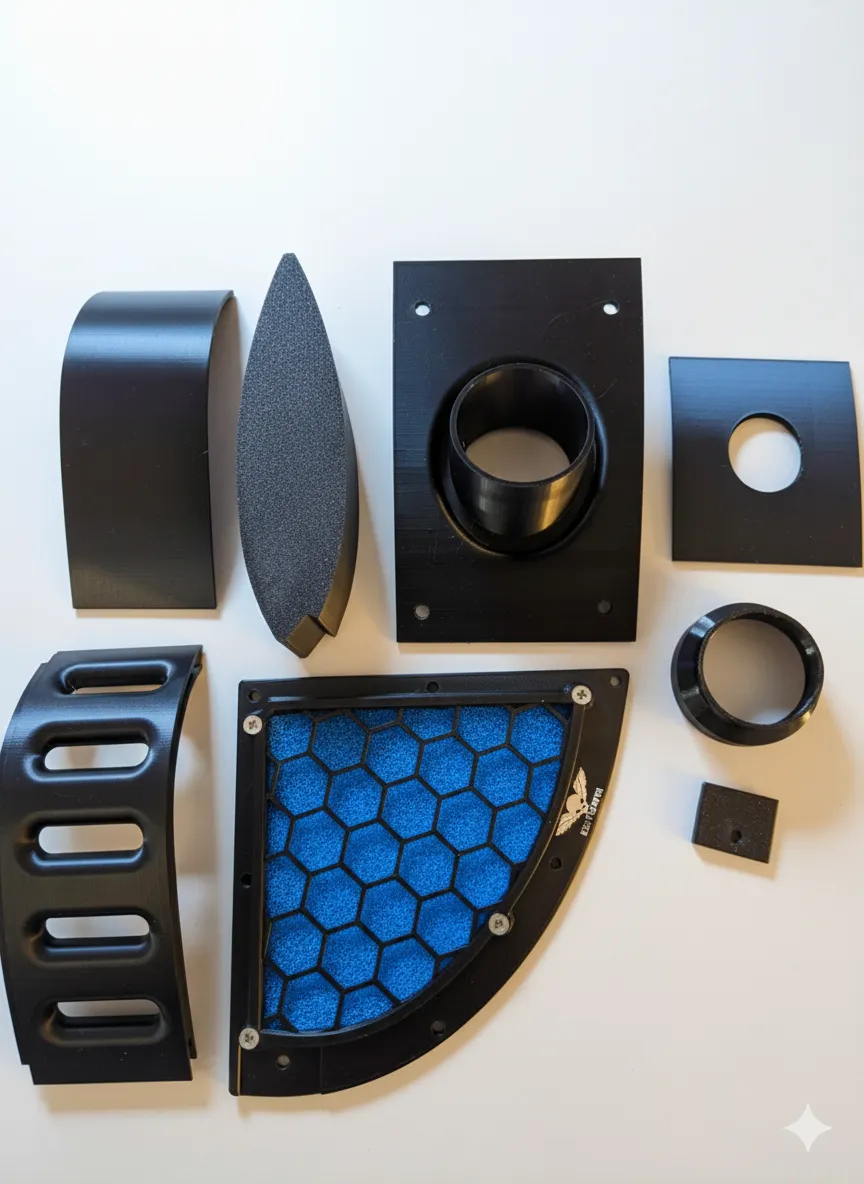

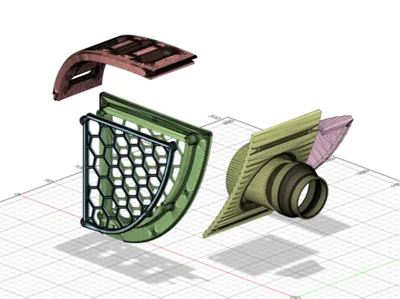

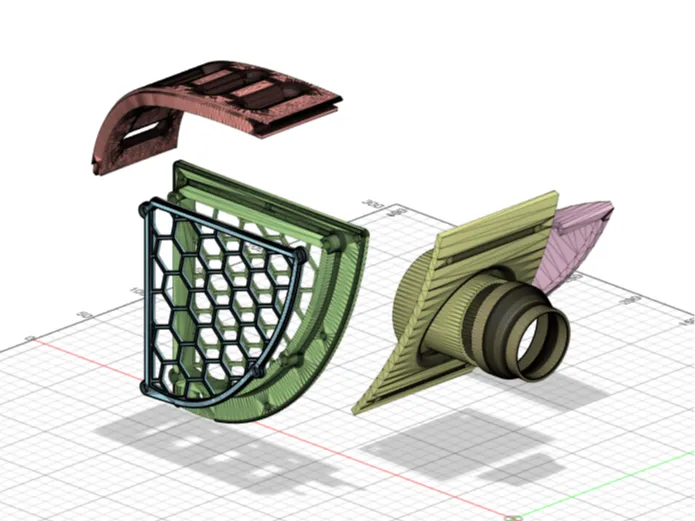

What the Set Includes :

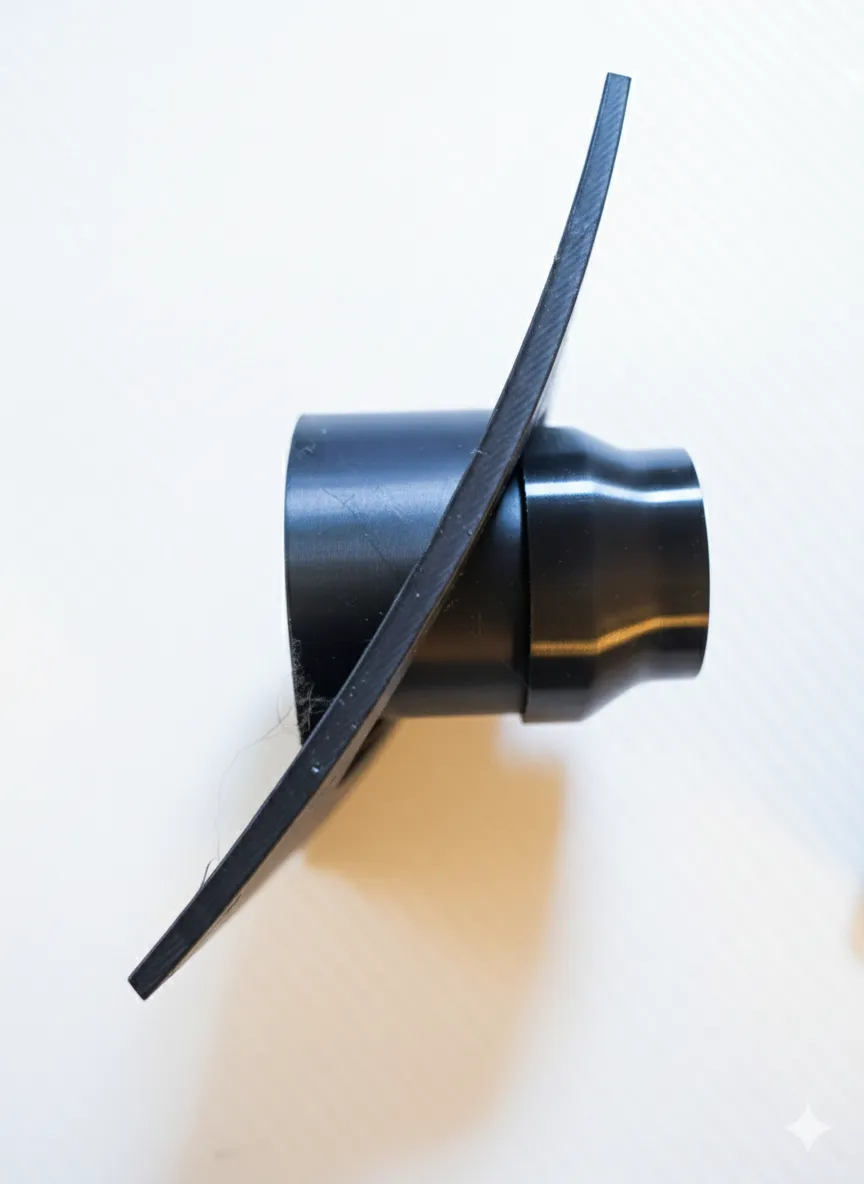

- 55mm Air Filter Outlet: For significantly improved air intake.

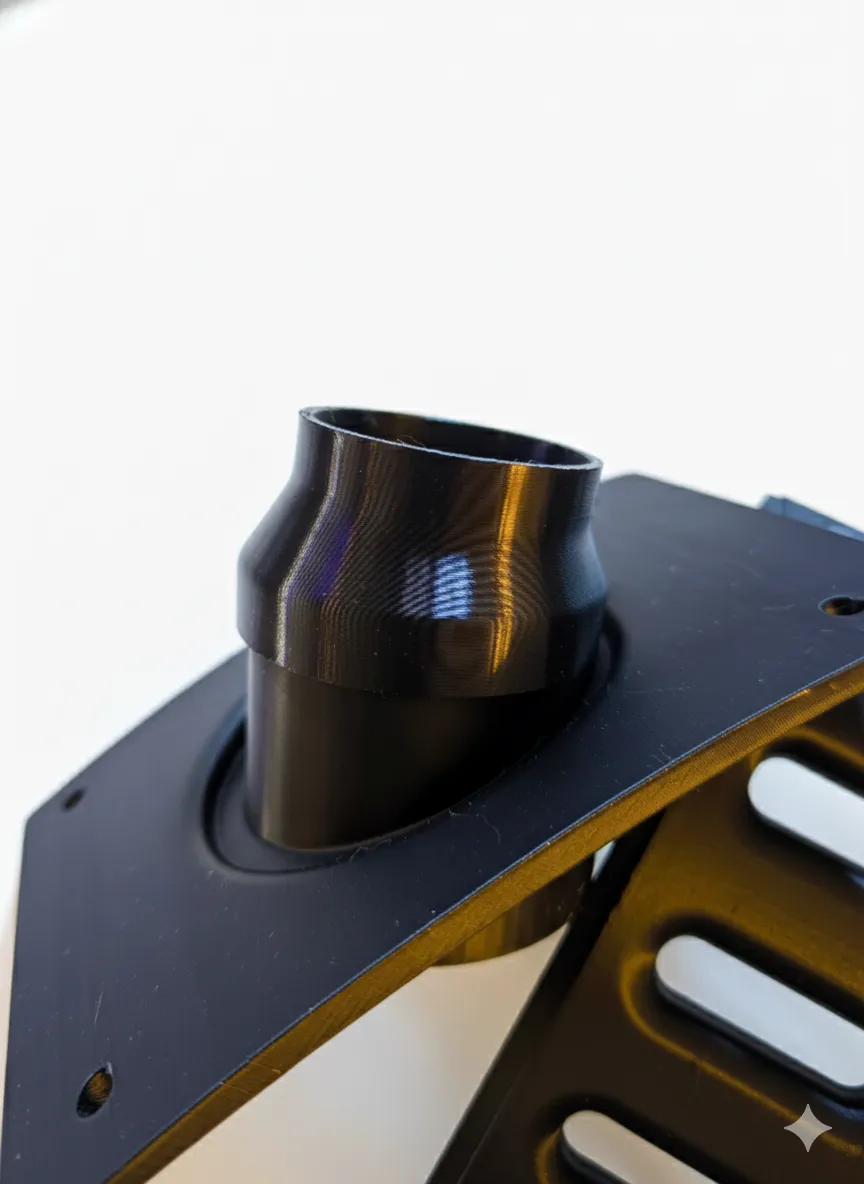

- 55mm Air Filter Inlet: An enlarged inlet that allows for a higher air mass â essential for performance-enhanced engines.
- Airbox Extension: Increases the volume of the airbox for an optimized airflow.
- Carburetor Connection for Mikuni VM 20-26: Perfectly matched to common Mikuni VM carburetors in sizes 20-26.
- Carrier for Filter Mat: Provides stable and precise support for your filter mat.
- 2x Cutting Templates: For the air filter inlet and outlet â making precise adjustment of your airbox easier.
Important Note on Assembly â ïž
To install this set, cutting and gluing work on the original airbox is necessary.
Additional Materials Required :
- Filter Mat: e.g. Malossi Red Sponge
- 4x M4 Threaded Inserts
- 4x M4x8 Countersunk Screws
- Body Adhesive: Needed for bonding the airbox extension and filter outlet to ensure a 100% seal.
Material Recommendation for Durability
To ensure longer durability and resistance, I recommend at least PETG as the material for the printed parts. Optimal is using ASA. For the carburetor connection ASA.
Your Advantages at a Glance:
- More Power: The increased air mass ensures better engine filling.
- Precise Fit: Developed for Simson S51 and S50 models.
