Simple Hole Jig for Ecological Board Splicing
Print Profile(1)
Description
A small, not very useful item.....

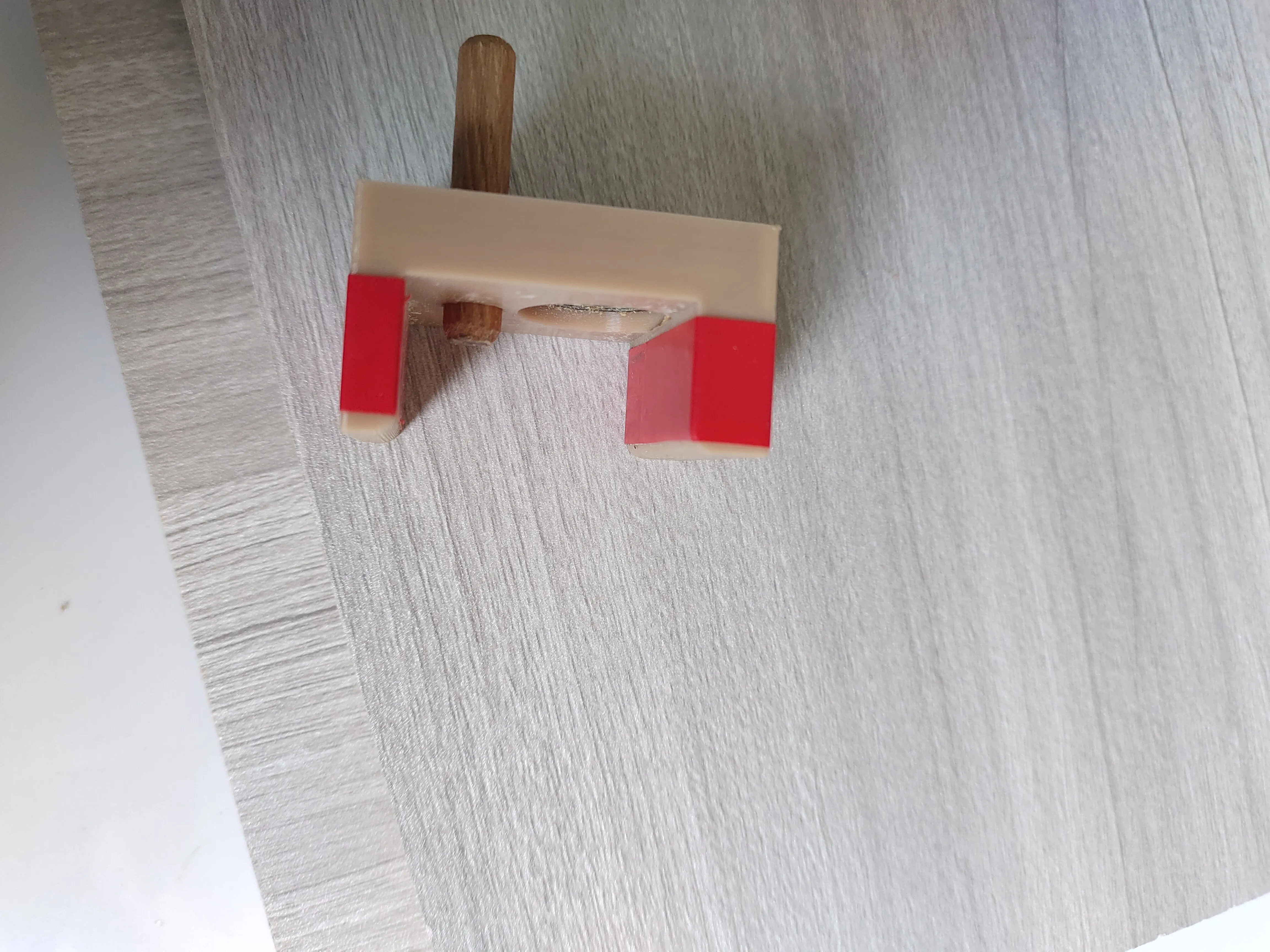

For positioning holes when joining 17mm woodworking ecological boards with wooden dowels (8mm diameter)

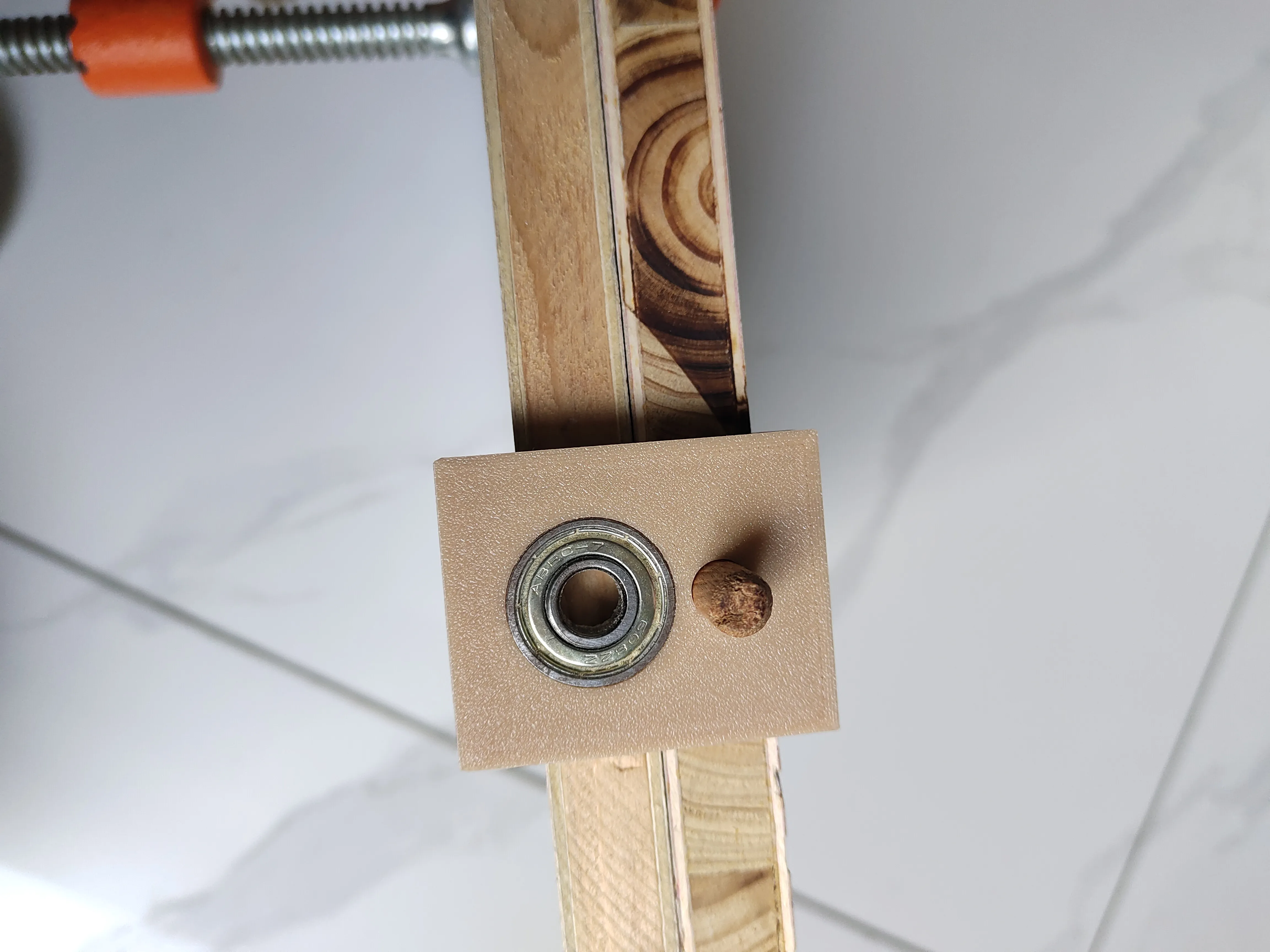

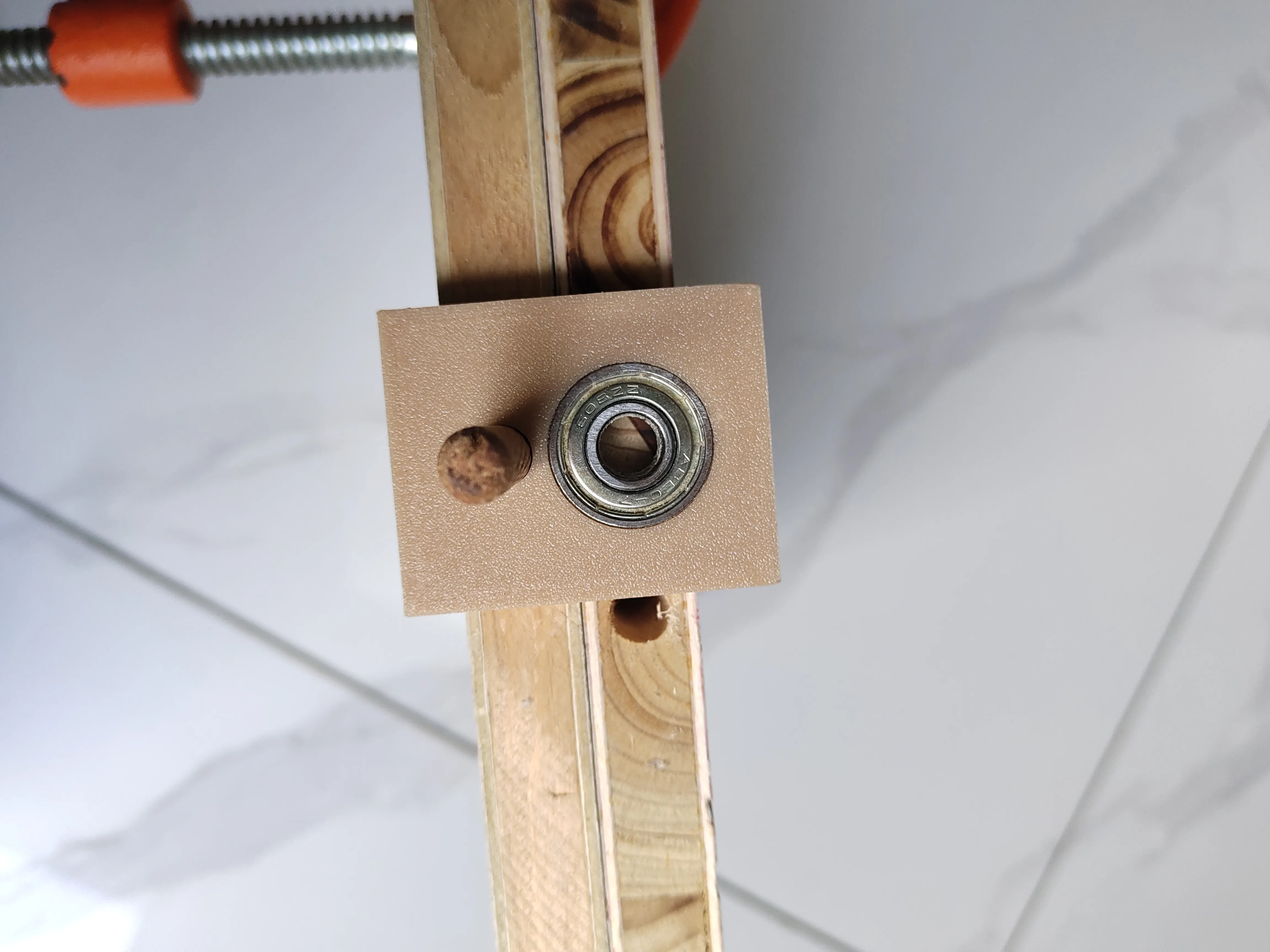

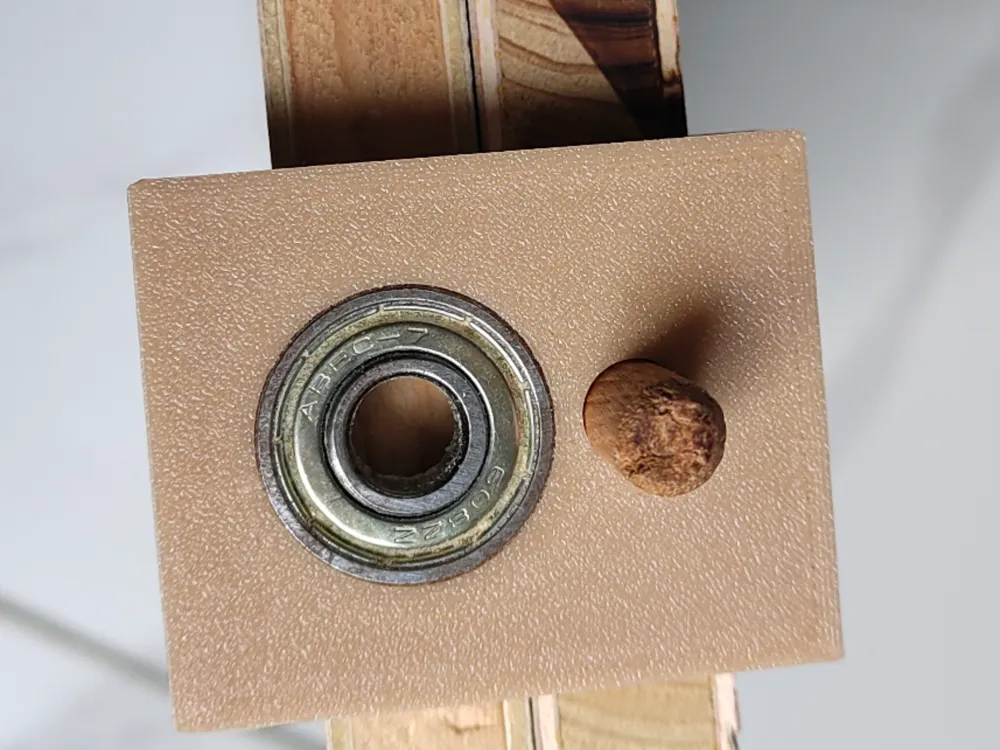

The drilling part uses 608ZZ bearings, two can be inserted for better vertical accuracy. Secure the board with a clamp, flip it after drilling, and insert the wooden dowels to fix it, then drill the other side. If there's a tolerance in the wood board, you can wrap two layers of electrical tape.
