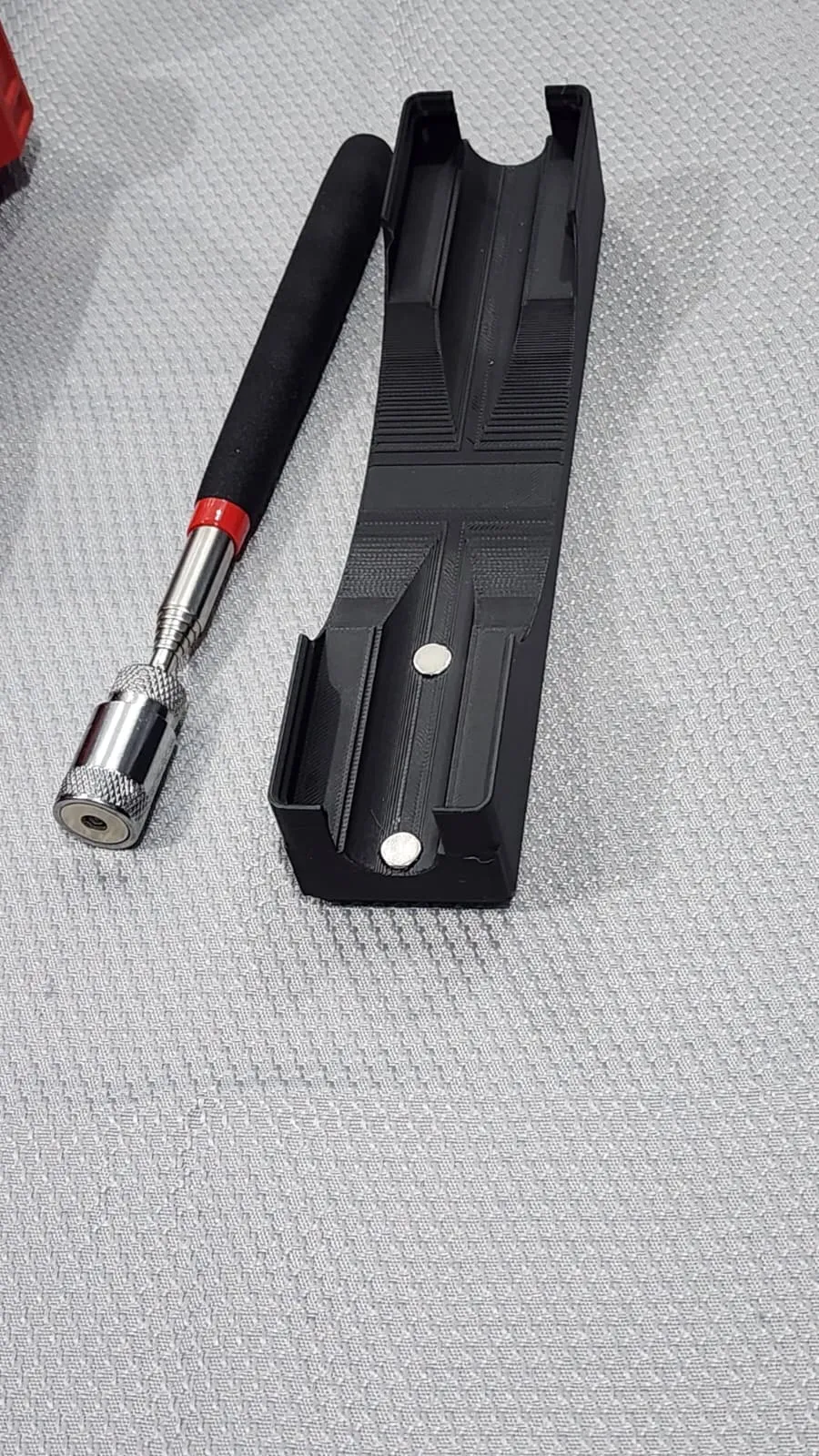

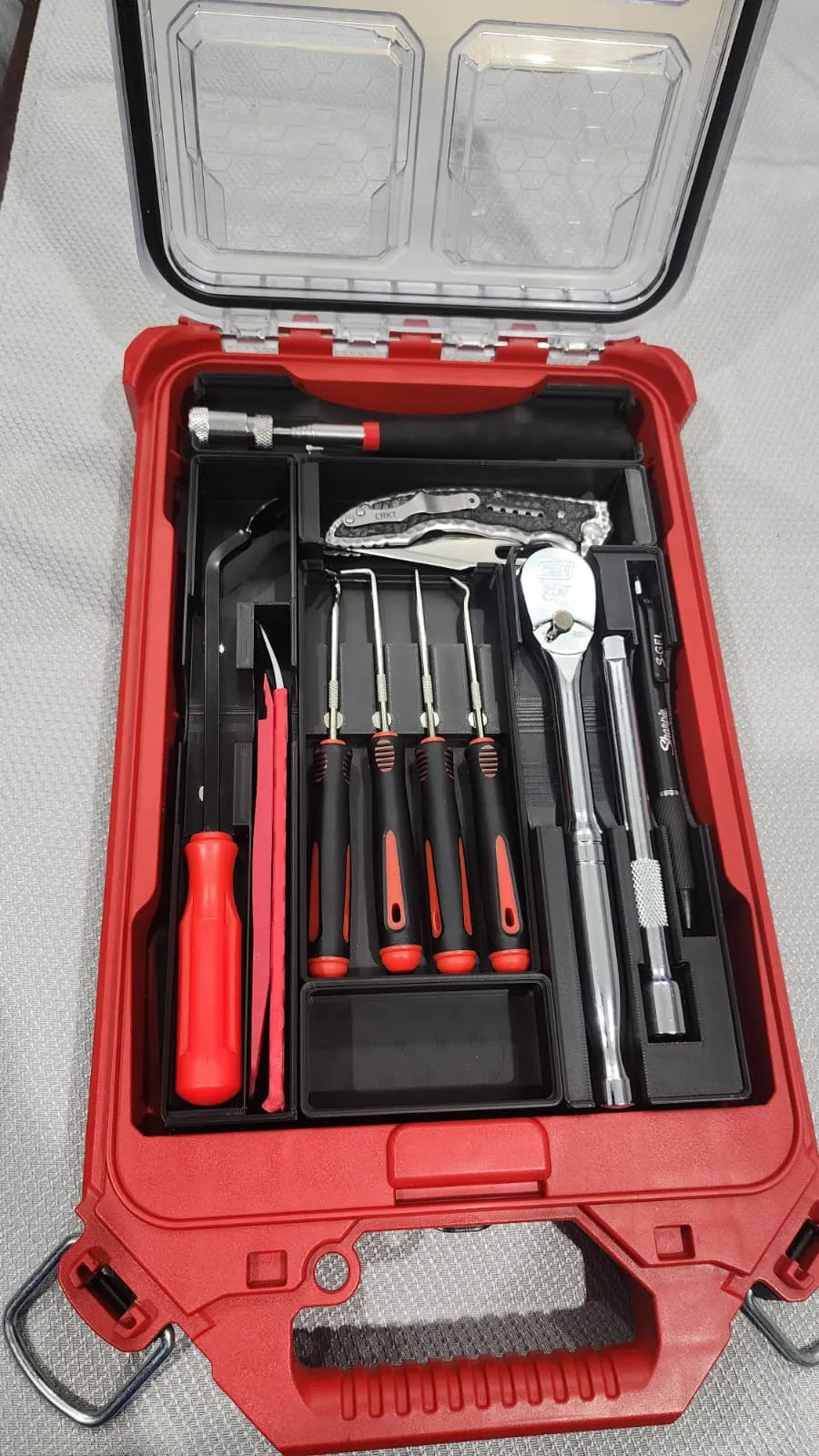

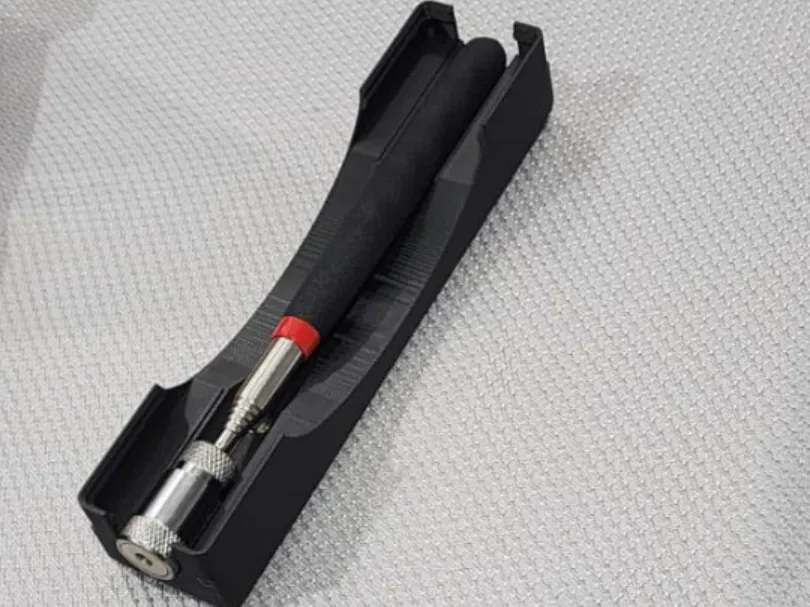

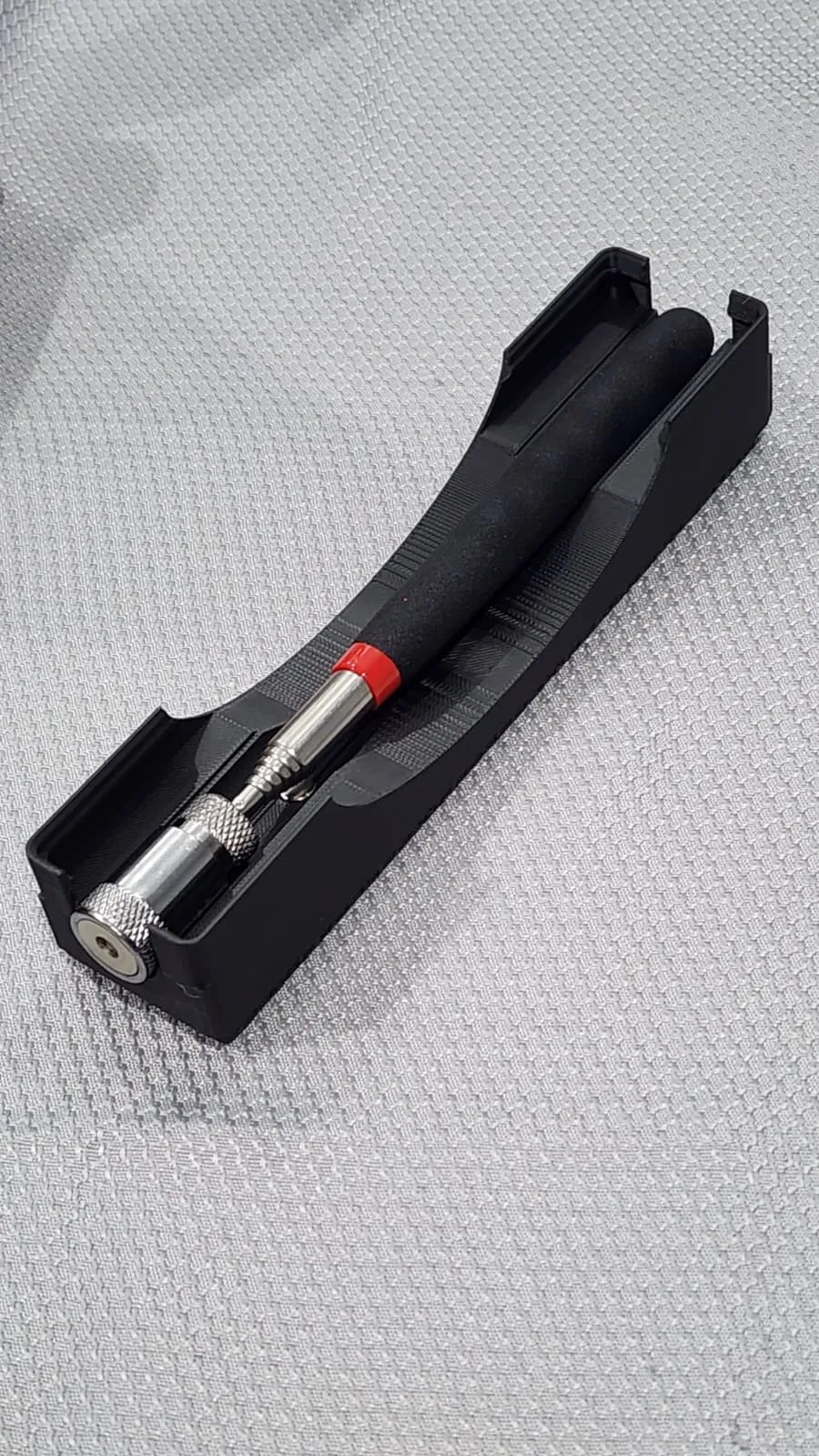

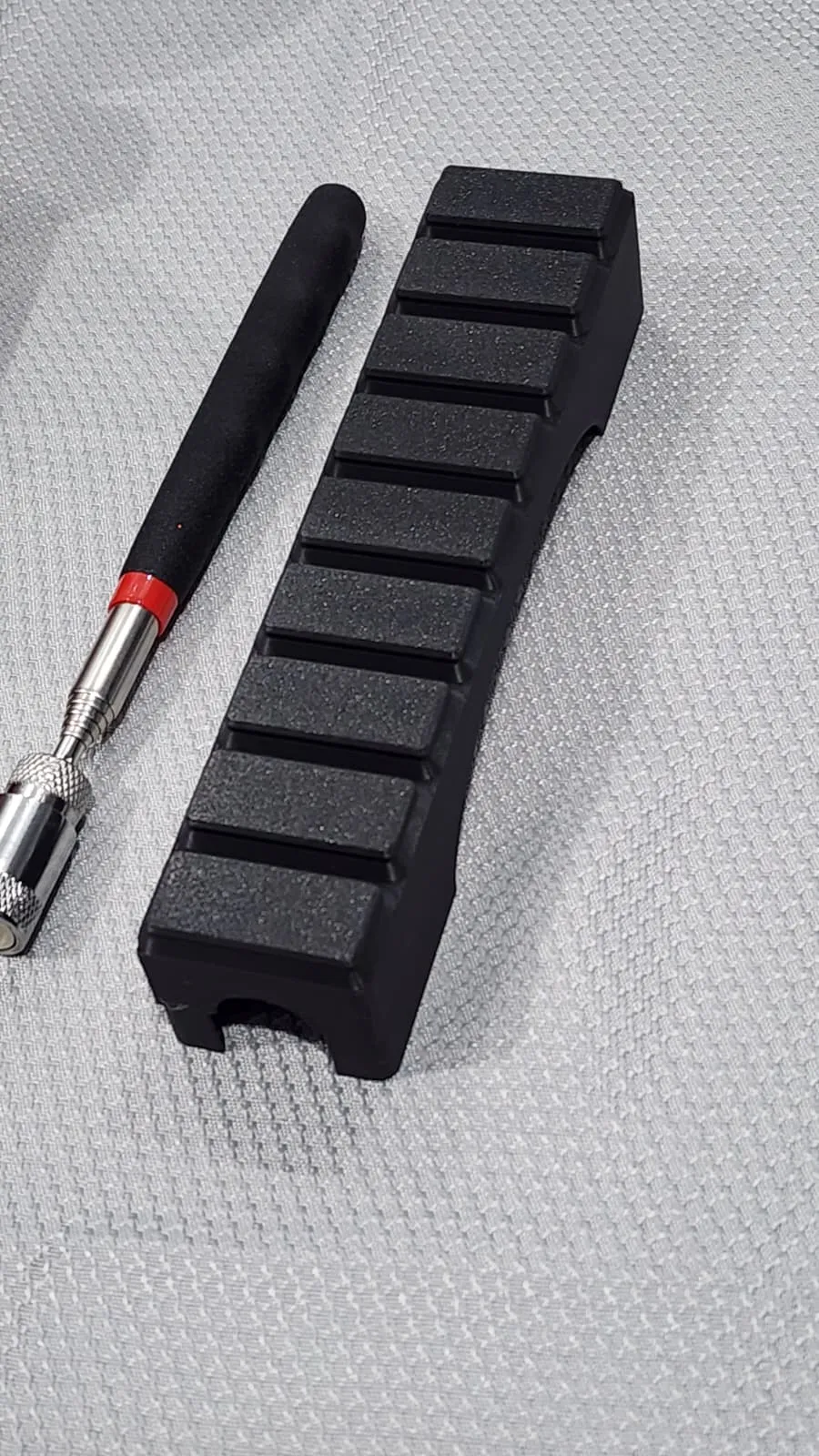

Gridfinity Tray (1 wide x 4.5 long), designed to fit Milwaukee Packout Low Profile Small Organizer, and holds the Amazon Magnetic Pick Up Tool with LED Light. This magnetic pick up tool comes in a set, but this one has a larger head due to the integrated light. The tool comes in a set from the following Amazon pick & hook set: https://www.amazon.com/dp/B0D5Y1N4G7?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 . This tray uses 8mm x 2mm Magnets (x2) to help hold everything in place.

You can also find other low profile Milwaukee Packout Bins from Kevin3D: https://makerworld.com/en/models/1548586-gridfinity-bins-for-low-profile-milwaukee-packout#profileId-1626283 .

Kevin3D also has the Gridfinity Base plate as you will be needing it as well: https://makerworld.com/en/models/1487820-packout-low-profile-organizer-gridfinity-base-v1#profileId-1554673 .
