Description
Content has been automatically translated.
Thanks to "4061N" for open-sourcing

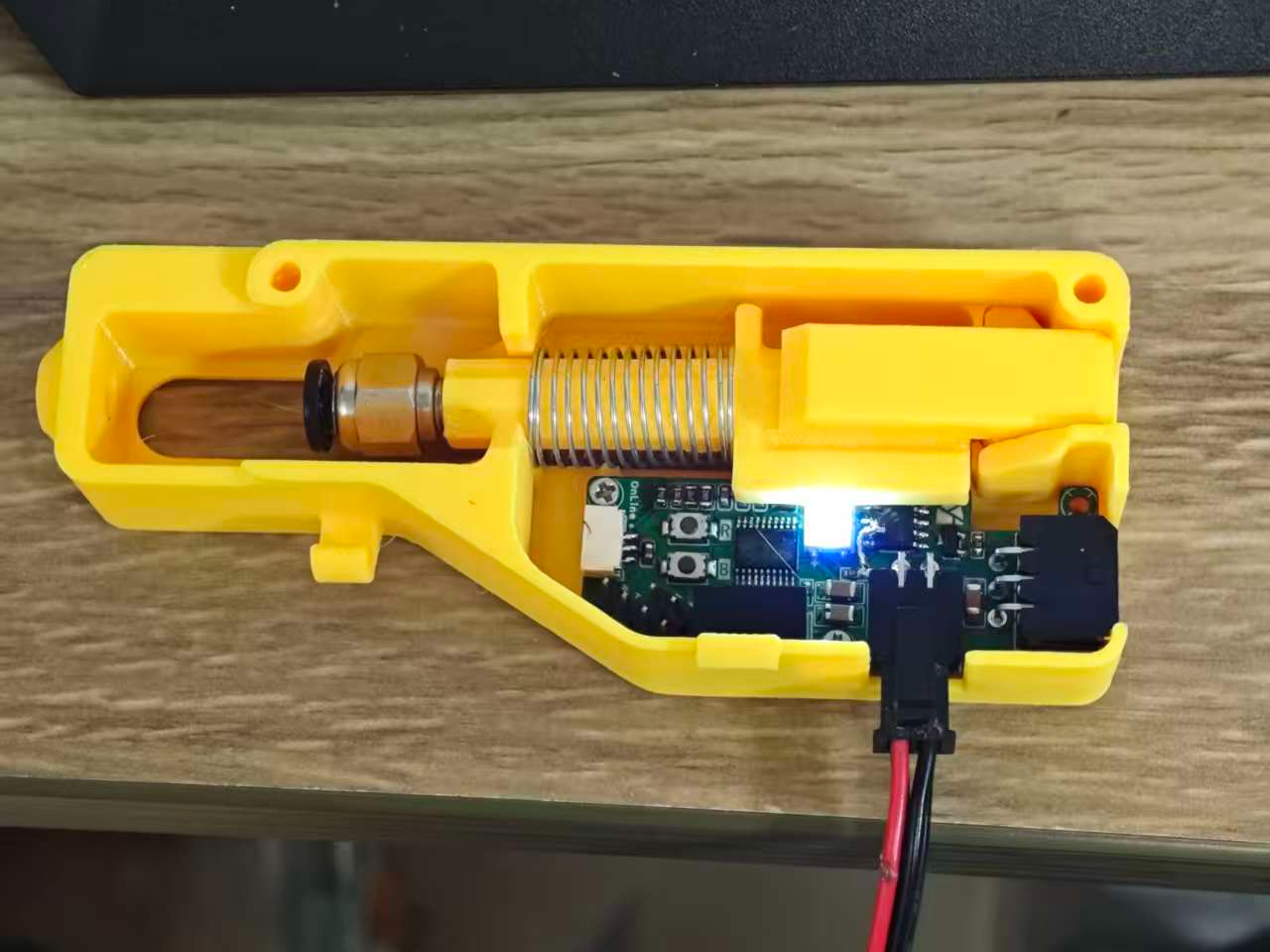

I optimized the buffer sliding structure, addressing some pain points I encountered during my use

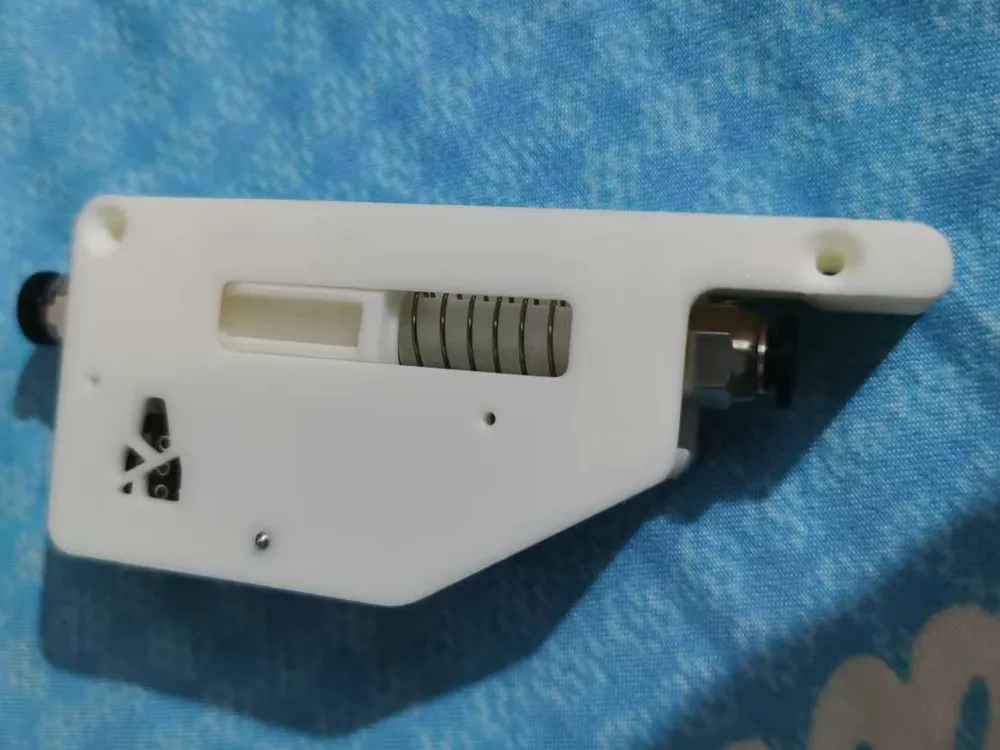

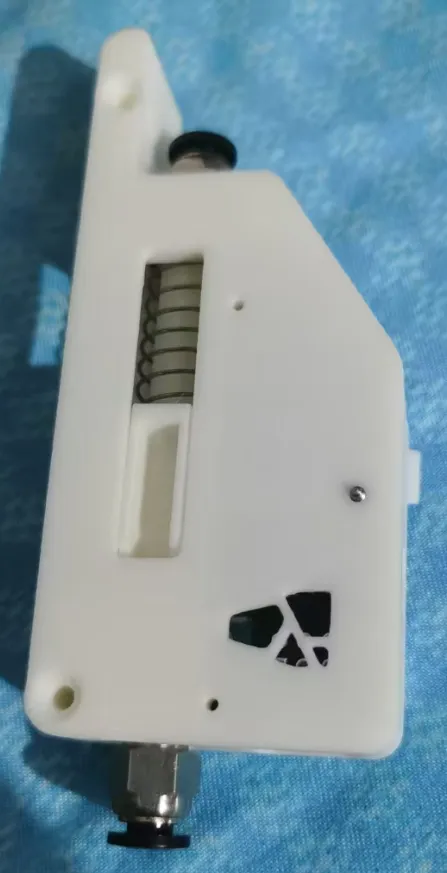

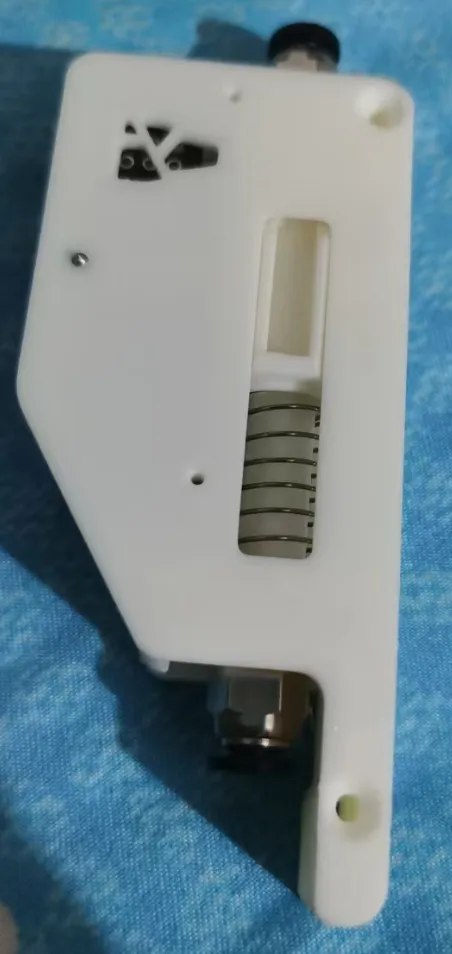

Recommended filament for smooth sliding; my pictures were printed with ASA (using PLA parameters)
If it's too tight and doesn't slide, just loosen the screws a bit
3 pcs M2x5 self-tapping screws (for fixing the circuit board)
3 pcs M2x8 self-tapping screws (for fixing the pressure block)
2 pcs through-hole pneumatic connectors
1 pc 0.6x12x35 spring
4 pcs φ5 steel balls
PCB data https://makerworld.com.cn/zh/models/1765013-bbs-buffer-a-xmcuxi-lie-huan-chong-qi#profileId-1946049
