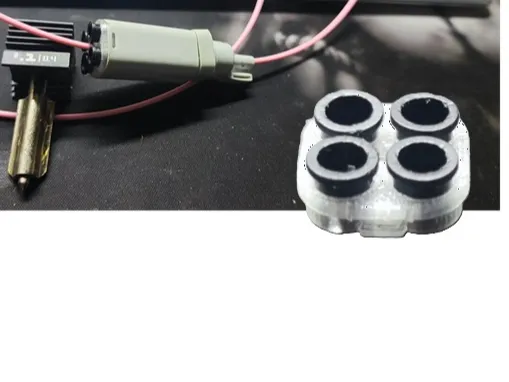

A1 5-way connector cover (4+1 feeder capable) replacement part
Print Profile(1)
Description
Boost Me (for free)
This model can be used if your 5-way connector cover is damaged, or if you are using AMS lite and want to use an additional external filament spool.

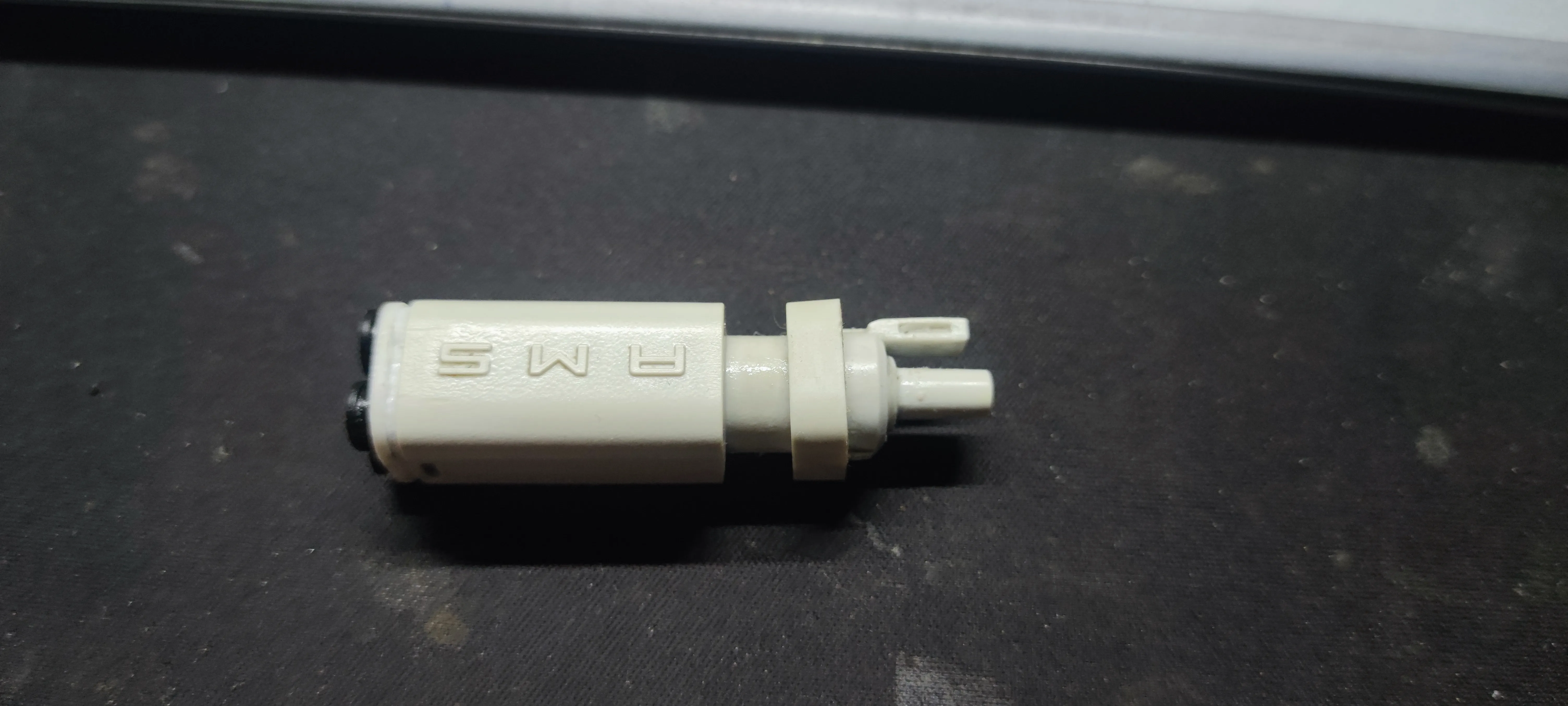

Step 1: Remove the 5-way connector according to the official guide
Step 2: Use a flat-head screwdriver to pry open the 5-way connector cover and disassemble the 5-way connector

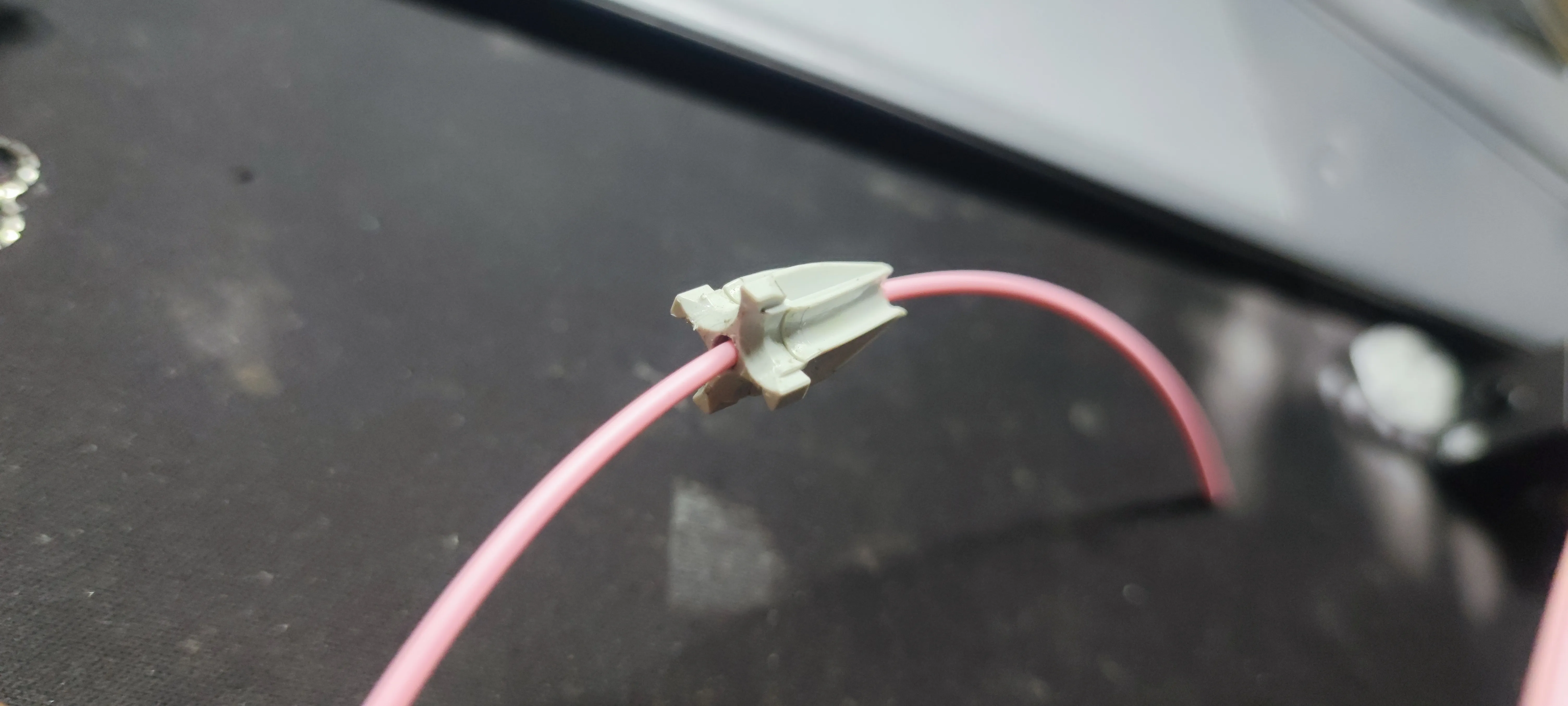

Step 3: Use a 2.0mm drill bit to clear the middle part of the original 5-way connector assembly, allowing the filament to pass through smoothly.

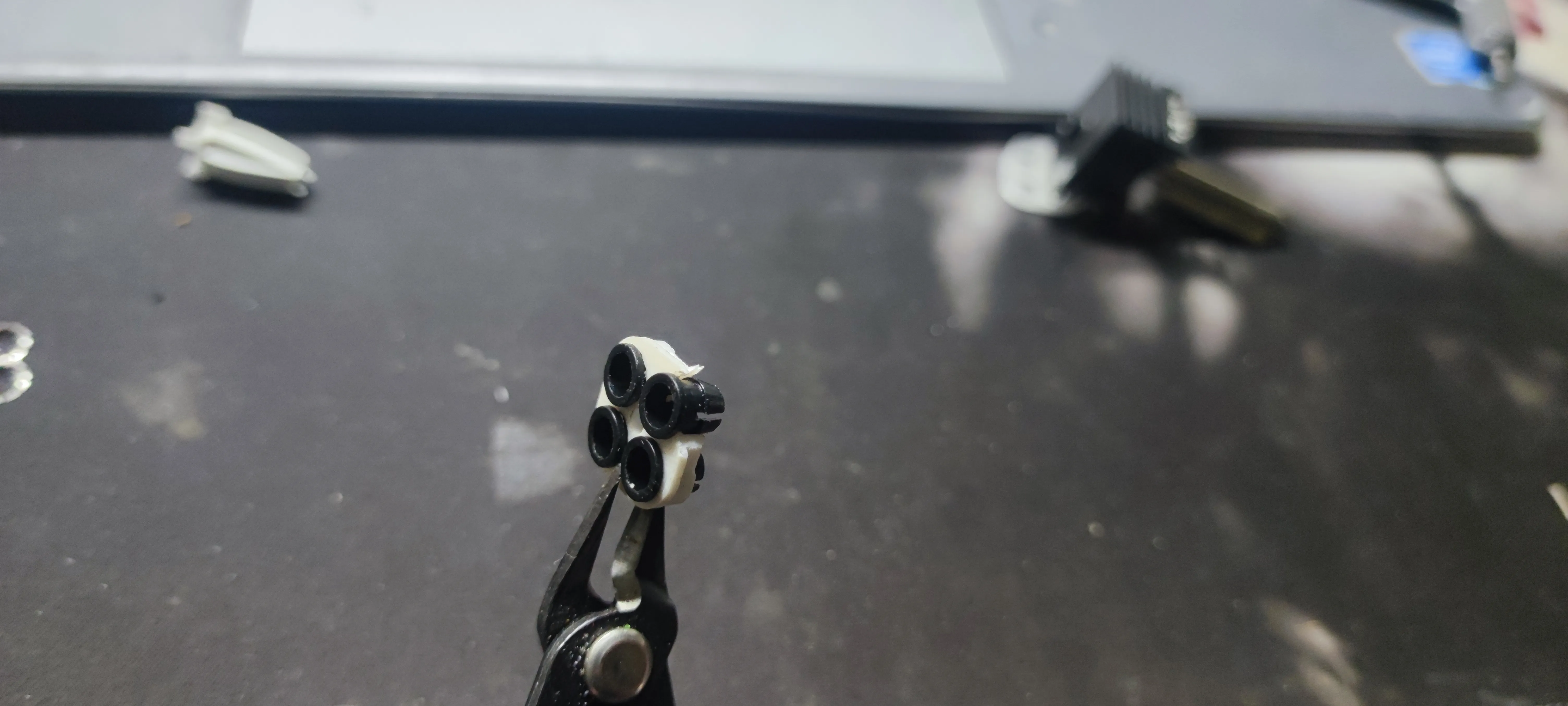

Step 4: Use wire cutters to cut open the original 5-way connector cover and remove the four black feed buckles

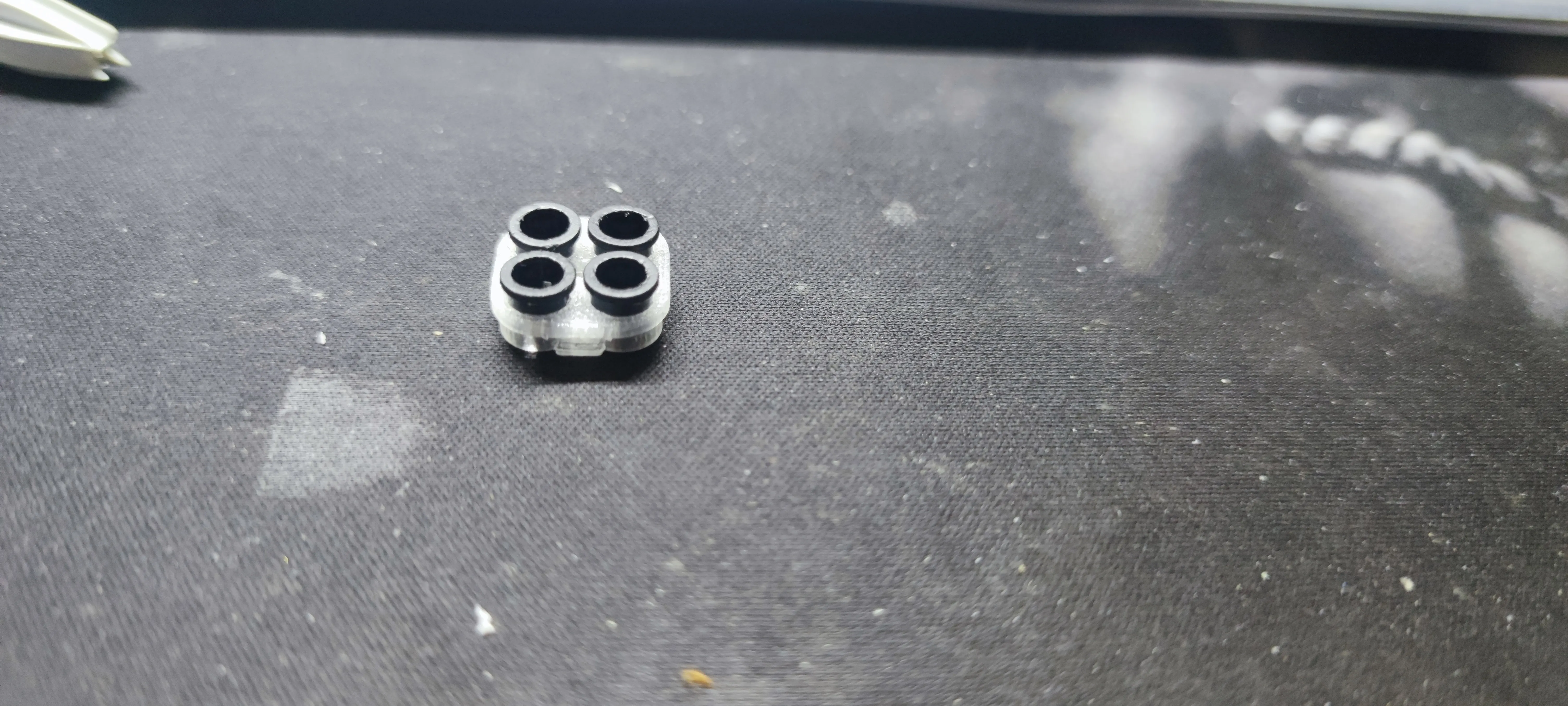

Step 5: Install the four black parts onto the newly printed 5-way connector cover, following the original 5-way connector cover's configuration

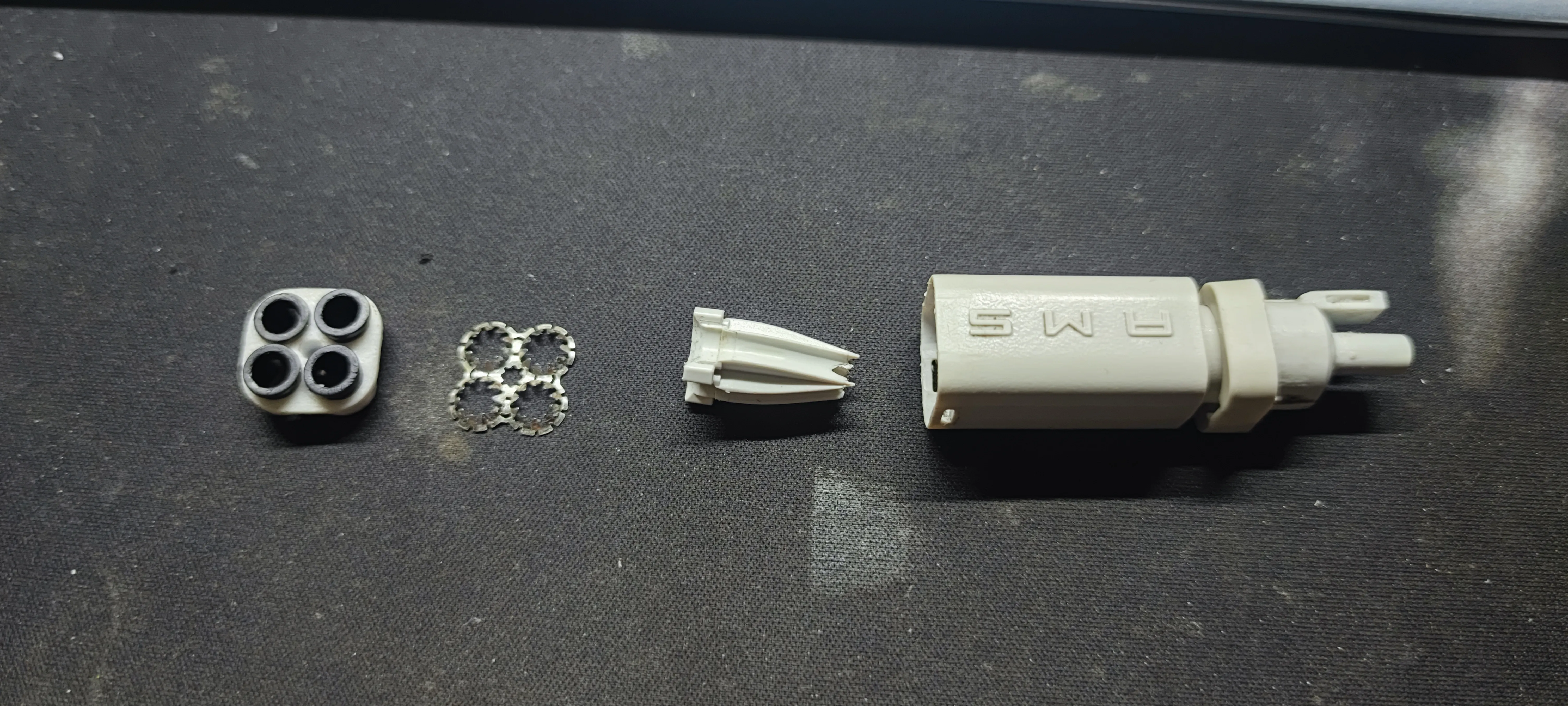

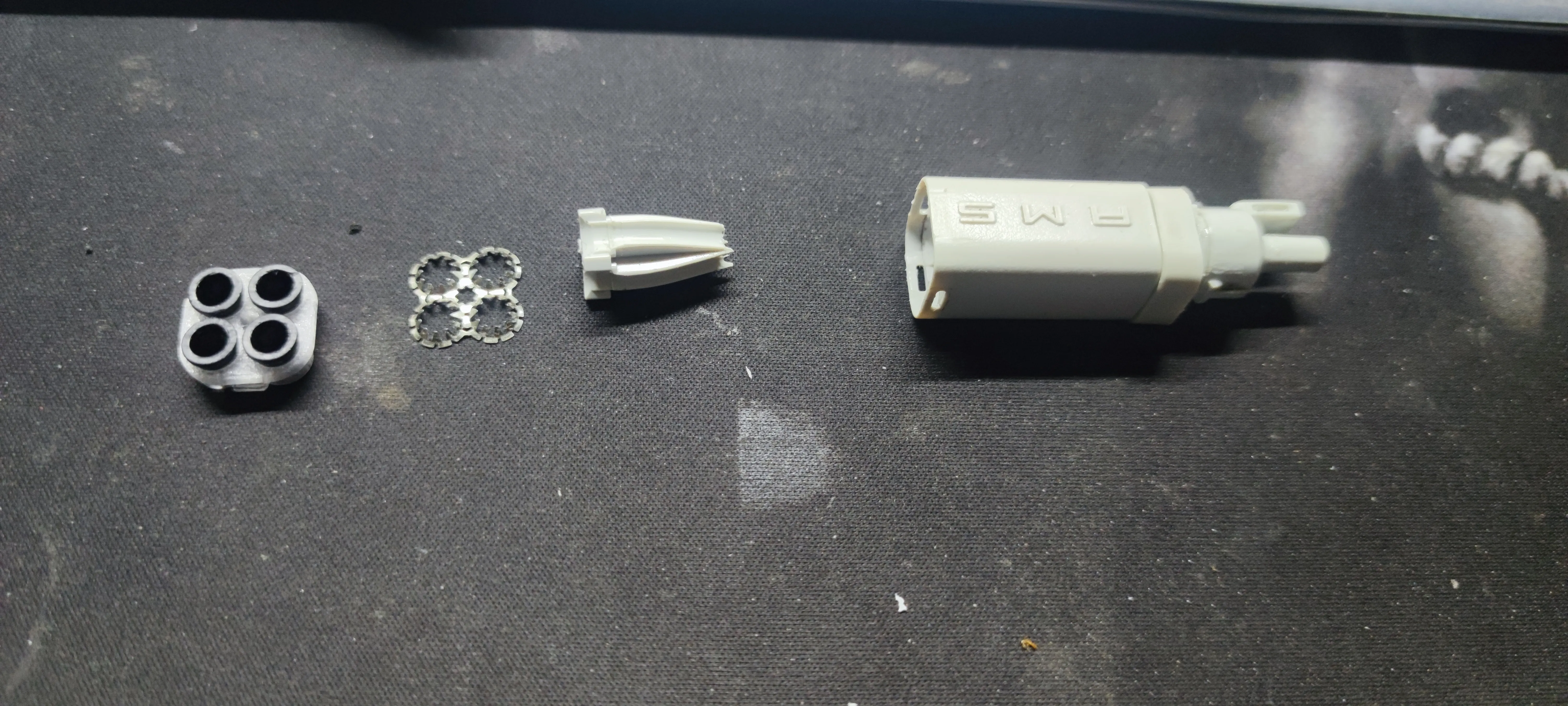

Step 6: Assemble the following parts in order

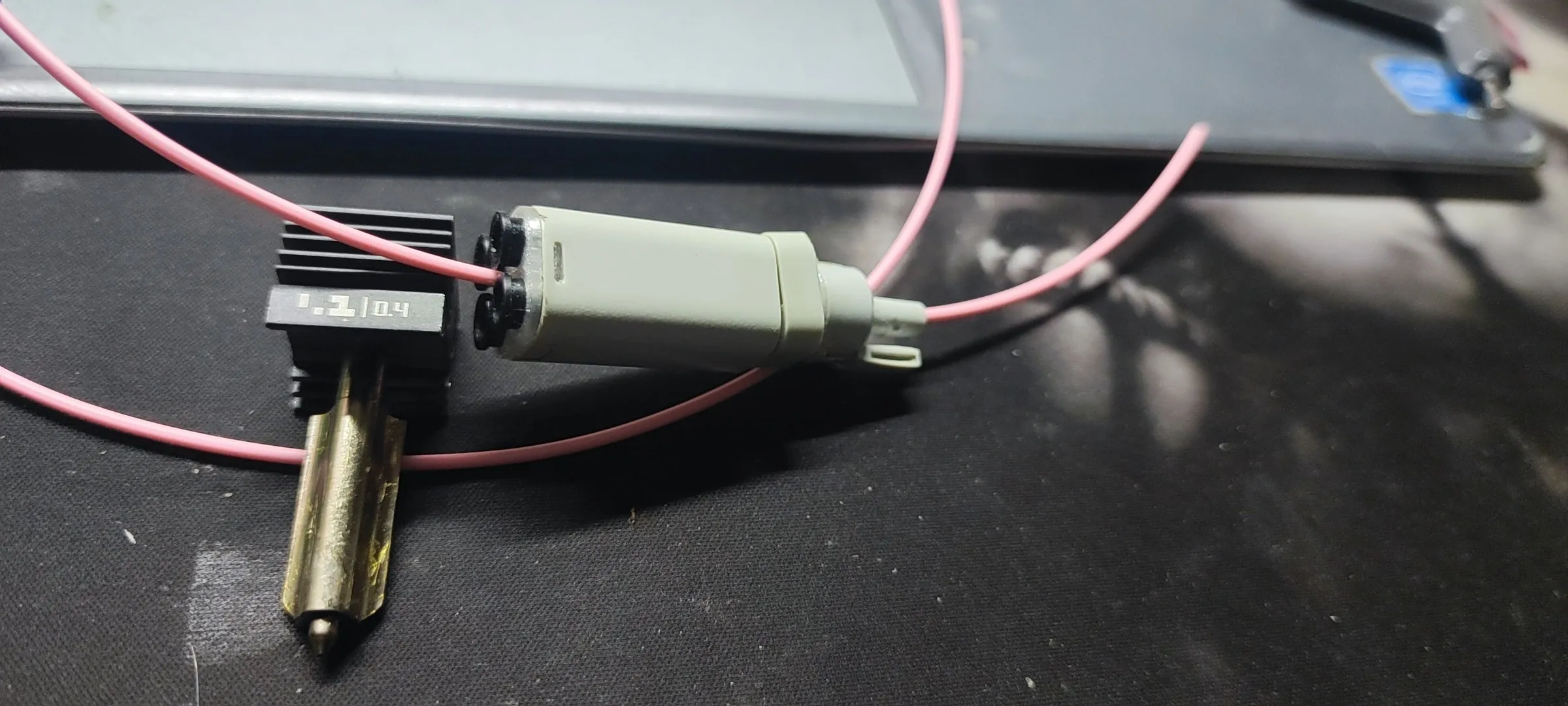

Step 7: Finished product, check if the filament feeds smoothly. Then you can achieve five filament feeds at minimal cost
