3 Inch Exhaust for the Bambu P2S
Print Profile(2)
Bill of Materials
Description

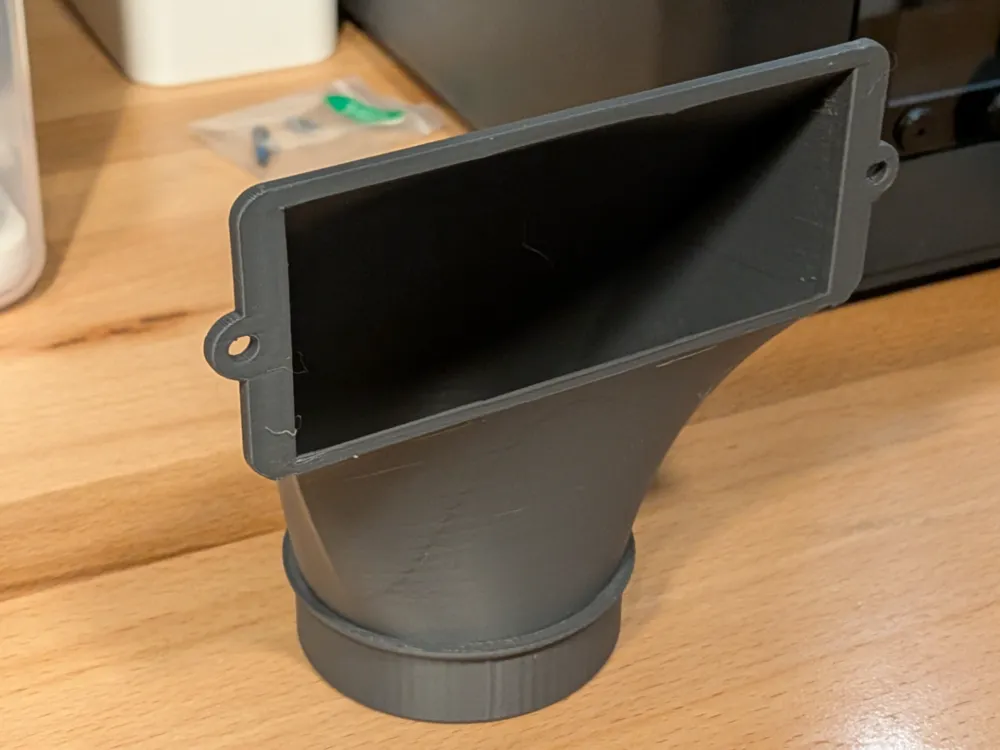

I made this 3 inch exhaust adapter for the P2S, so that I could hook the printer to an exhaust fan to evacuate fumes.
I added an additional print profile that supports four 10 x 2 mm magnets. The magnets fit very tightly and I used the flat side of a putty knife to force them into the holes. A flat blade screw drive or anything else hard and flat should work as well. In addition, I applied a bit of super glue to the magnet holes, prior to inserting them. This magnet version also has screw holes, should you later decide you want to attach this with screws.
The magnets will hold this new magnetic version in place, but pulling on the hoses or bumping them may cause this to shift of come off of the back of the printer. Screwing this on, will me much more secure.
A 4 inch version can be found here:
https://makerworld.com/en/models/2035033-4-inch-exhaust-for-the-bambu-p2s#profileId-2194974

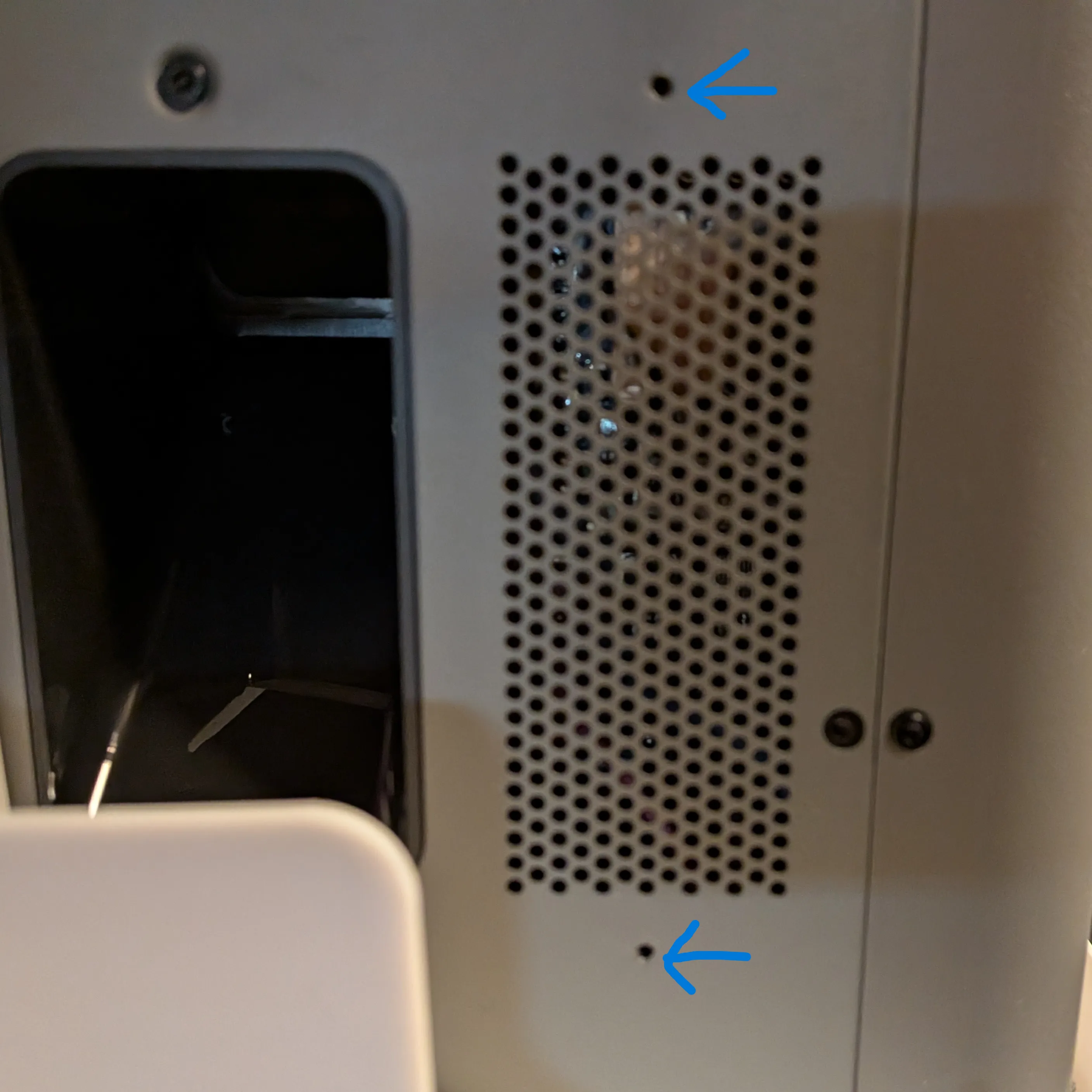

This exhaust adapter is attached to the back of the P2S using two m3x6 or m3x8 screws, through the holes shown in the photo below.
