Makita DC18RD Dual Charger – IKEA Skådis Mount

🔌 Makita DC18RD Dual Charger – Skådis Wall Mount

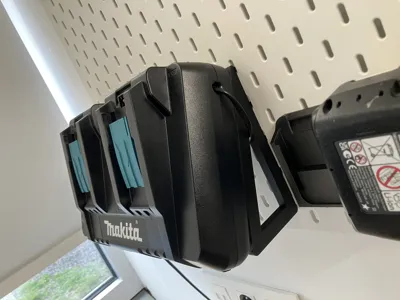

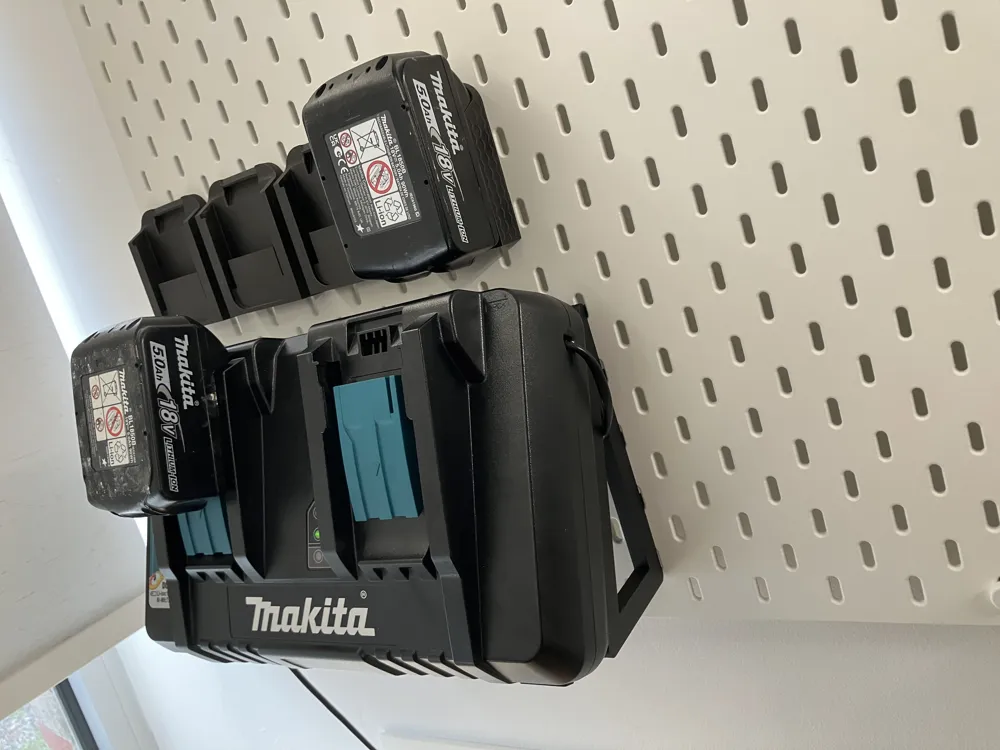

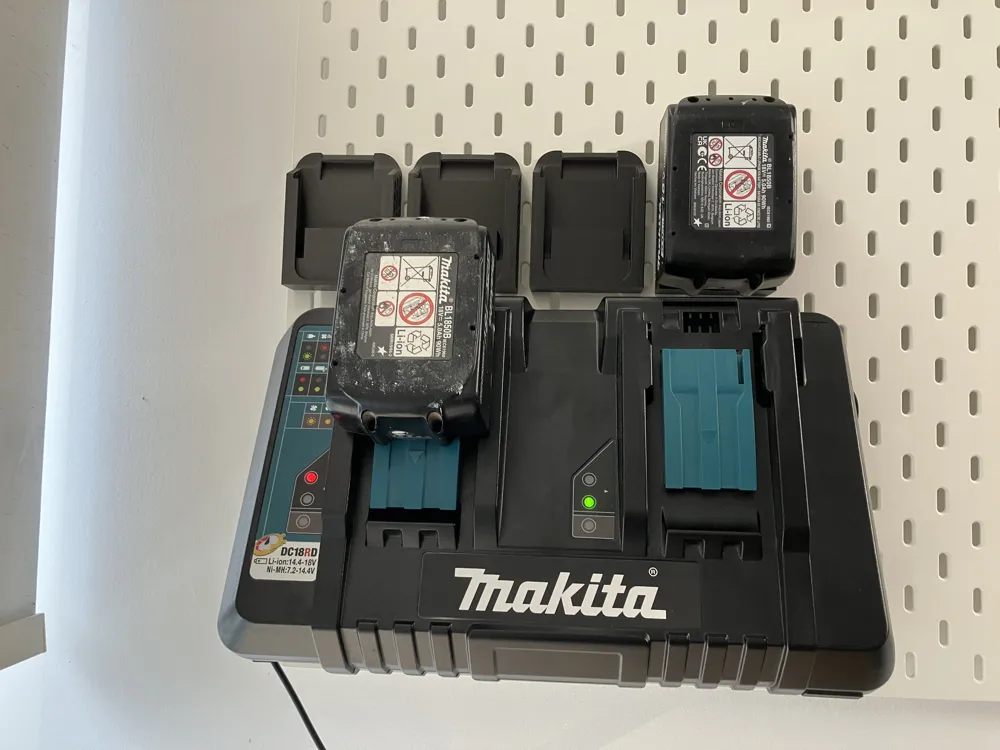

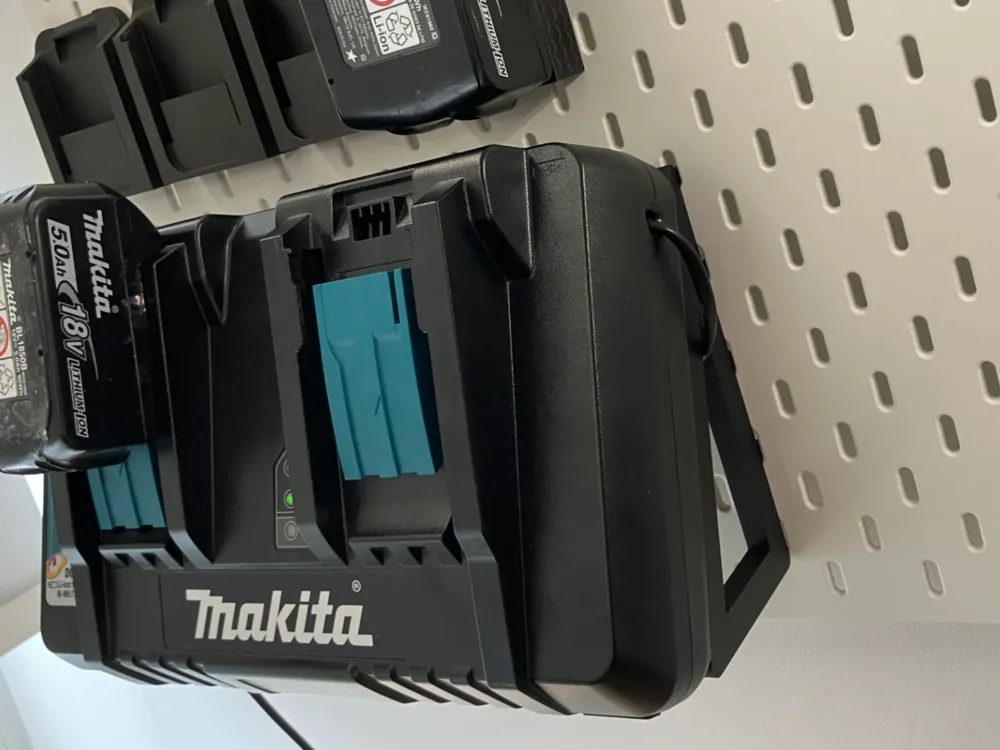

A simple, sturdy mounting system for the Makita DC18RD dual charger, designed specifically for the IKEA Skådis pegboard.
I wanted something clean, easy to print, and secure enough to hold the heavy dual charger — while still letting me detach it quickly whenever needed.

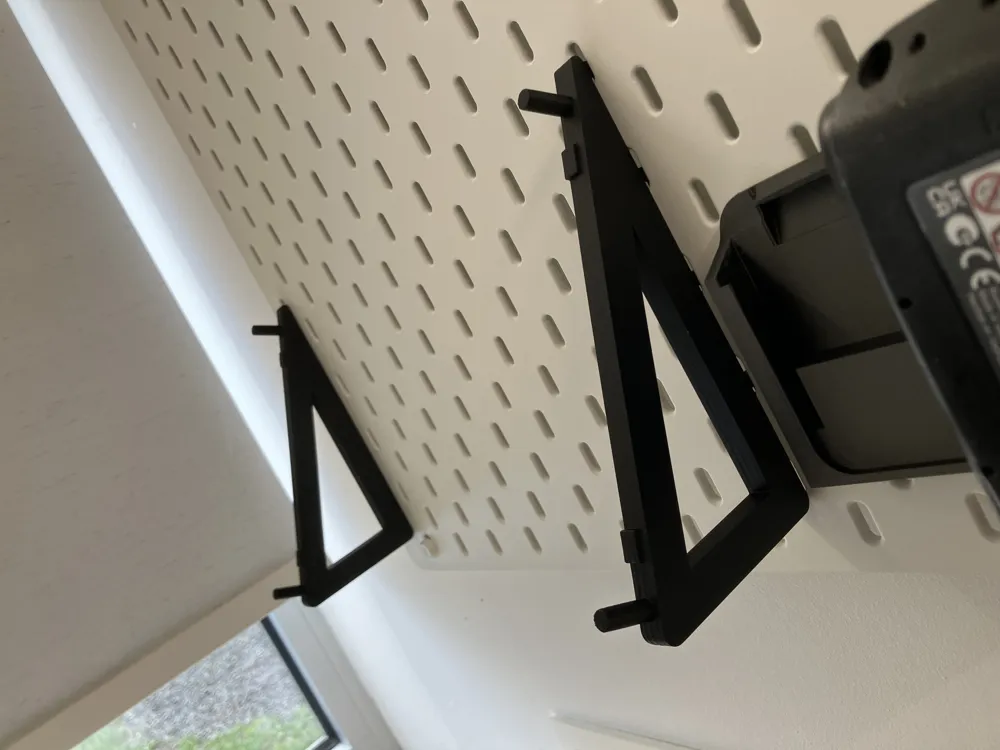

The charger rests on two separate supports (left + right), each with 4 anchor points for a solid fit.

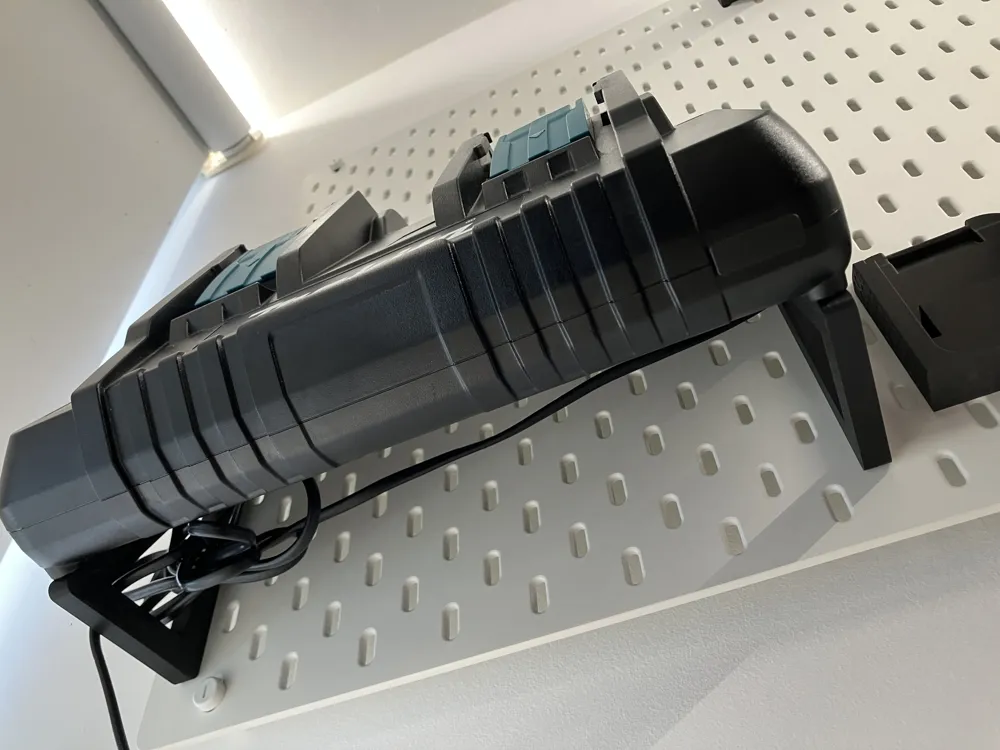

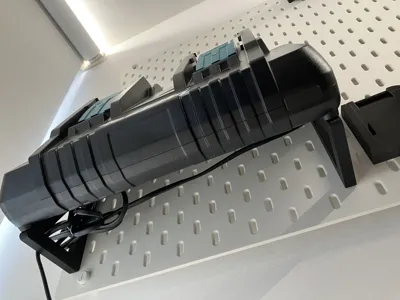

A built-in 25° tilt keeps everything stable and creates space underneath to route and hide cables.
For installation, just remove the rubber feet on the bottom of your charger and slide it onto the mounted supports.

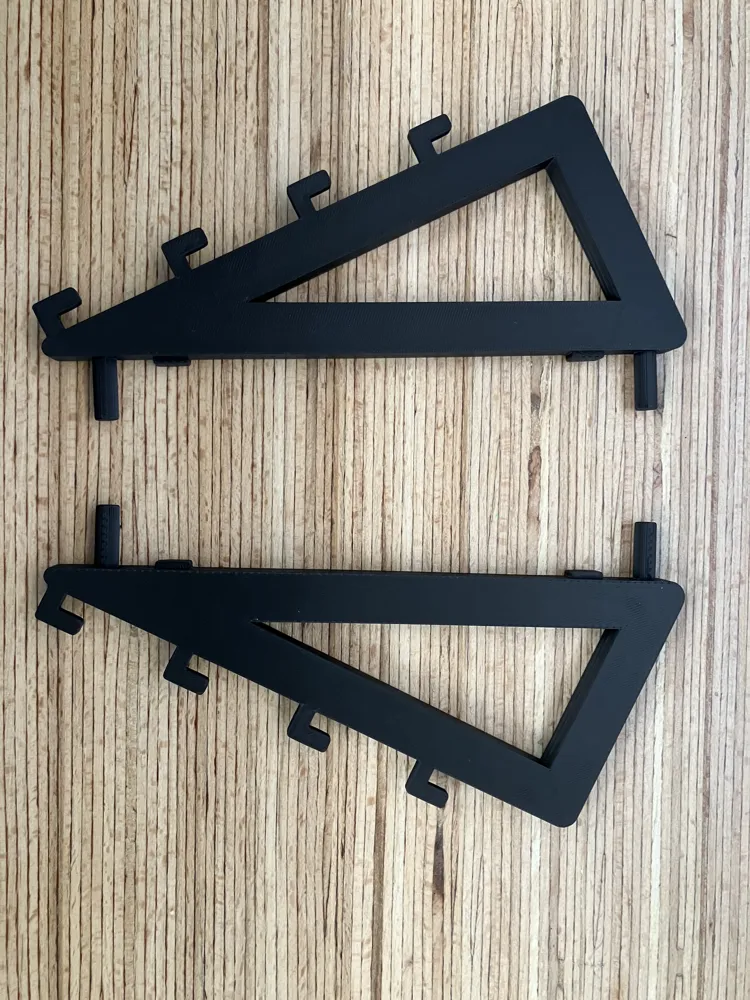

Includes:

🔧 Left support (4-point anchor)
🔧 Right support (4-point anchor)
🎯 Designed specifically for IKEA Skådis pegboard

🖨️ Print Settings

Printer: Bambu Lab P1S
Nozzle: 0.4 mm
Layer height: 0.2 mm
Material: PLA or PETG
Supports needed
Prints flat for a fast, clean setup

💡 Why this design?

The DC18RD is large and takes up a lot of bench space.
This mount moves it off your work surface and into your wall system, keeping your workspace tidy while still letting you remove the entire charger at any time.
The angled design holds it securely and gives you cable space without adding bulk.

📸 Show Yours

If you print it, I’d love to see your setup!
Feedback and makes are always welcome 🙌

🚀 A new and improved Version 2 is now available with a stronger, screw-based mounting system:
