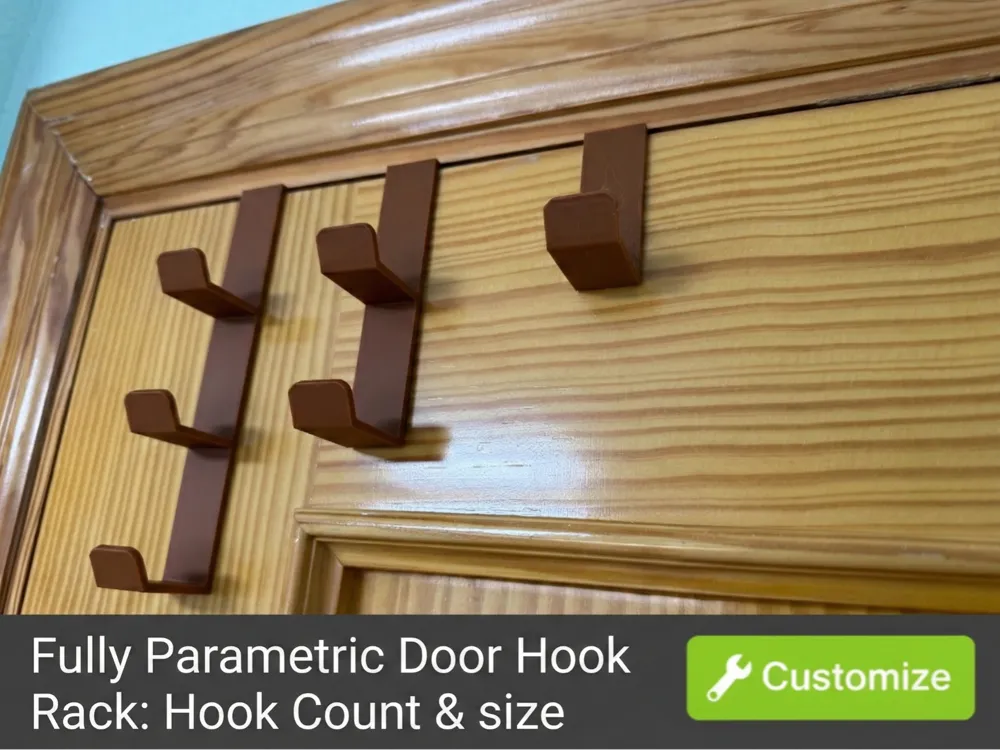

Fully Parametric Door Hook Rack: Hook Count & size
Print Profile(1)
Bill of Materials
Description

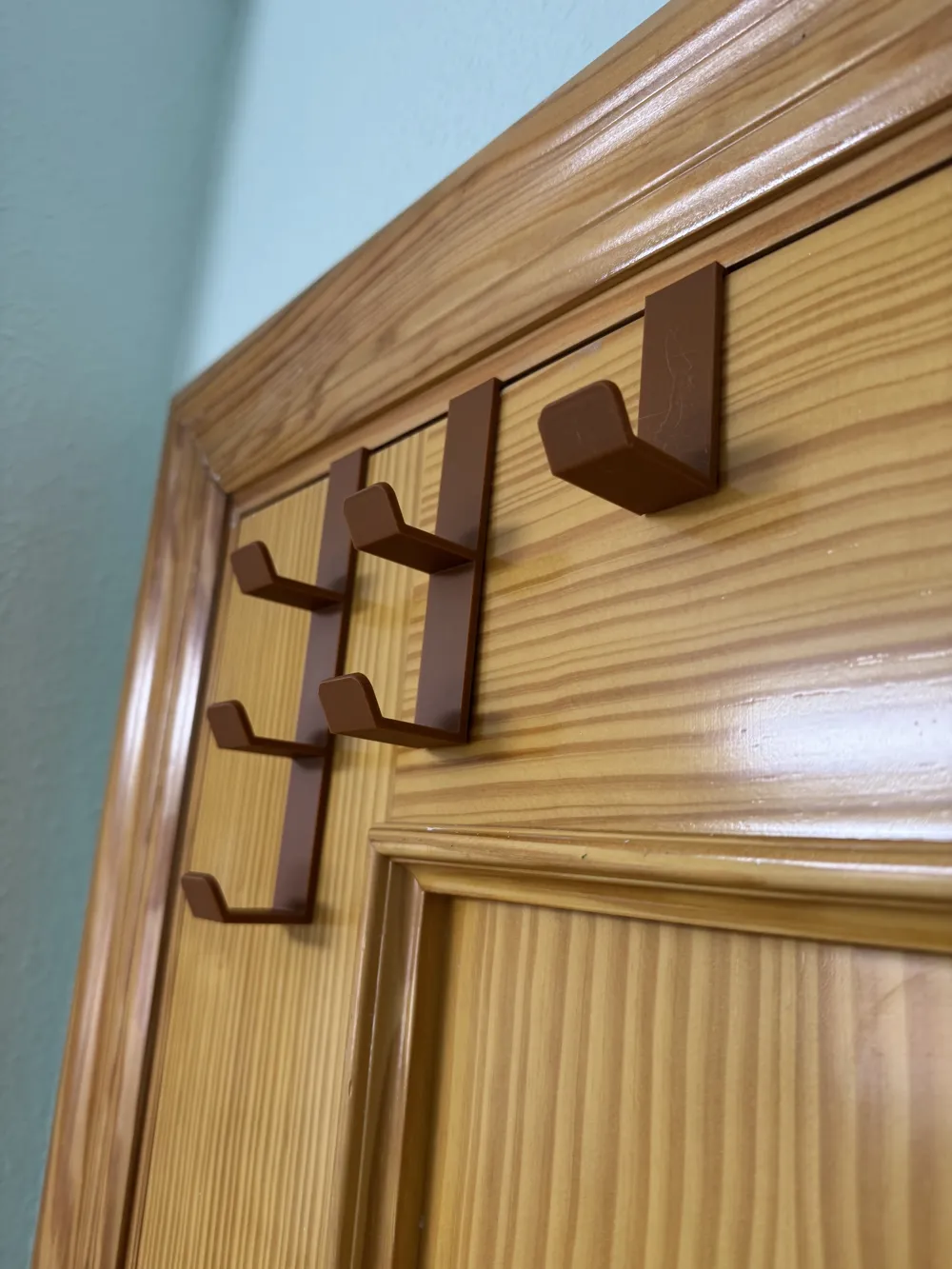

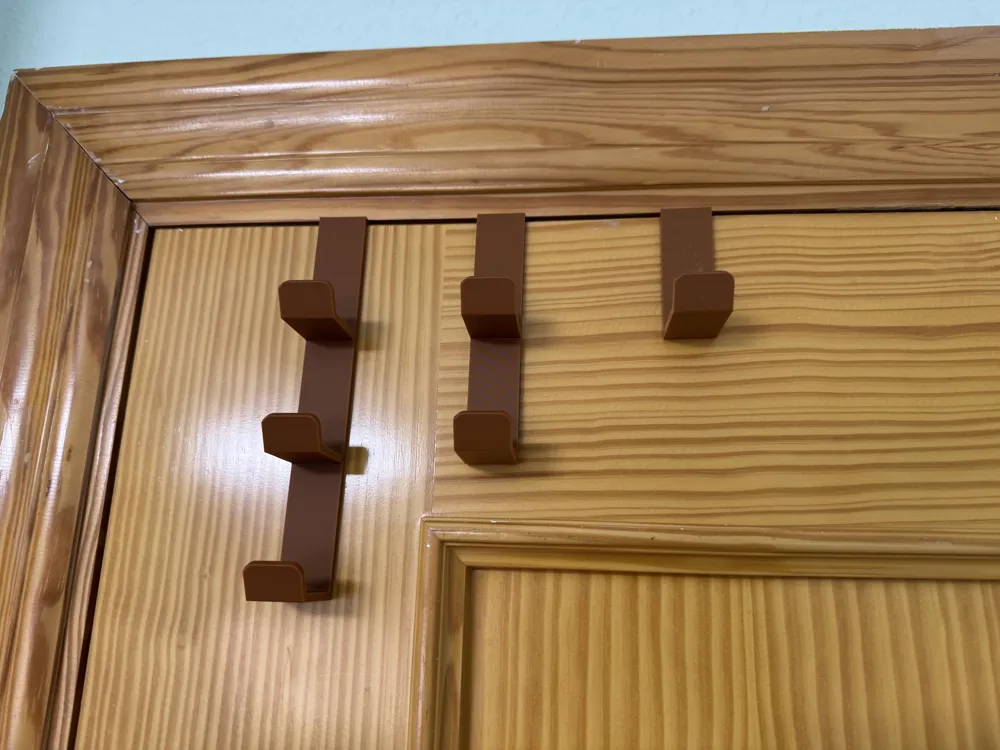

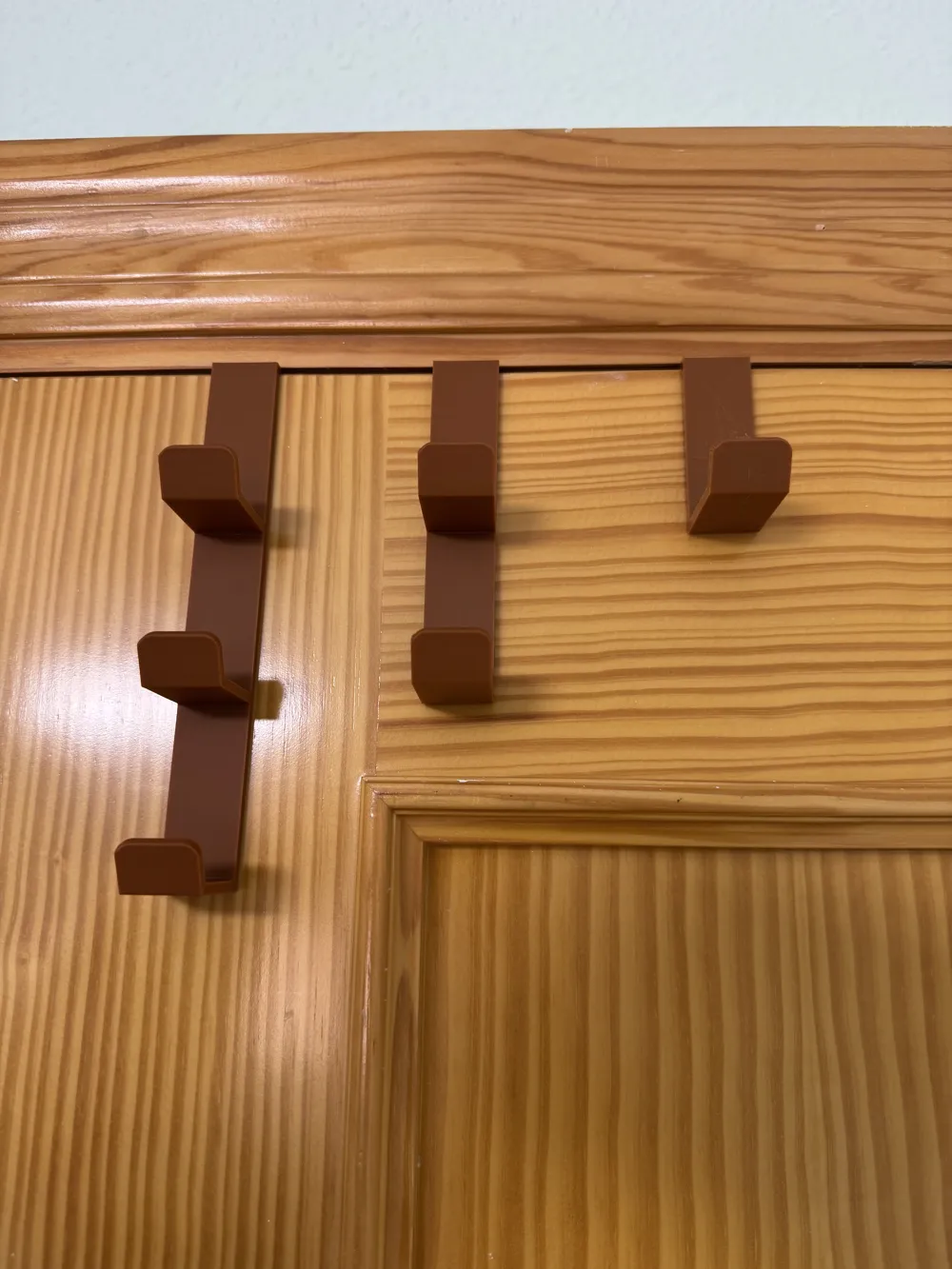

A door rack that fits perfectly! This is a fully parametric design, meaning you can customize every single dimension directly here on MakerWorld to match your specific door and storage needs. No more loose hangers or doors that won't close.
Customizable Parameters Click the "Customize" button to adjust:
- Door Thickness: Enter your exact door measurement for a snug fit (e.g., 35mm, 40mm, 45mm).
- Hook Count: Need 2 hooks or 10? You decide.
- Spacing: Control the distance between each hook.
- Hook Dimensions: Adjust the width, depth, and angle of the hooks to fit heavy coats or small towels.
- Top Bracket Sizes: Custom top thickness, external hook thickness and external hook height. You can choose the size in order to hide the hooks or be more resistant.
Key Features
- Zero Wiggle: Since you set the thickness, it grips the door securely.
- Print-in-Place: Designed to print easily without complex assembly
- Sturdy Design: Optimized geometry to hold weight without bending.
🖨️ Printing Recommendations
- Material: Easy. PETG or PLA is recommended.
- Infill: Since is a small print, I used 100% infill for resistance, but this is not required. About 15-25% must be enought
- Walls/Perimeters: Same as Infill. This model not uses a lot of filament, so you can use from 2 walls to 4. My profile is a standard profile with 2 walls an 100% infill.
- Supports: No supports needed
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
