2020 alu profile corner extra strong plate holder
Print Profile(1)
Description

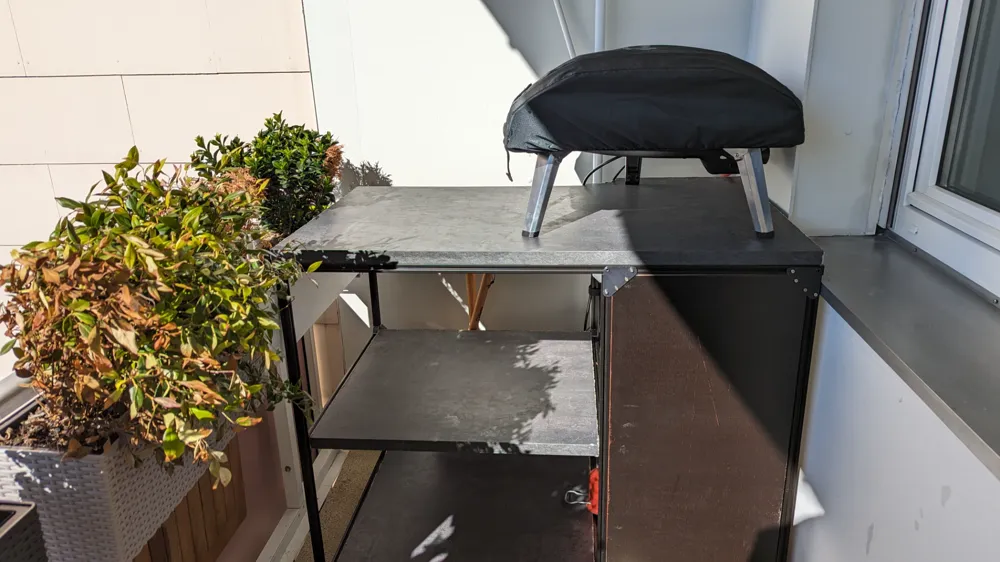

Another part of my pizza oven table with 2020 aluminium profiles.
Boost Me (for free)
Support me with a boost for more designs :)

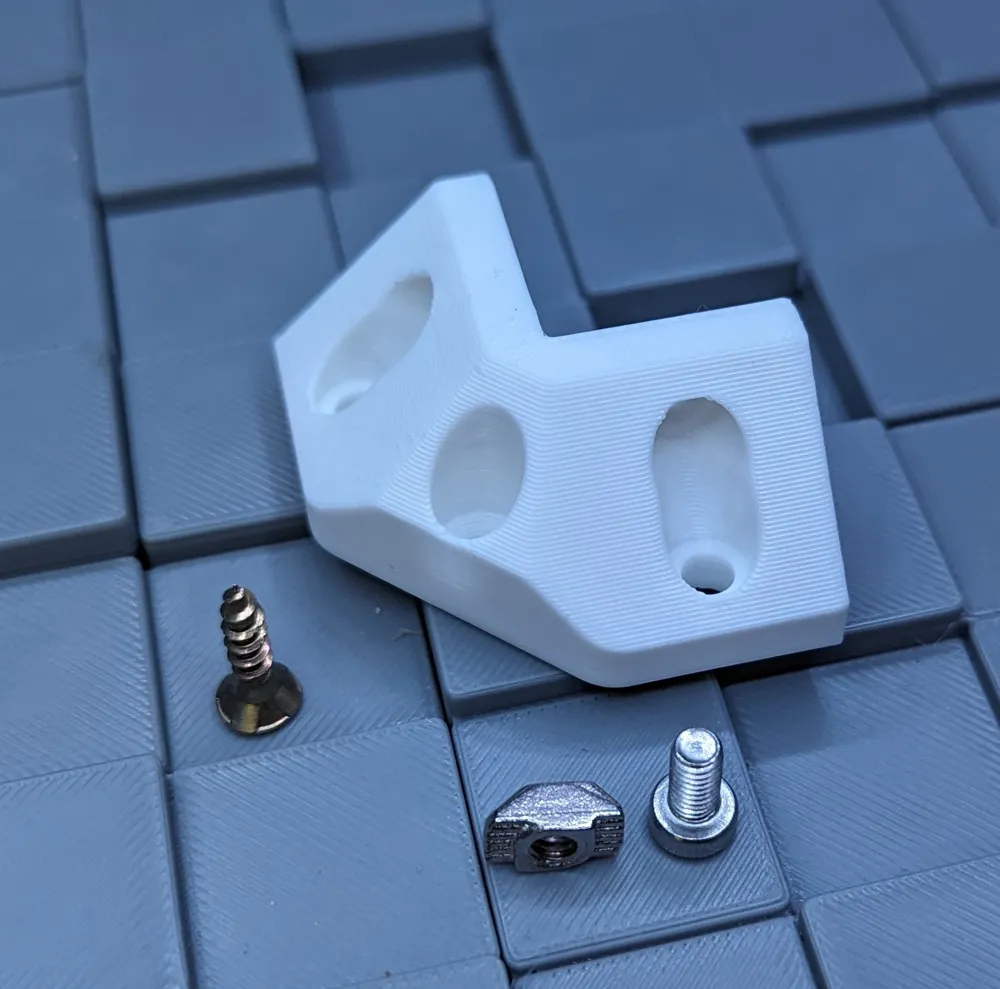

Its a corner bracket with a corner to put a plate onto. Optional this plate also can be screwed with the middle whole.

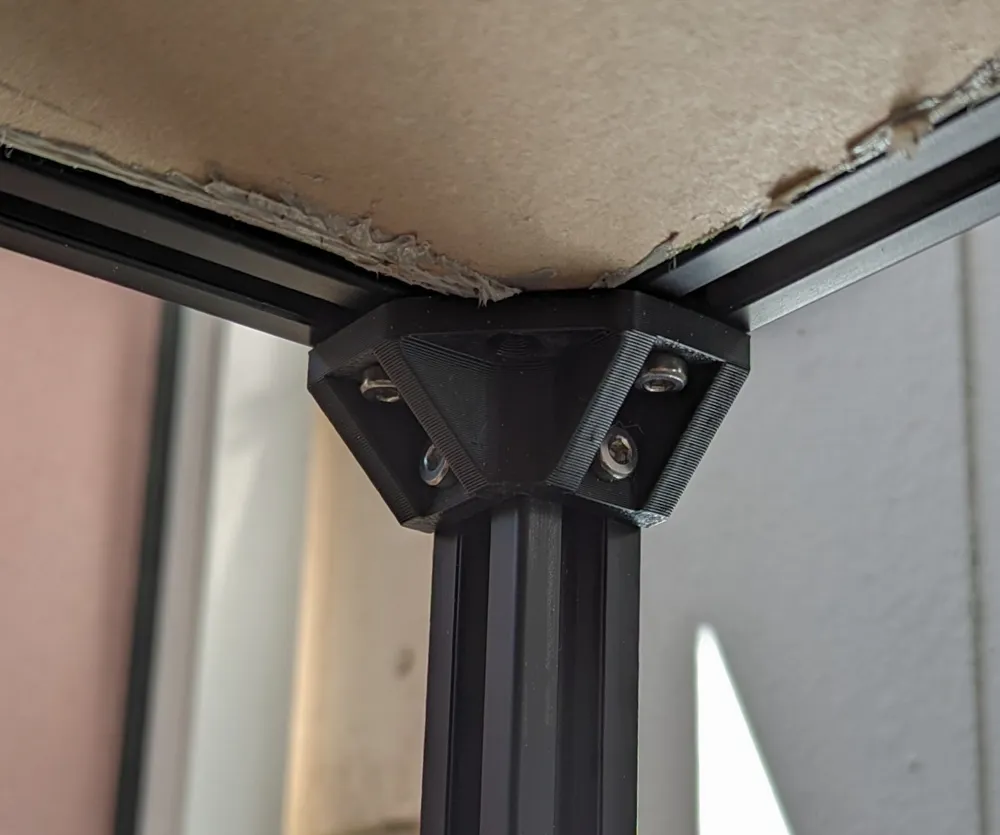

Second picture shows my old design, the new one is extra strong. I recomment to use ASA or ABS for heavy load and specially for outdoor usage.
Necessary hardware:
- 4x T-Nut with M4 thread
- 4x M4x8mm screw (DIN7984, head diameter maximum 7mm)
- optional 1x wood screw 3.5x16 mm
Check out the other parts of this project:
- plate holder 90 degrees https://makerworld.com/en/models/204168#profileId-224352
- plate holder flat https://makerworld.com/en/models/204219#profileId-224411
- corner bracket cover https://makerworld.com/en/models/203149#profileId-223482
