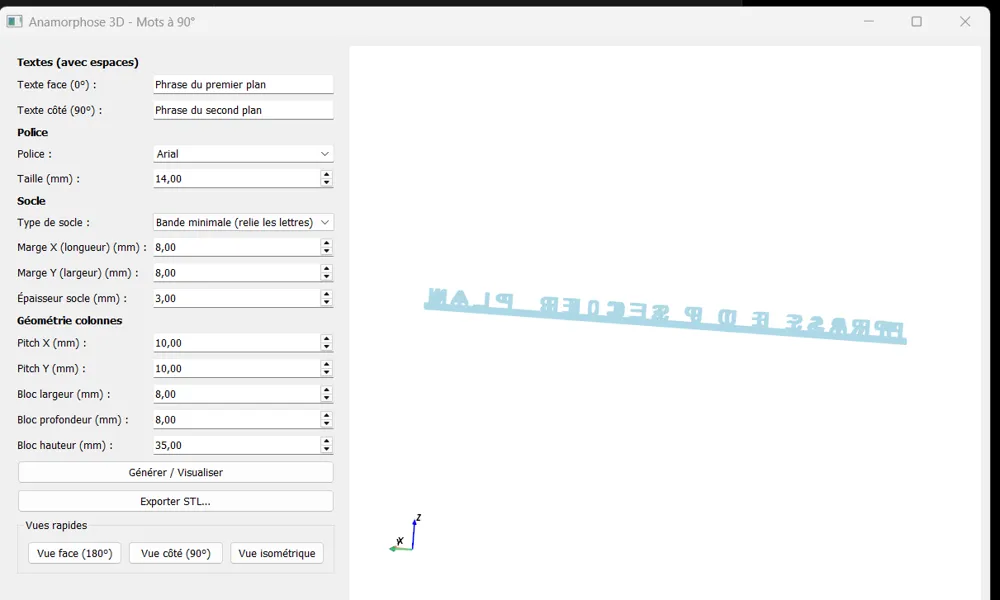

Application : 3D Anamorphosis Generator – 90° Words
This Windows application makes it very easy to create “magic” 3D objects where one word is readable from the front, and another at 90°, in anamorphosis, all ready to be 3D printed in STL
HTML application by selecting “stl file” or in the documentation .zip
🧩 Principle
You enter two texts

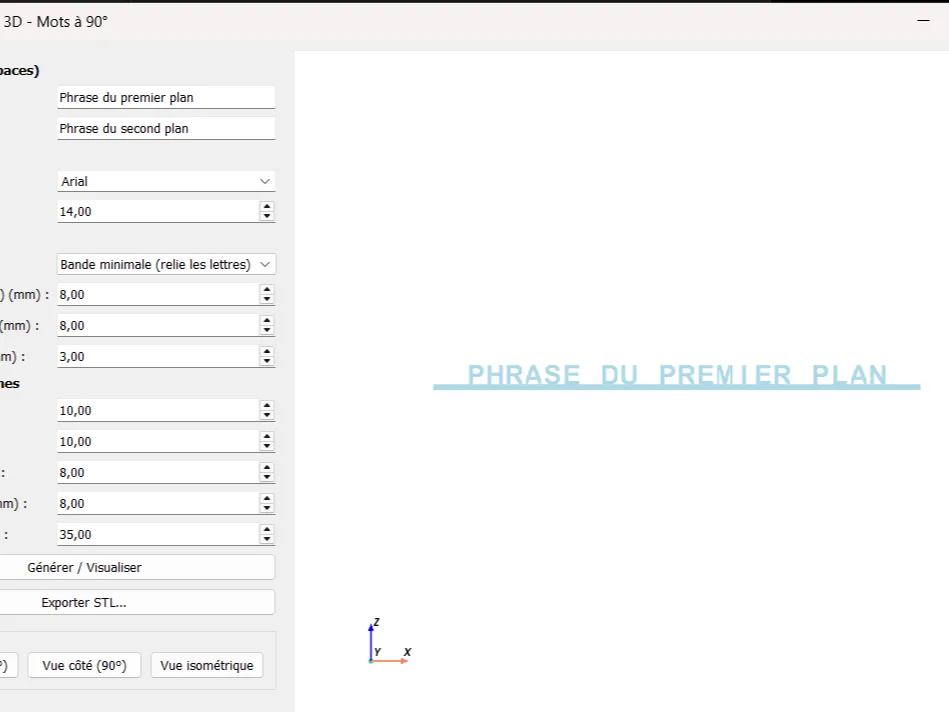

- Front text (0°) : visible when looking at the object from the front
- Side text (90°) : visible when looking at the object from the side
The application automatically generates a column structure where each column is the intersection of two letters. The result is an elegant block that changes words depending on the viewing angle
⚙️ Features
- Management of complete words or phrases (with spaces)
- Choice of font
- Adjustment of :
- font size
- spacing between columns (X/Y pitch)
- letter height
- base dimensions and thickness
- Two types of bases :
- Full rectangular : solid plate under all text
- Minimal strip : simple strip connecting the letters, lighter and more aesthetic

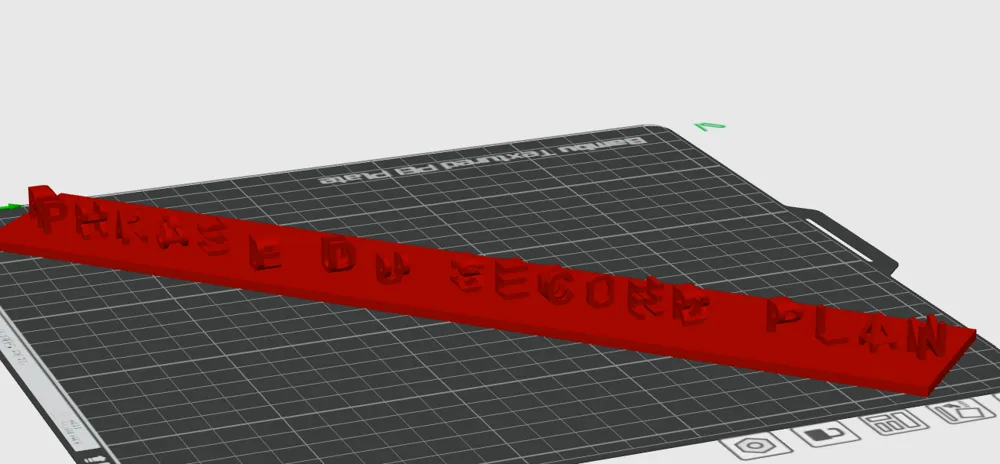

- Generation of an directly usable STL file in your slicer
🖨️ Printing Recommendations (FDM)
- orientation : base flat on the print bed
- Layer : 0.16–0.20 mm
- Walls : 3 perimeters minimum for column rigidity
- Infill : 15–25 %
- Supports : generally unnecessary (the model is designed to be 3D printed without supports if heights remain reasonable)
