PING PONG REPAIR AND LATCHES

Description of the part for simultaneous opening of both table latches

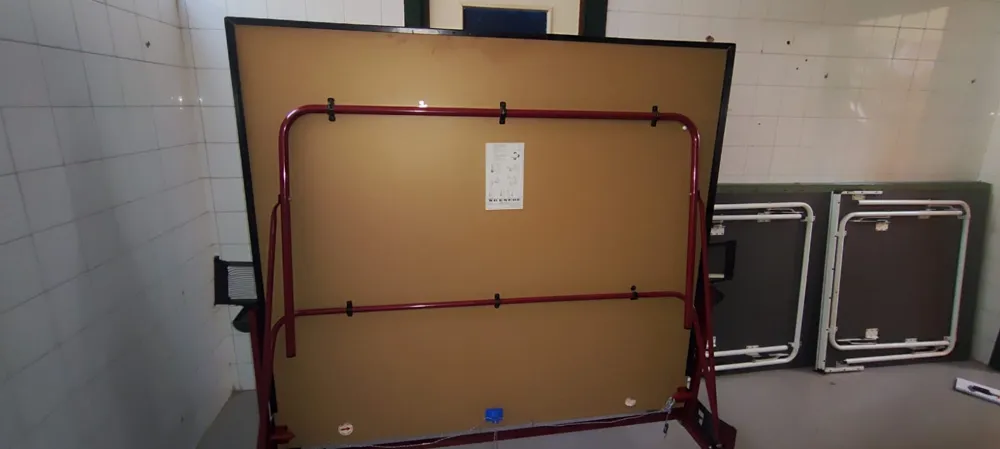

This part has been designed to facilitate opening both table latches simultaneously, allowing for more comfortable opening or closing when only one side is deployed.

⚠️ Important warning:
The table may tip over if both sides are not unlocked correctly. This tool does not replace good usage practices. Whenever possible, the assistance of two people is recommended to handle the table. The part should be used with caution and only to assist in opening and closing the latches.

Operation

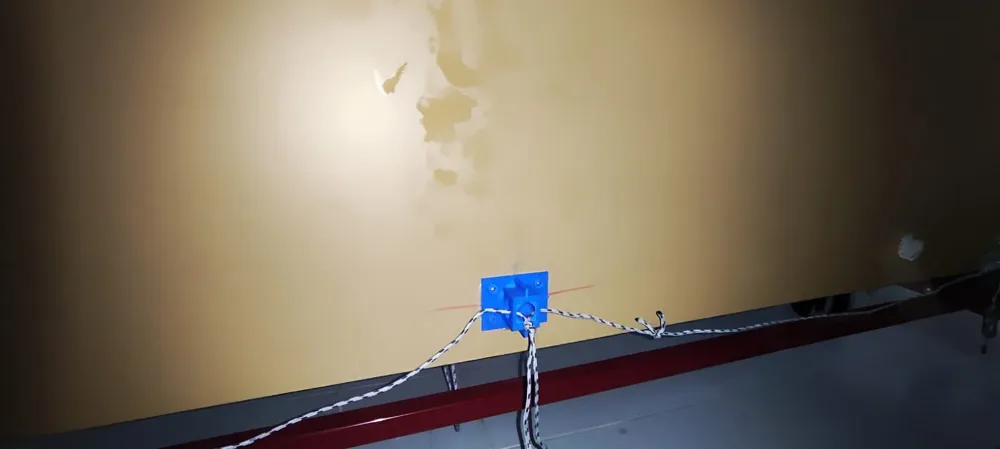

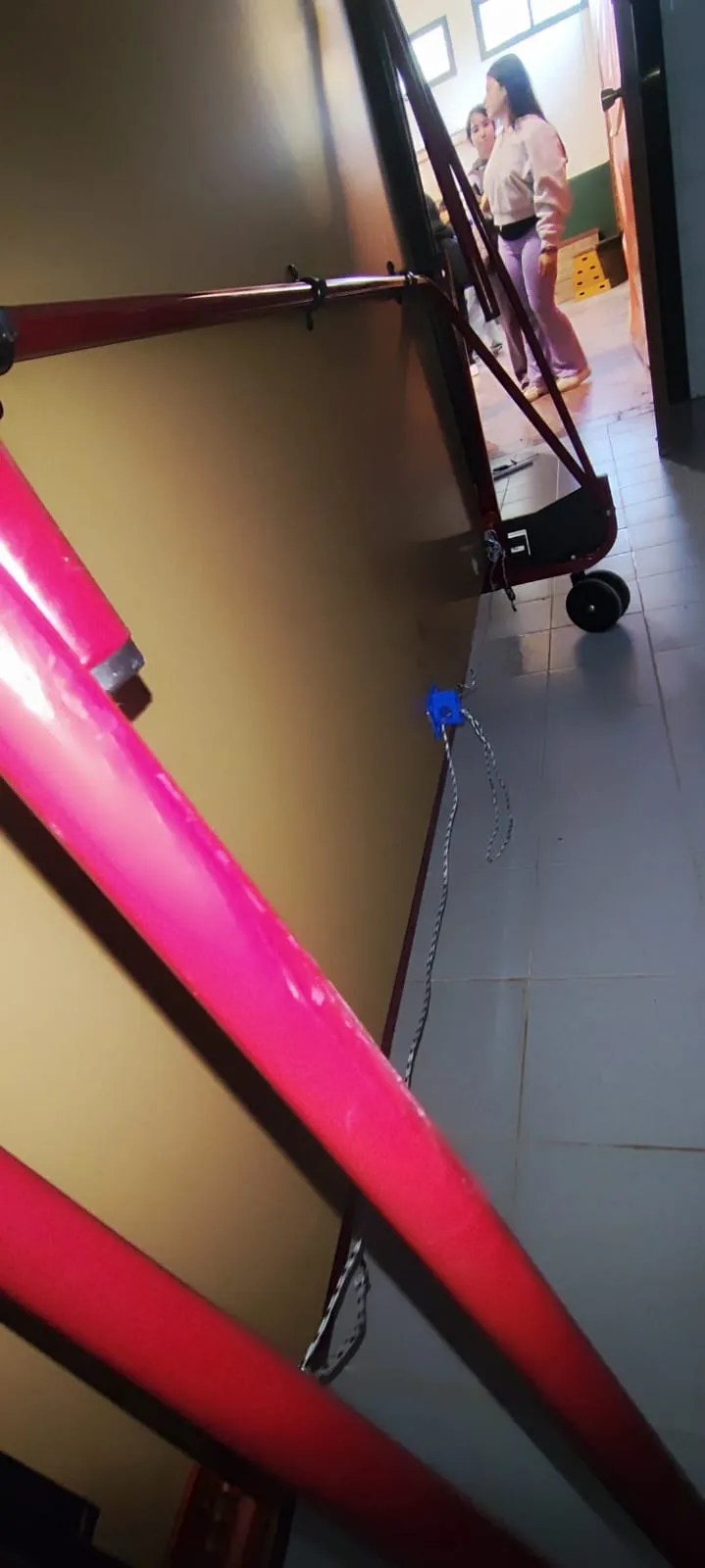

The part has two ends designed to tie a rope on each side, which allows for simultaneous operation of both latches by pulling the ropes.
Once installed, it facilitates the release of both locks with a single movement.

Installation

• The part can be glued with hot silicone for a quick hold, it has indicators to center the part.
• There is also the option to screw it on, always taking special care not to penetrate the table surface.
• It is very important to previously check the appropriate length before tightening the screws.

Technical Specifications

• Printed in PLA, with a fine layer of 20 microns.
• Includes reinforced holes to withstand tension.
• A 3/4 inch (19.05 mm) clamp is added to repair auxiliary tubes.
• Option for reinforced clamp design to withstand the table opening force for PLA usage.
