Grinding Head Storage Compartment Box

This model is the second version of the optimized and upgraded electric grinding head storage box>>

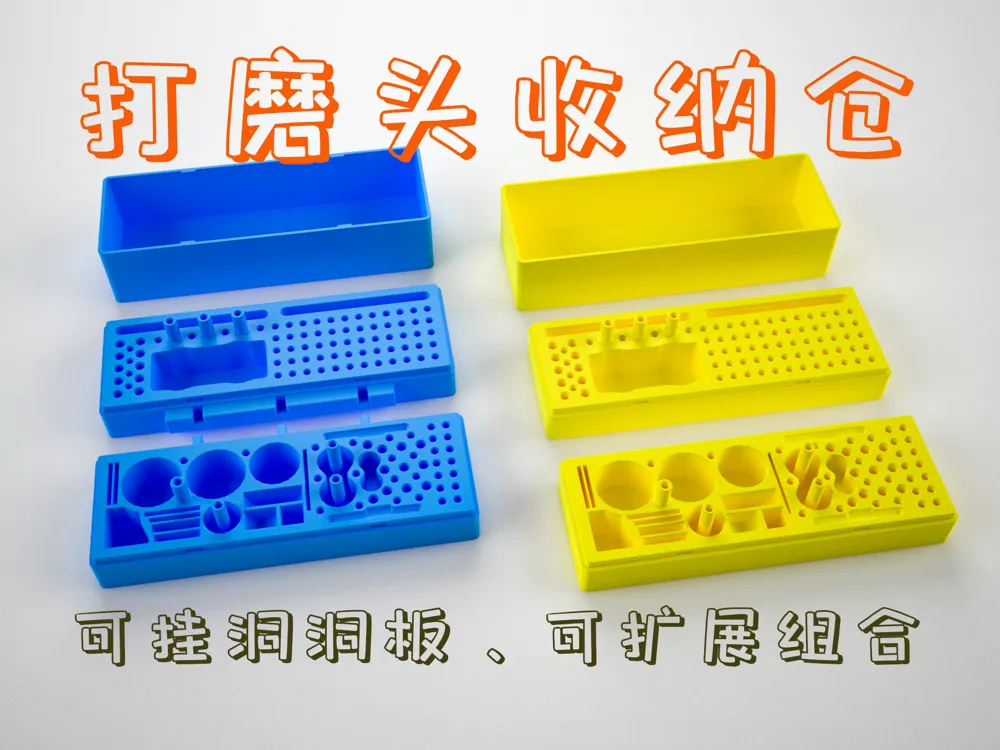

Storage Box 1 comes in two styles: Style 1 with a pegboard hook, and Style 2 without a hook.

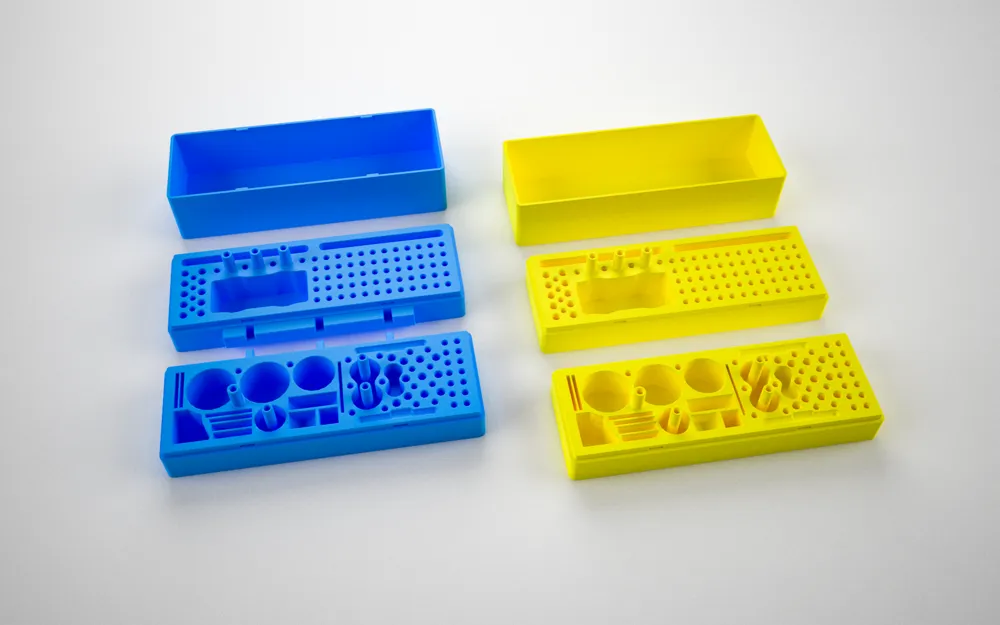

Storage Box 2 comes in two styles: Style 1 can be combined with Storage Box 1 with a pegboard hook, and Style 2 has no hook.

The storage box lid comes in two styles: Style 1 with a buckle, and Style 2 without a buckle. (Style 1 lid has a tighter fit; if frequently opened and closed, it is recommended to use Style 2 lid without a buckle)

The dimensions of the electric grinding head storage box are approximately 170*60mm, similar to the size of a mobile phone.

Suitable for grinding heads with a diameter of 3.2mm or less.

Considering that electric grinders can have different sized copper chucks, the designed storage holes offer higher compatibility. Tests show that grinding heads will not fall out when the storage box is placed on its side.

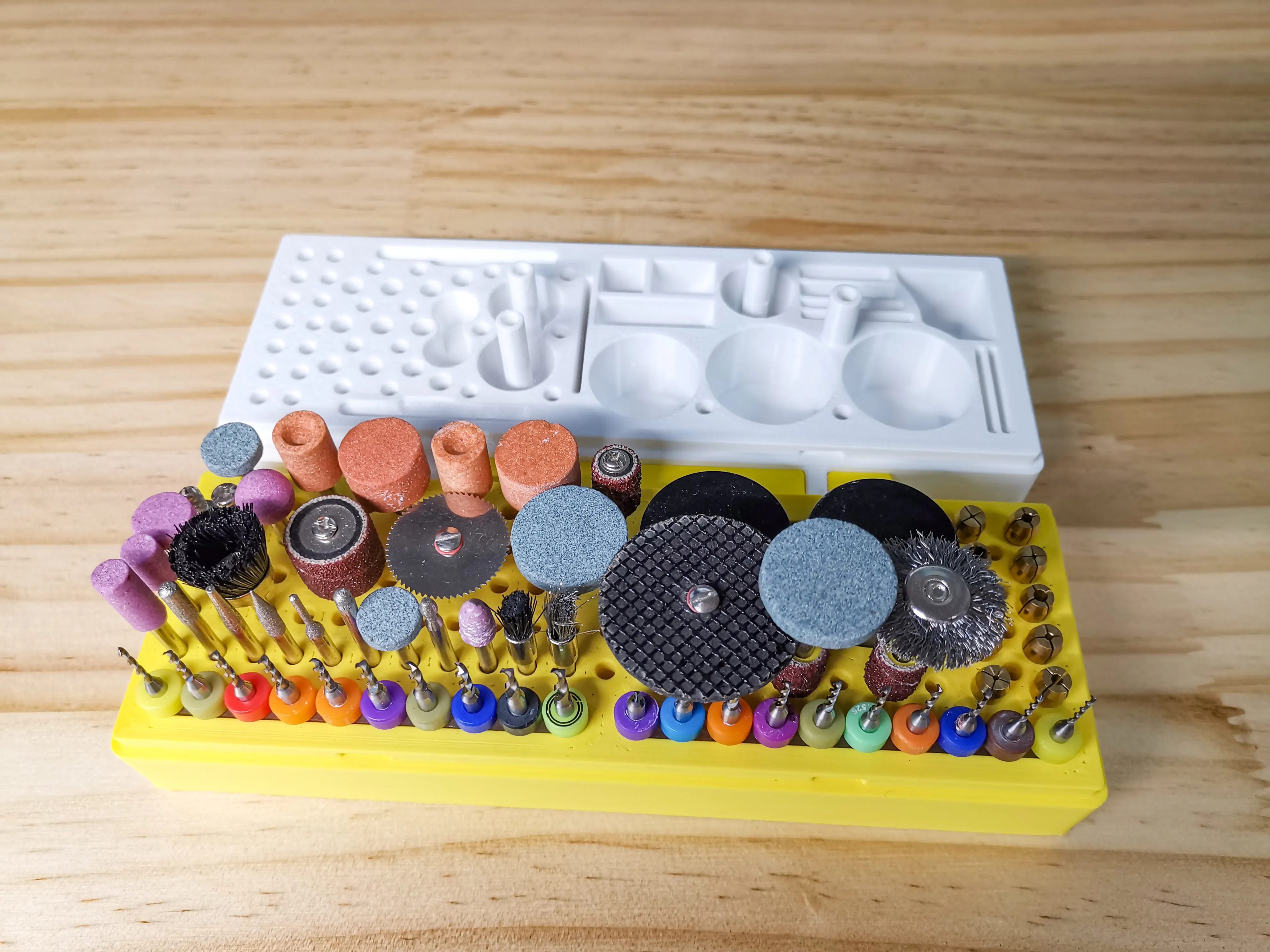

The designed holes are arranged with different spacing according to the types of grinding heads. The entire storage box can accommodate most common grinding tools; please refer to the pictures for details.

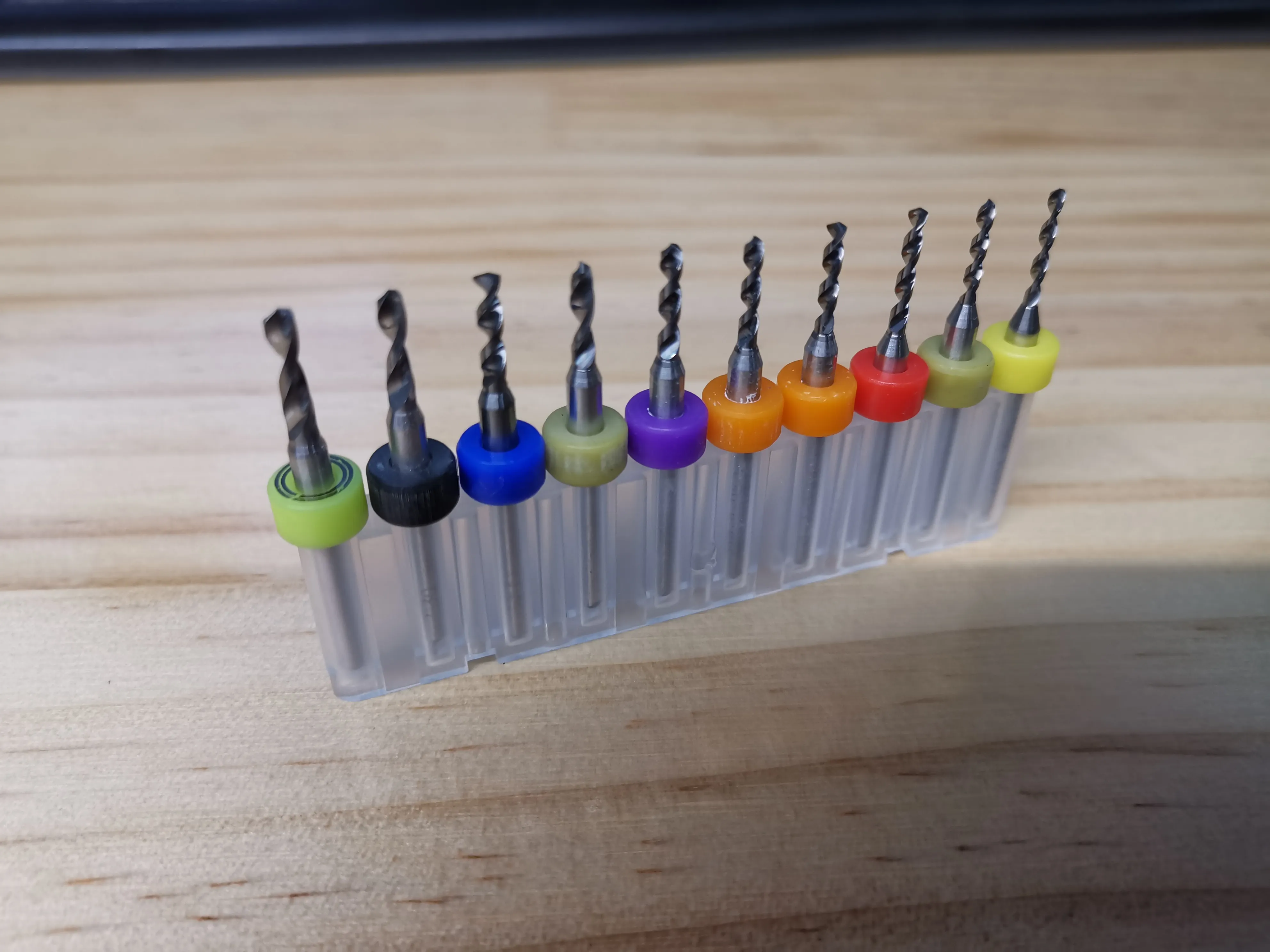

There is a drill bit slot inside, approximately 75.5mm*5mm in size.

Note: Considering the heavy weight of a complete set of grinding heads, it is not recommended to print the storage box with pegboard hooks using PLA.

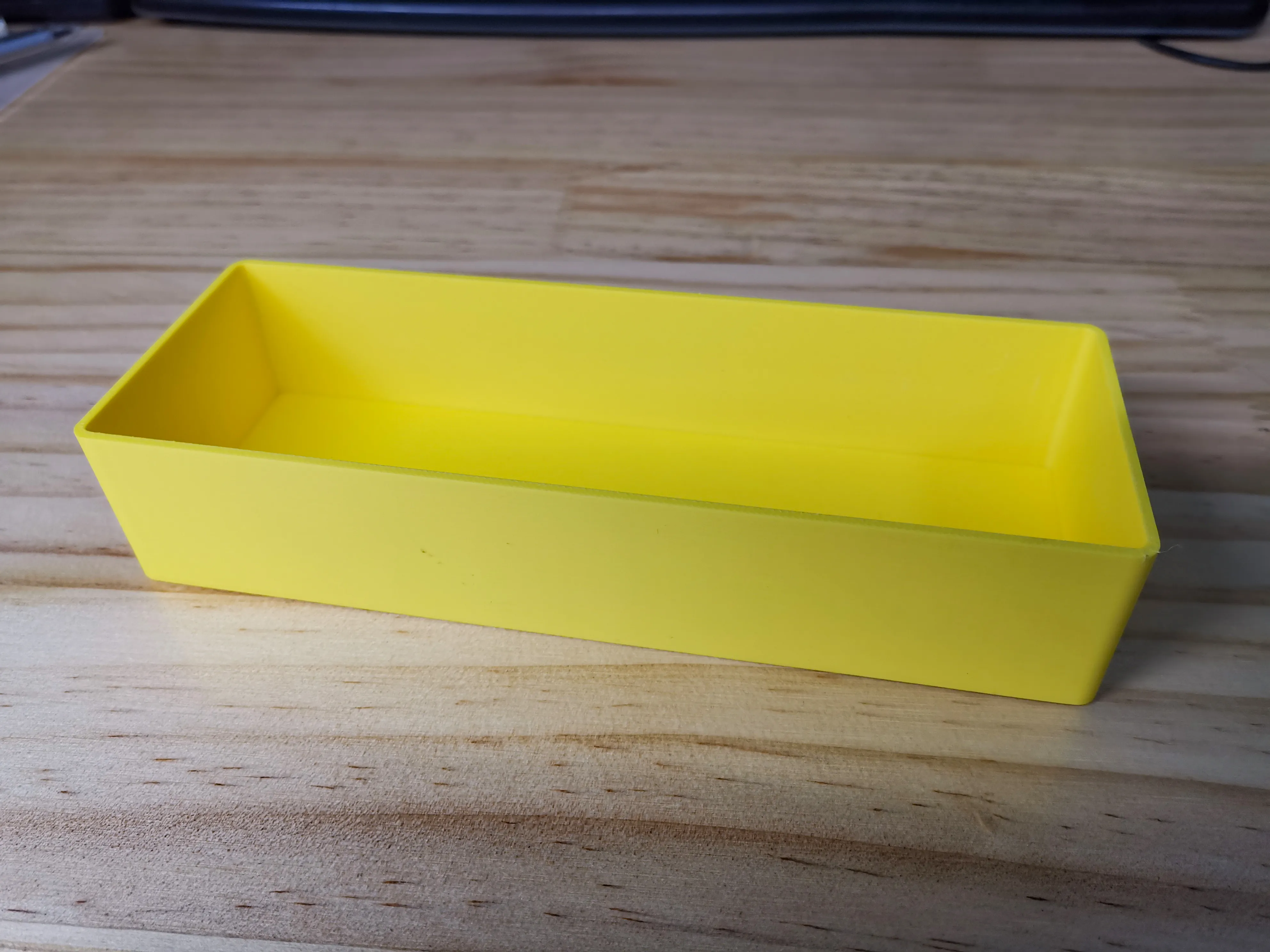

Lid, no buckle

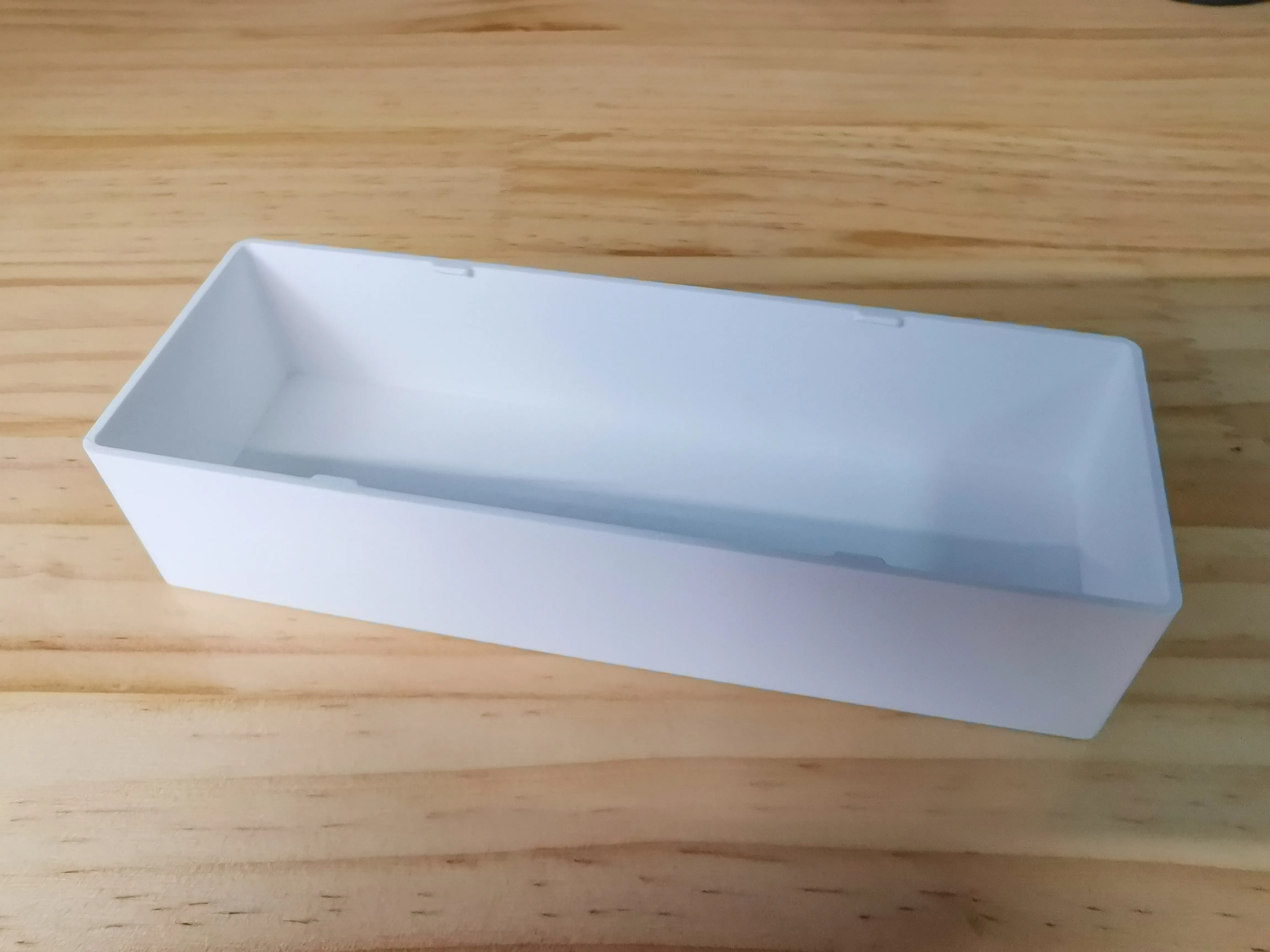

Lid, with buckle

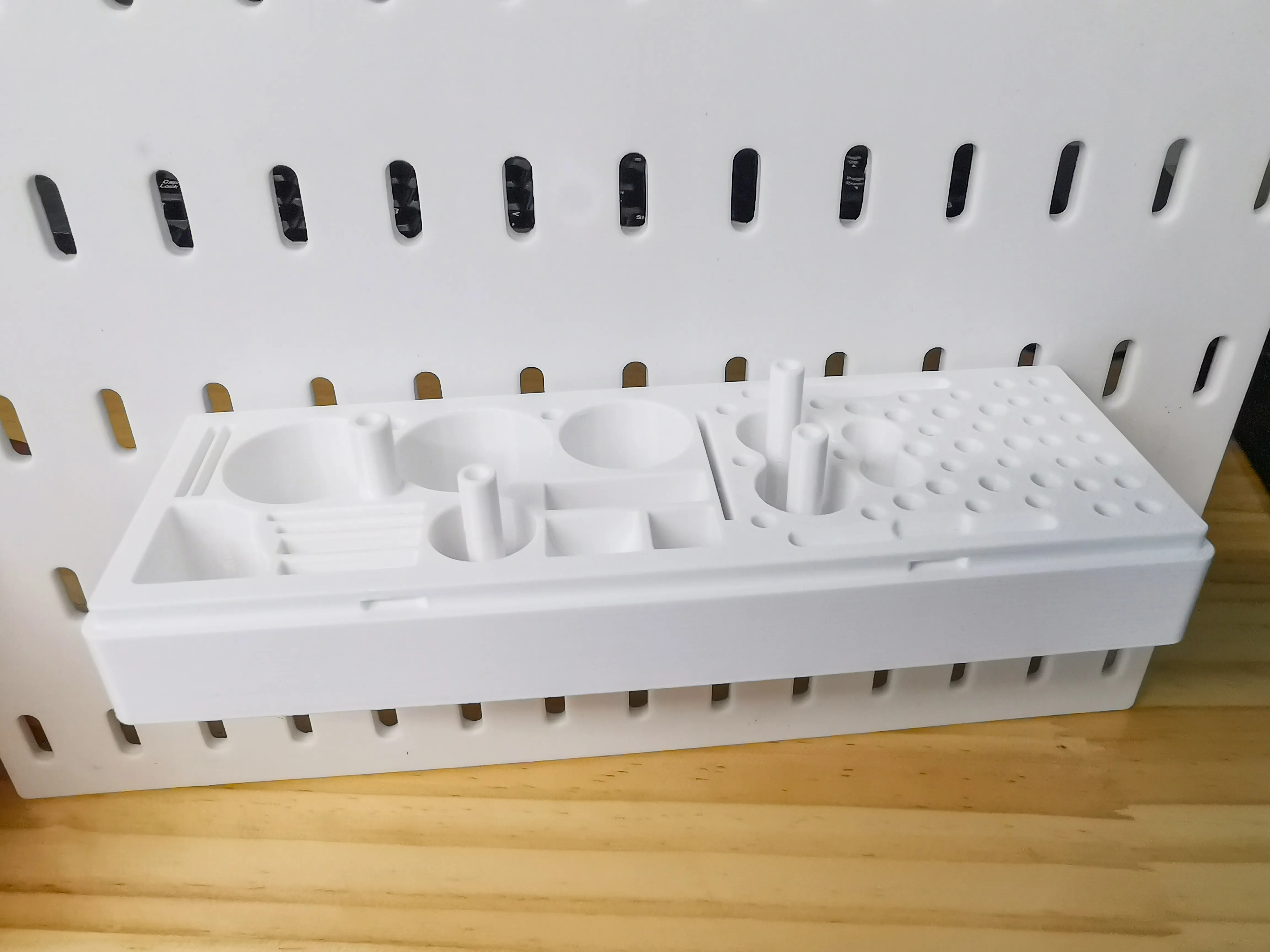

Can be hung on a pegboard

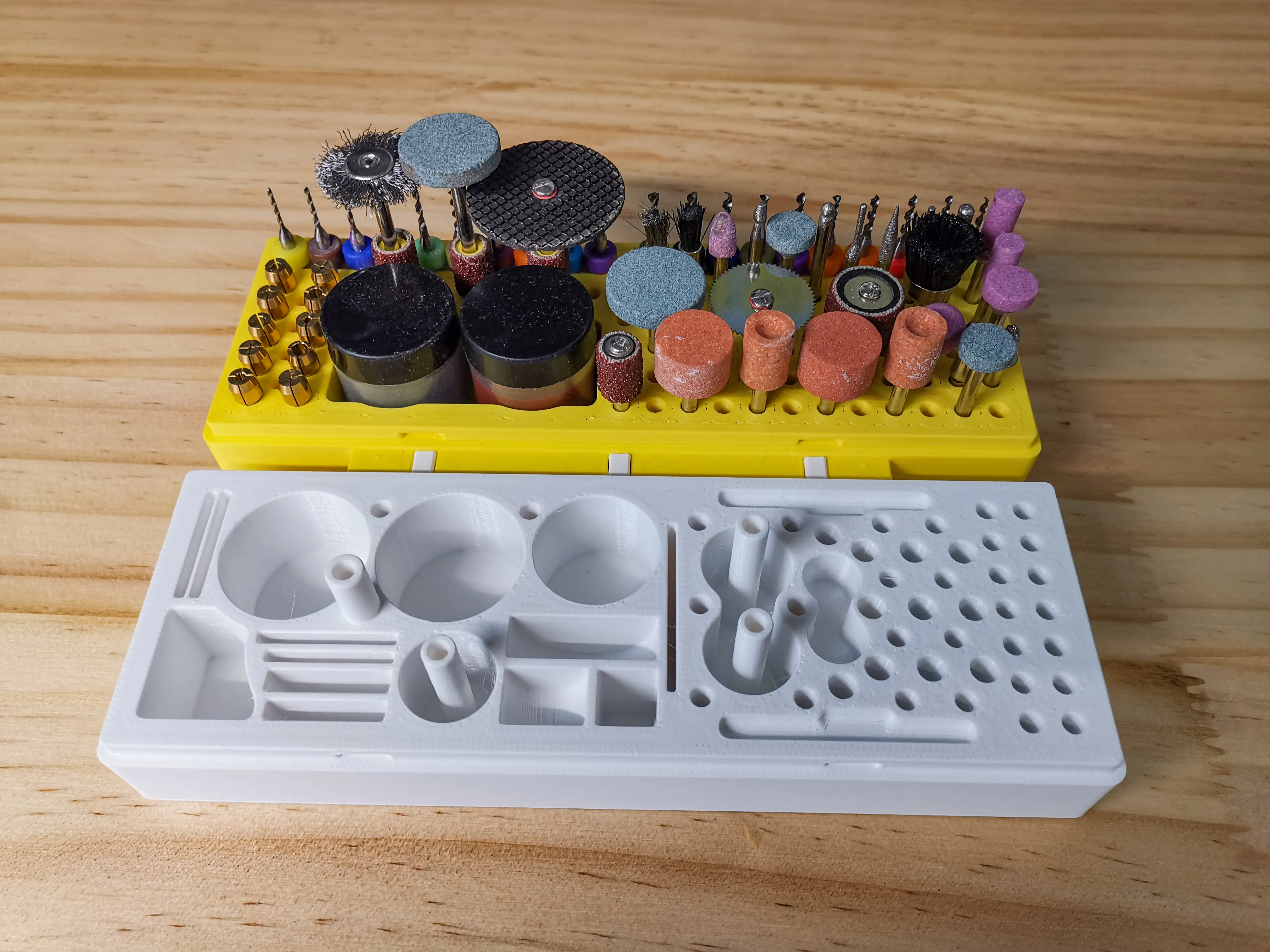

After assembly.

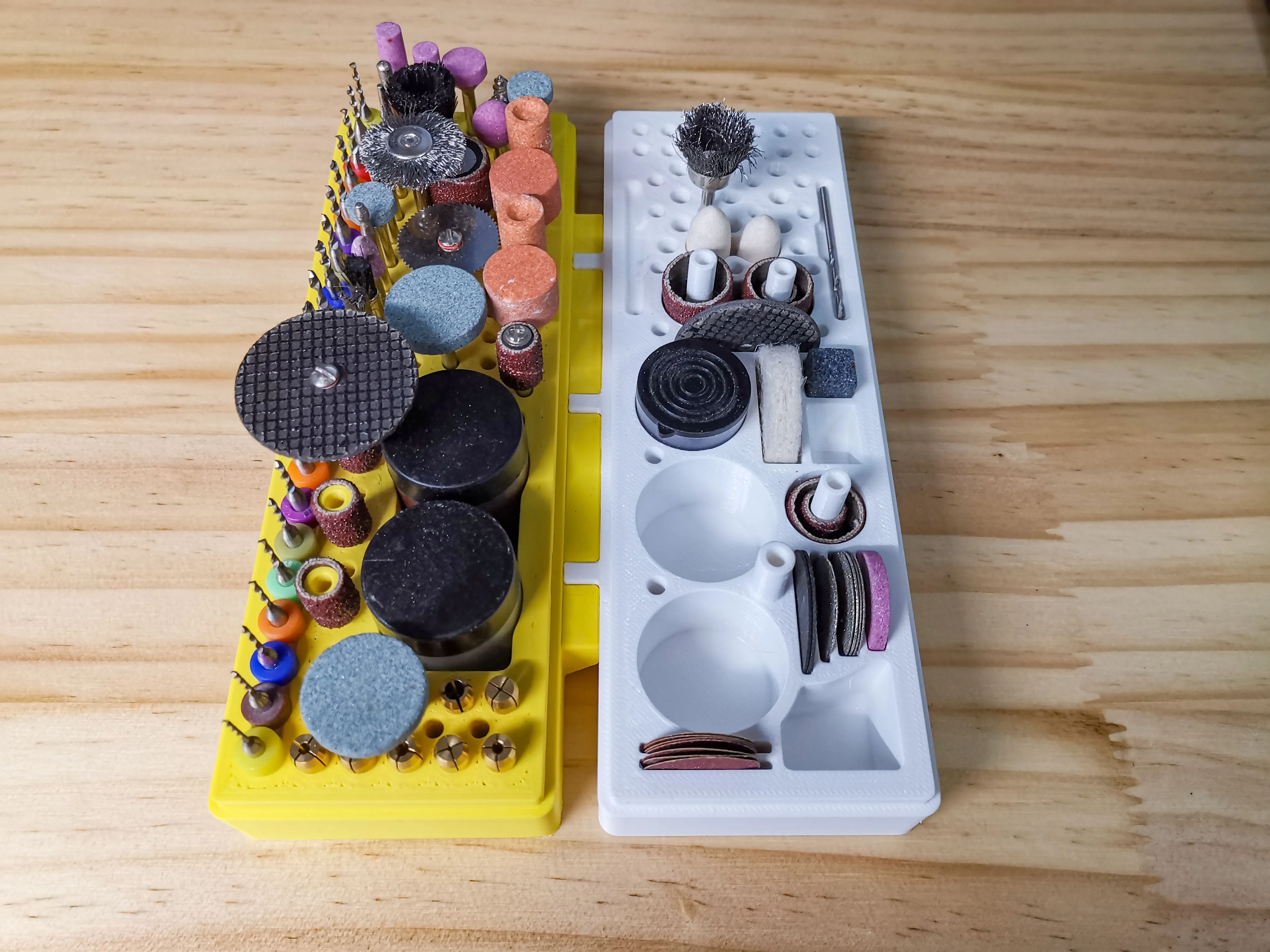

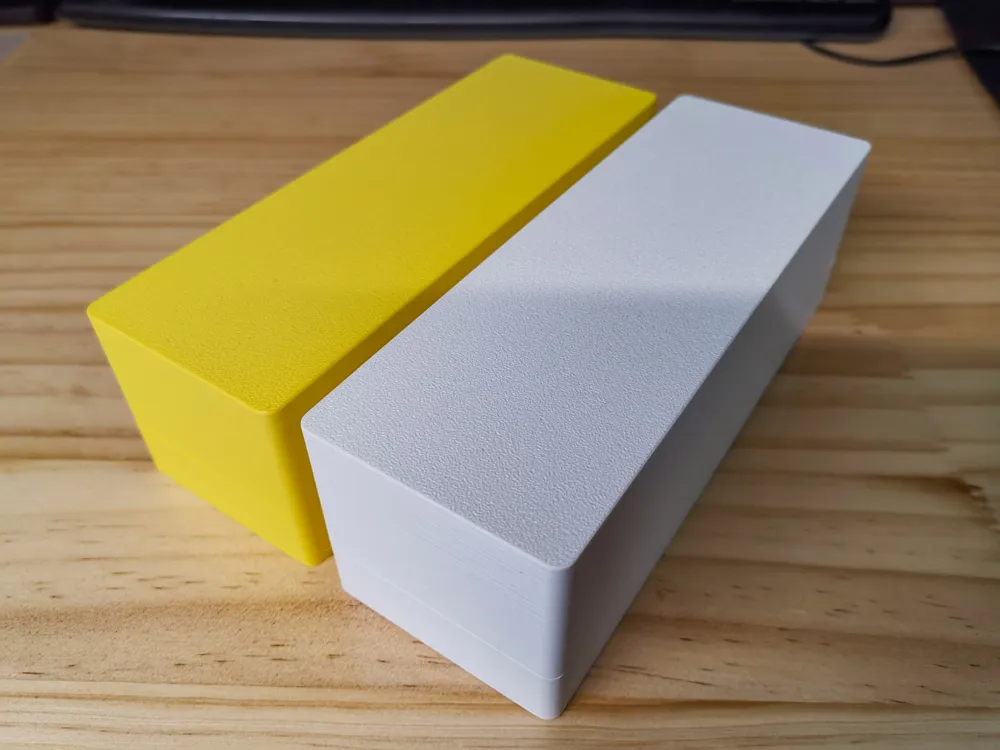

The yellow is the effect before optimization of the top surface; the image is for structural reference only. The print profile has been optimized, and the white storage box shows the optimized effect.

The drill bit slot size is approximately 75.5mm*5mm
