Rotating Display Stand OR Squid Tentacle Ornament
Print Profile(1)
Description
Boost Me (for free)

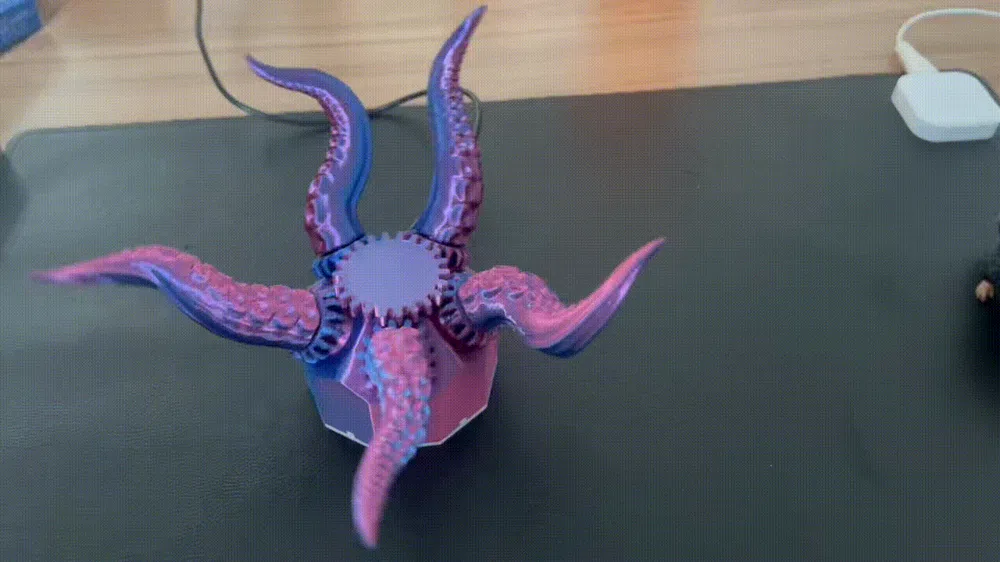

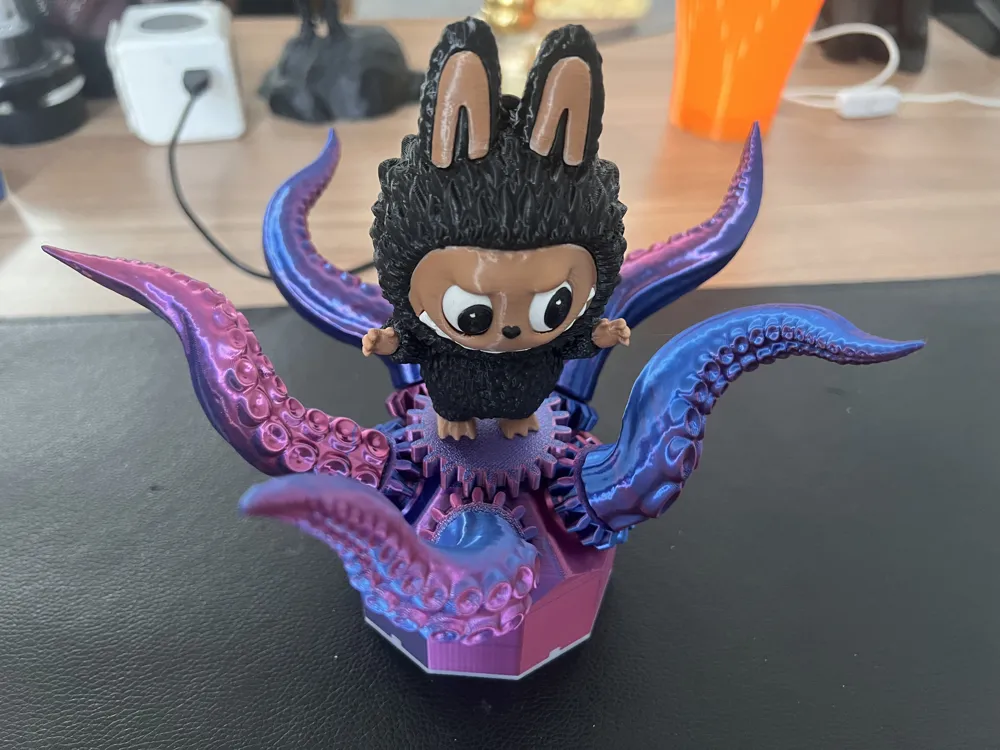

Originally, I just wanted to make an articulated squid tentacle as an ornament, but then I found that the top gear was perfect for holding small models, making it suitable as a display stand. Adding the flexible tentacles on the side makes it even more interesting.
Model assembly is very simple, so I won't include assembly instructions here (actually, I'm just lazy, plus I don't make assembly instructions myself).
The model includes the necessary bearings, and printed parts can be used directly. However, it is recommended to purchase finished metal 6804 bearings for the top bearing, as they offer higher rigidity and smoothness.
Assembly Notes:
1. Bearing installation. If the tolerance results in a loose fit, glue can be used, but it's best to adjust the tolerance and refit. Avoid situations where you want to disassemble after gluing but cannot.
2. Tentacle connection gear installation. Simply insert it into the bearing with a little force; there's an end snap.
3. Tentacle installation. Similar to bearings, if it's too loose, glue can be used.
Materials required for the entire model:
1. 1 TT motor, Bambu Lab
2. 1 M3 screw, any length greater than 15mm. For the main shaft.
3. 1 M2X8 self-tapping screw. For the TT motor gear.
