Description

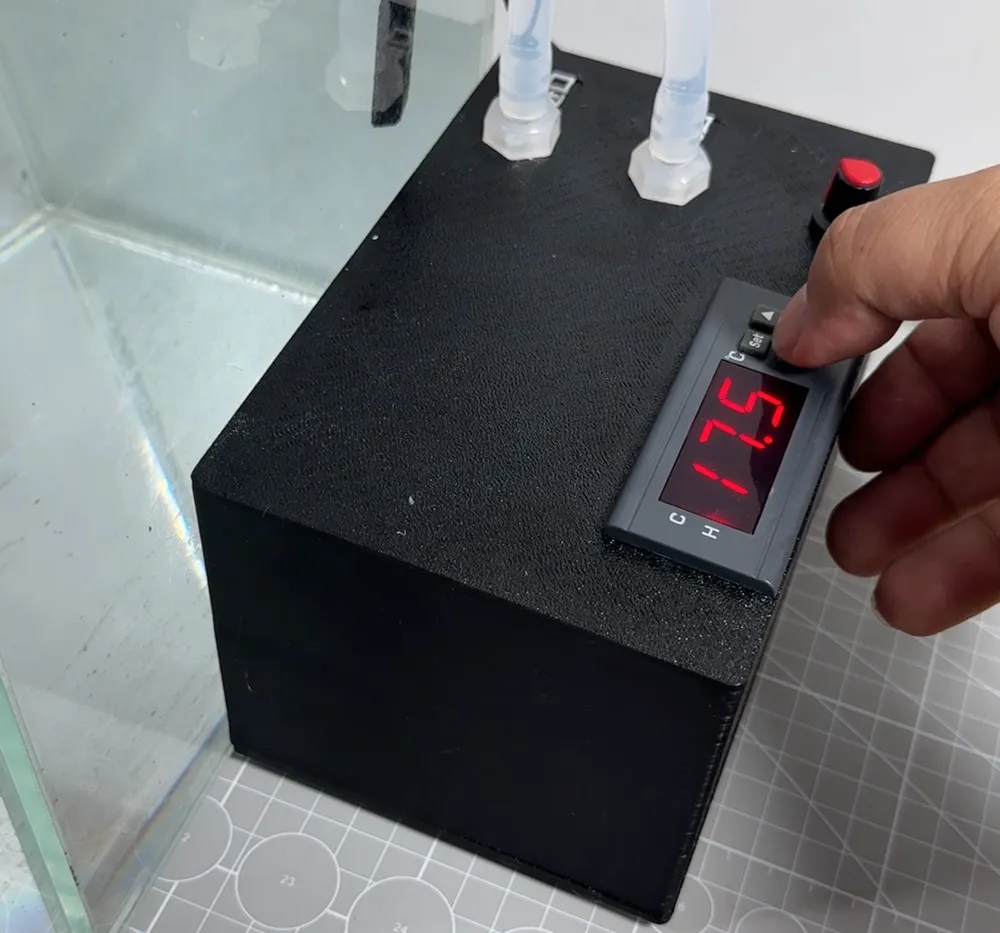

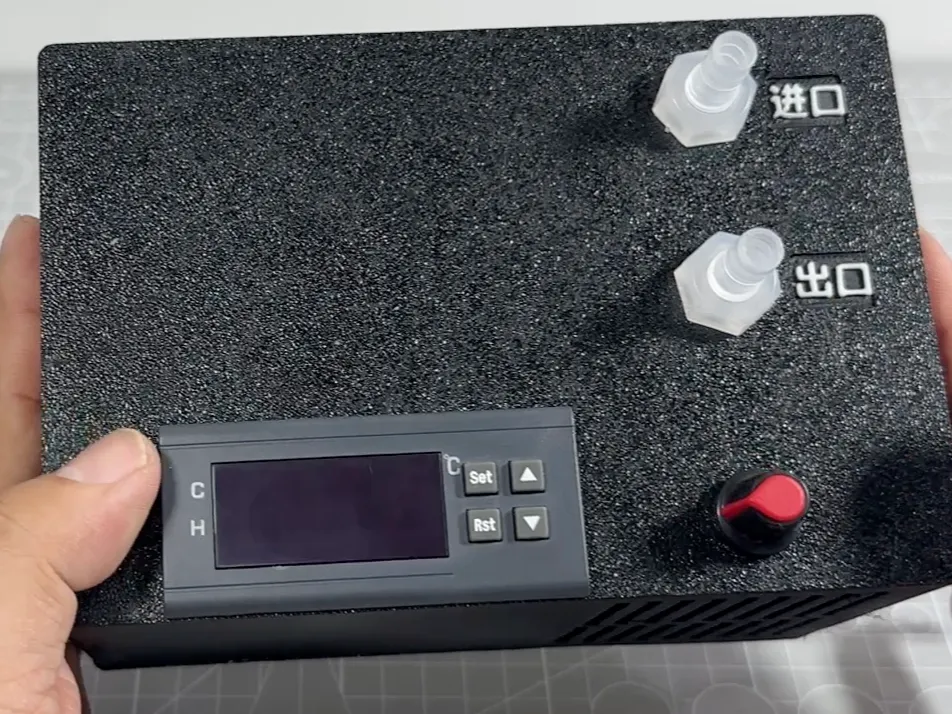

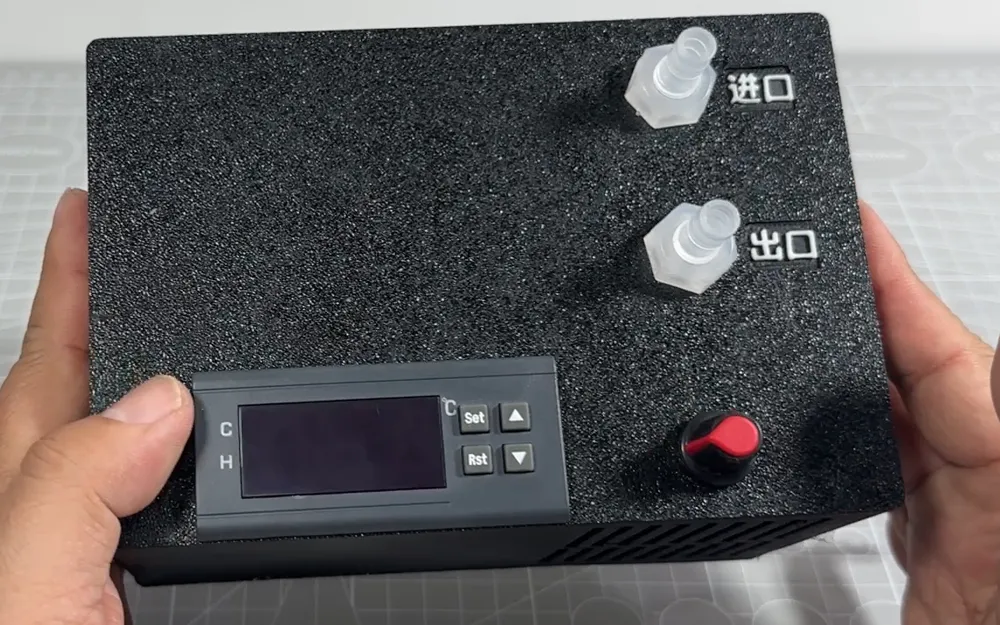

This device can maintain a constant water temperature in the fish tank, capable of cooling and heating to regulate the tank's temperature. It primarily uses 12706 or similar sized thermoelectric coolers and an HP3800 ITX case heat pipe radiator as main components. The temperature control device is a ZY-1010 thermostat
Panel-through barbed fitting specification 8mm diameter M10 thread
HP3800 ITX case heat pipe radiator
12706 or similar sized thermoelectric coolers
M3X40mm screw
M3X10mm self-tapping screw
Sealant K-704N silicone sealant
12V external circulation pump
6X10mm silicone tube
PWM speed controller
5.5X2.5 DC female jack (high power)
12V DC power supply (10A or more)
