Ergonomic Toolset for broom/vacuum (old version)

→→→ Please check out V3 here ←←←

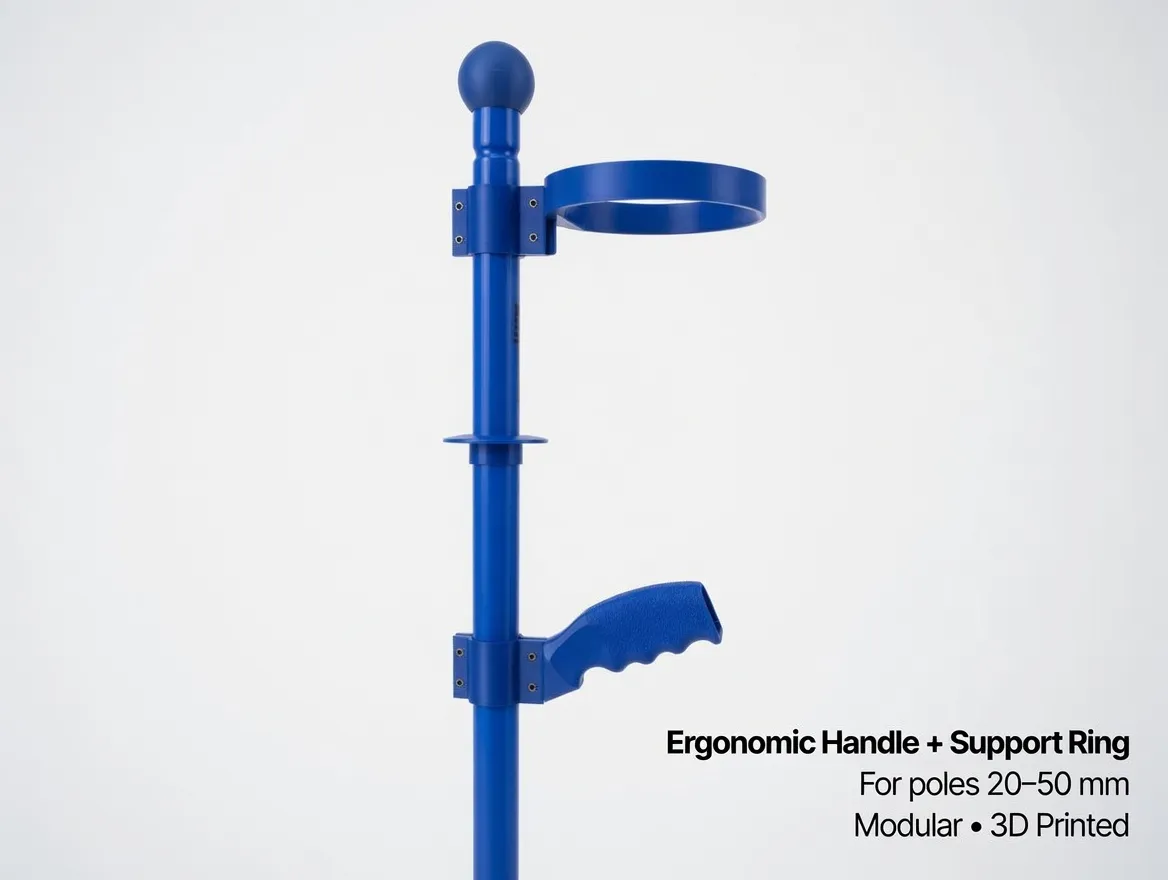

V3 - Better Clamps and better print settings for optimum strength

OLD! (v2) → Ergonomic toolset for a broom/ vacuum or any stick/pole [20-60mm]

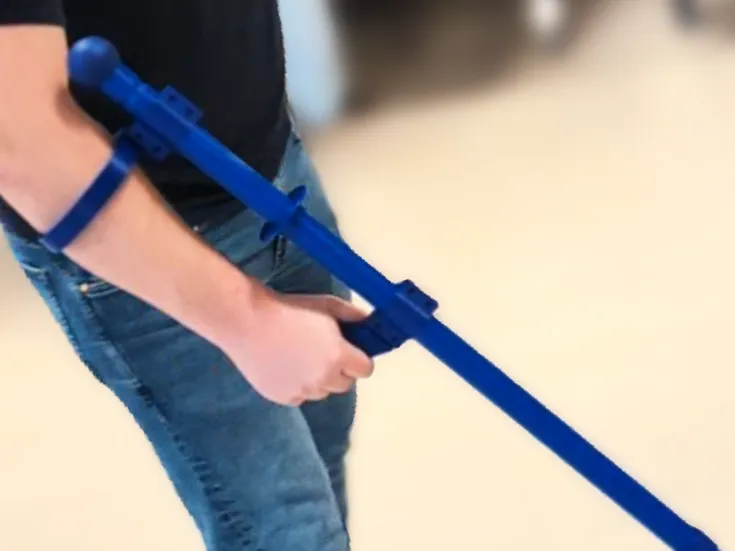

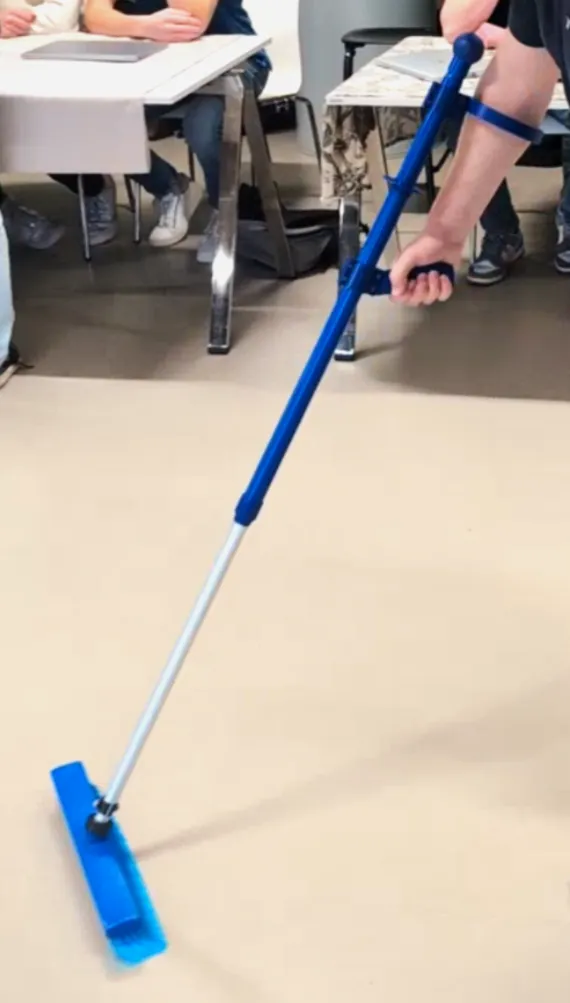

This toolset is a ergonomic design and extra helpful for those with a disability like myself. Since a motorcycle accident I've lost my left arm. So this toolset comes in handy, but it can be used without a disability.

This is V2

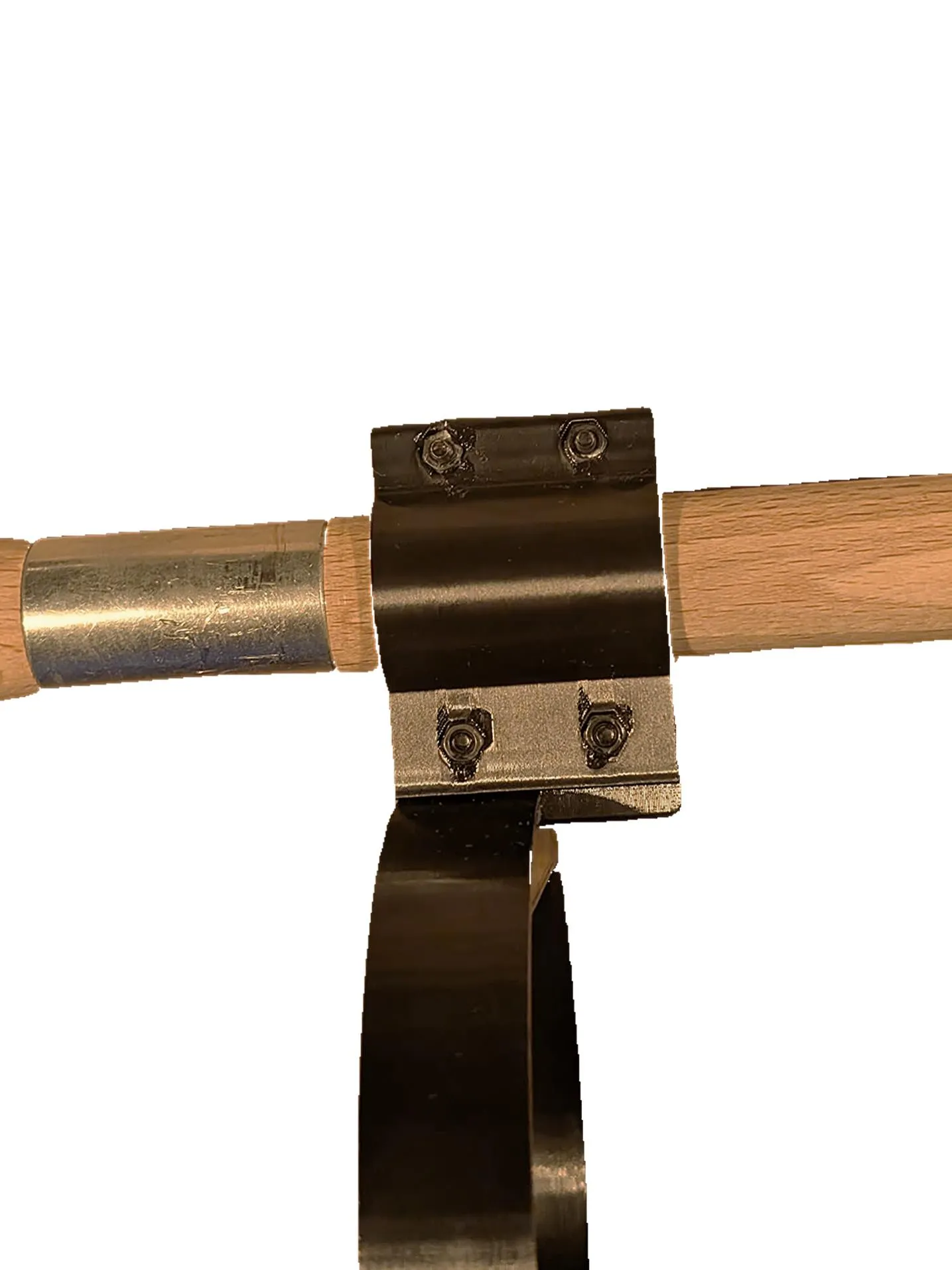

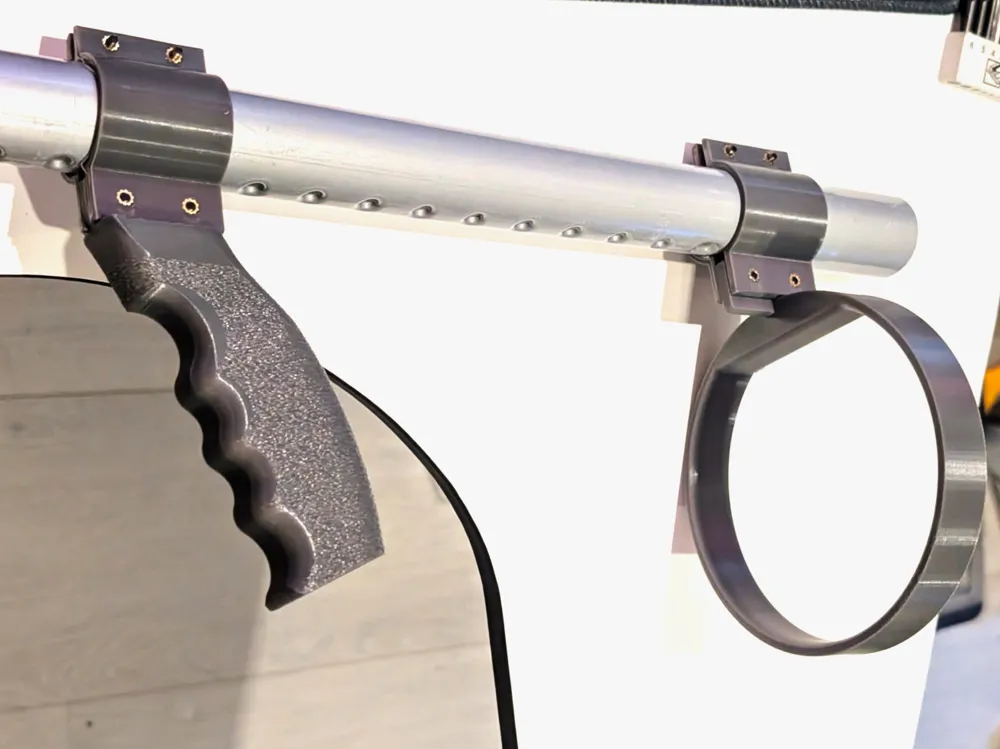

clamps : 2 different versions



nuts [M3]

inserts [M3x3]



All standard M3 Nut

The inserts [M3x3]: { https://www.amazon.nl/dp/B0DCBXJ9JK?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 }

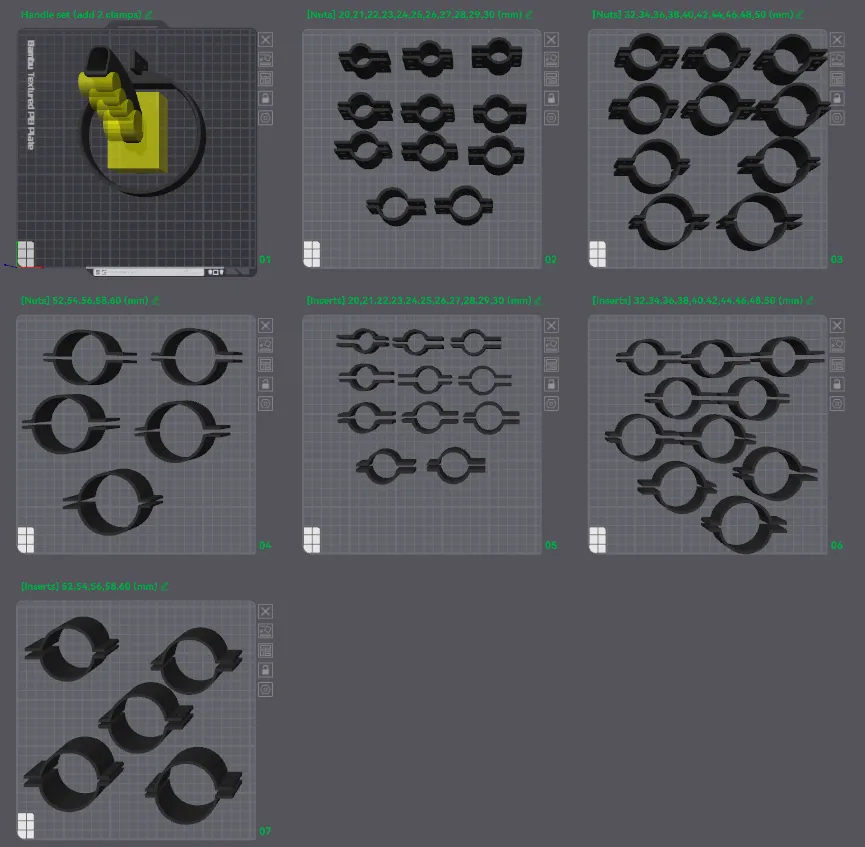

Select the clamp size you need from the print beds.

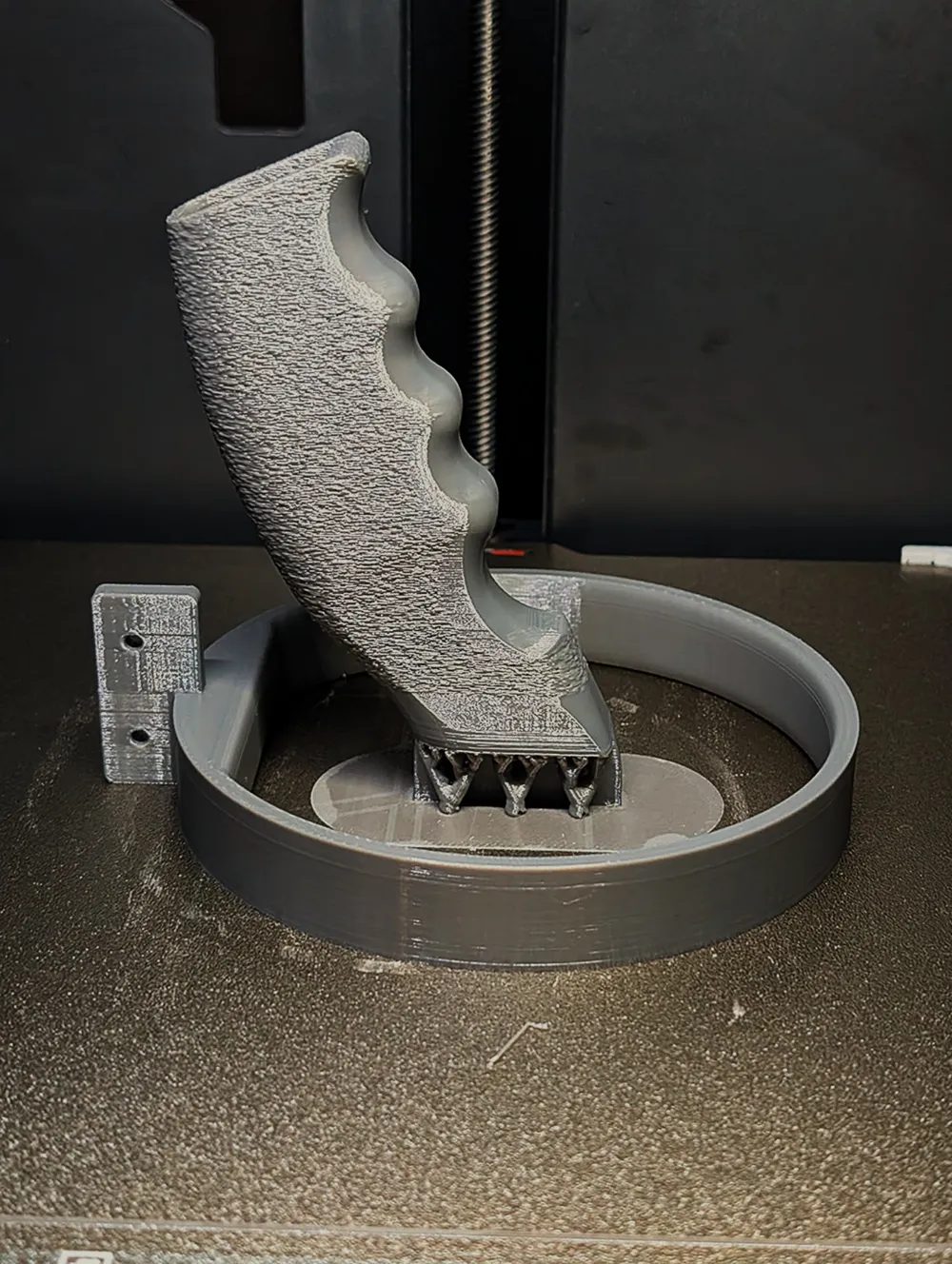

Print 1 set:

• 1x handle
• 1x ring

• 2 x clamp (Select from print profile for the size you'll need)



  + hardware

• 8x bolt (M3x15)
• 8x insert or standard nut (M3x3)

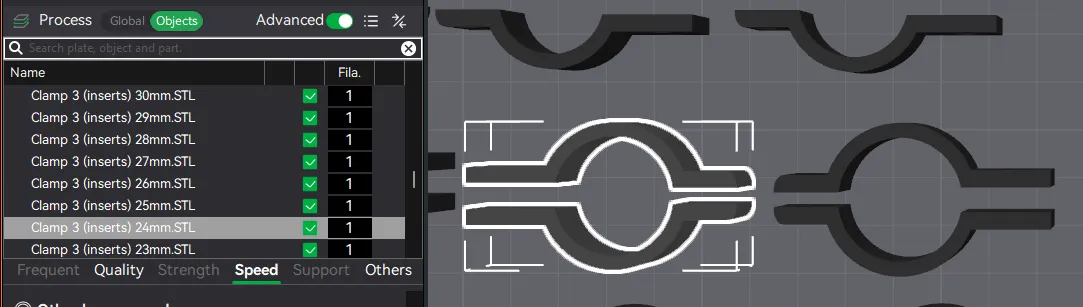

If you select a clamp you'll see the size in the description under ‘Objects’

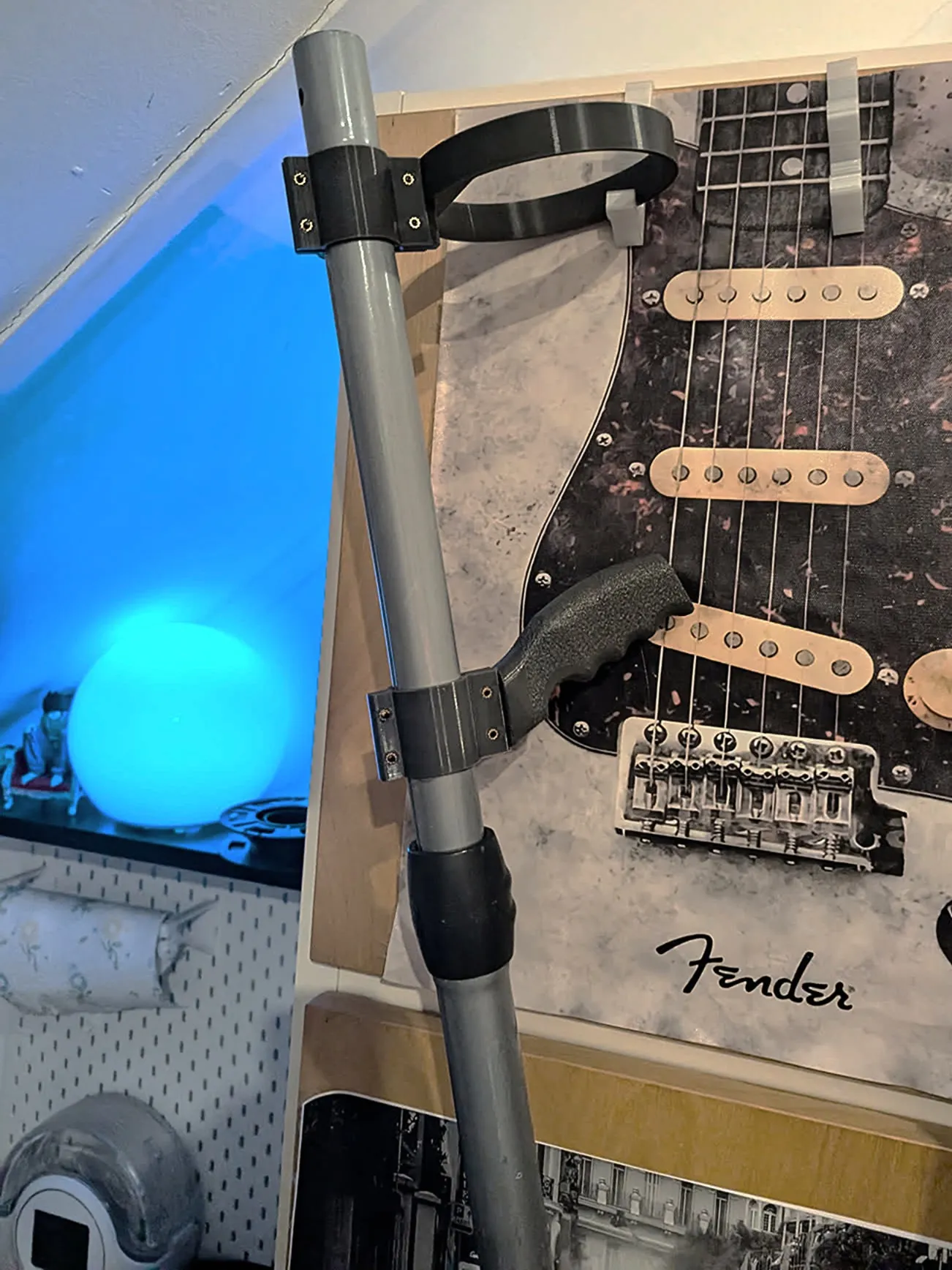

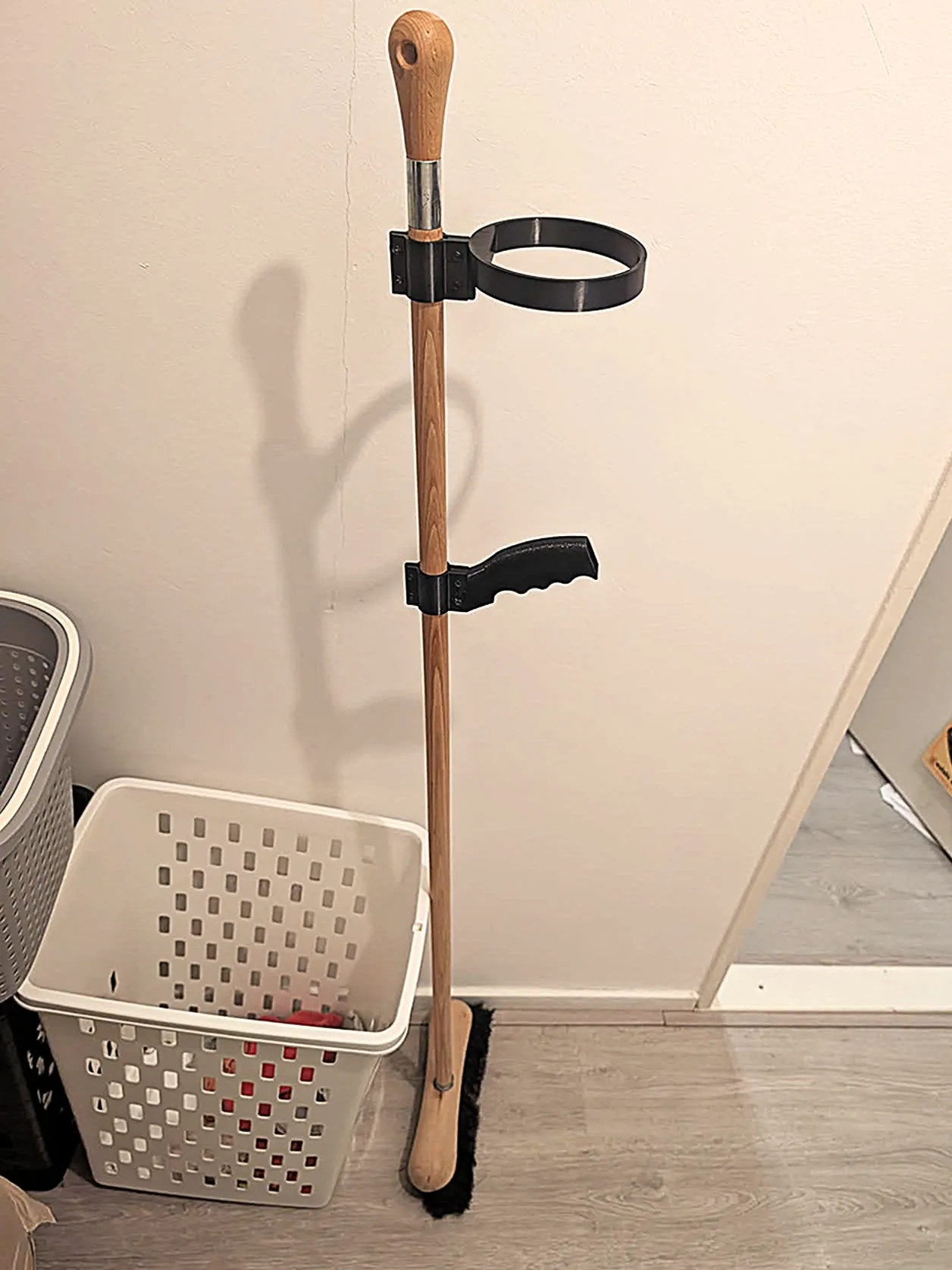

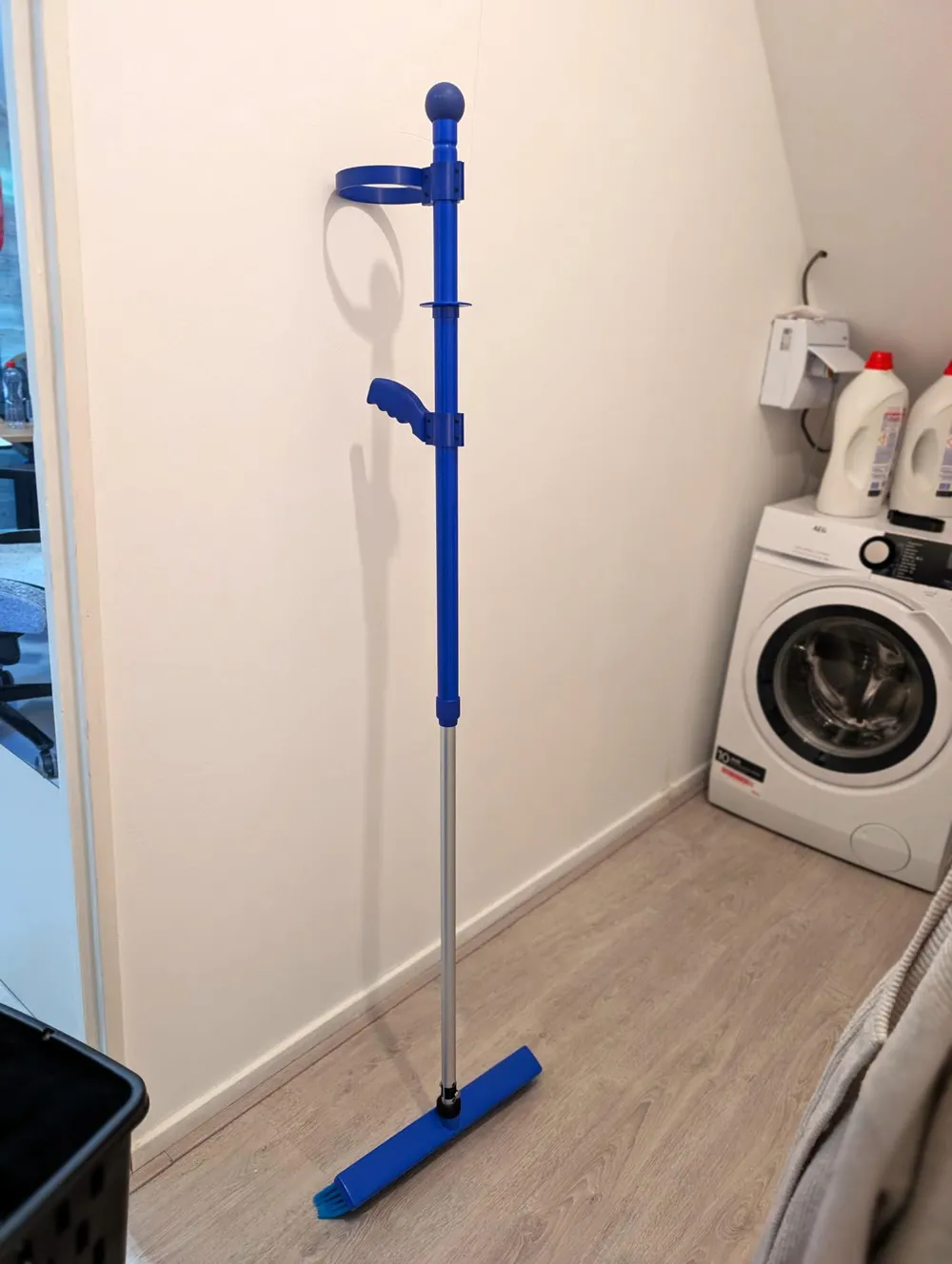

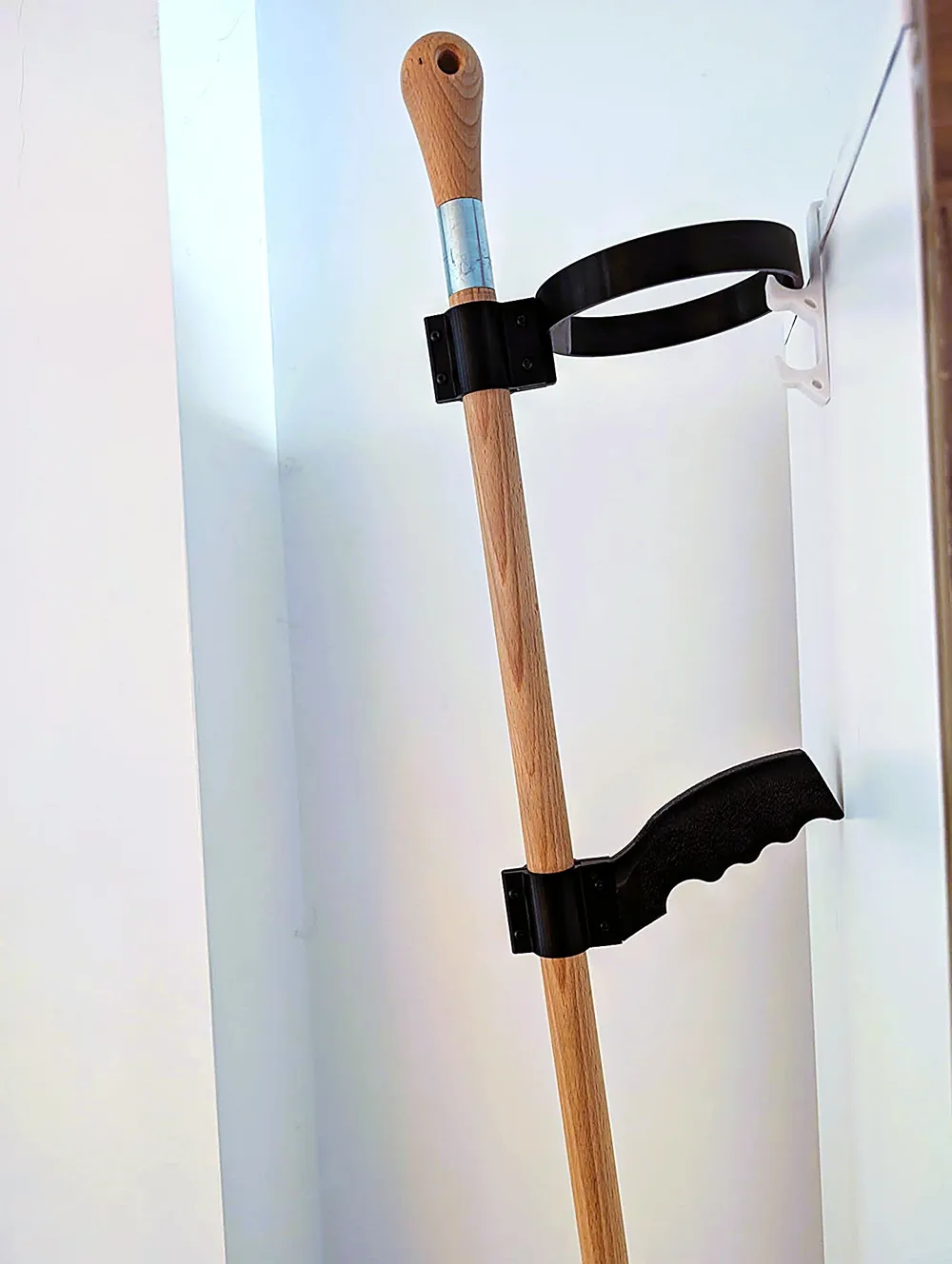

My living room broom and my vacuum

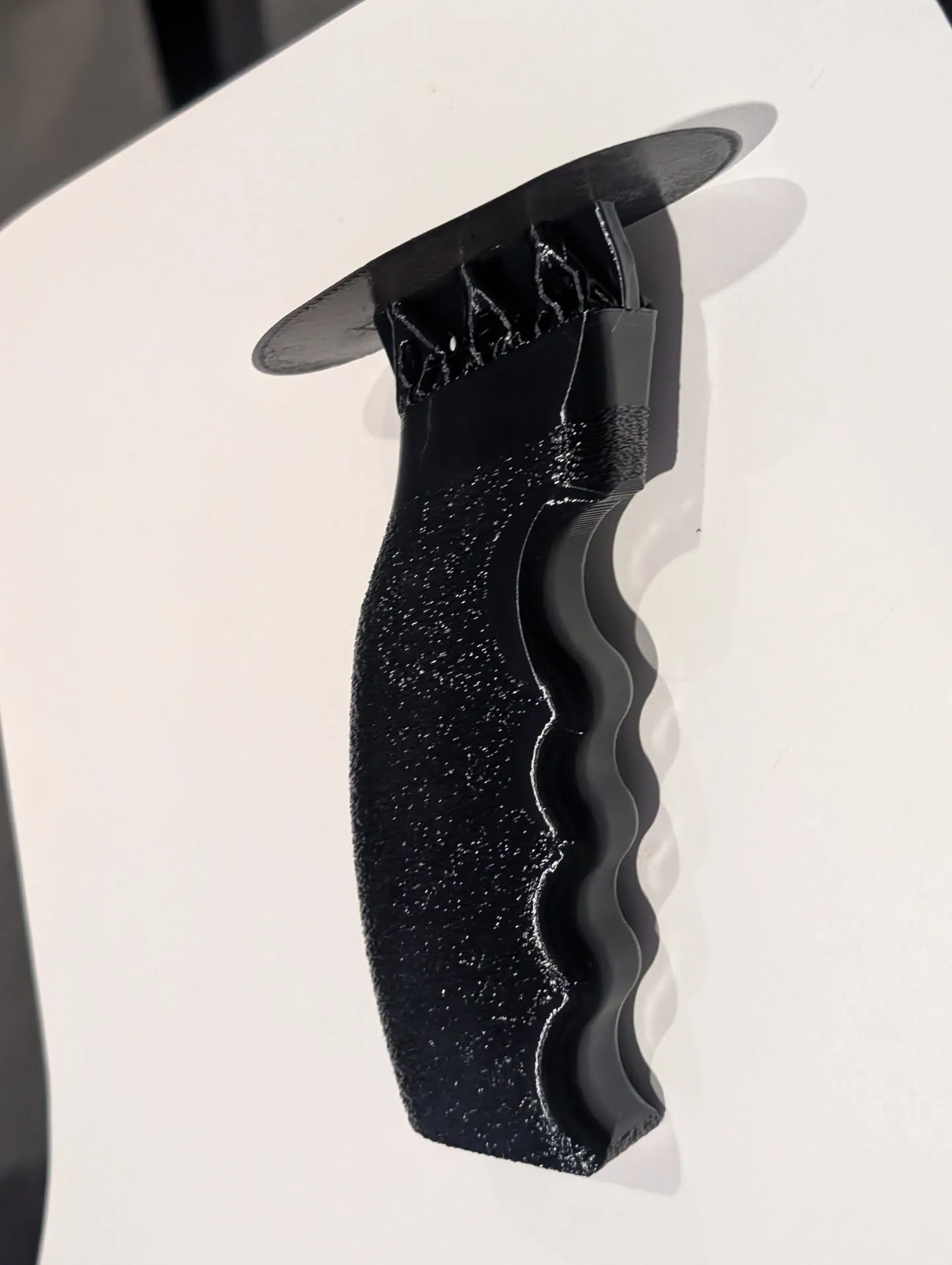

I've came to a handle with a perfect ergonomic feeling. This handle is a bit taller, thinner and under a ergonomic angle (better than V1)

Sizes:

 If you need a specific size. Please ask and i will upload the requested size.

Please leave a comment if your using this design. It means a lot if i can reach more people who would love to use this.
