UGREEN LAN Splitter wallmount
Print Profile(1)
Bill of Materials
Description
UGREEN LAN Splitter 2-1 Custom Mountable Holder
Perfect fit and secure mounting wherever you need it.
A new version is on the way. It will include a cutout for the LED indicators and make the UGREEN logo more visible. If you have any requests feel free to reach out.
Why this model

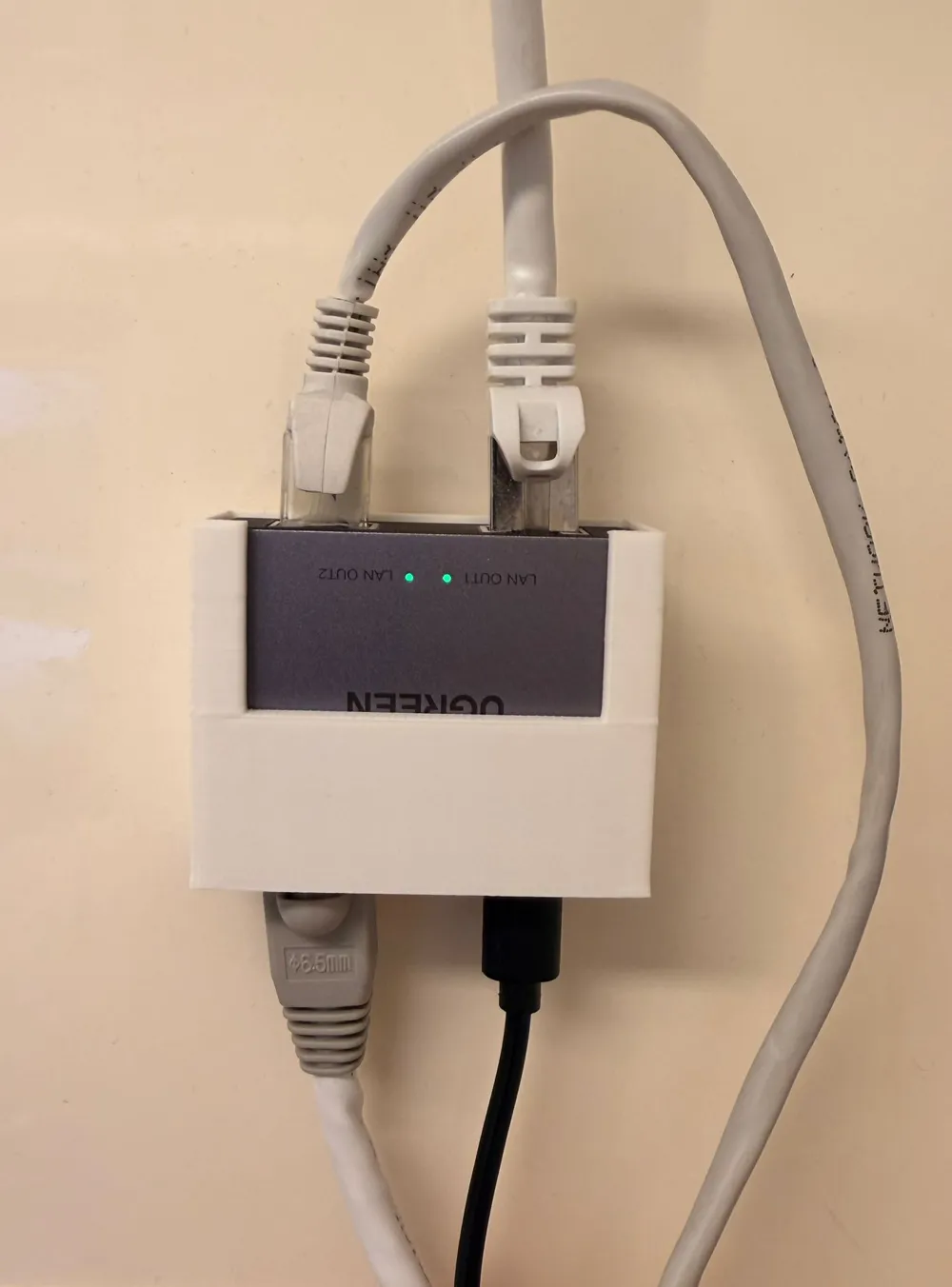

The UGREEN 2-1 RJ45 splitter is great, but it has no good way of being mounted. I wanted to place it under a table, on a wall or inside a cabinet instead of letting it hang loosely in the cables. That became the starting point for this holder.
What you get

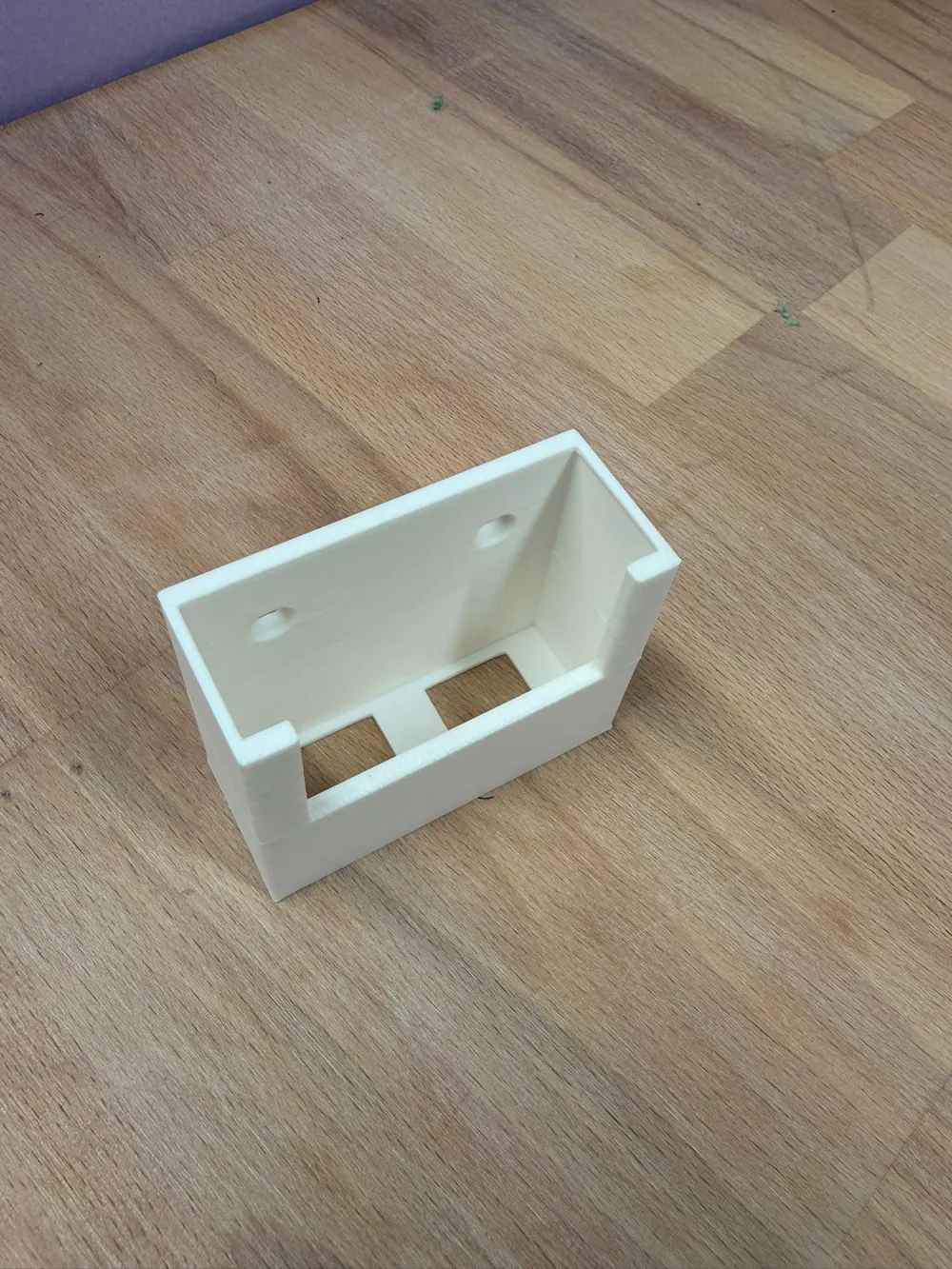

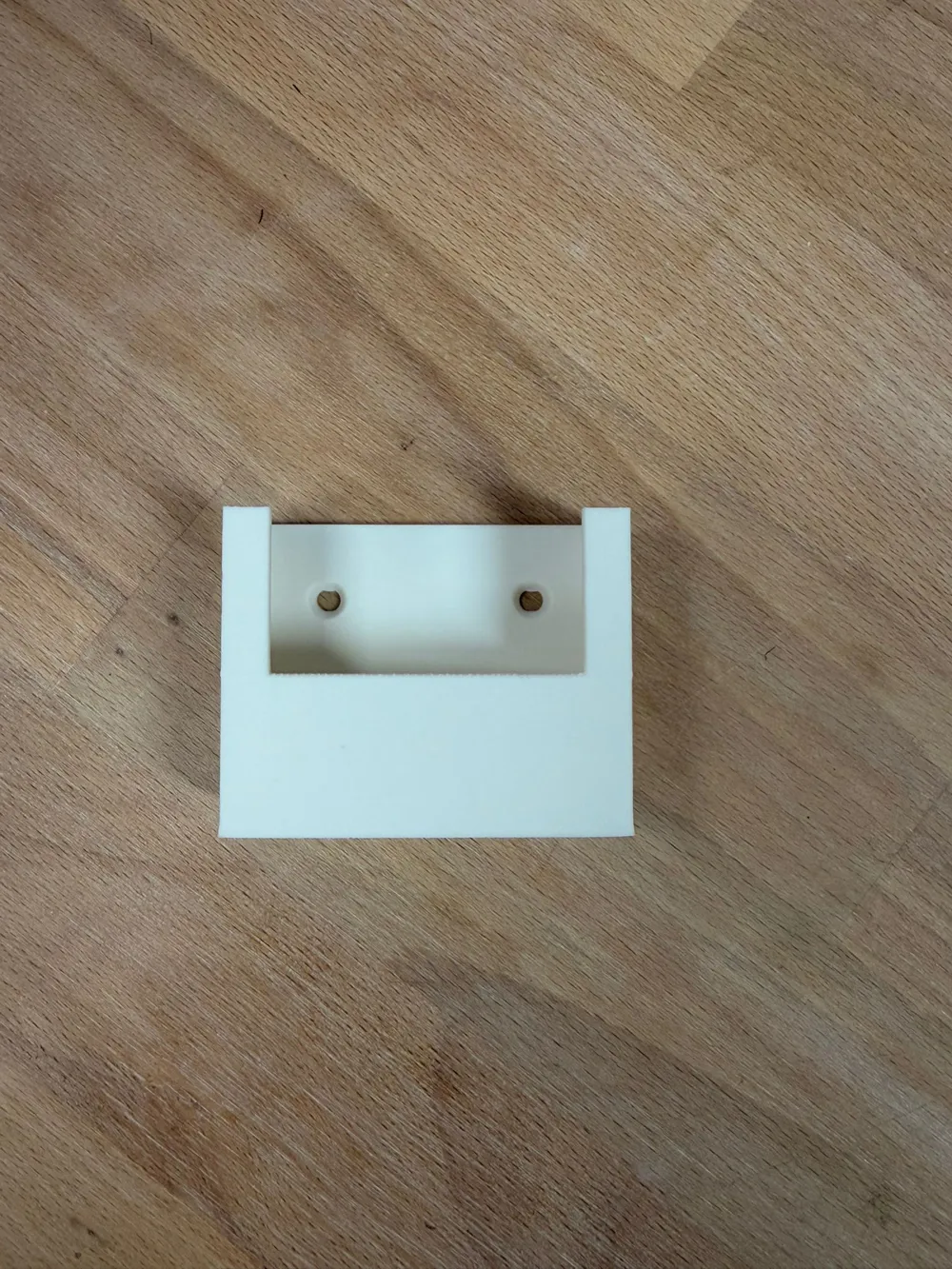

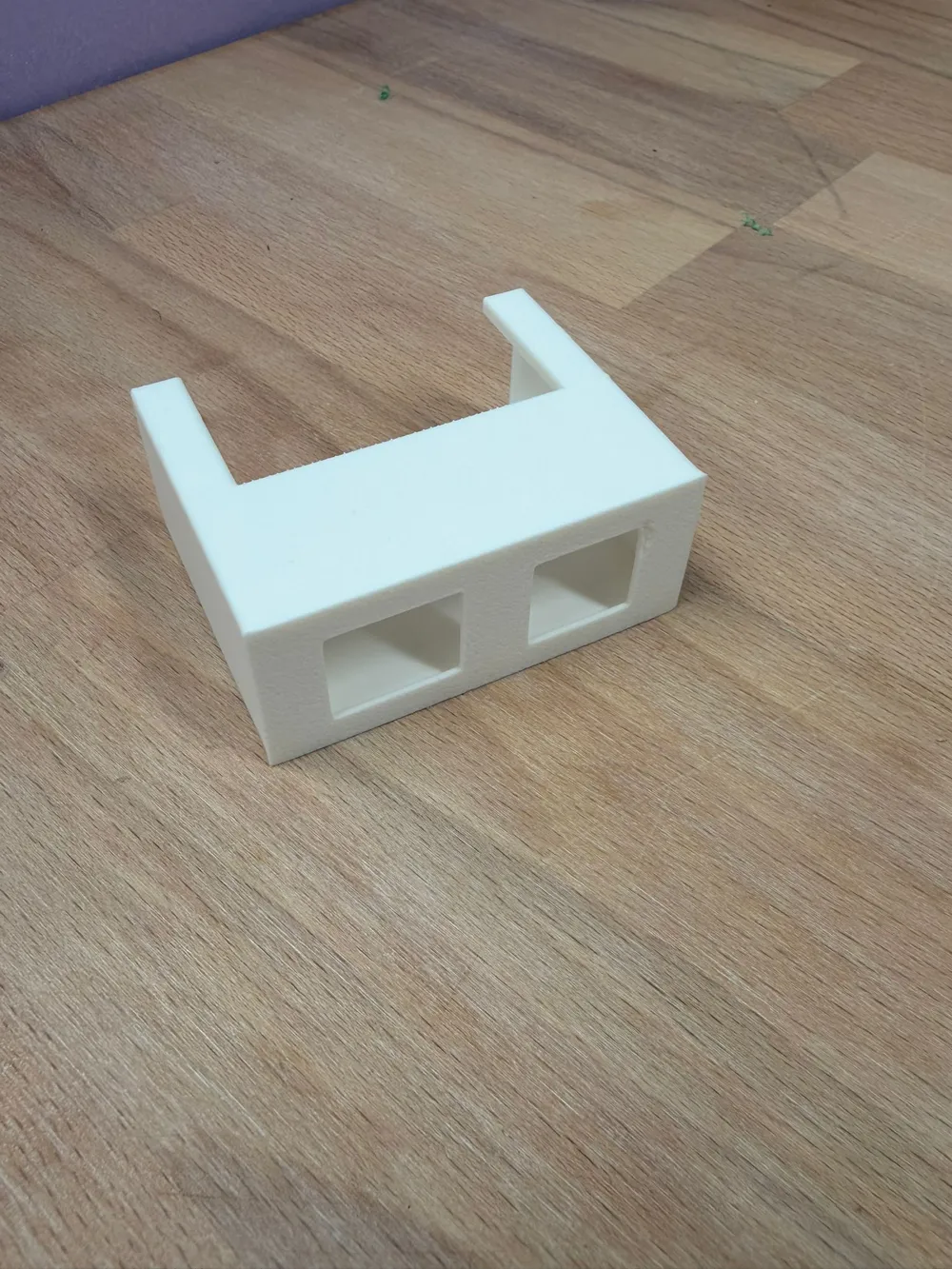

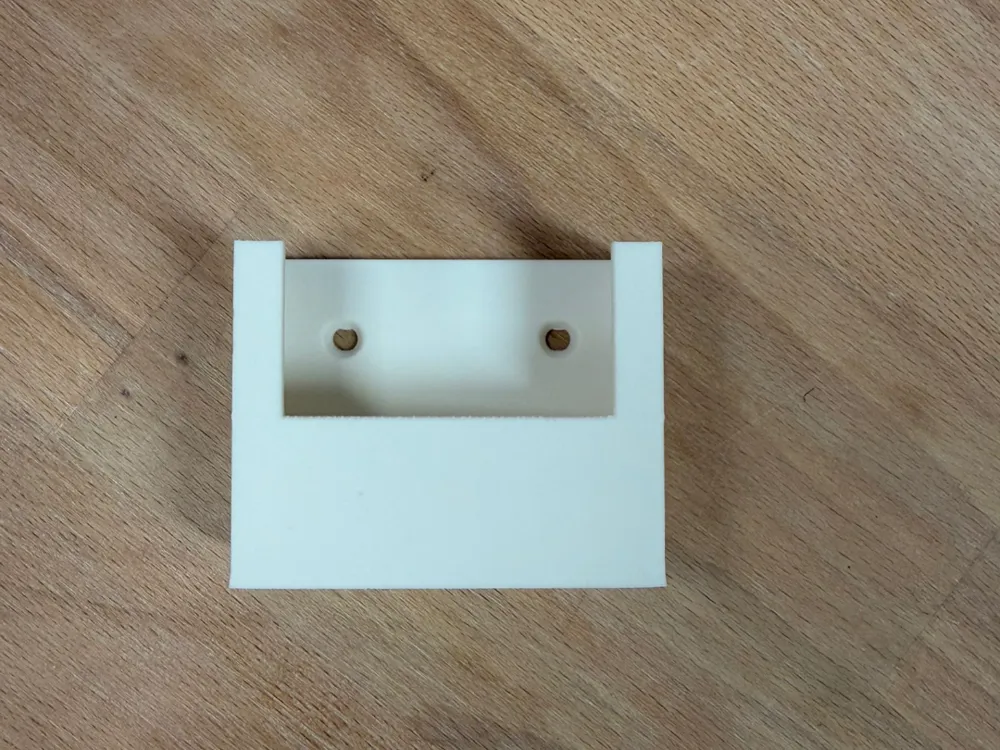

A holder with a very tight and precise fit. Push the splitter into place and it locks in firmly. It stays put even if you flip it upside down. After that you can mount it wherever you want using tape, screws or any other method you prefer.
Design and function
The shape matches the UGREEN 2-1 RJ45 splitter.
The tight fit keeps it stable once inserted.
It is designed for mounting on any surface.
The design is clean and easy to print with no support material needed.
Recommended print settings
Material: PLA or PETG
Walls: 2 wall loops (1 wall loop also works since the device is very light)
Infill: 15% (10% works just as well for the same reason)
Layer height: 0.16–0.20 mm
No supports required
Fit
The model is based on the standard UGREEN 2-1 splitter.
Some batches can vary slightly so measure your device if you are unsure.
If you have feedback or ideas for improvements feel free to comment. I update the model based on requests.
