Heltec V4 Case with Car Window Mount
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 25% infill
Designer
2.6 h
1 plate
Open in Bambu Studio
Boost
22
81
3
0
88
36
Released
Bill of Materials
List other parts
- M3 Schrauben x 3:
- Sekundenkleber x 1:
Description
Content has been automatically translated.

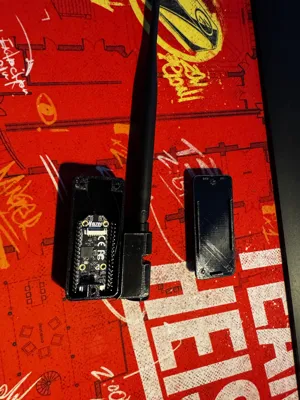

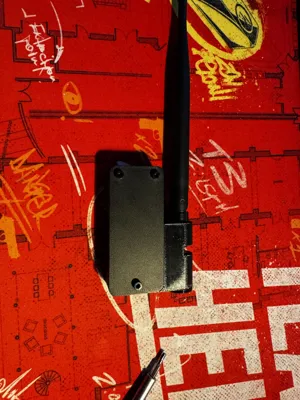

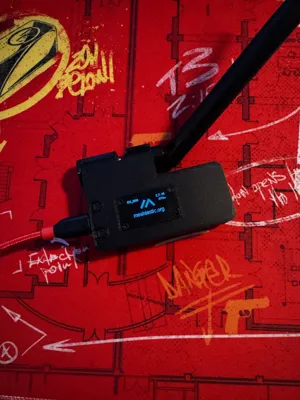

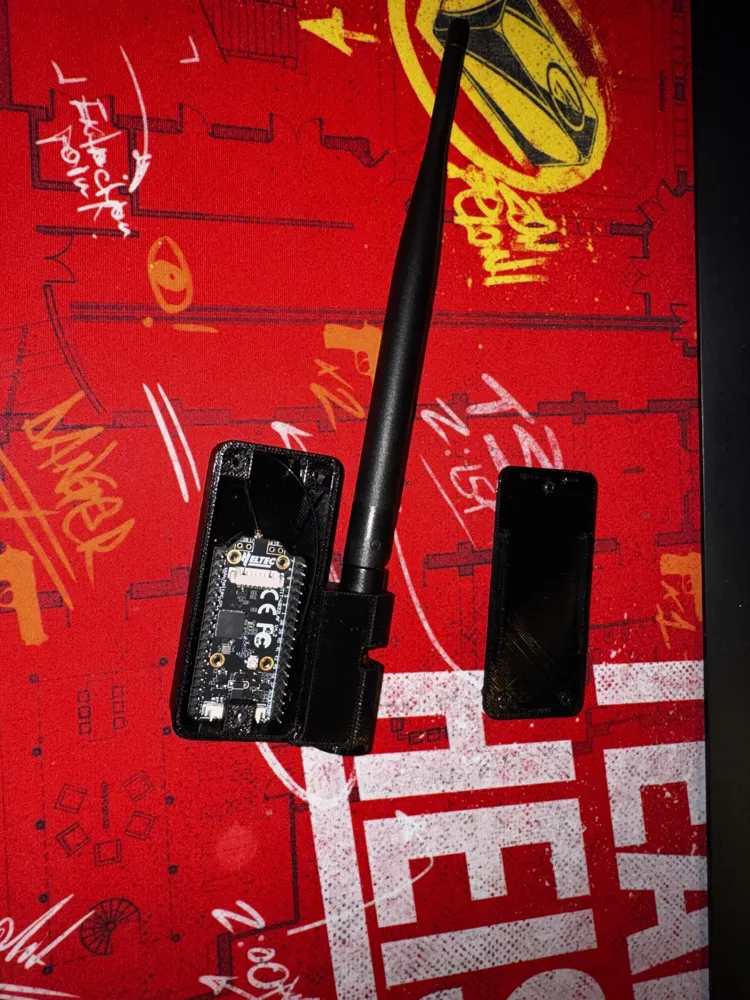

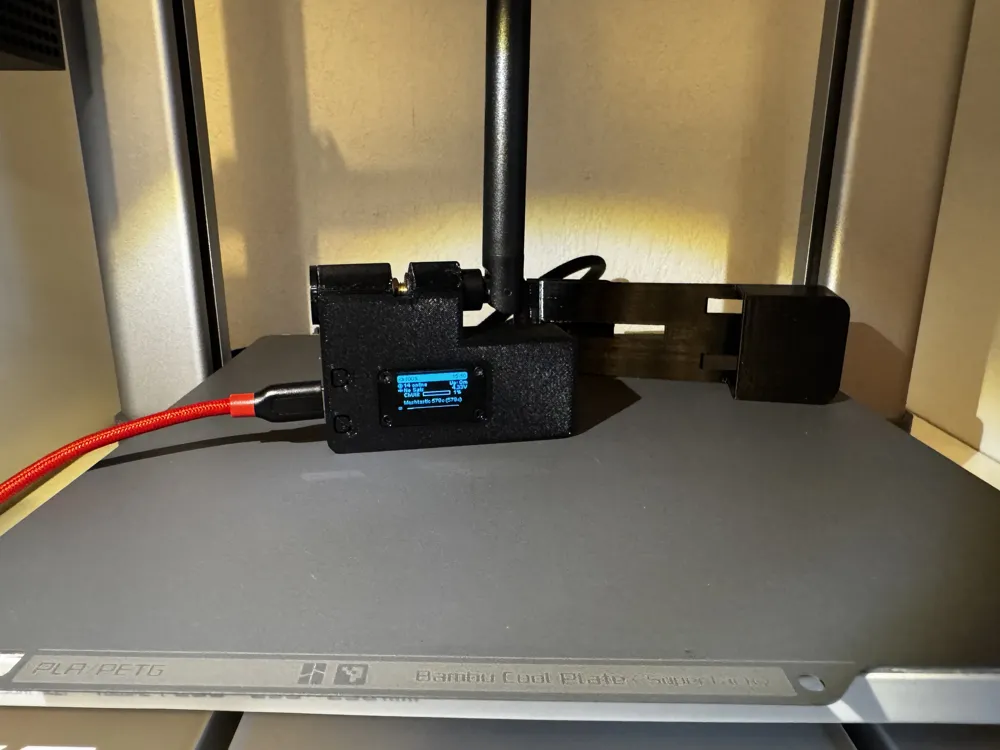

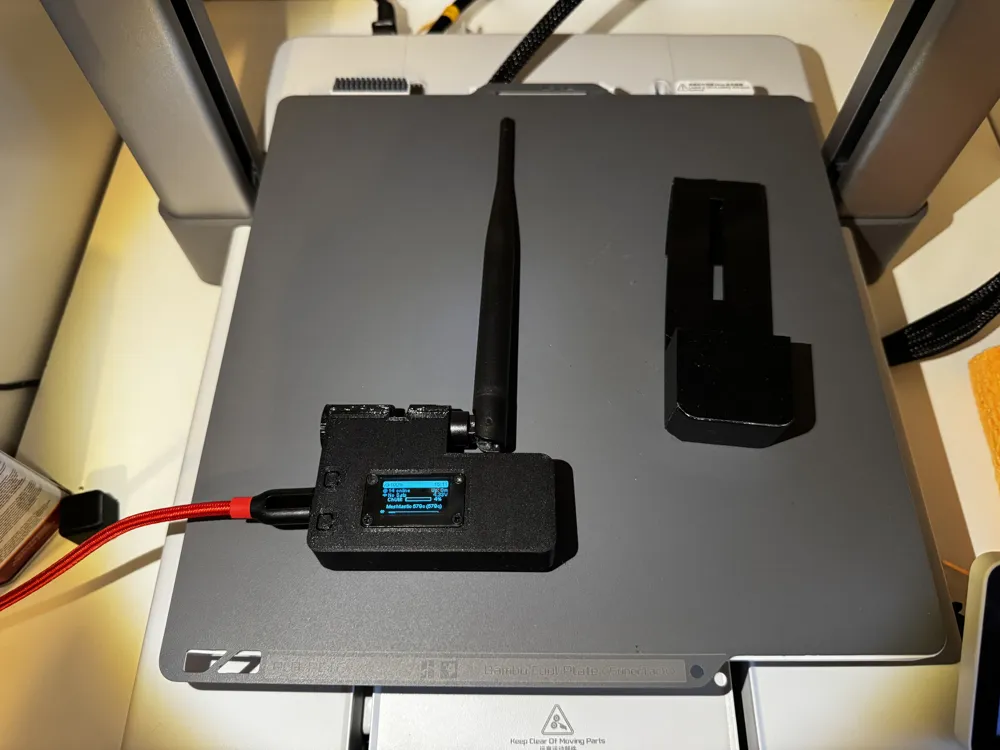

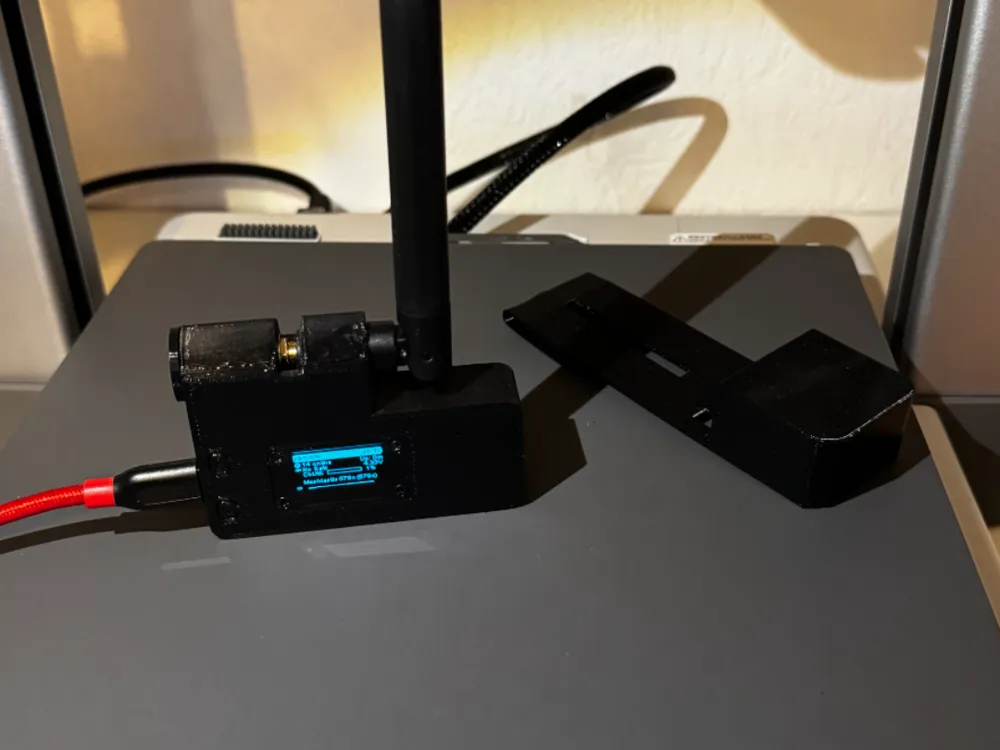

This is a case for the Heltec V4. It is specifically for the V4 with pins, as the V4 is mainly found pre-soldered online. The case has no space for a GNSS module or battery. A battery might fit if you have the version without pins.
Antennas with a maximum diameter of 13mm will fit.
The screws to be used are M3, with a maximum thread length of 8mm.
The end cap is glued on with superglue.
