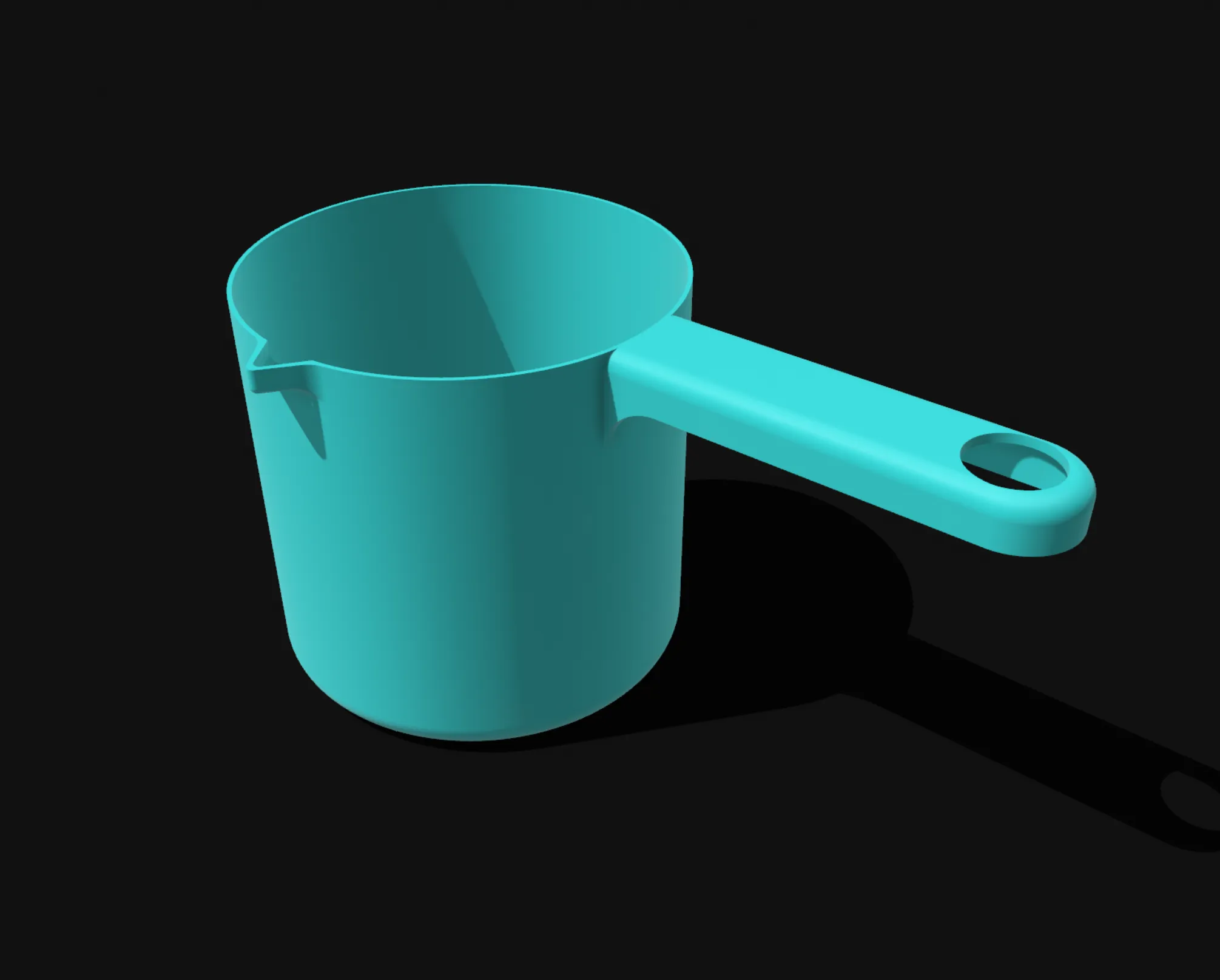

watering dipper with handle and hanging hole|water dipper|12cm diameter, 11cm depth, approximately 1.3 liter capacity

Print Profile(1)

All
P1S
H2S
X1
H2D Pro
X1 Carbon
H2C
X1E
H2D
P1P
P2S
A1
X2D
A2L

0.2mm layer, 2 walls, 15% infill, 0.4mm nozzle
0.2mm layer, 2 walls, 15% infill, 0.4mm nozzle
Designer
3.8 h
1 plate

Open in Bambu Studio
Boost
5
14
0
0
13
8
Released

Description

Content has been automatically translated.
Show original

Boost Me (for free)

If you find this model useful, please give me a boost

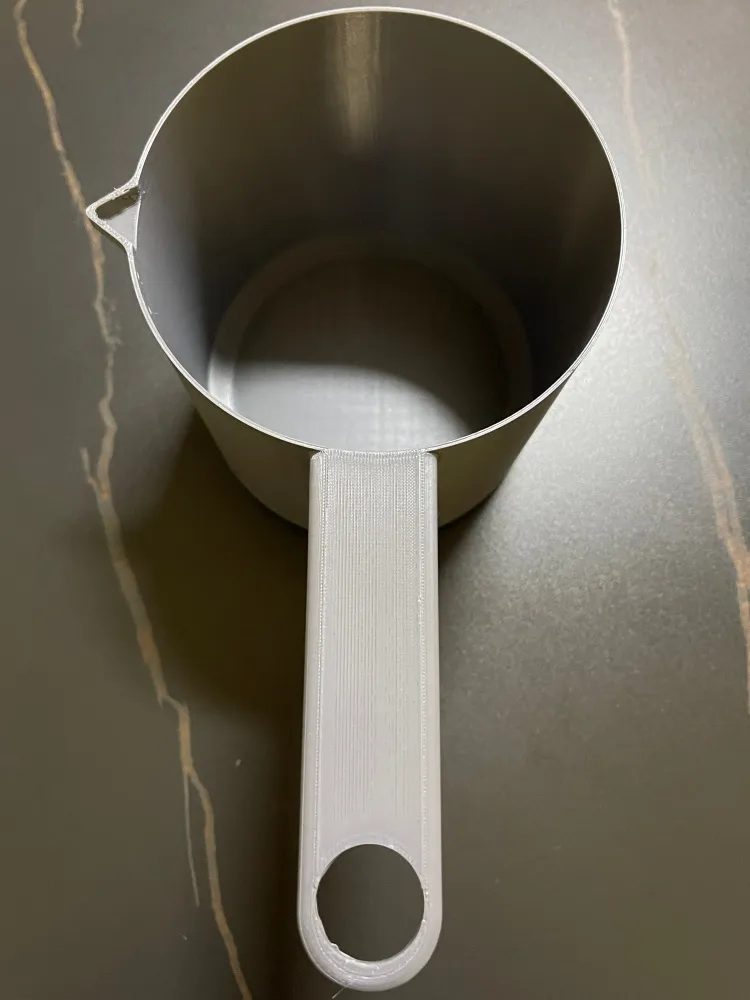

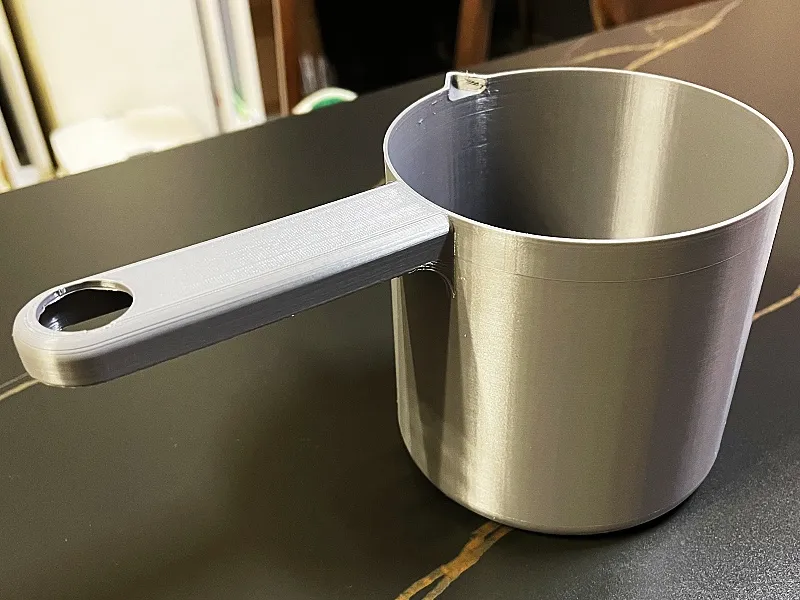

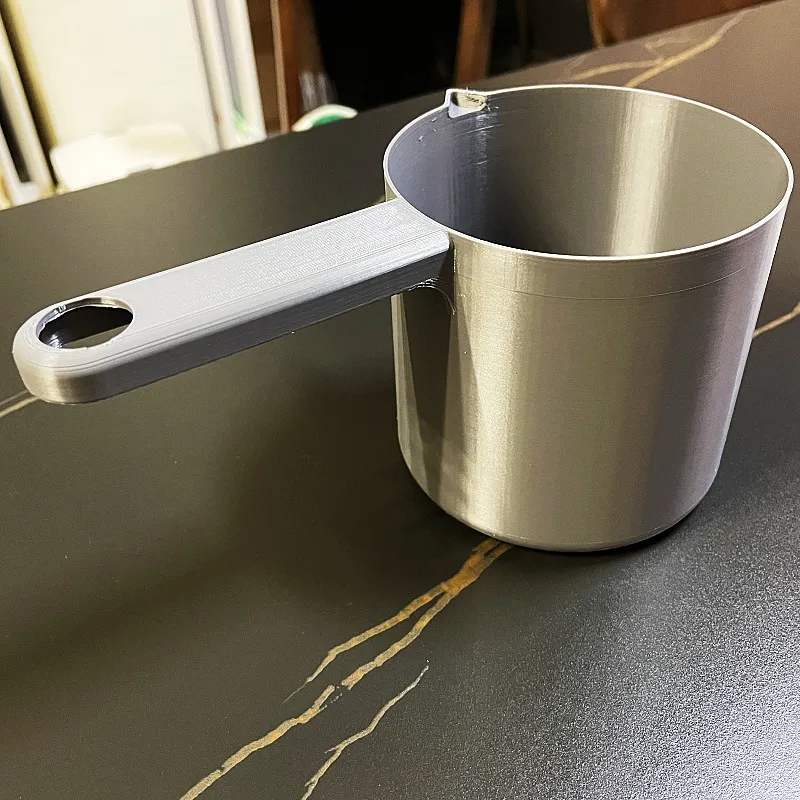

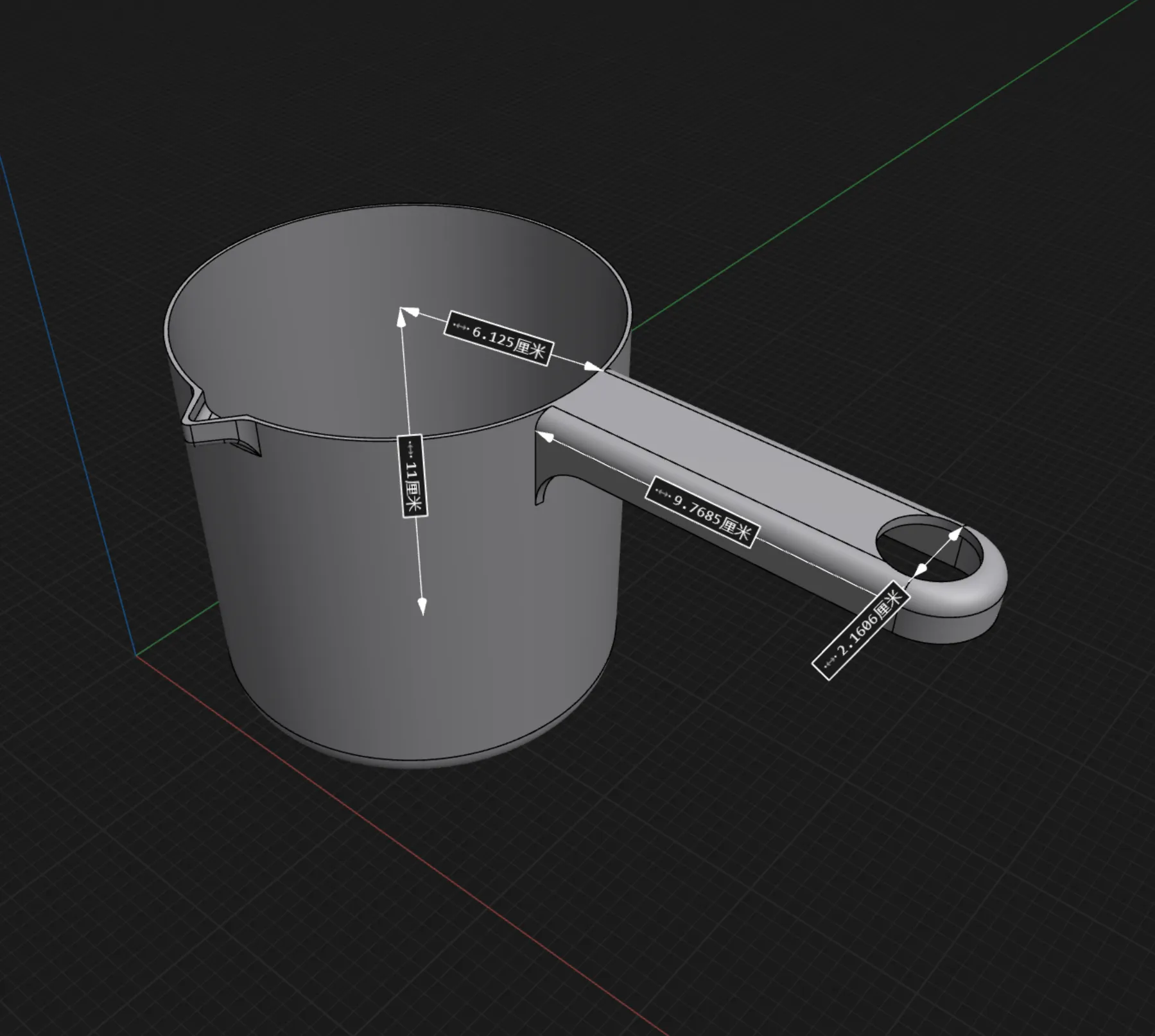

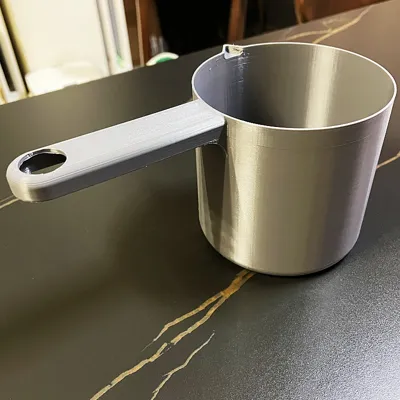

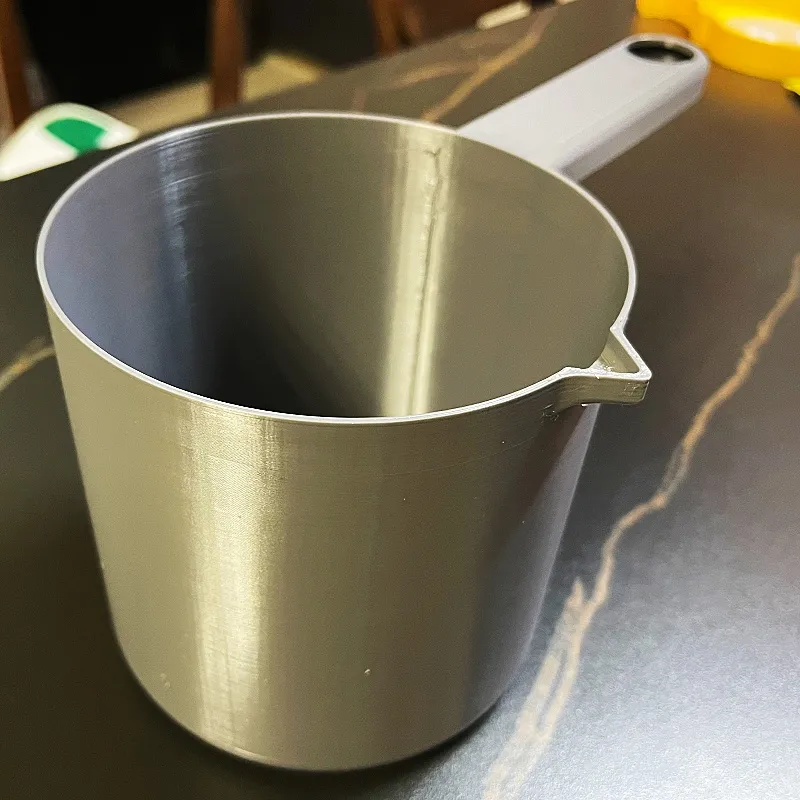

Recently, while gardening, I suddenly realized I didn't have a watering dipper at home, so I made one myself. The main body of the dipper that holds water is about 12 cm in diameter and 11 cm deep. The handle is about 10 cm long and 2.5 cm wide. The hanging hole has a diameter of 2.1 cm. The design strength is sufficient to hold about 1.3 liters of water without any issues, which is roughly equivalent to two and a half 500ml cola bottles. I printed it using Bambu Lab's PETG HF. Since it will hold water and bear weight, I recommend using PETG for printing. The handle strength is sufficient, and printing with PLA should also be fine, though it might not be as durable as PETG. If printing with PLA, I recommend using filaments like PLA Basic. I do not recommend using PLA Lite, PLA Matte, or PLA Silk, as these three PLA materials are relatively brittle and have lower strength.

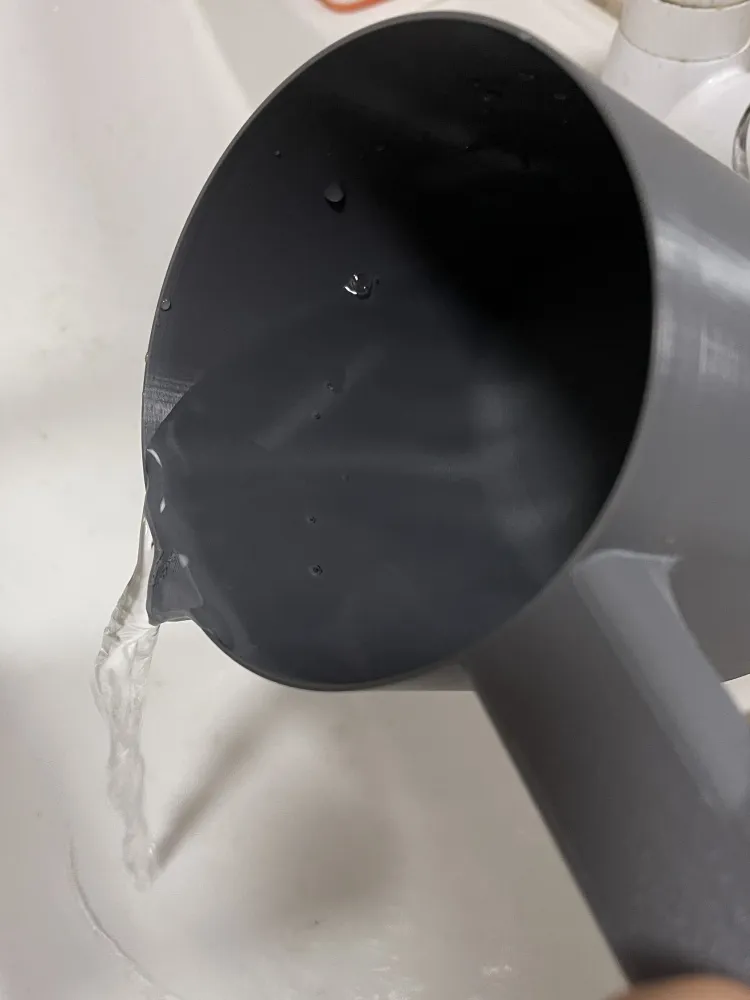

The total printing requires about 132g of filament, and supports are needed. I have pre-arranged the plate, and all printer models can print it. If the A1 mini prompts that it's beyond the edge, you can scale down the print slightly. The dimensions I designed should fit if arranged at a 45-degree angle. Other models can also be scaled up or down as needed. Supports need to be enabled, and it can be printed normally using my default profile. One-click printing is also available via mobile. Those who need it, please download and print it yourselves. I have already printed and tested the finished product, and used it for 2 days without any issues.
