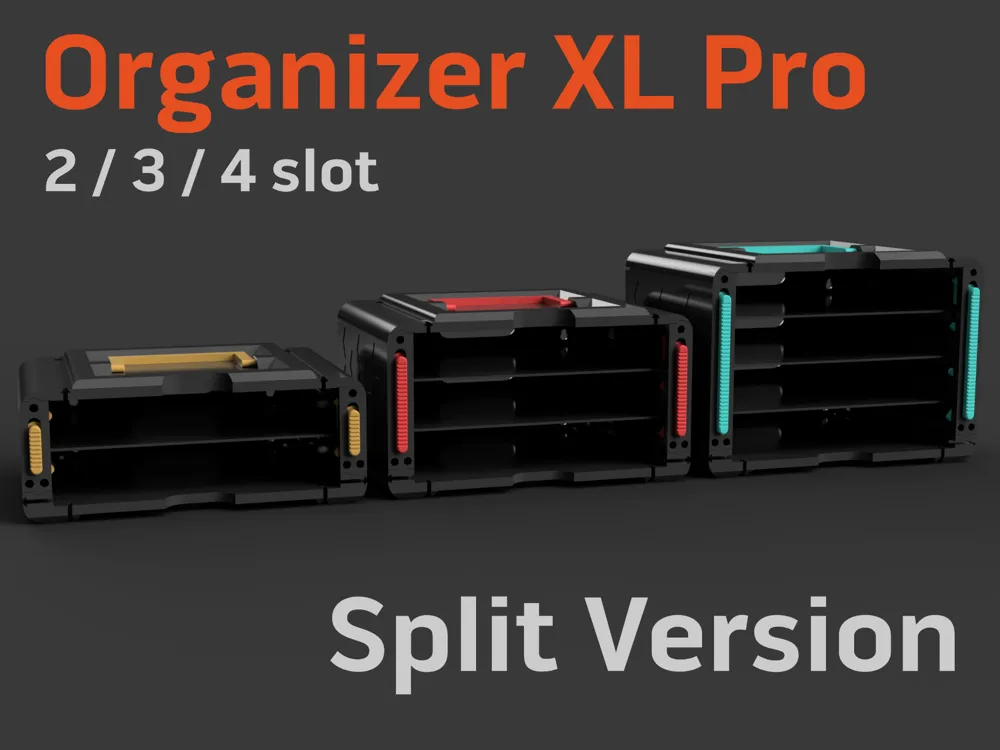

Organizer Box XL Pro 2-3 Slot Holder Split Version

Info

This is a remix of the organizer box holder for the Organizer Box XL Pro by 3DPrintyi.

For this remix I made a 2 and 3 slot version with function lock system. If you have a smaller print bed I also made a split version for all 3 sizes with aligning dowels so you can print the holder in 2 parts.

You can get the boxes and inserts that are made for the holder from the original files linked above.

Printing

Print with PLA, also works with PETG.

Only supports needed on the connecter piece, just print the parts as oriented in the files.

Print the dowels with 100% infill.

Sizes

Footprint
244mm (w) x 178mm (d)

Height
2 Slot: 100,7 mm
3 Slot: 138,7 mm
4 Slot: 176,7 mm

Assembly

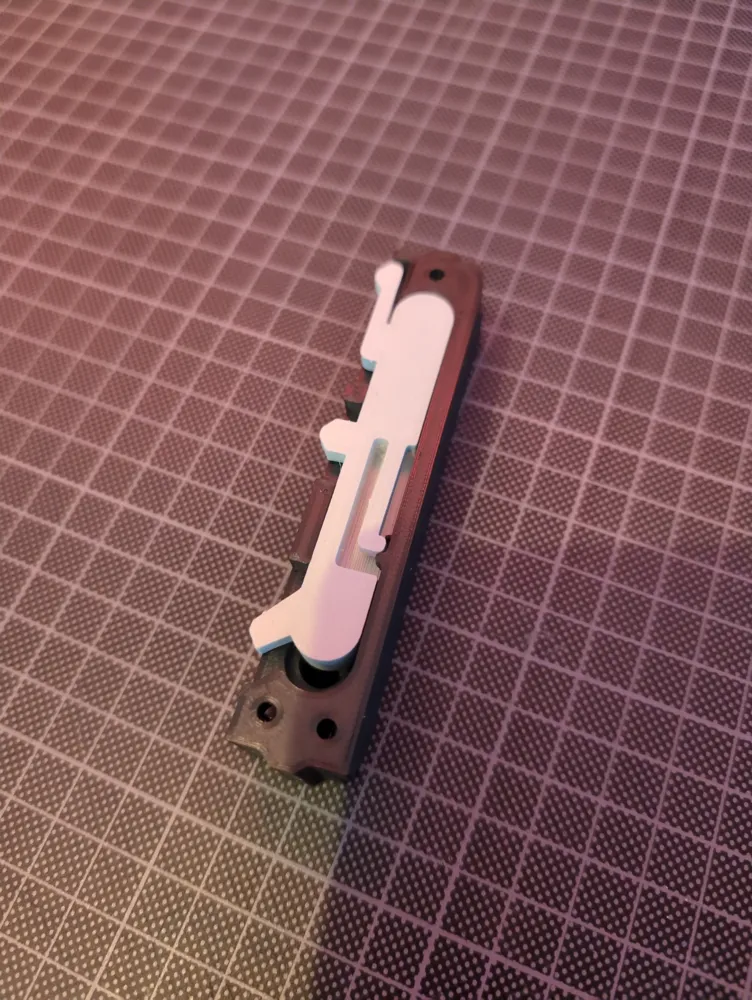

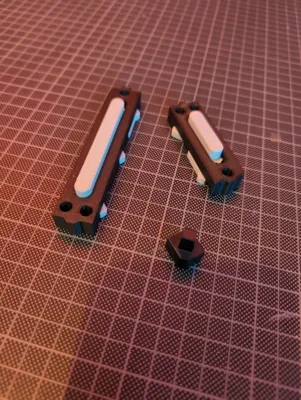

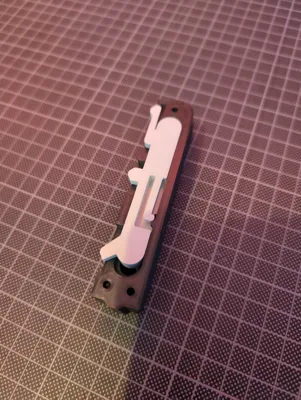

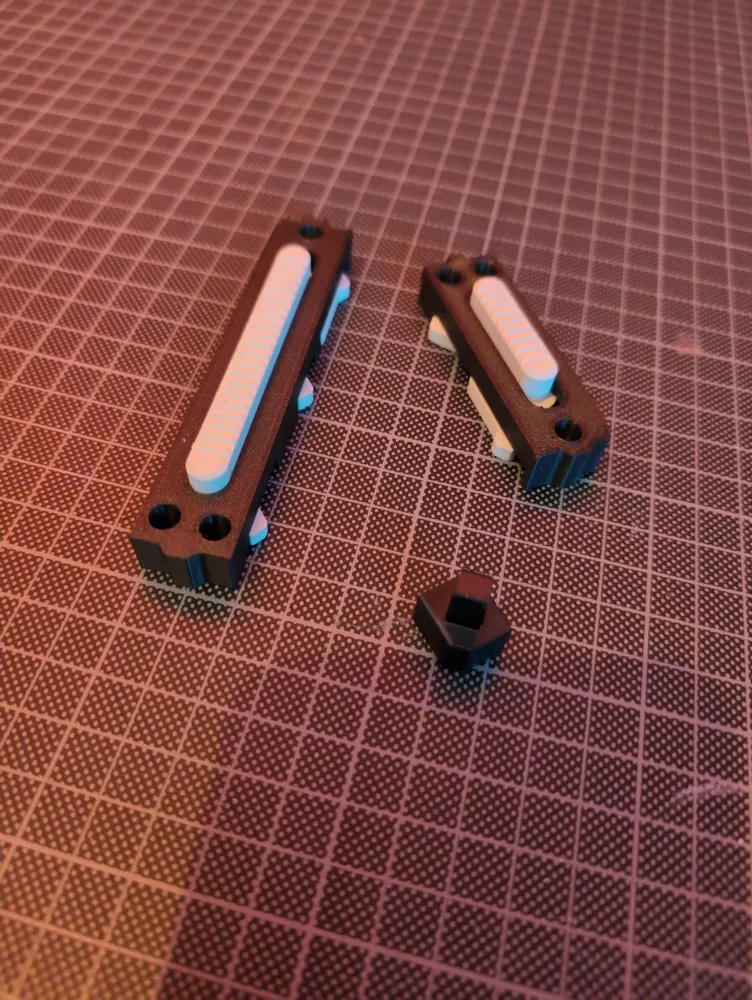

Please follow the instructions from the original files for the slider assembly.

If using the split version:
Print 4 of the dowels and CA glue them into the slots on one side.
Use CA glue on one side of the holder and press both halves together.
Clamp the shelves to keep them aligned, use parchment paper to not glue your clamp to the shelf.

You can also lock multiple holders together with the connector piece.

Hardware

• 6x M3 x 5,7mm heat set inserts
• 6x M3 x 10mm screw
