Enclosure NodeMCU ESP8266 with Display ESP-12F CP2102
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
25 min
1 plate
Open in Bambu Studio
Boost
6
28
0
0
39
23
Released
Description
Content has been automatically translated.

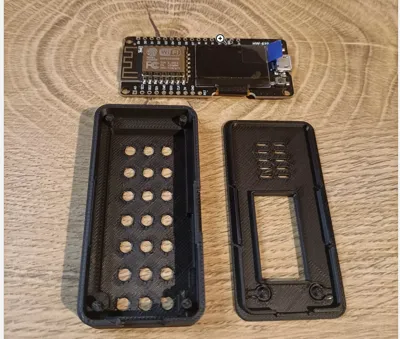

This enclosure is specifically designed for the ESP8266 D1 mini OLED board with integrated 0.96" SSD1306 display (128×64).
The display is firmly attached to the board, so no additional mounting is necessary.
Ideal for compact IoT projects, sensor displays, and smart home devices.
Features
- Perfect fit for Wemos D1 mini / ESP8266 with firmly mounted 0.96" OLED (SSD1306)

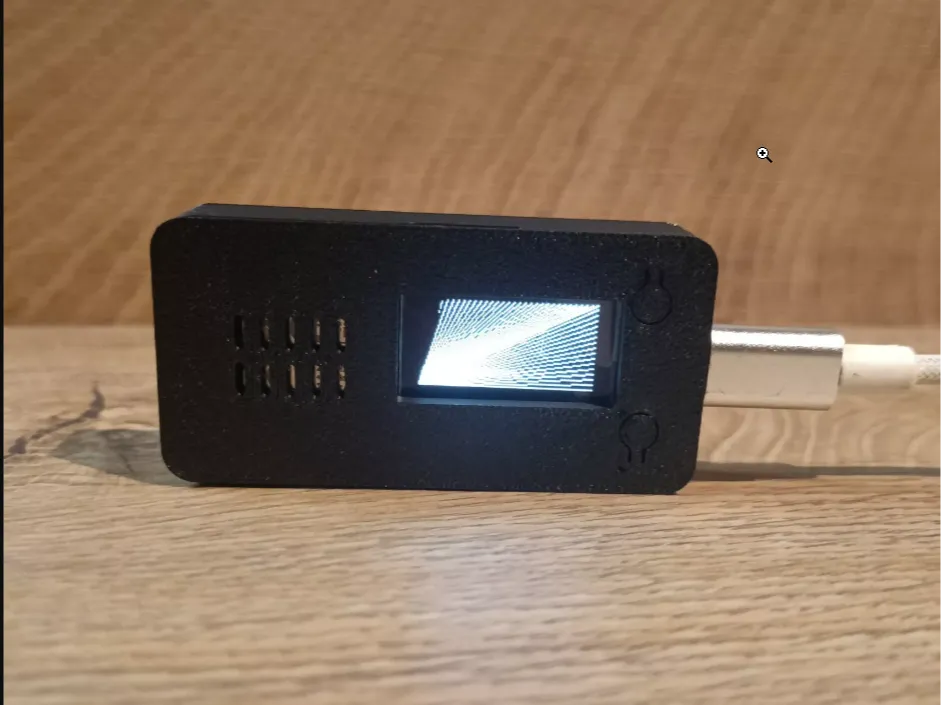

- Precise display window for 128×64 OLED
- Clean cutouts for USB, Reset, and pins
- Robust, compact, ideal for projects with ESPHome & MQTT
- No screws needed – board clips in
Applications
- Wi-Fi status display
- Temperature/humidity sensor
- Home Assistant mini display
- MQTT monitor
- IoT sensor station
Assembly
Insert ESP8266 OLED module → clip in → done.
USB port remains freely accessible.
