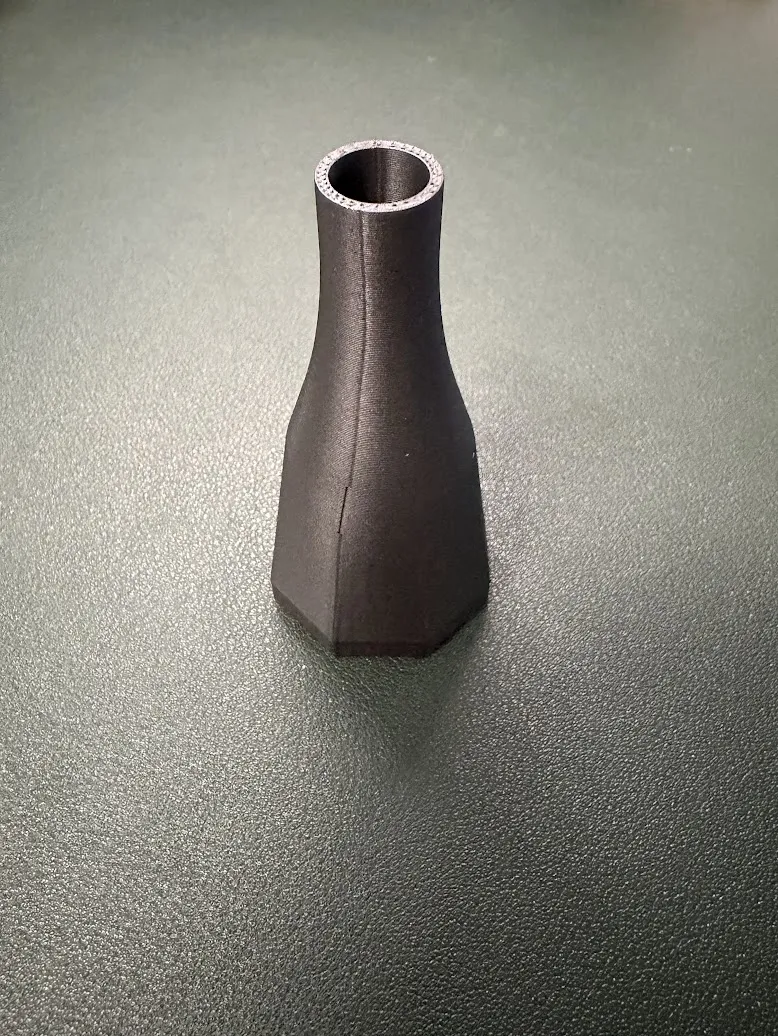

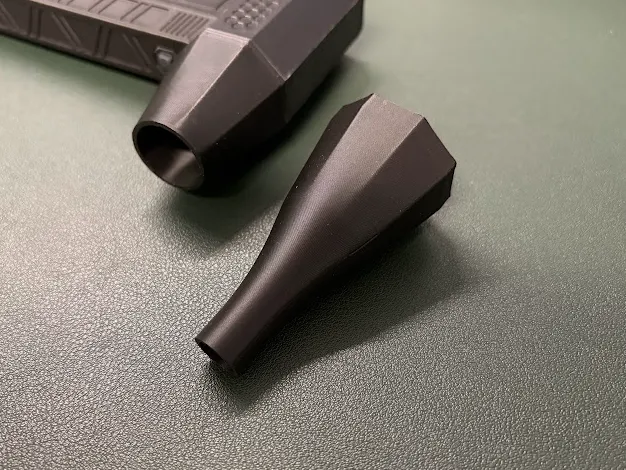

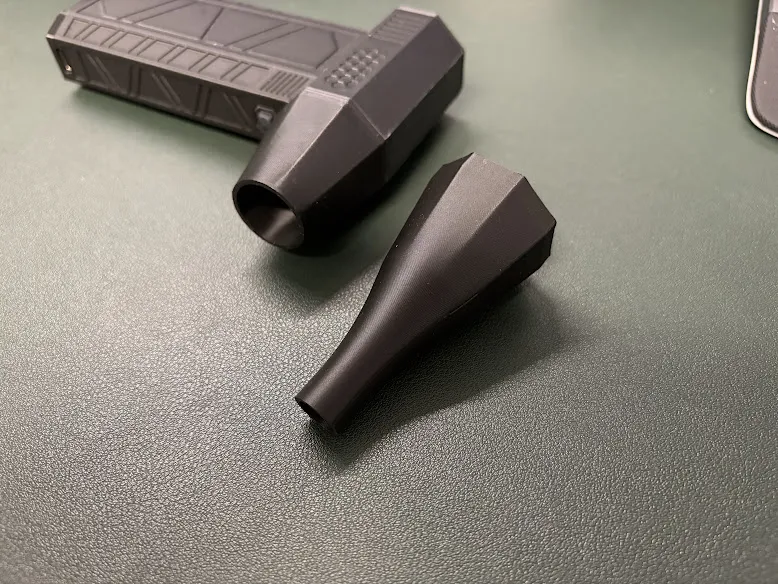

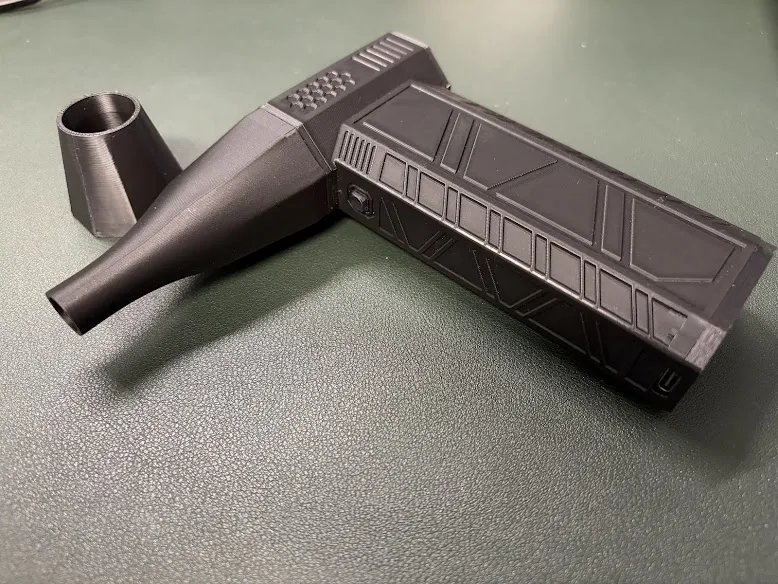

Highspeed Airduster Nozzle

Boost the performance of your Mini Turbo Jet Fan with this custom-designed high-velocity nozzle.

While the standard output of these 130,000 RPM fans is powerful, the airflow is often too wide for precision cleaning. This nozzle narrows the air channel to increase exit velocity, making it significantly more effective for dusting keyboards, PC interiors, camera gear, and drying car crevices.

⚡ Key Features

• Increased Air Velocity: Tapers the airflow to create a concentrated, high-pressure stream.
• Magnetic Attachment: Designed for a quick-swap magnetic fit, just like the stock accessories.
• Rugged Design: Reinforced walls to withstand high pressure without flexing.

🛠️ Hardware Required

To attach this nozzle to the fan, you will need one magnet (press-fit or glued, depending on your printer tolerances):

• 1 x Round Magnet: 15mm (diameter) x 3mm (thickness)

⚠️ Important Assembly Note: Before gluing the magnet into the nozzle, double-check the polarity against your fan! The nozzle should snap onto the fan, not repel it.

🖨️ Print Settings

This model is designed to be easy to print.

• Material: PLA, PLA+, or PETG (PETG recommended for durability).
• Nozzle: 0.4mm
• Layer Height: 0.2mm
• Infill: 15% - 20% (Grid or Gyroid)
• Walls: 3 walls (loops) recommended for airtightness and strength.
• Supports: None required if printed with the wide base on the plate.

🤝 Compatibility

This nozzle is designed for the generic "Mini Turbo Jet Fan" / "Violent Blower" style handheld fans commonly found on AliExpress and Amazon.

• Reference Model: Mini Turbo Jet Fan 130000RPM (Wind Speed 52m/s Brushless Motor)
  Mini Turbo Jet Fan 130000RPM Wind Speed 52m/s Brushless Motor Handheld Duct Fan High-Performance Cyclone Turbo Electric Blower - AliExpress
