2P Circuit Breaker Anti-Shock Protective Cover

Print Profile(1)

All
A1
X1
A1 mini
H2C
H2S
P2S
P1P
X1E
X1 Carbon
H2D Pro
P1S
H2D
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate

Open in Bambu Studio
Boost
11
32
0
0
30
9
Released

Description

Content has been automatically translated.
Show original

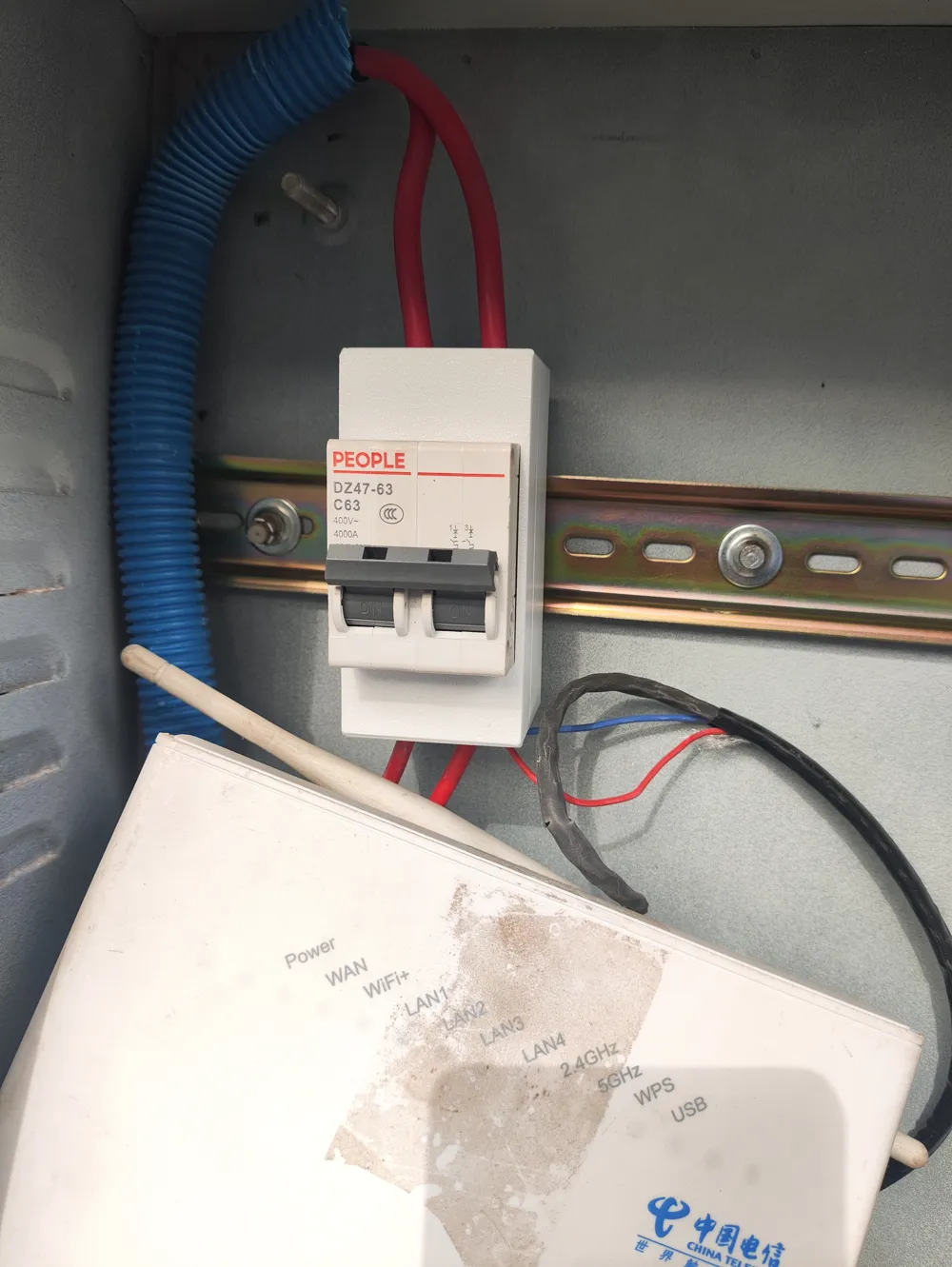

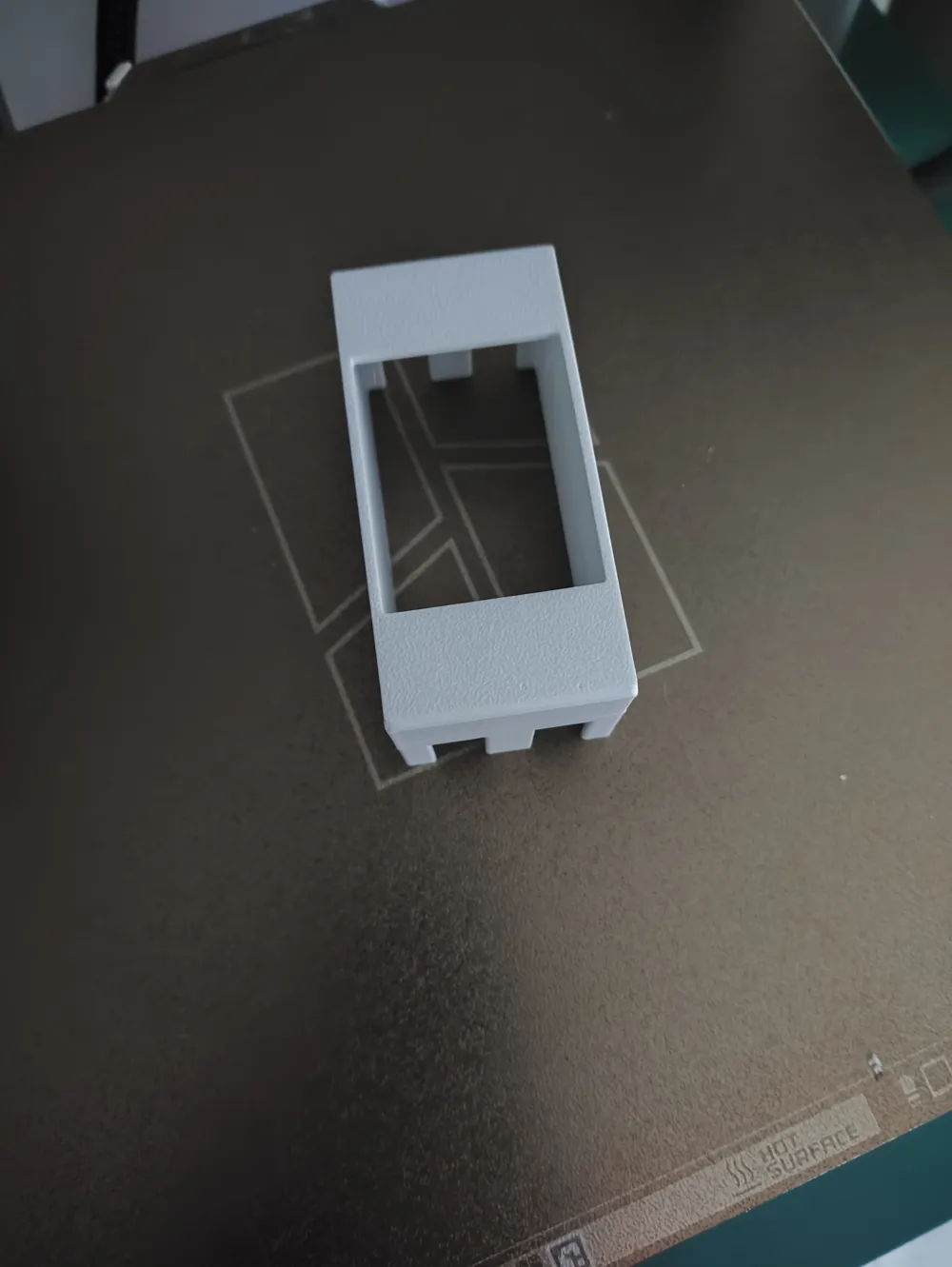

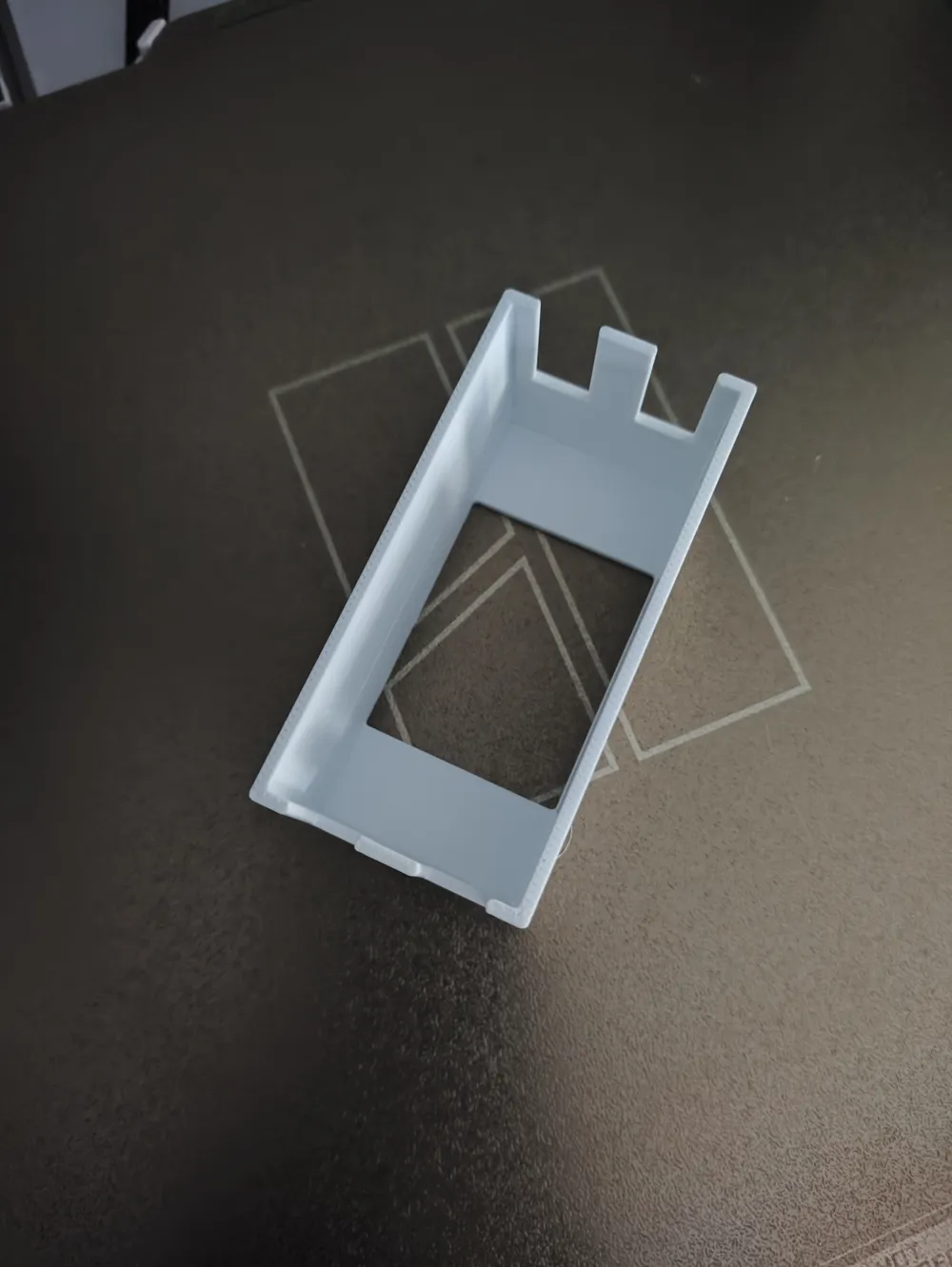

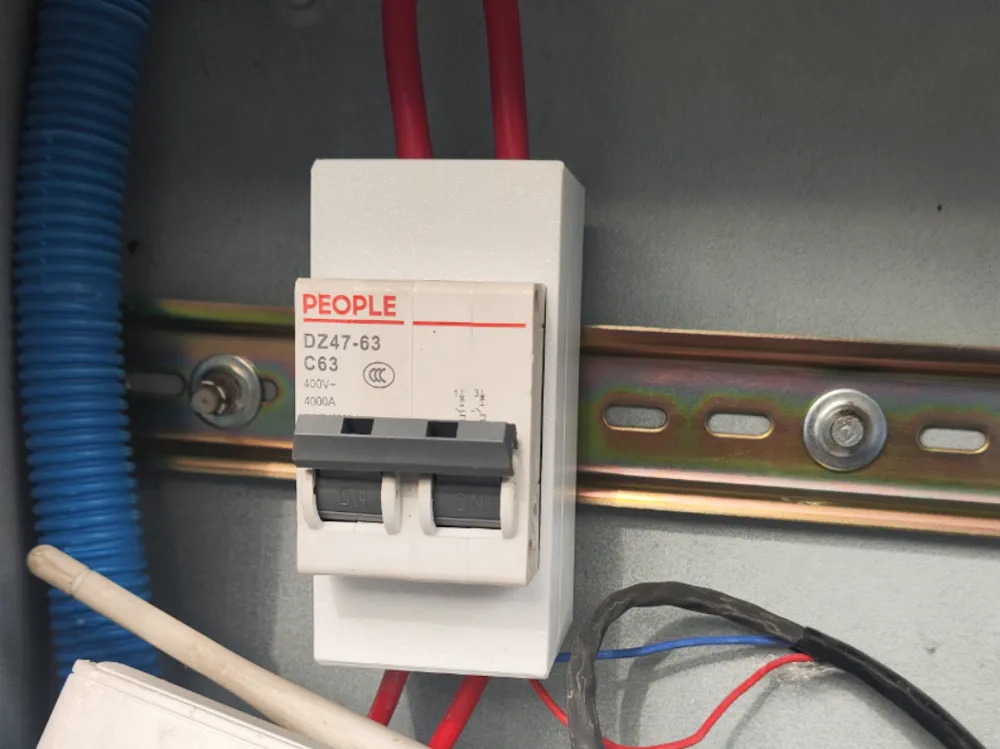

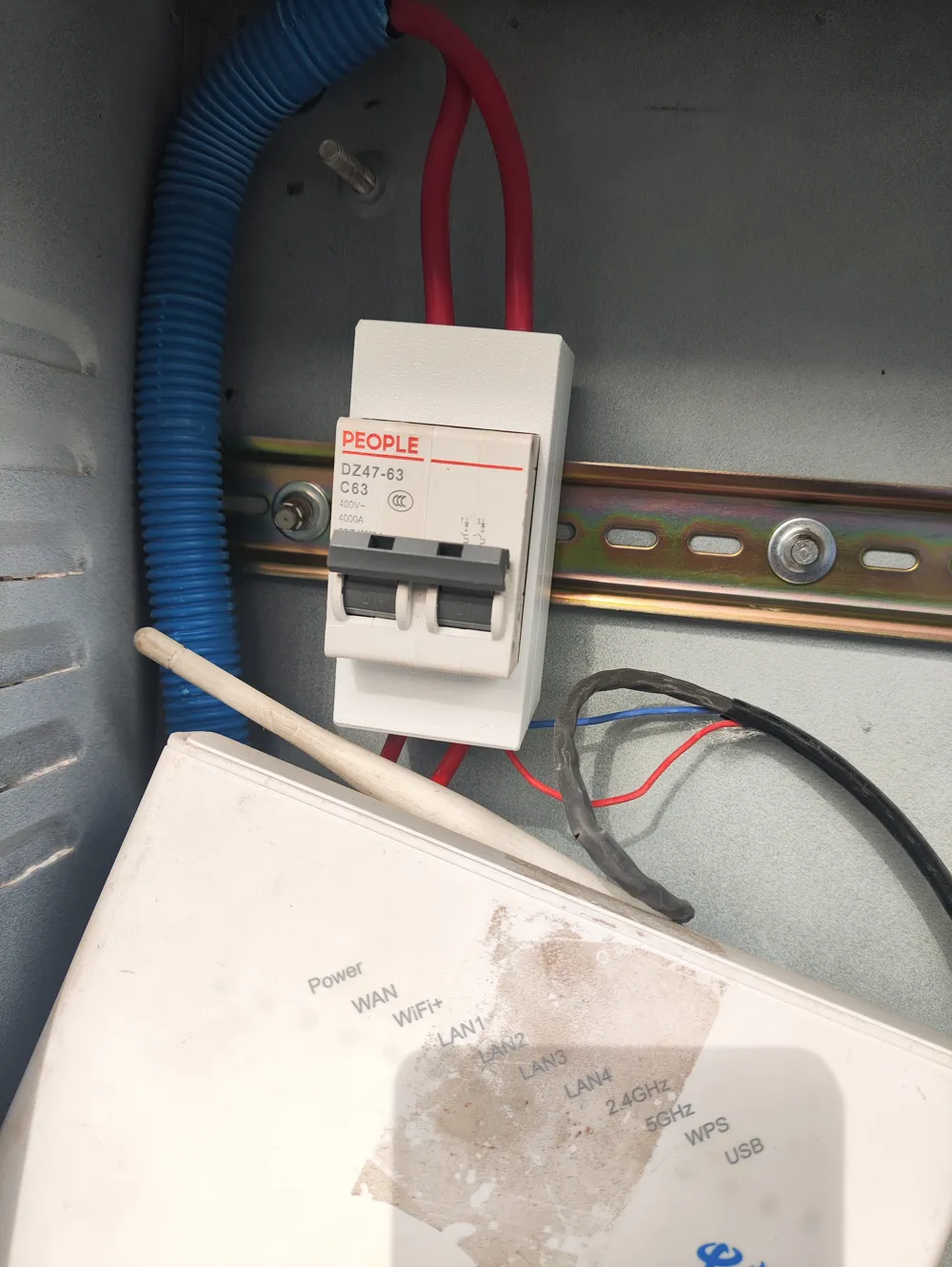

Recently, I installed an EV charger at home. The prompt was to connect to the mains electricity. Since I was using the previous distribution box and it didn't have a DIN rail for the circuit breaker, I installed one. The circuit breaker clipped directly onto it, but the screw contacts were exposed, posing an electric shock risk during operation. So, I made a protective cover. After connecting the wires, the metal contacts are no longer exposed, and it works well.

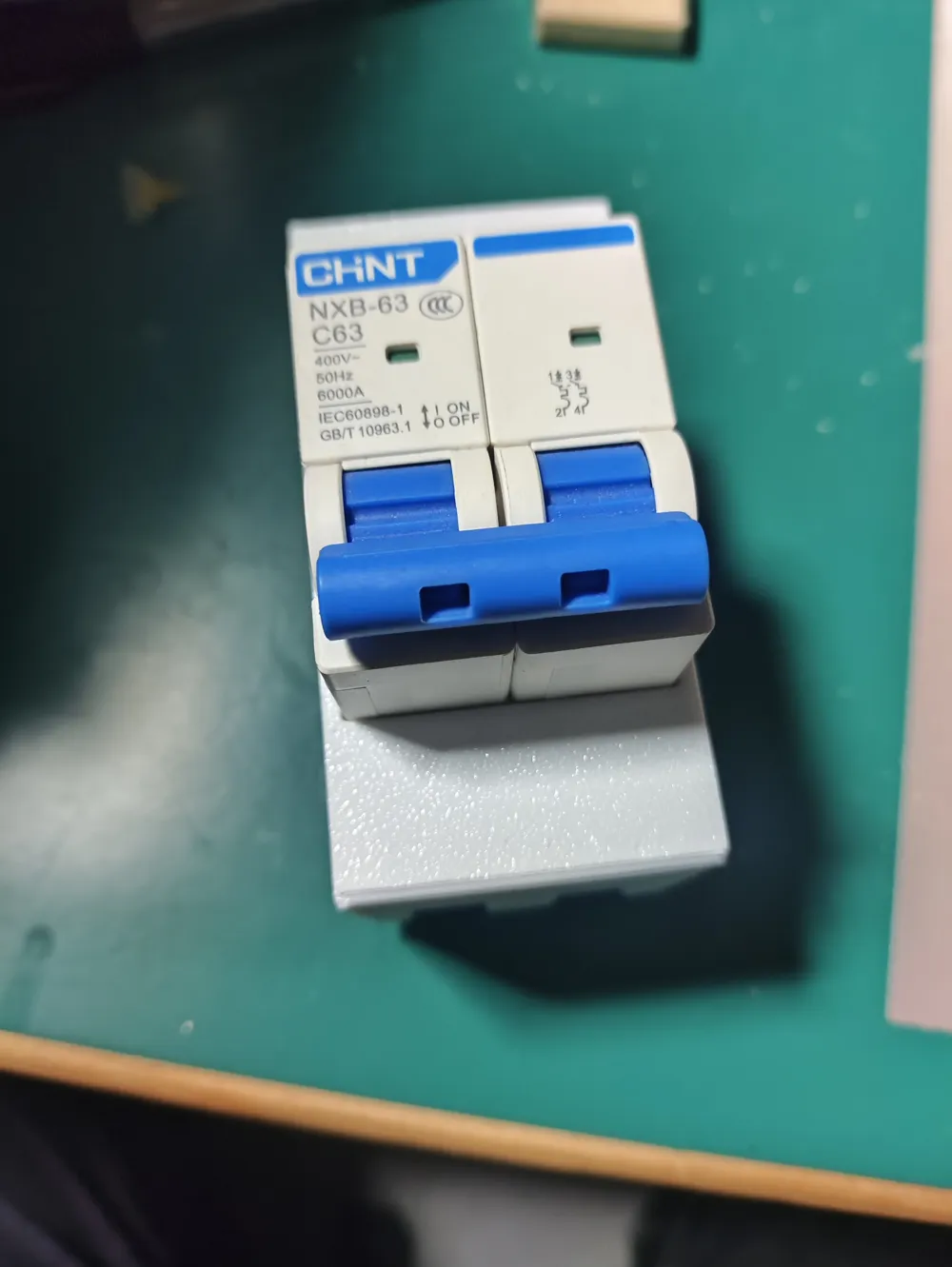

If it's not an outdoor environment, using only a DIN rail with this protective cover is easier to install and much cheaper than using a circuit breaker box. The appearance of 2P circuit breakers below 63A is basically the same, so everyone can refer to and use this.
