Description

UPDATE:

* There is a few more options - please check below and check fit test models for a right fit for your window !

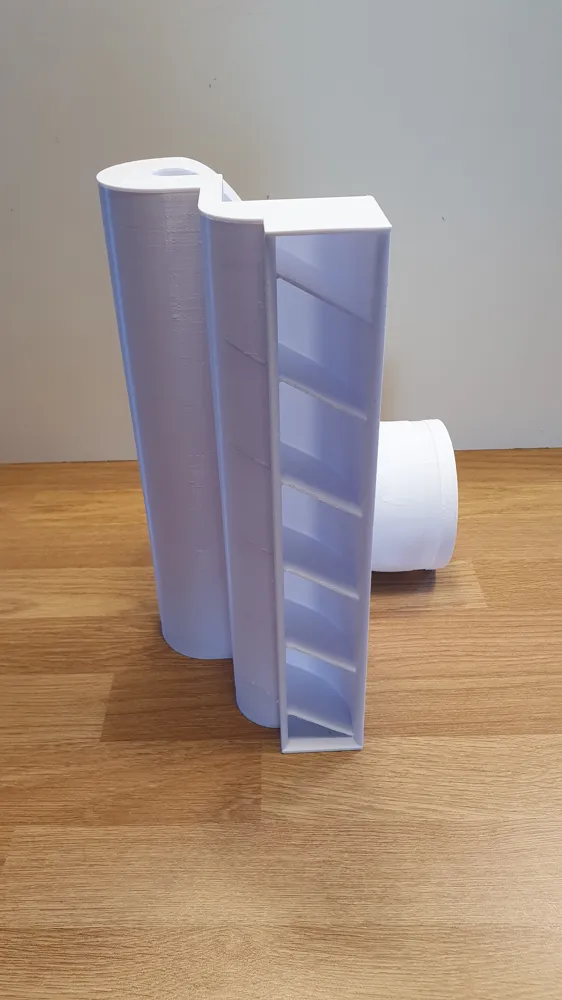

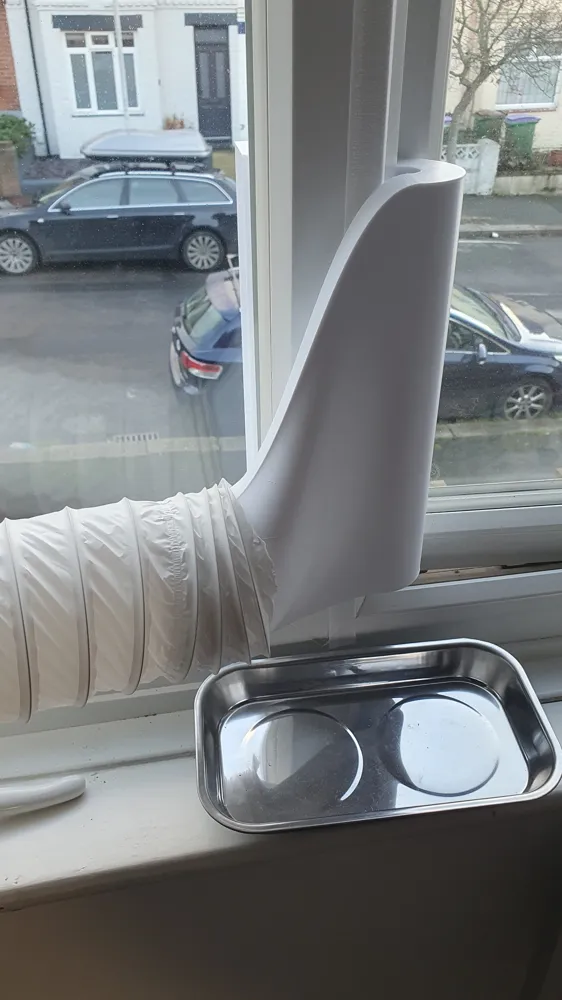

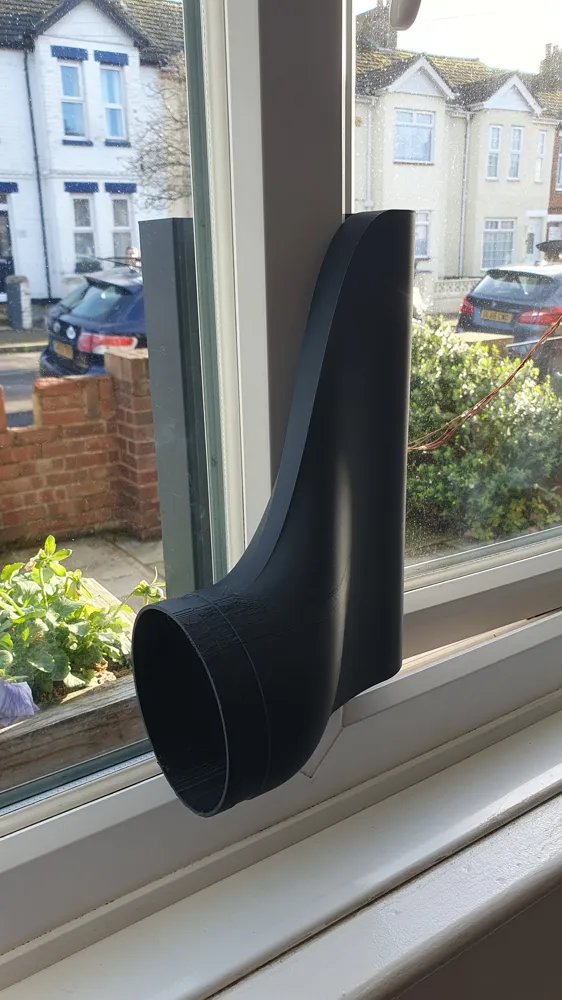

This is a 100mm vent for UPVC windows that can be locked when slightly open. It vents all the way out , so no need to open the window wide to put a hose out, at the same time the window can still be locked making sure it's secure .

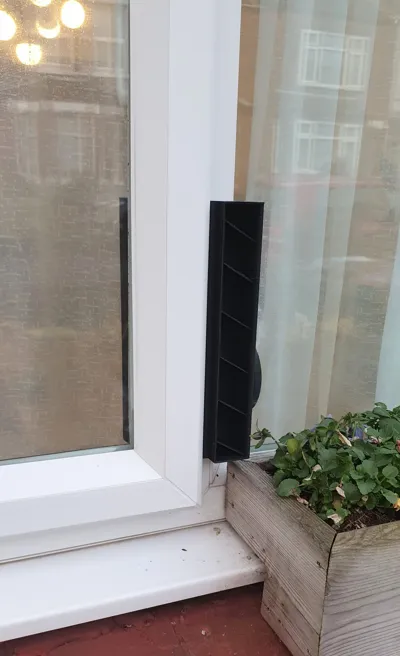

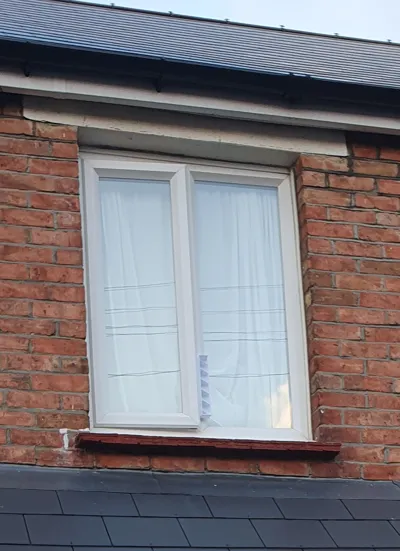

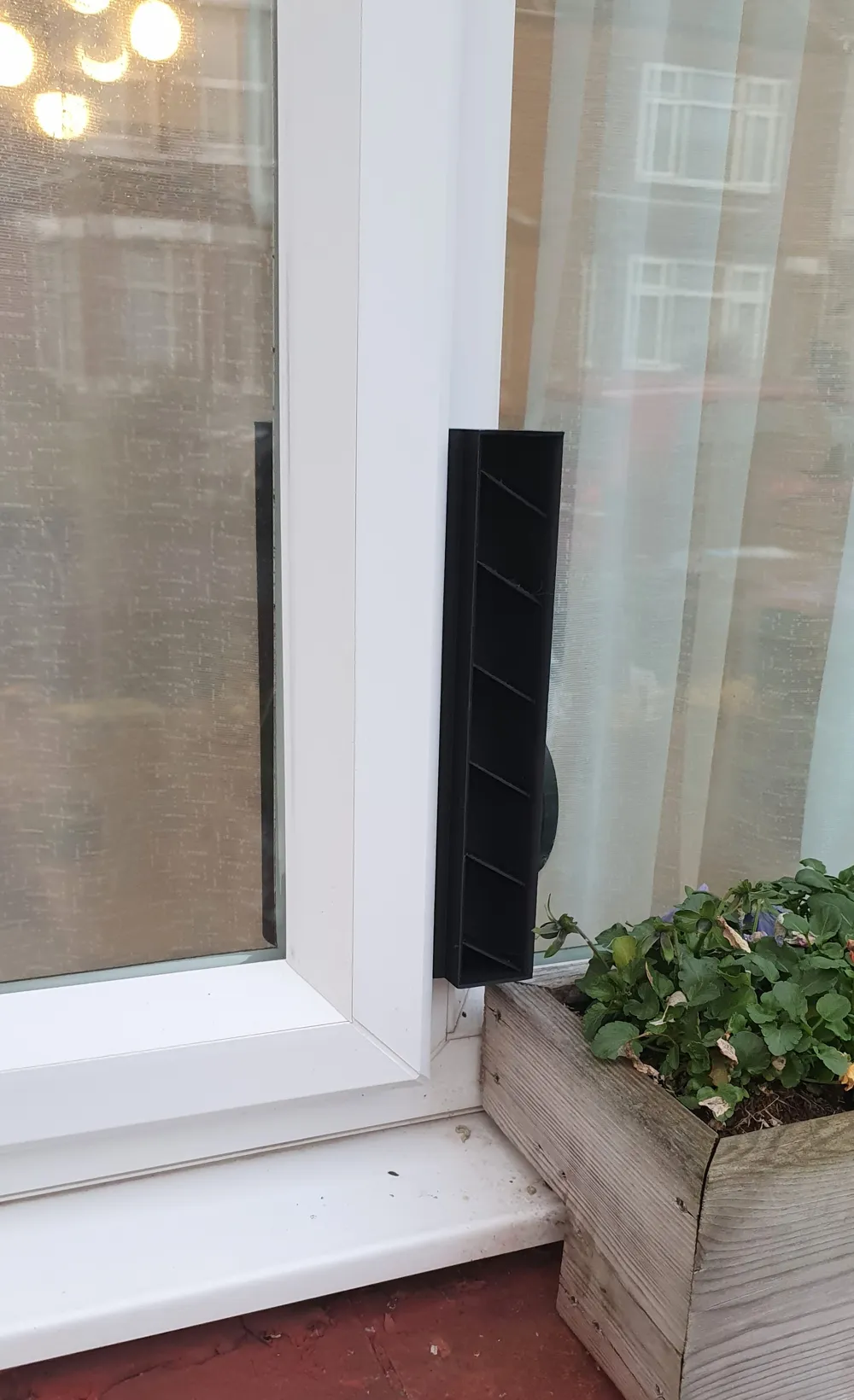

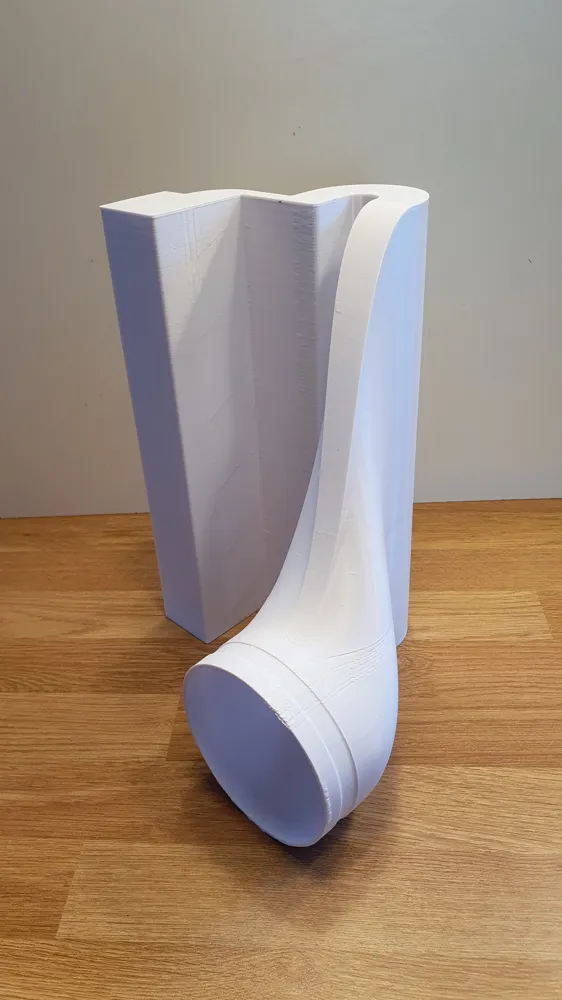

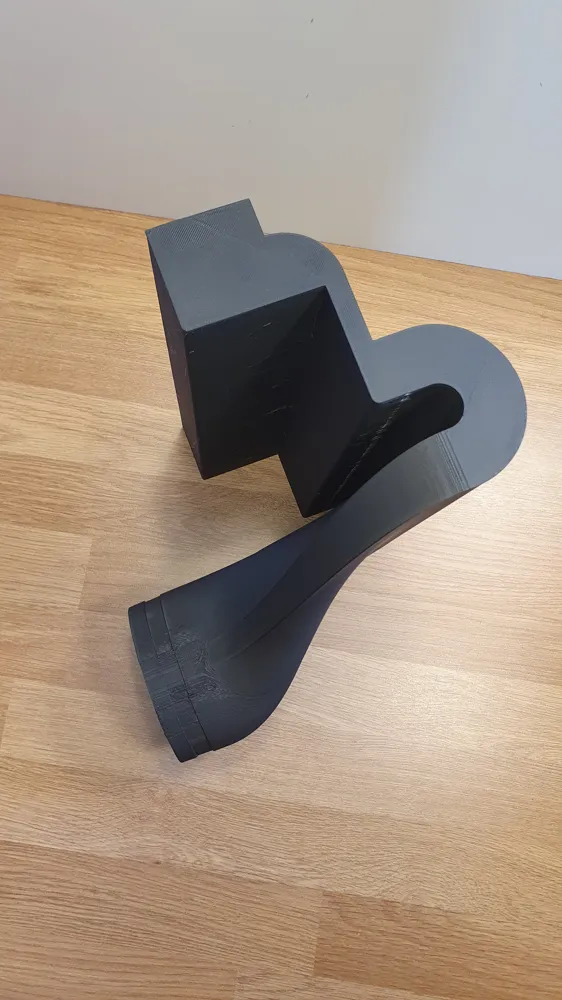

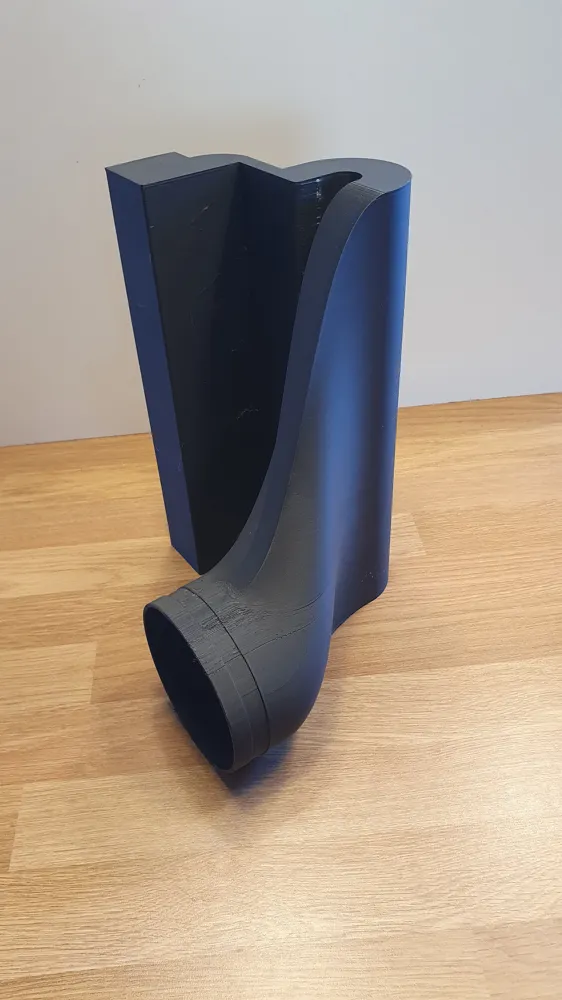

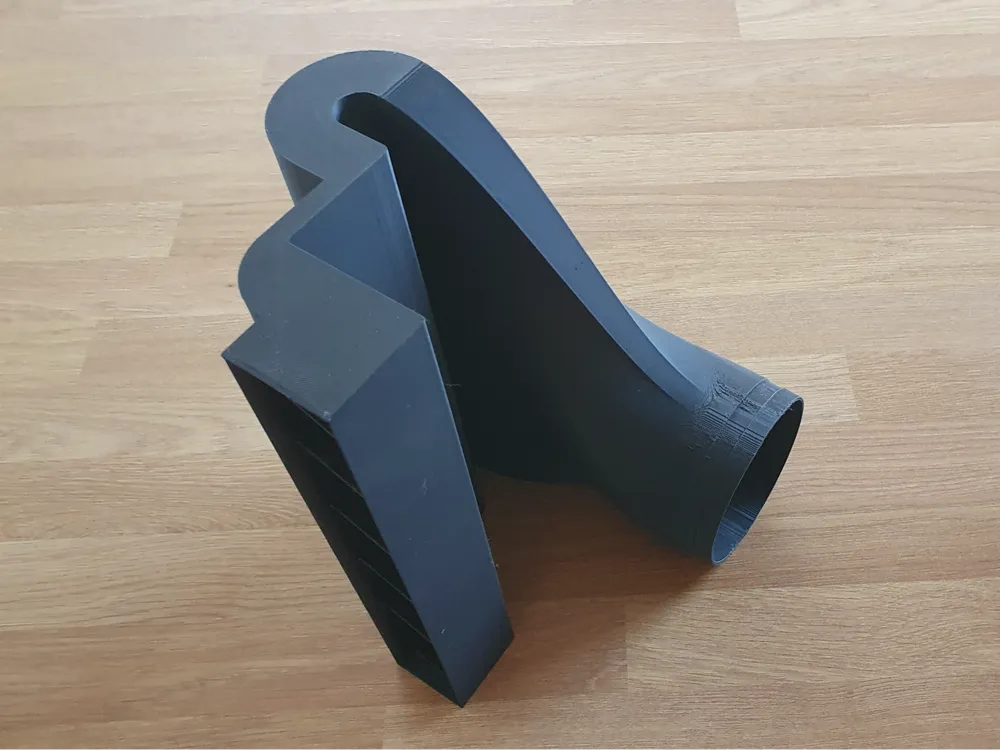

When printed in white, it's hardly noticeable from outside (thus my photo in black filament).

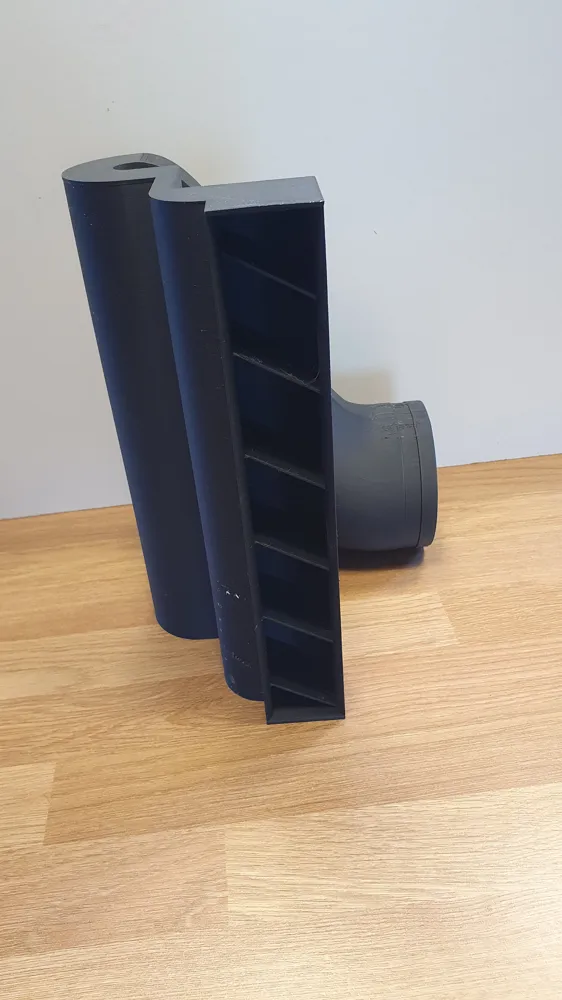

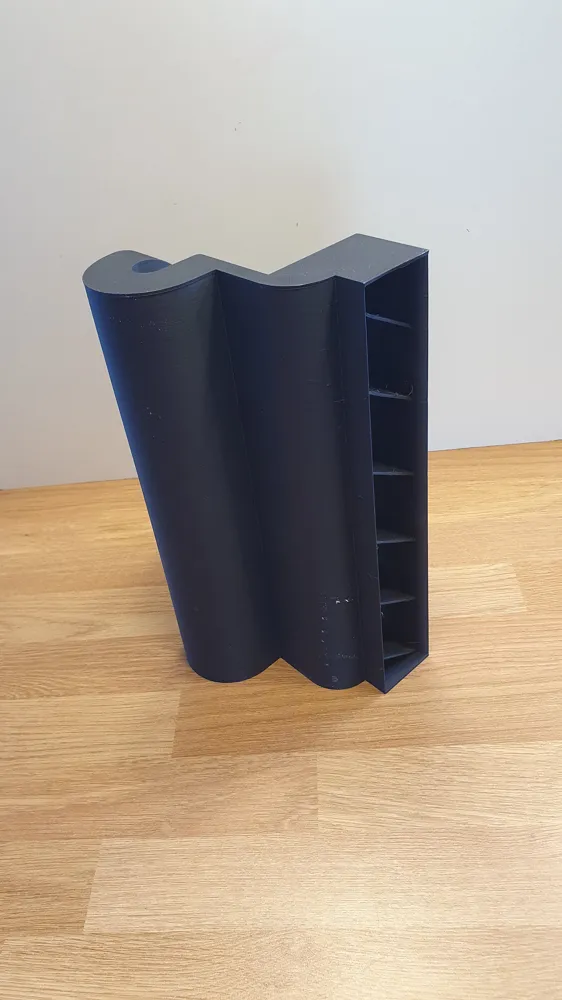

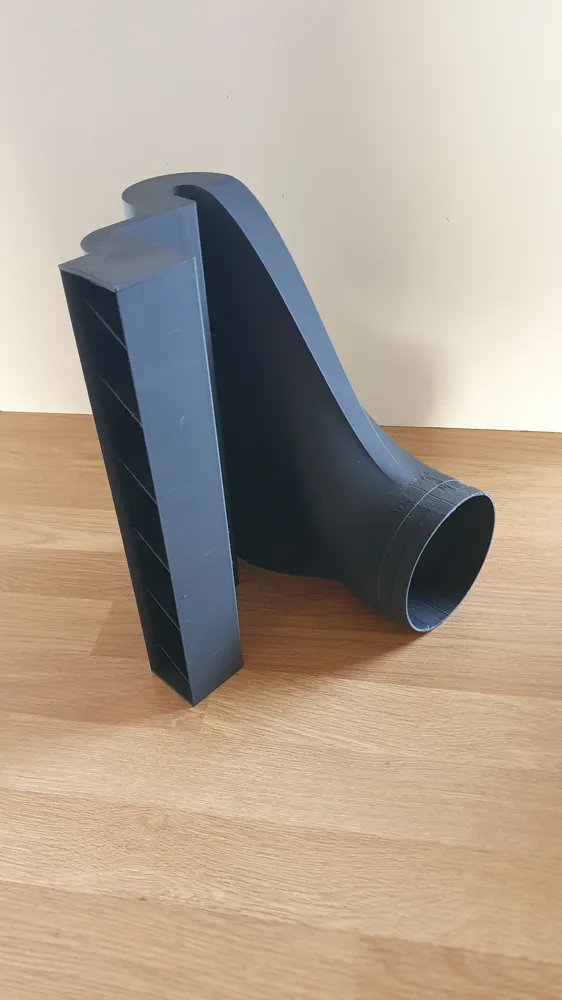

It's made in a way that the rain won't get inside and any water drains out the front.

I printed mine in PETG.

Outside diameter of an inlet is 100mm

EDIT:

NEW! Just added a base model with swapped in and out. If your window opens inward that should fit your window - please check the test file before printing the vent. Enjoy!
added a vent that fits (at least some) windows that open inwards. There's a fit test file as well, so you can check if it fits your window (Look for Inward Opening files)
added 150mm version too and few others
added version for Single Window - it's a modified shape to fit a window that takes up a whole opening and opens outward. Please check photo below (and in print profiles):

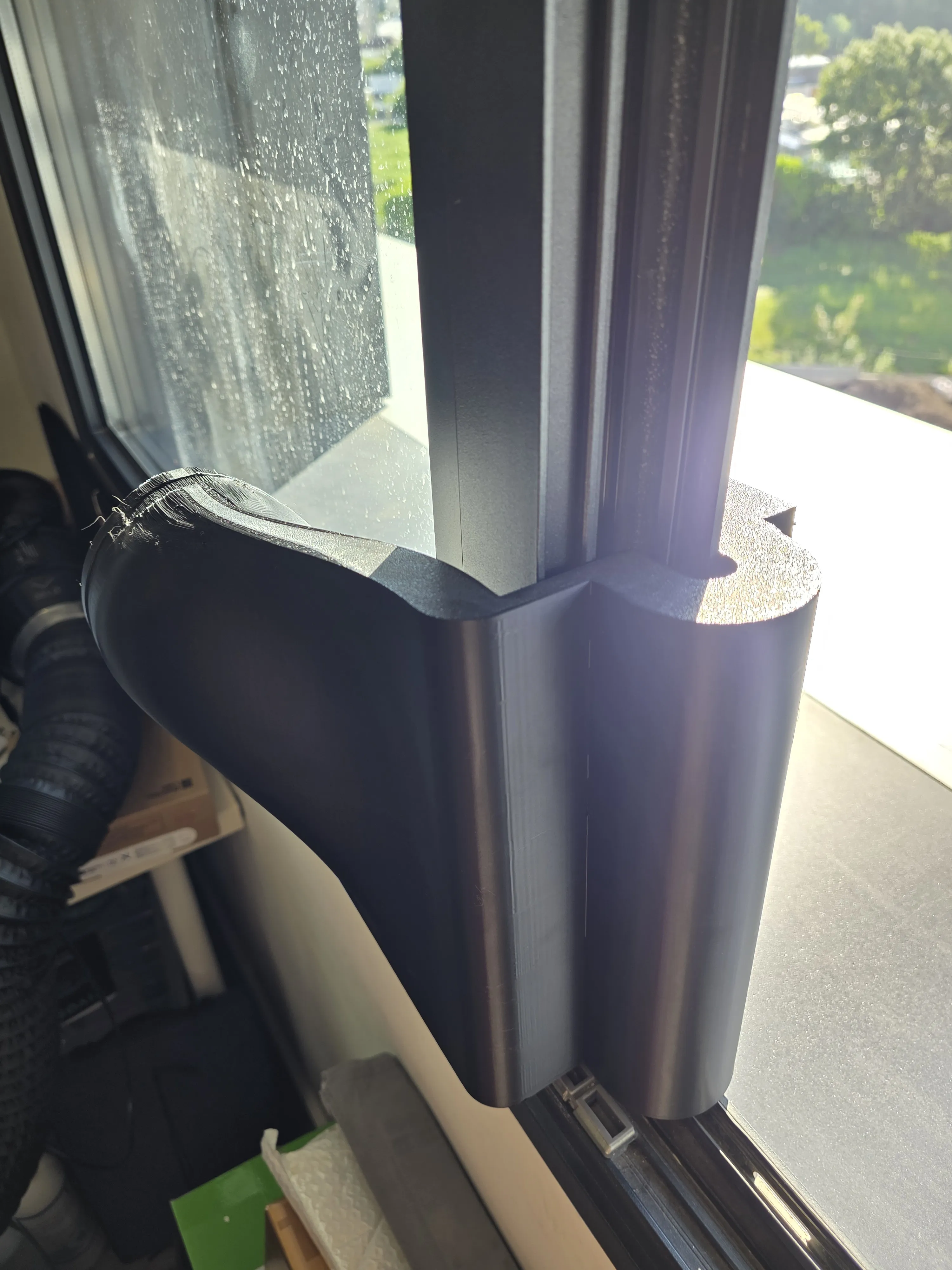

added version for Inward Opening Window - it's a modified shape to fit a window that opens inward. Please check photo below (and in print profiles):

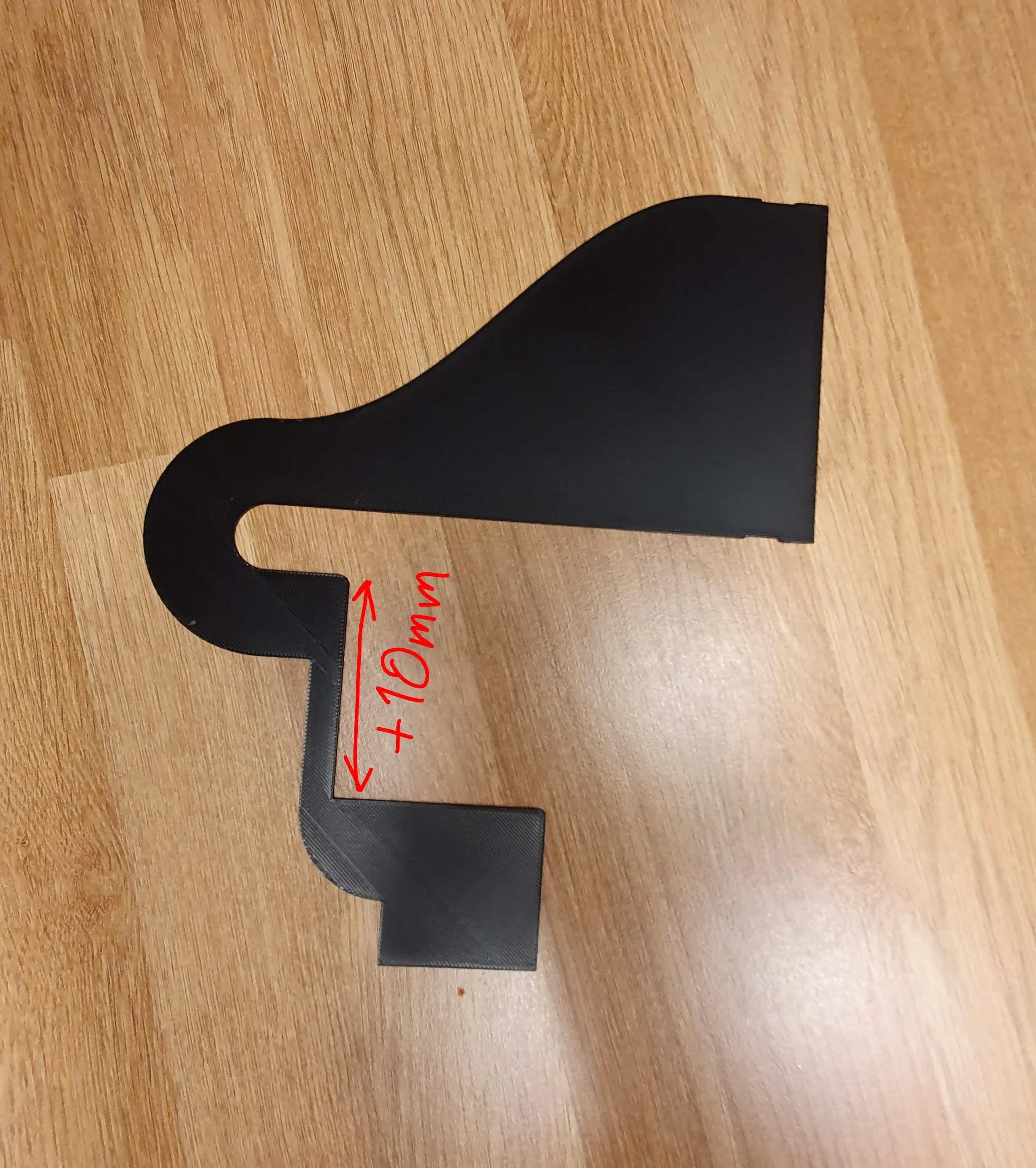

added version for 10mm Thicker Windows - it's a modified shape to fit a window that's a bit thicker (mostly in europe, I think ). Please check photo below (and in print profiles):

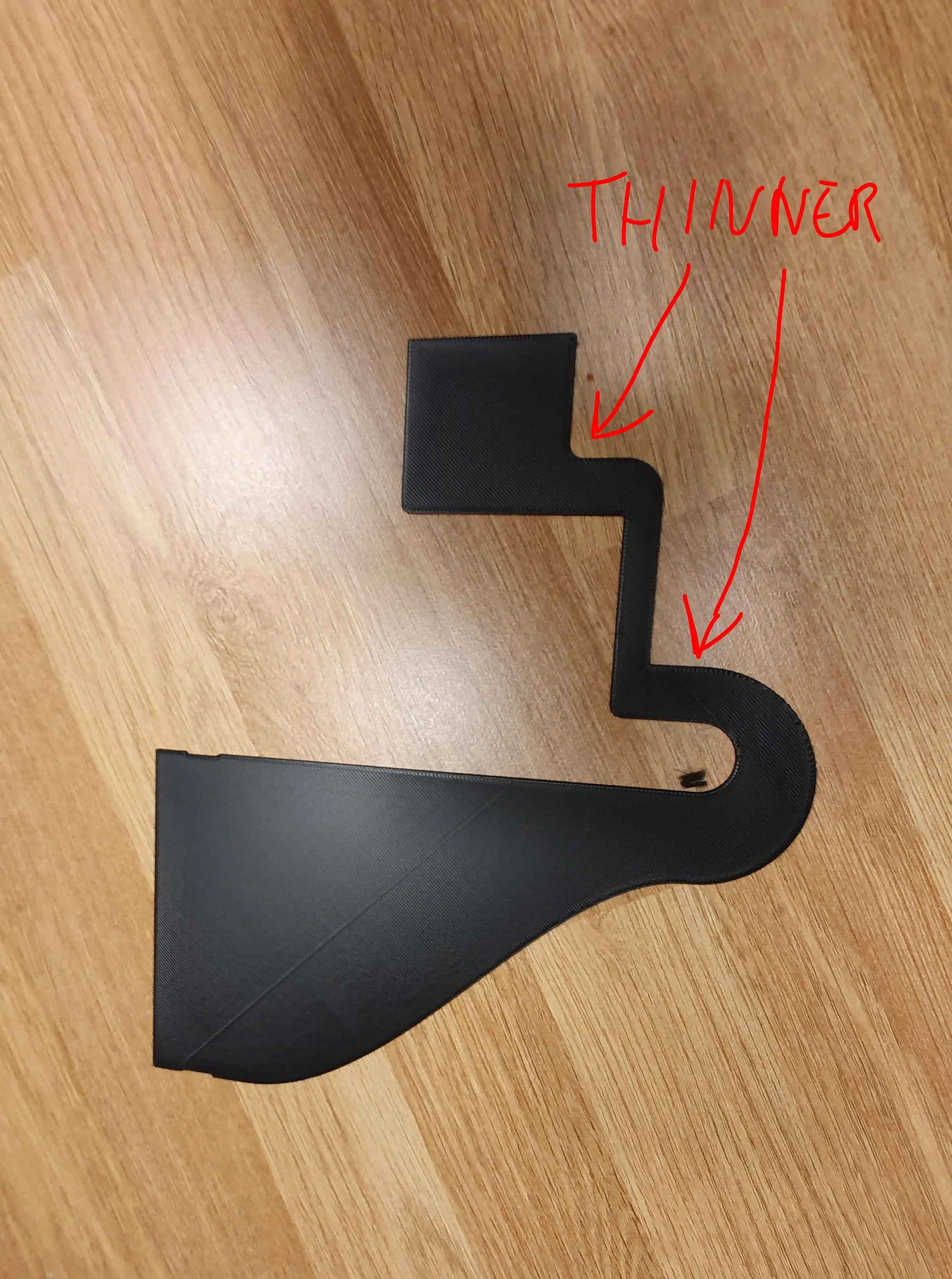

added version for Windows that have a smaller gap when closed with a gap - Thinner ducting. Please check photo below (and in print profiles):

Boost Me (for free)

🚀 Support My Work!
If this holder saves you garage space and makes your yard work easier, please consider giving it a Like, adding it to a Collection, or dropping a Boost! Your support helps me cover filament costs so I can keep designing and sharing useful workshop organization tools for free. Happy printing!

Membership

Support My Designs! If you love my models and want to support my work, consider joining! Your membership helps me buy filament, prototype new ideas, and keep creating free models for the community. It also gives you commercial print licenses, and a say in what I design next. Let's build something cool together!

Join

IT'S NOT FOR AC! THE AIRFLOW IS NOT BIG ENOUGH FOR AC! DO NOT USE WITH AC UNIT!

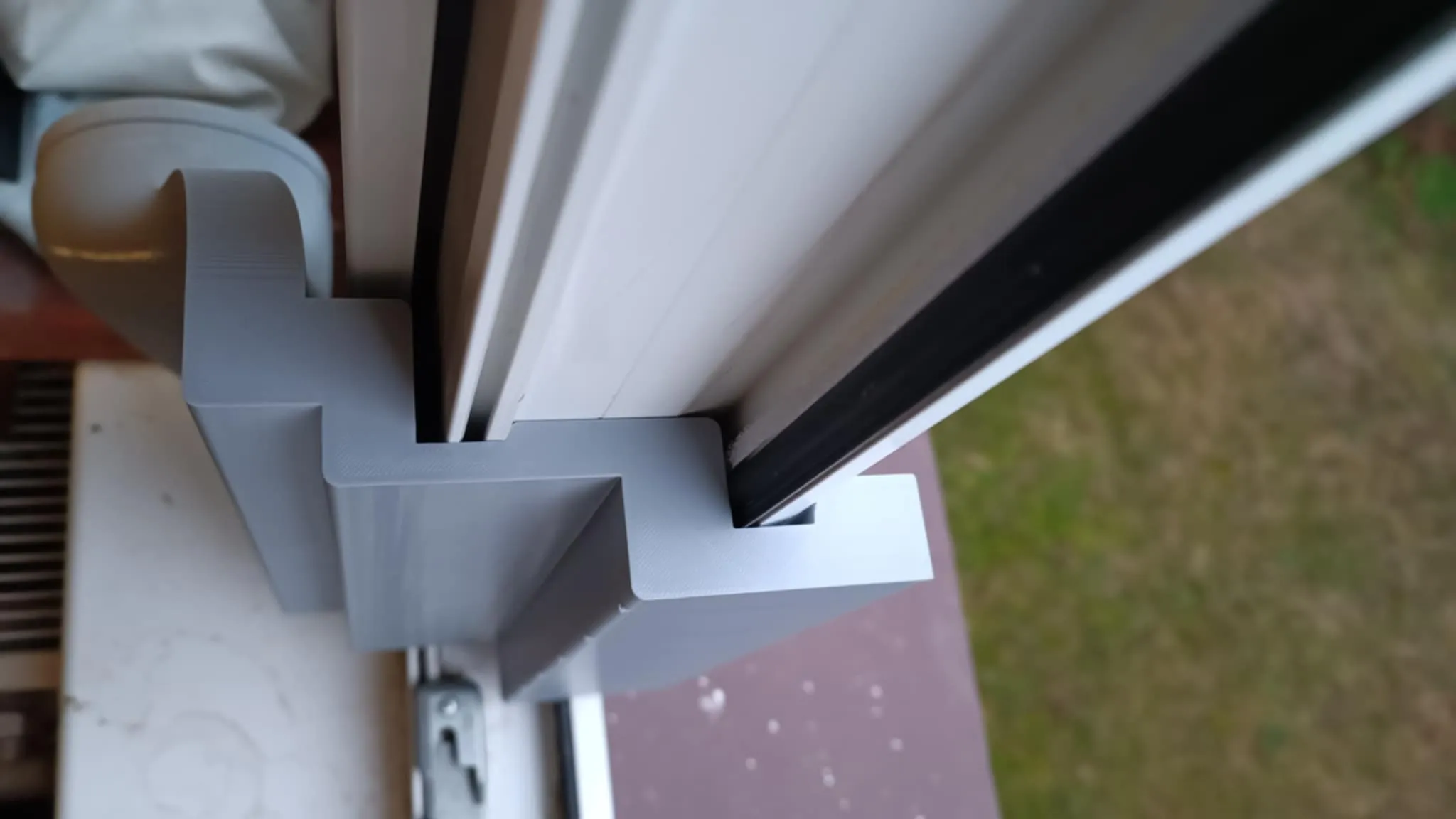

As it's a large thing to print, I included a test model (a slice) just so you can make sure everything fit nicely in the gap that your window provides.

Installation video

When printing it needs painted supports on the round inlet bit.

Don't use automatic supports as it'll put supports inside and you won't take them out.
