Updated new print profile optimized the box and added more grid options If you have any questions please leave me a message I will reply promptly
The filament spool I used is Bambu Lab official PLA Lite The installation steps are very simple:

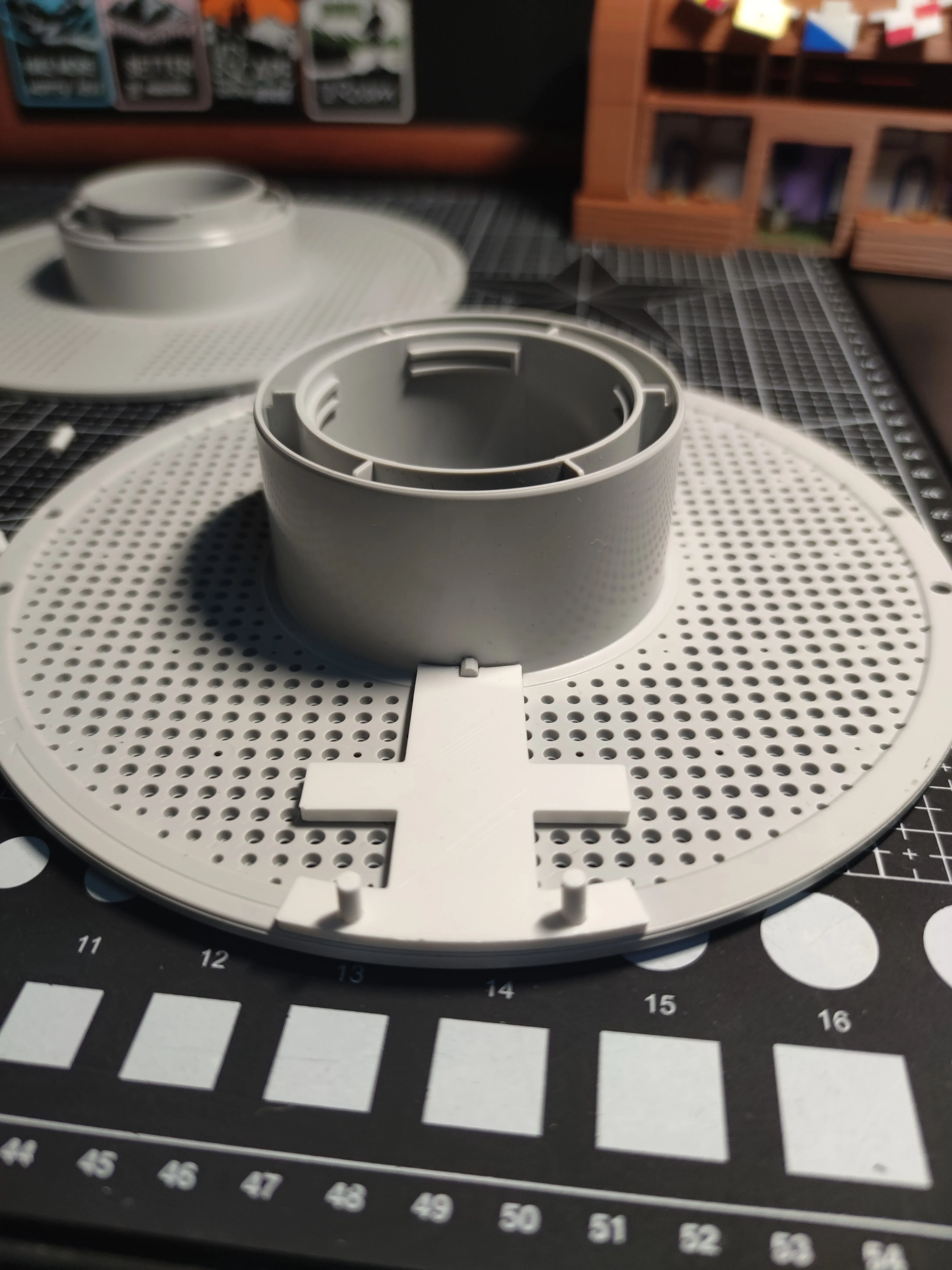

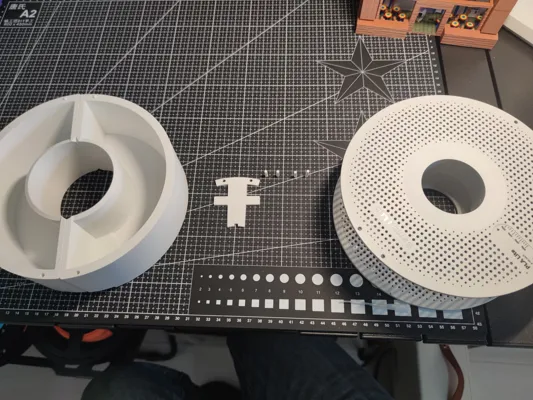

1 First insert two 1.7 pins into the T-shaped structure (pay attention to the orientation) Then connect with glue (this is the only step that requires glue hold it for a while it's not a big problem without glue the structure is stable and won't wobble but I personally recommend using some glue)

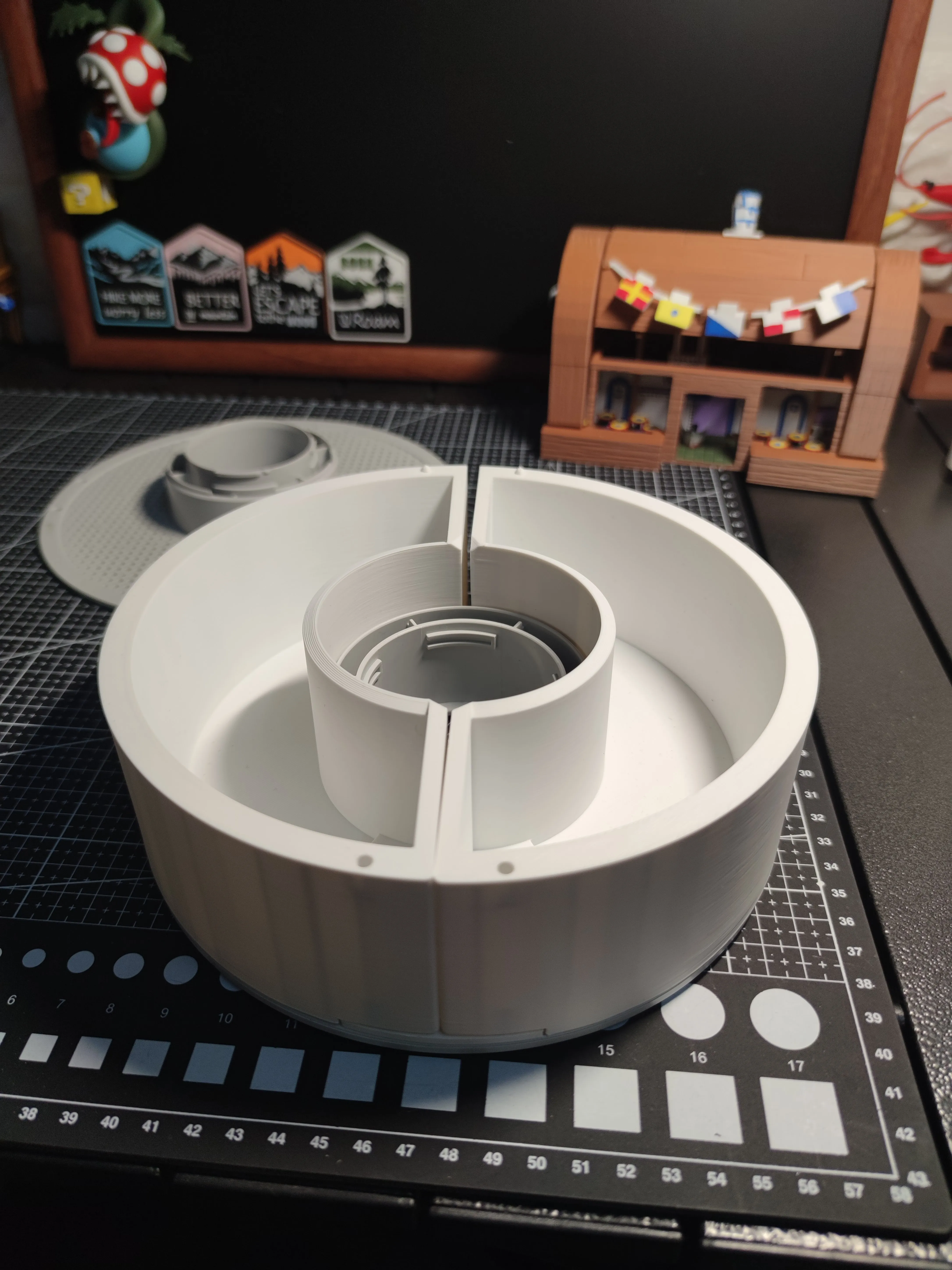

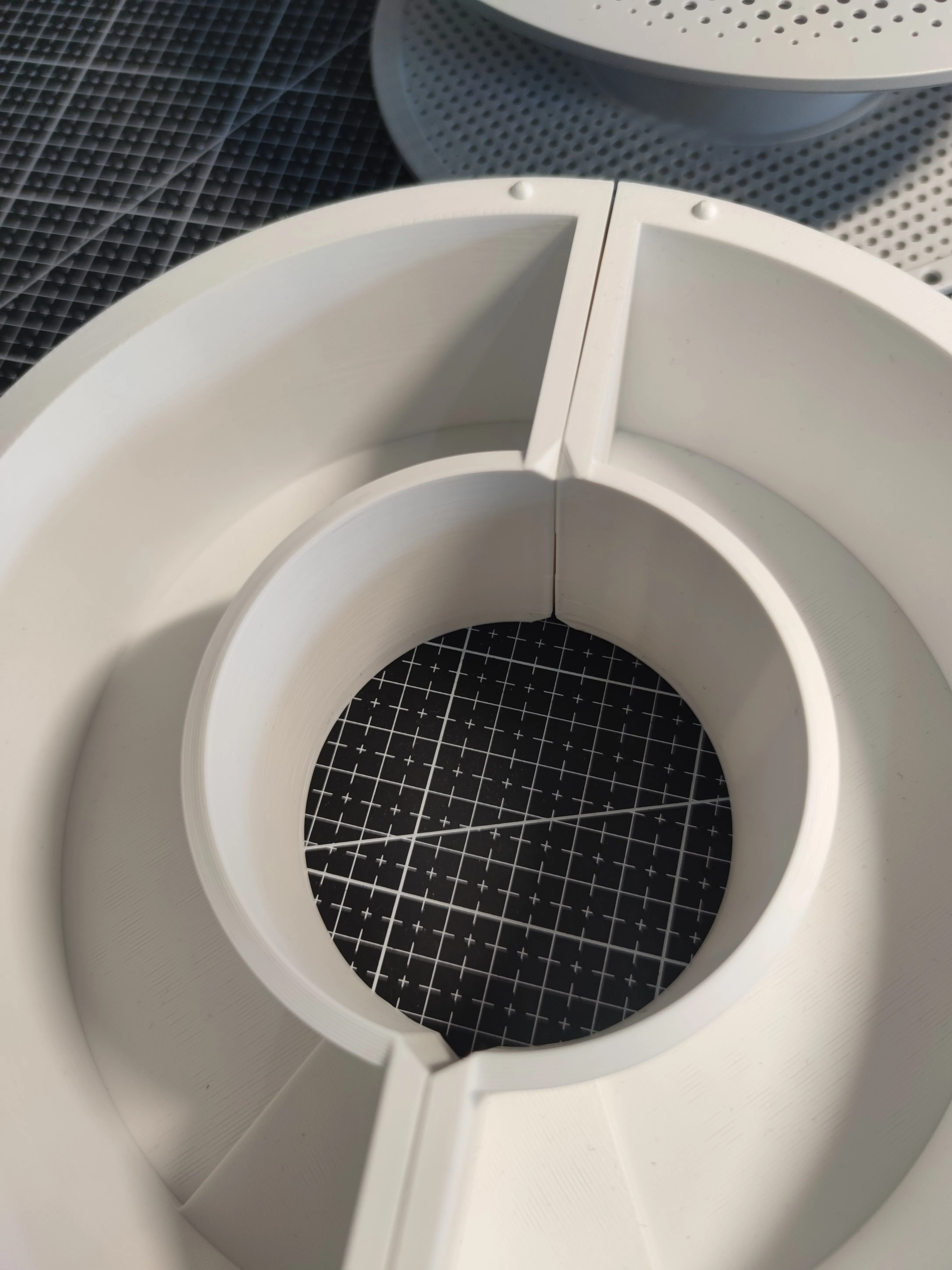

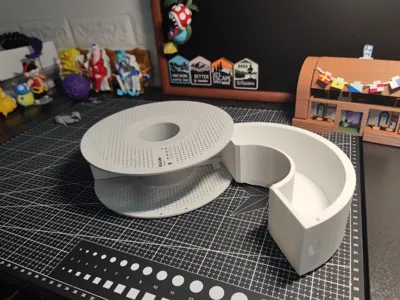

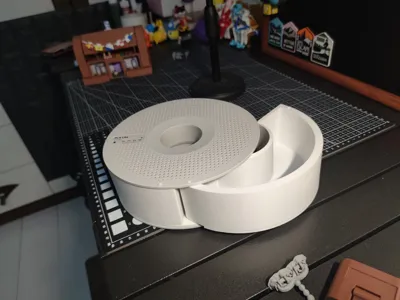

2 Place the left and right main bodies separately

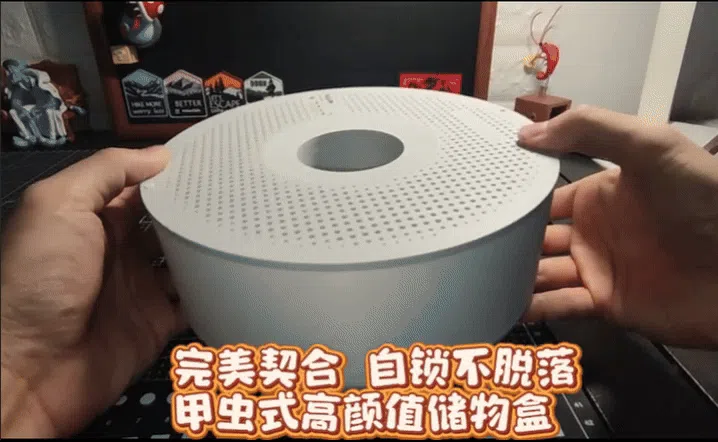

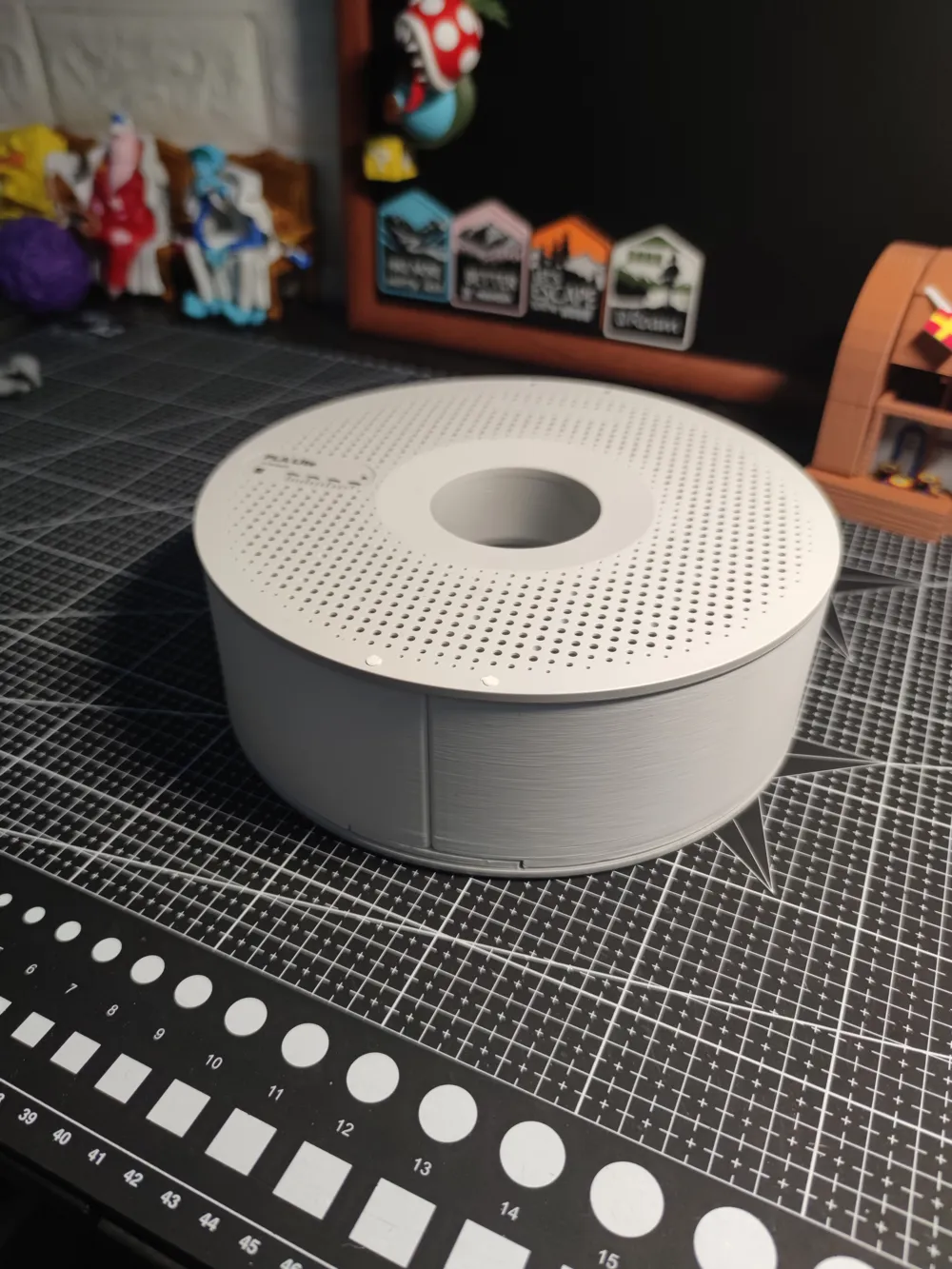

3 Tighten the upper part of the filament spool A clear click sound means it's done
4 Insert the remaining two 1.8-sized pins
If you have any questions please leave me a message I will reply promptly
Later depending on popular demand I will decide whether to add more accessories including a cylindrical storage box for the middle part a partitioned version of the main body and so on
Additional notes: 1 Only 4 pins are needed in total Four are extra in case they get lost during installation They can be discarded after installation

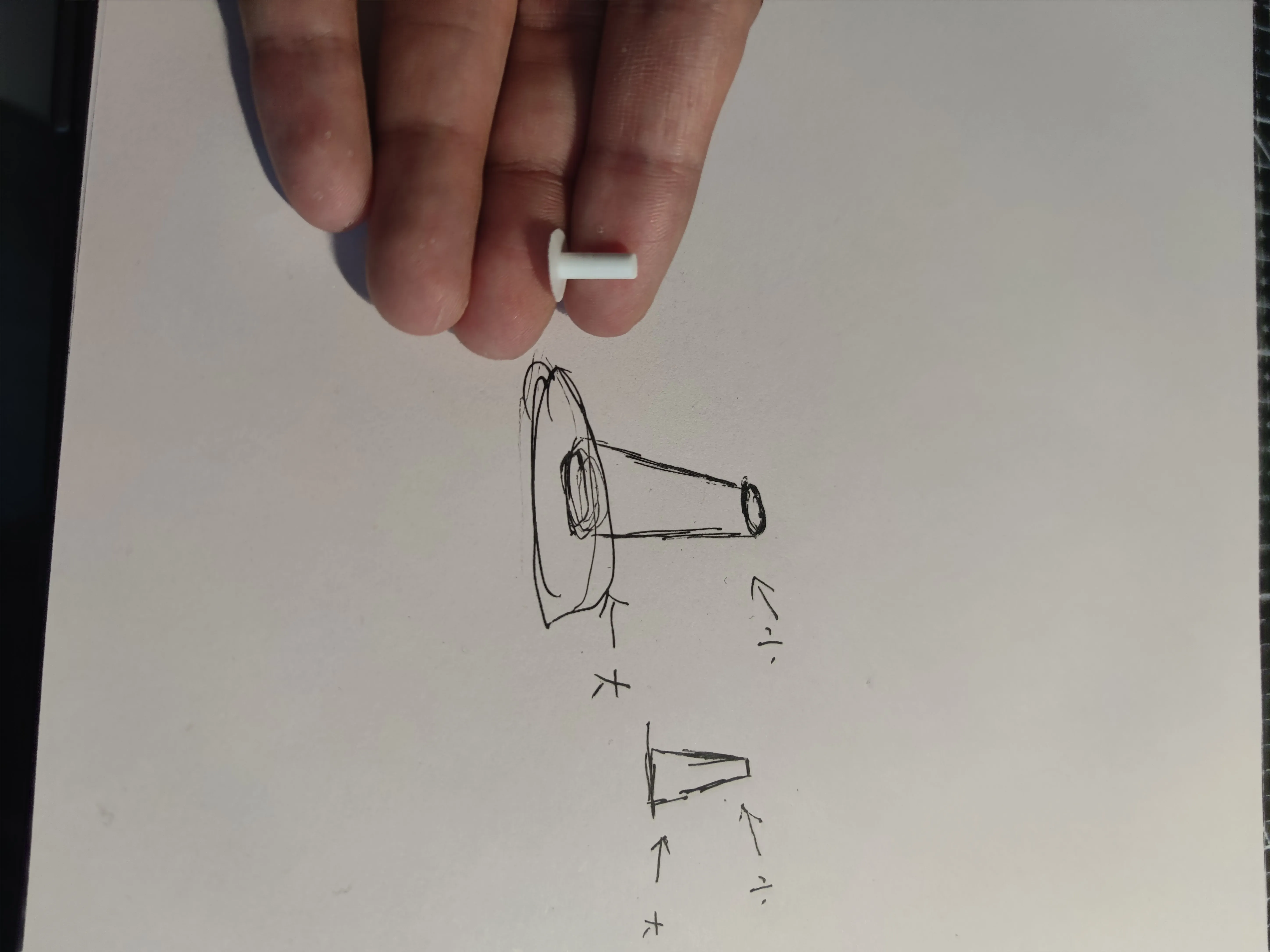

2 The upper part of the pin is slightly smaller pay attention to distinguishing it during installation

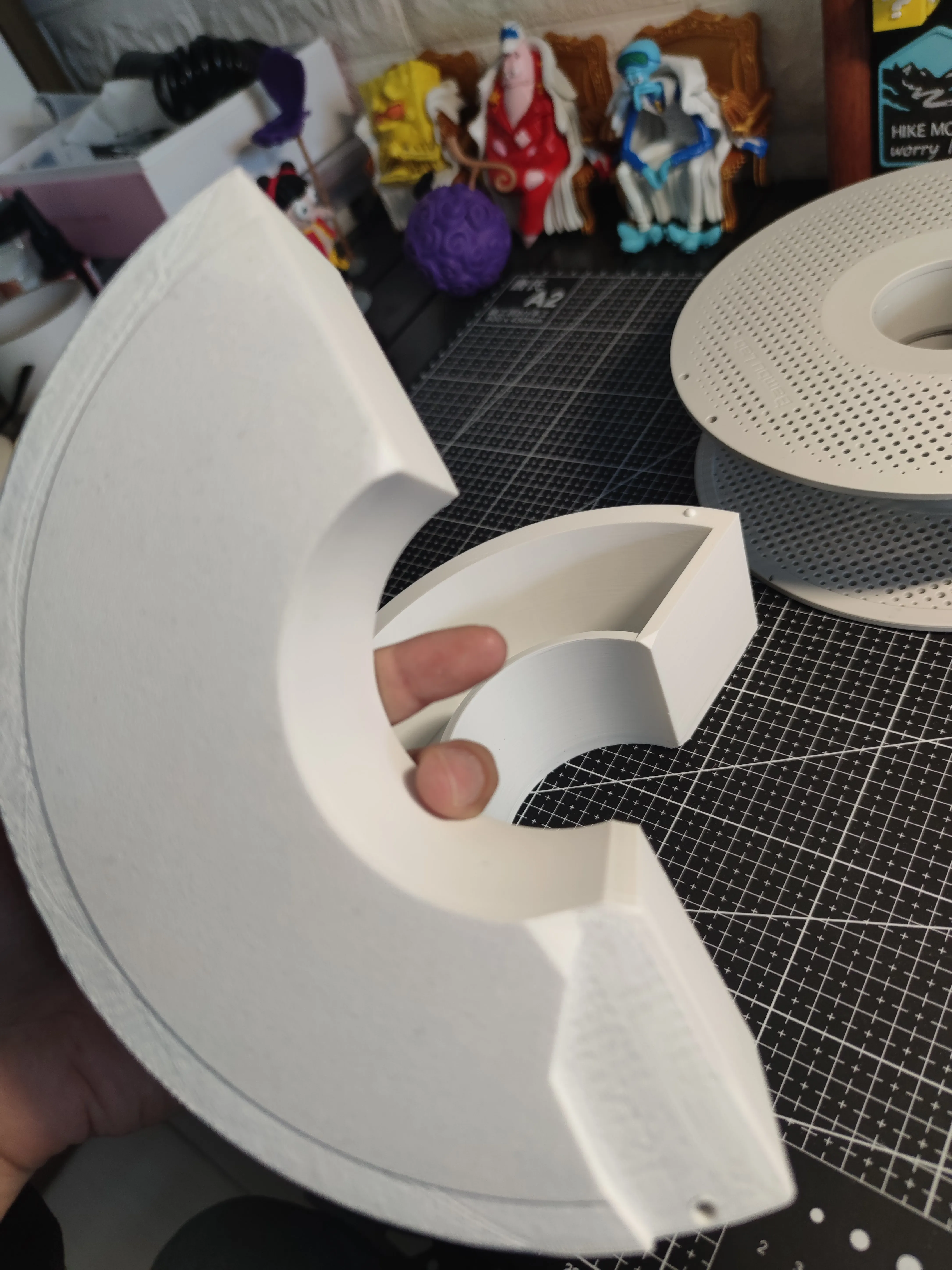

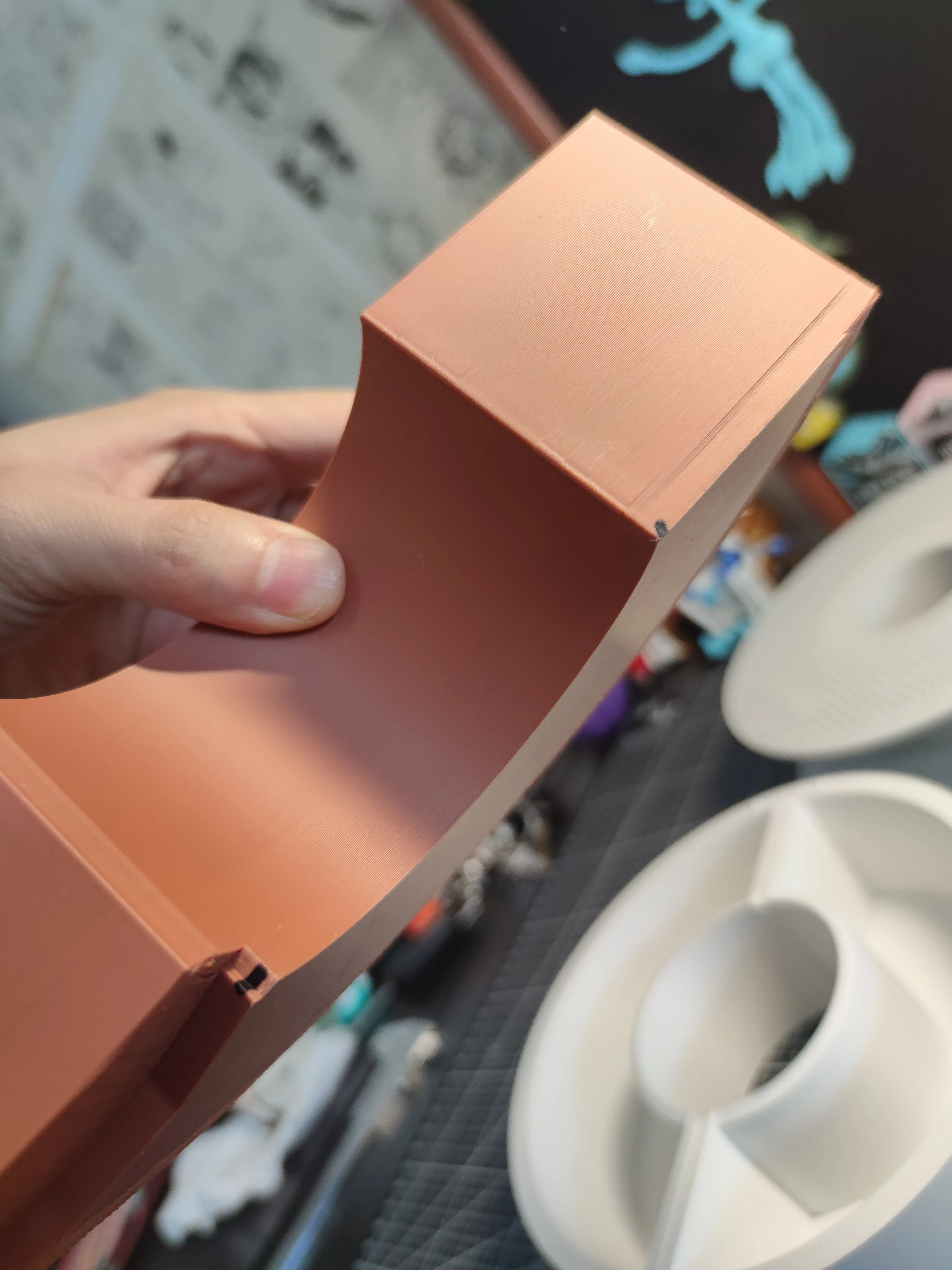

3 It's normal for the main body's corners to have chamfers because many versions were made and sharp corners would get stuck on the filament spool edge After several optimizations this is the final result There might still be a slight snag but it doesn't affect normal use and closure Normal force is fine
