Nema 17 Stepper Motor Holder
Print Profile(0)
Description

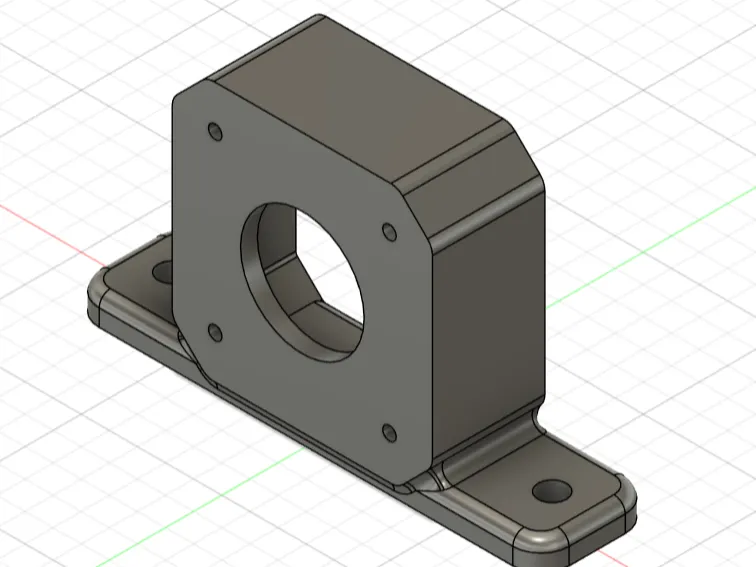

The stepper motor holder is a compact and sturdy mounting component designed to securely support a standard NEMA stepper motor in mechanical or robotics projects. The model features a flat base plate with pre-aligned mounting holes that allow the holder to be fixed onto a variety of surfaces such as acrylic sheets, metal frames, or wooden panels.
At the center of the base, a raised cylindrical or rectangular housing is shaped to match the dimensions of the stepper motor body. This housing provides a snug fit, keeping the motor stable during high-speed rotation or sudden changes in torque.
The front face of the holder includes a cut-out area that allows the motor shaft and coupler to freely extend outward without obstruction. Four precisely positioned screw slots are included to match the motor’s standard mounting pattern, ensuring easy installation and removal.
To increase durability, the model includes reinforced walls and filleted edges, reducing stress concentration and preventing cracks during 3D printing or real-world use. The design balances strength with material efficiency, making it lightweight while still capable of supporting the motor under load.
Overall, the stepper motor holder provides a reliable, easy-to-print, and functional mounting solution suitable for robotics, CNC machines, automated systems, and school engineering projects.
