Angled PC Fan Mount (120/140 mm) + Clearance Test

Angled Fan Mount for PC Fans (120/140 mm)

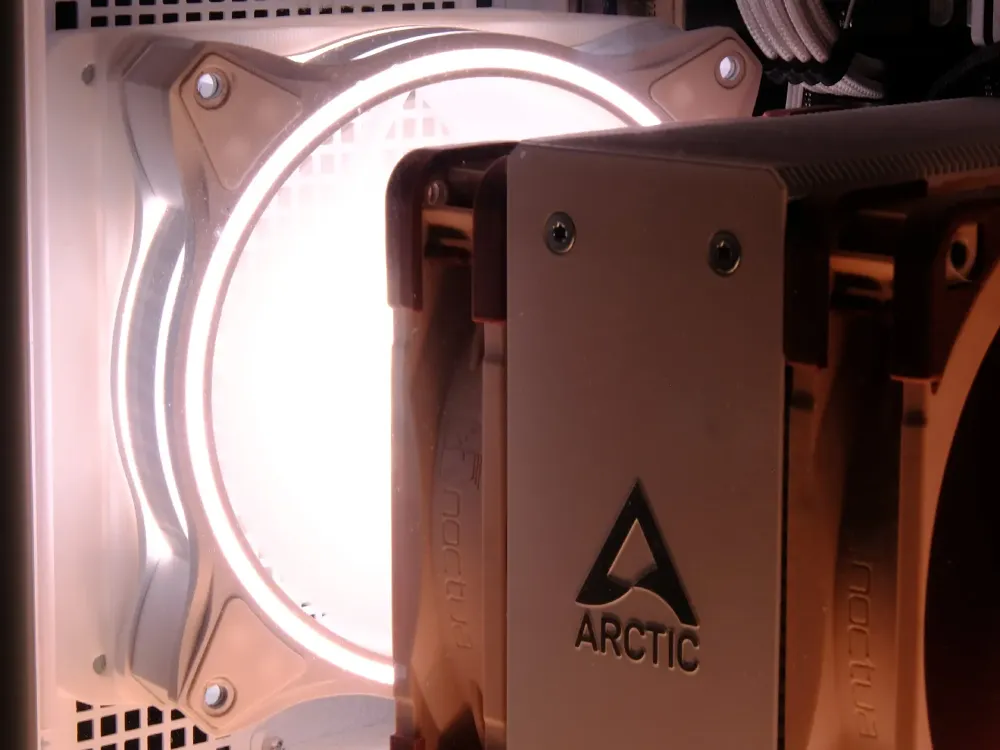

This mount allows you to install fans at an angle inside your PC case. To use multiple fans, simply print additional copies and place them side by side. This lets you direct airflow precisely to components or showcase RGB fans effectively.

Features

• Print multiple mounts for 2 or more fans and place them side by side
• Choose from angles: 15°, 30°, 45°, 60°, 75°, 90°
• Includes a fast-to-print clearance test to check size and fit in your PC case
• Suitable for airflow optimization or RGB showcase builds
• Strong and stable construction

Compatibility

• Supports 120 mm or 140 mm fans (print the corresponding model)
• Fits most PC cases with sufficient internal space
• Use standard PC fan screws for mounting the fan and the mount (8 total)

Print Recommendations

• Material: PETG recommended (for higher temperatures inside the case)
• Wall thickness: 3 perimeters (because of the screw holes)
• Infill: 10%
• Supports: not required (you might use supports for the higher angle variants for a smoother finish)

Notes

• Angled variants allow bottom, side, or showcase installation depending on airflow or aesthetic goals
• Use at your own risk. The designer is not responsible for any damage to PCs, components, or accessories caused by using this design
