Description

Content has been automatically translated.
Show original

This chute was designed by FONSWERKS to occupy only the available space between a common 90-degree PSU power cable and the wall. This chute has a total depth of 26 mm (the space between a common 90-degree PSU power cable and the wall is approximately 30mm).
It also features recesses to accommodate various adhesive tapes you might use.

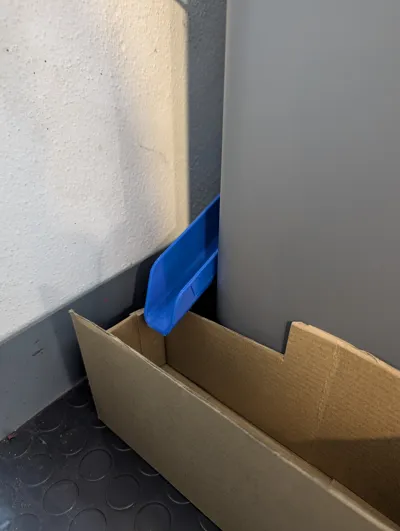

To collect waste from the chute, you can place any container in the corner.

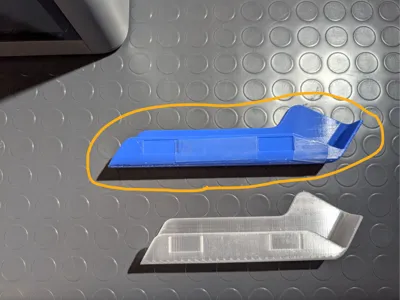

This version, compared to the original, is lengthened to protrude further, making it easier to collect from a side container.
I have also increased the opening angle to better manage the installation angle
