SnapLock Storage Box– Single Latch | small chamfer

👋 About this remix

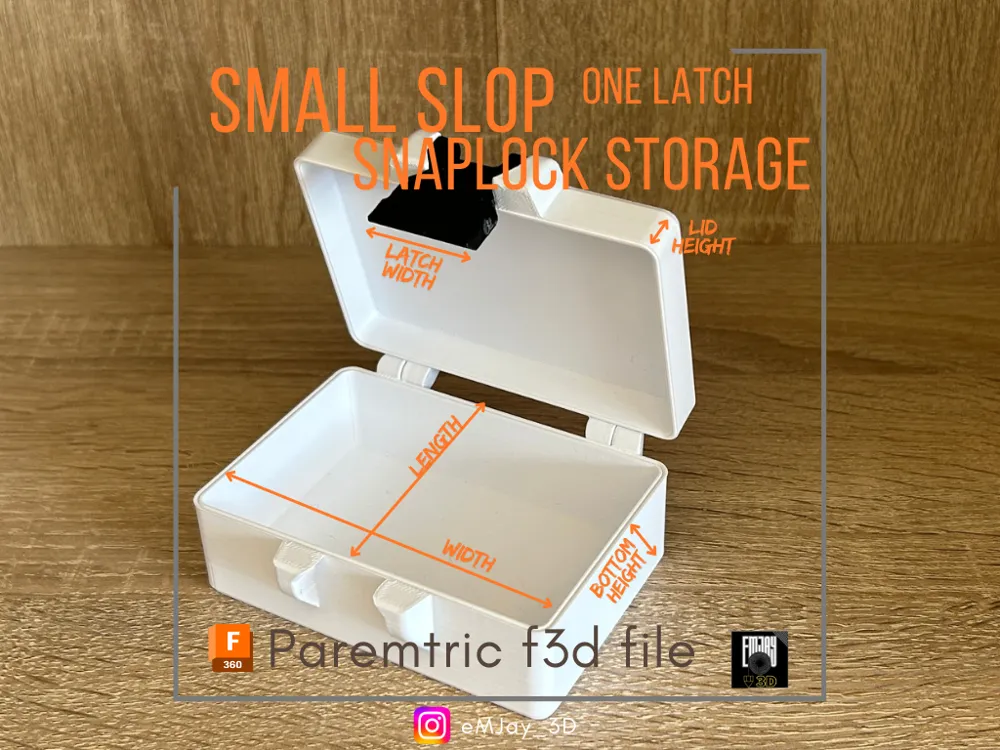

I remixed Hugo's ingenious SnapLock storage boxes because the very large chamfers on the boxes bothered me

🔧 Changes to the Chamfers

• Externally, there is now only a 2 mm chamfer
• Internally, the chamfer has been reduced to 1.2 mm to 0 mm – depending on the wall thickness (thin wall = larger chamfer)

Through these adjustments, the box could be significantly reduced in width, depth, and height

📐 New Options & Improvements

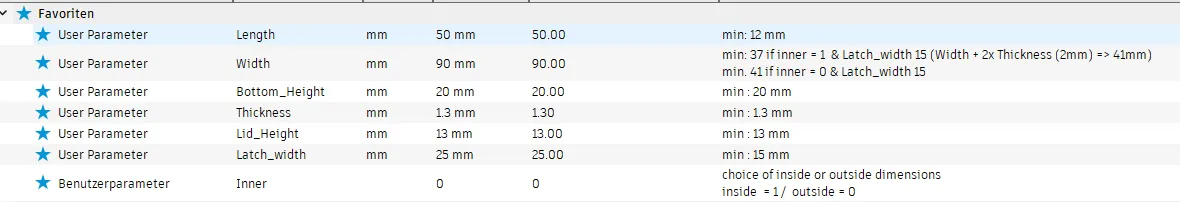

🔄 Selectable Internal or External Dimensions

Previously, the box was defined by its external dimensions. Now you can choose whether you want to use internal dimensions or external dimensions

🛡️ Parameter Safety

All parameters now have minimum thresholds to ensure stable generation. If something does go wrong: CTRL+Z after closing the parameter mask restores the previous state

Old:

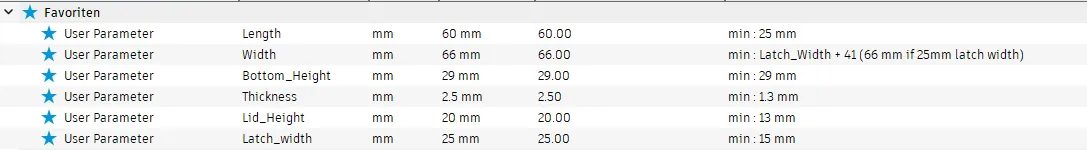

📏 Sizes & Limits

Minimum Values

• Depth: 12 mm (if anyone ever needs that 😄)
• Width: 41 mm external / 37 mm internal (with 2 mm wall thickness)
• Base Height: 20 mm
• Lid Height: 13 mm

Optimal

• Wall thickness from 2 mm, otherwise the sealing notch will not be fully generated

📝 Changelog

V1.0.3 – 28.04.2026

🔧 Fixed Bugs

• In certain configurations, the hinge was incorrectly calculated. Thanks to a completely new internal connection/logic, this error should now be permanently fixed

V1.0.2 – 26.04.2026

🔧 Fixed Bugs

• Fixed an error in lid generation over 33 mm. Part of the hinge was cut off – this no longer occurs

🎨 Restored Geometries

• Radii and chamfers on the latch have been reconstructed. These had accidentally disappeared in the last update

V1.0.1 – 07.03.2026

• Fixed an error with the base over 32 mm
• The case is now directly customizable in the browser – Fusion360 is no longer needed

V1.0

• Chamfers on base & lid reduced from 10 mm → 2 mm
• Radius reduced from 12 mm → 5 mm
• Internal chamfers reduced
• Minimum depth 25 mm → 12 mm
• Minimum width 57 mm → 41 mm
• Minimum lid height 29 mm → 20 mm
• Option for internal/external dimensions added
• Parameter limits introduced
• Generation processes optimized
• Hinge is now coupled to the width and can merge into itself → smaller widths possible

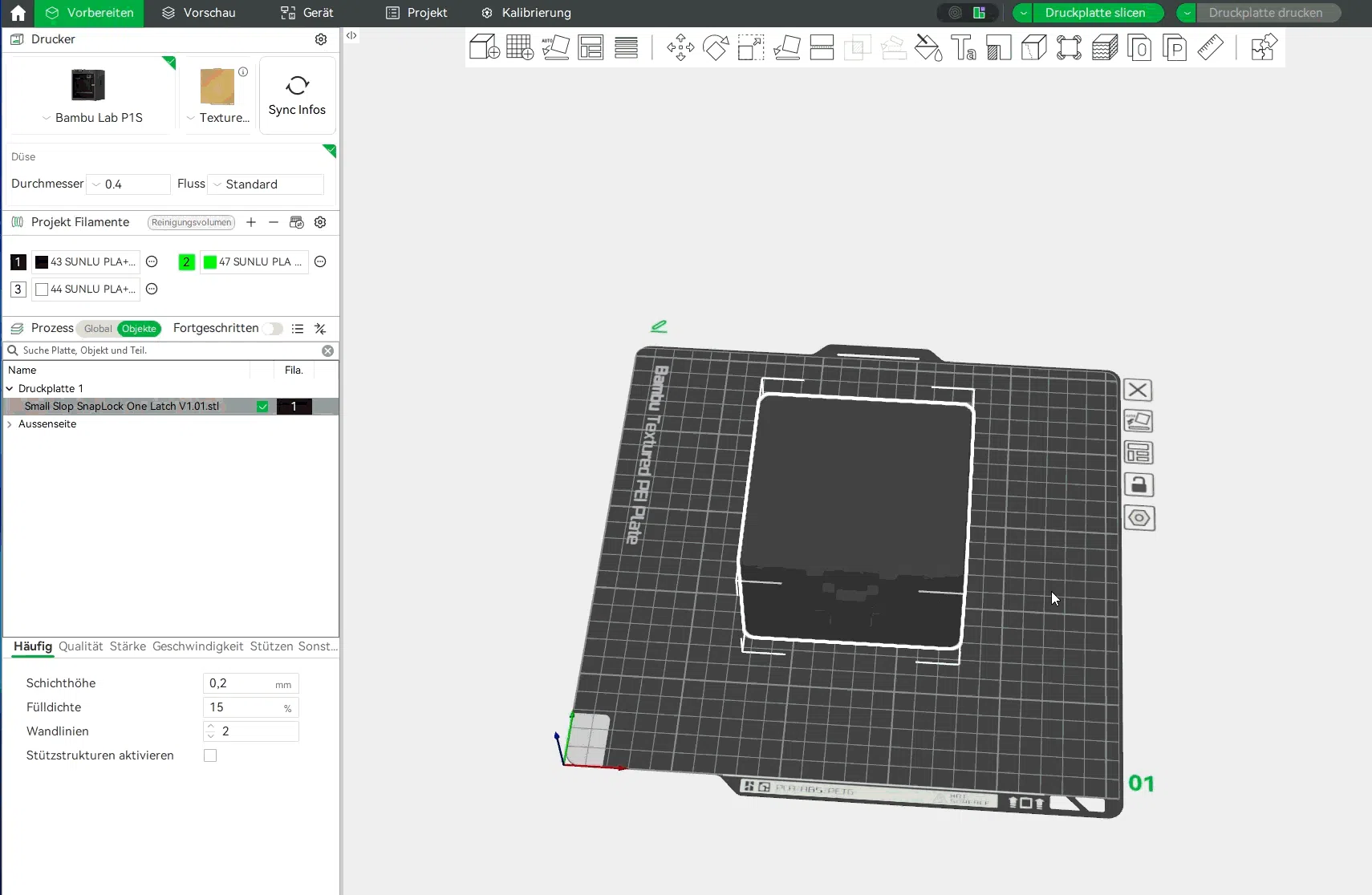

Split STL into objects

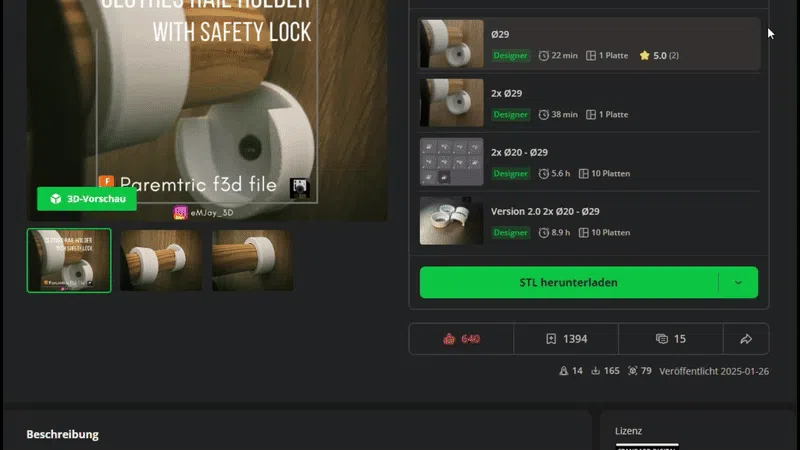

You can download the Fusion files like this:

Box adjustment: VIDEO
