There are many parts trays in the community, but very few with magnetic attraction, so I designed one myself

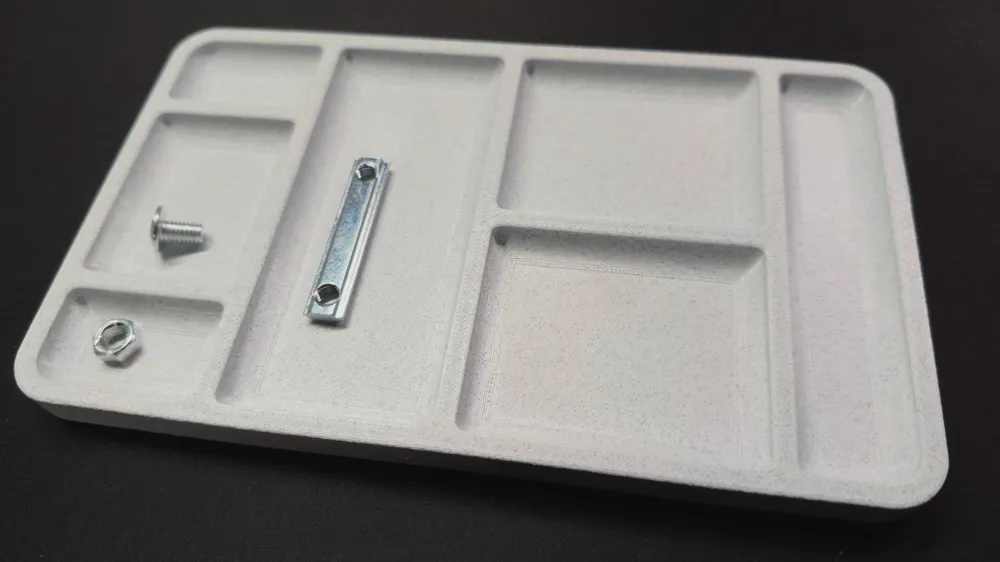

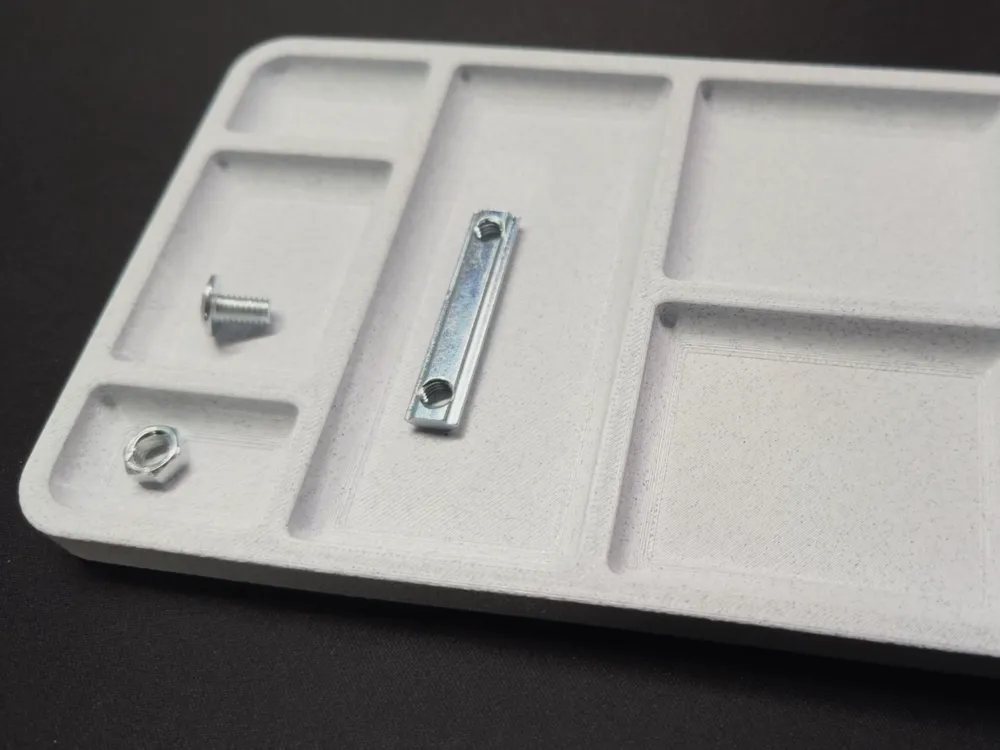

The tray dimensions are 200mm * 120mm * 12mm. One side is non-magnetic, and the other side is magnetic. The two magnetic sections in the design have one with weaker magnetism and one with stronger magnetism. Of course, you can also use stronger or weaker magnets depending on your needs
Tools and Accessories
- 25mm * 2~3mm round magnets x2 (N52 magnets with 2mm thickness are recommended)
- 10mm * 2~3mm round magnets x4
- 502 / 9046 / Ergo 5800 super glue
Printing Suggestions
- PLA or PETG are both suitable
- Enable variable layer height for better surface quality
