The Ultimate Parametric Velocity Stack Generator
Print Profile(1)
Description
STOP SEARCHING, START CUSTOMIZING.
This is not just a static model. This is a powerful parametric engine that lets you design professional-grade velocity stacks in seconds using the MakerWorld "Customize" button.
✨ Key Features

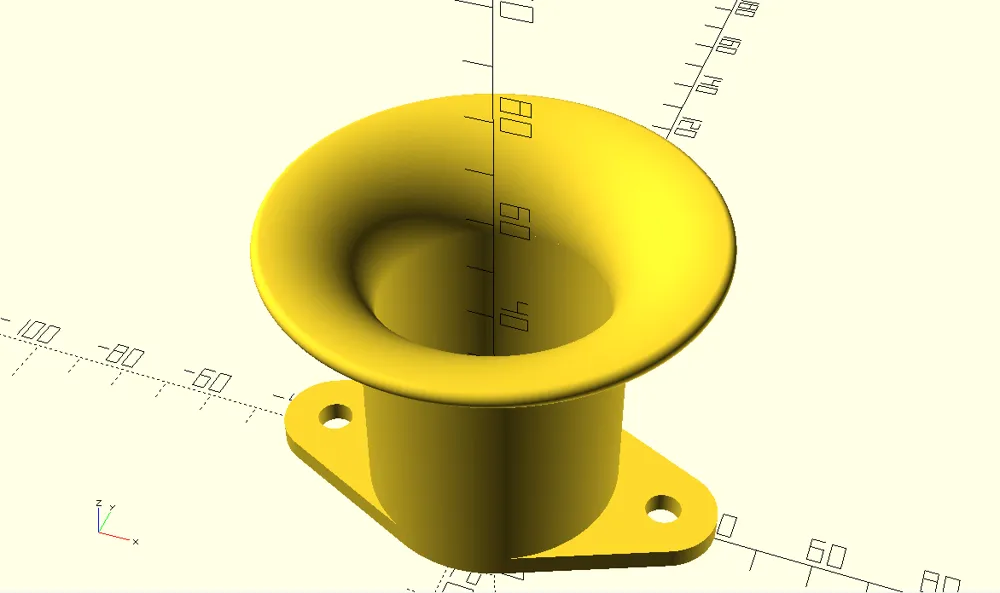

- Fully Parametric: Adjust Throat Diameter, Bell Width, Height, and Wall Thickness.

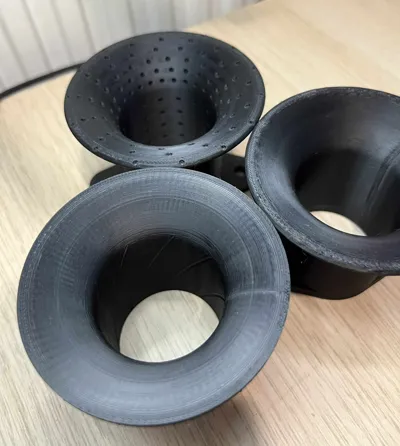

- Advanced Aerodynamics:
- Smooth: Classic polished finish.

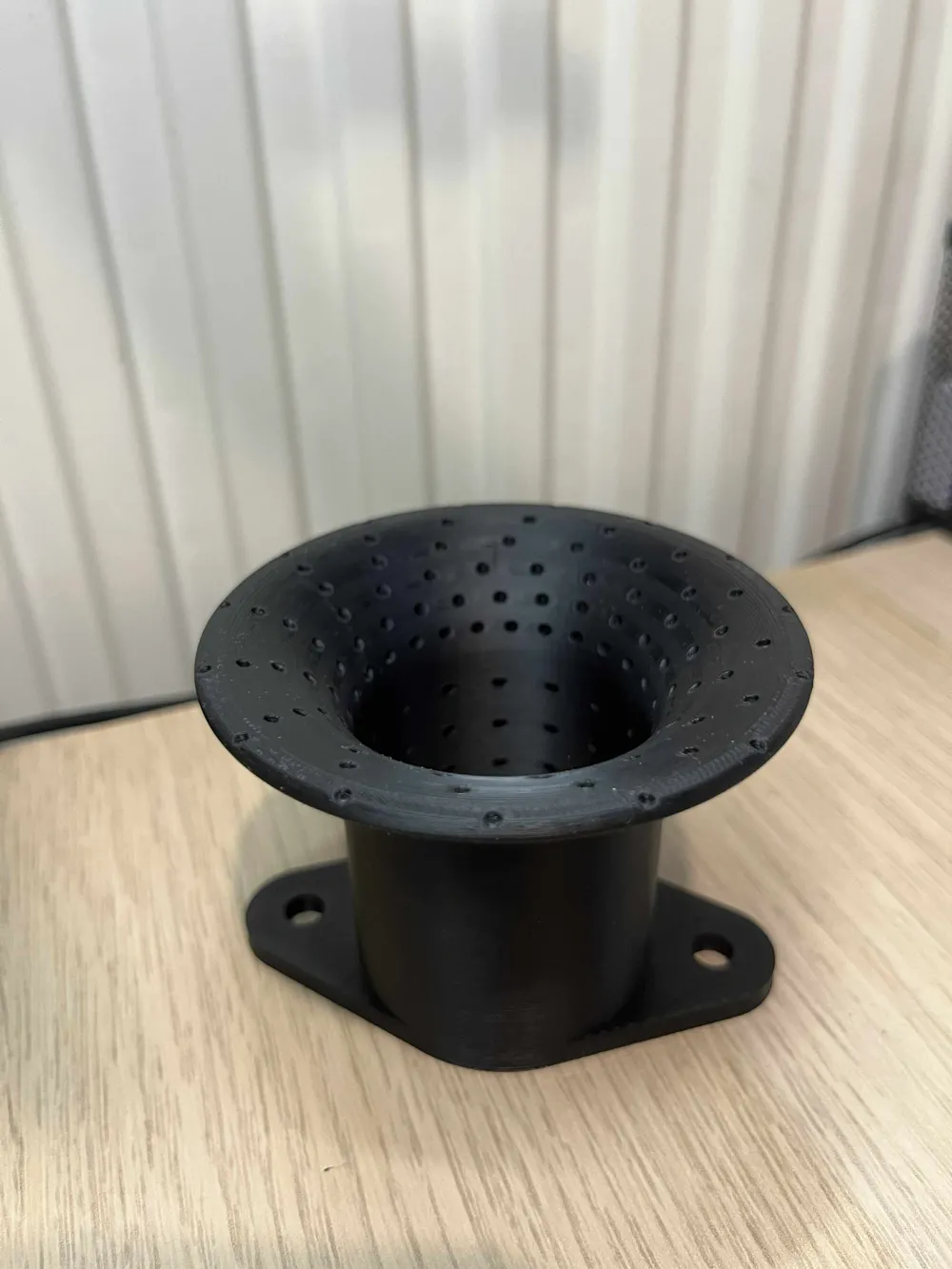

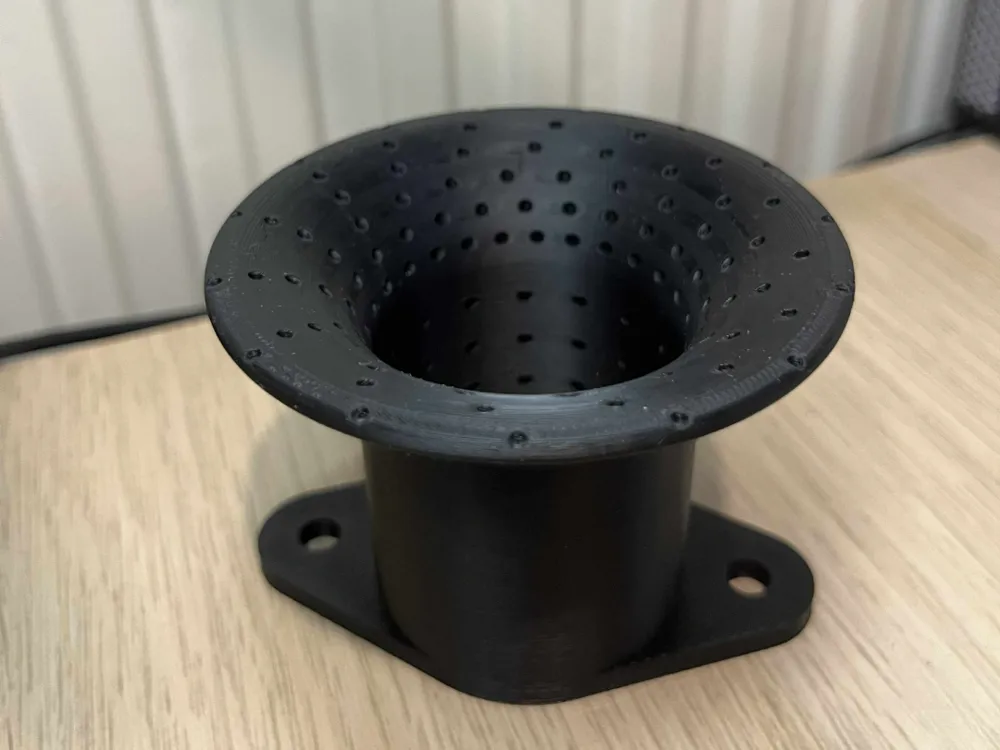

- Golf Ball (Dimpled): Energizes the boundary layer to reduce drag.

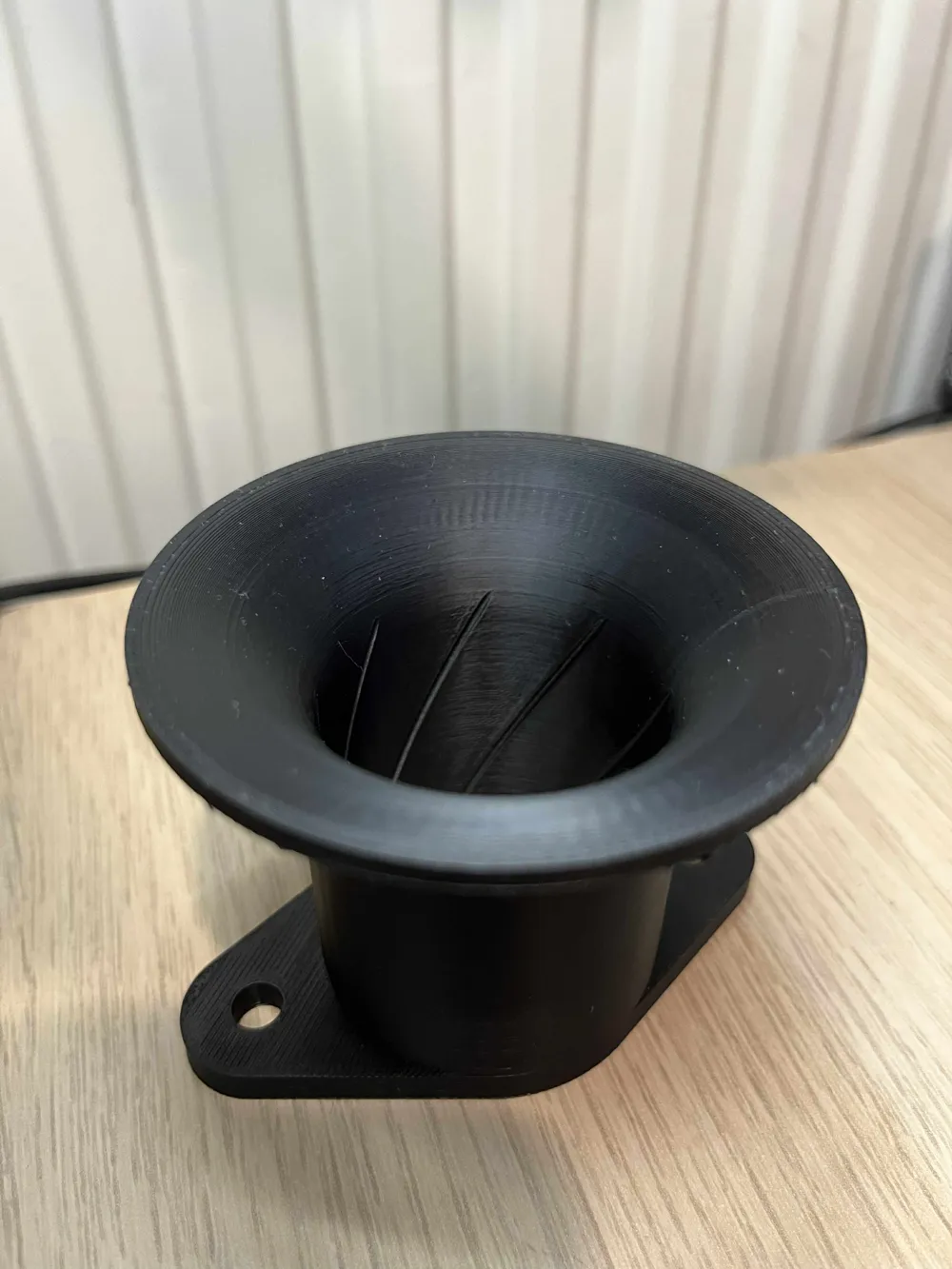

- Vortex (Rifled): Induces swirl for better air/fuel mixture.
- Universal Mounting:
- N-Bolt Flanges: Generate 2, 3, 4, 5, or 6-bolt patterns instantly.
- Shapes: Square, Oval/Diamond, or Circular flanges.

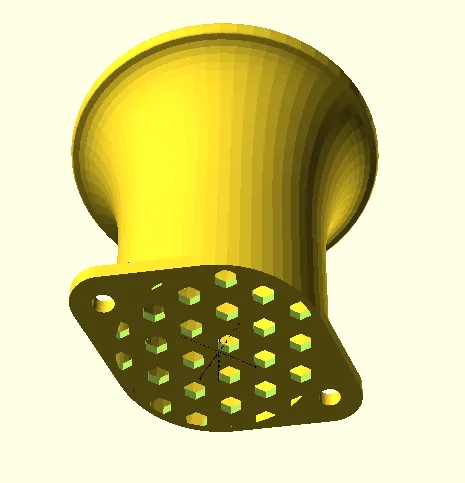

- Protection: Optional built-in Honeycomb Mesh (printable solid geometry) to keep rocks out of your turbo/engine.
- Racing Geometry: Adjustable Elliptical Flare profiles for aggressive flow dynamics.
🛠️ How to Use (No Software Needed!)
- Click the green "Customize" button on this page.
- Adjust the Throat Diameter to match your throttle body.
- Choose your Flange Type and bolt spacing.
- Select your Surface Finish (Smooth, Golf Ball, or Vortex).
- Click "Generate" and then "Download".
🖨️ Print Settings
- Material:
- For Testing/Show: PLA is fine.
- For Engines: You MUST use ,PETG or other filaments that withstand high tempratures and chemical corrosion.
- Walls: 10
- Infill: 100% (Solid) recommended to prevent crushing when tightening bolts.
- Support: Supports maybe needed.
