Canon RF Lenscap with screw-in OTag tracker

Print Profile(1)

All
A1
P1P
P1S
X1E
H2D Pro
X1 Carbon
X1
H2D
H2S
P2S
H2C
A1 mini
X2D
A2L

0.12mm layer, 3 walls, 8% infill
0.12mm layer, 3 walls, 8% infill
Designer
1.8 h
1 plate

Open in Bambu Studio
Boost
1
5
0
0
7
3
Released

Description

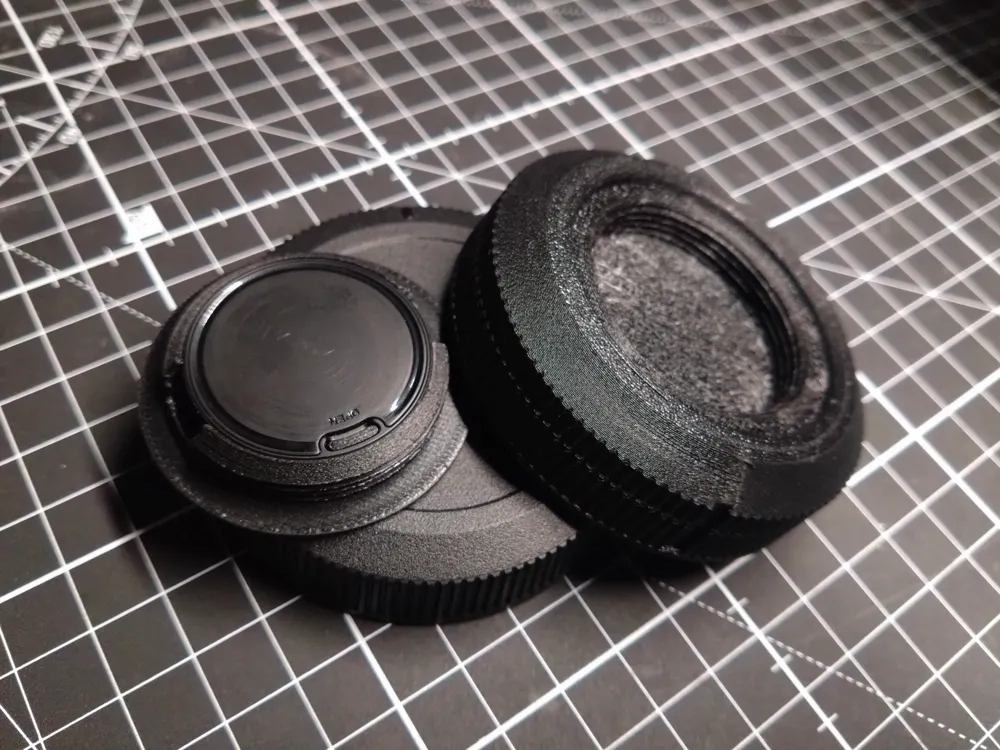

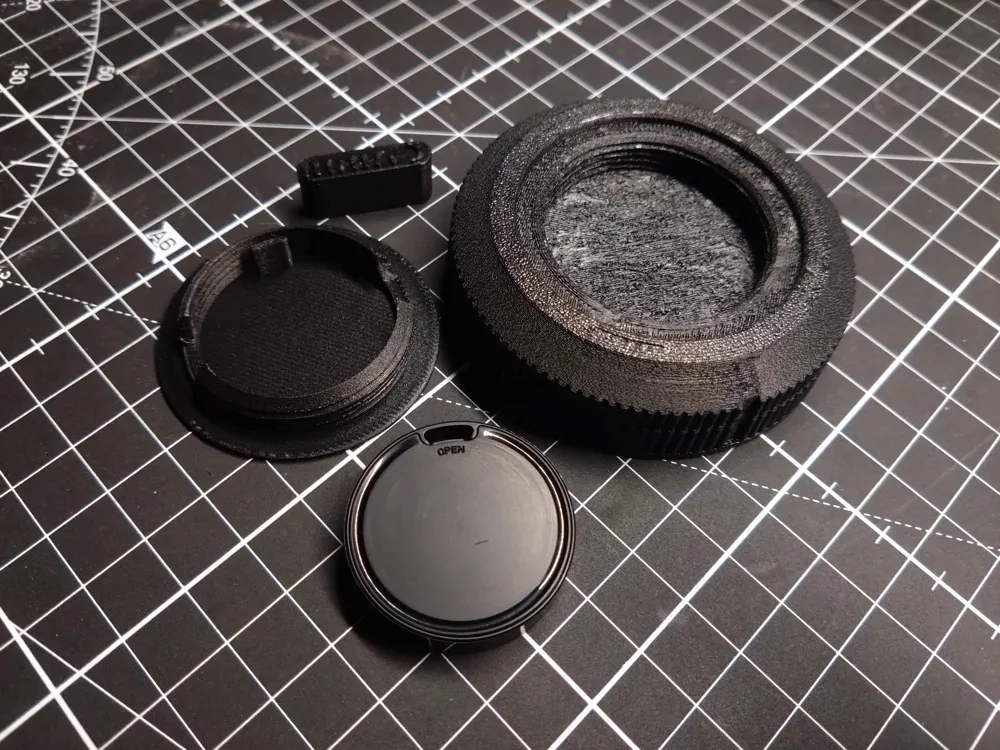

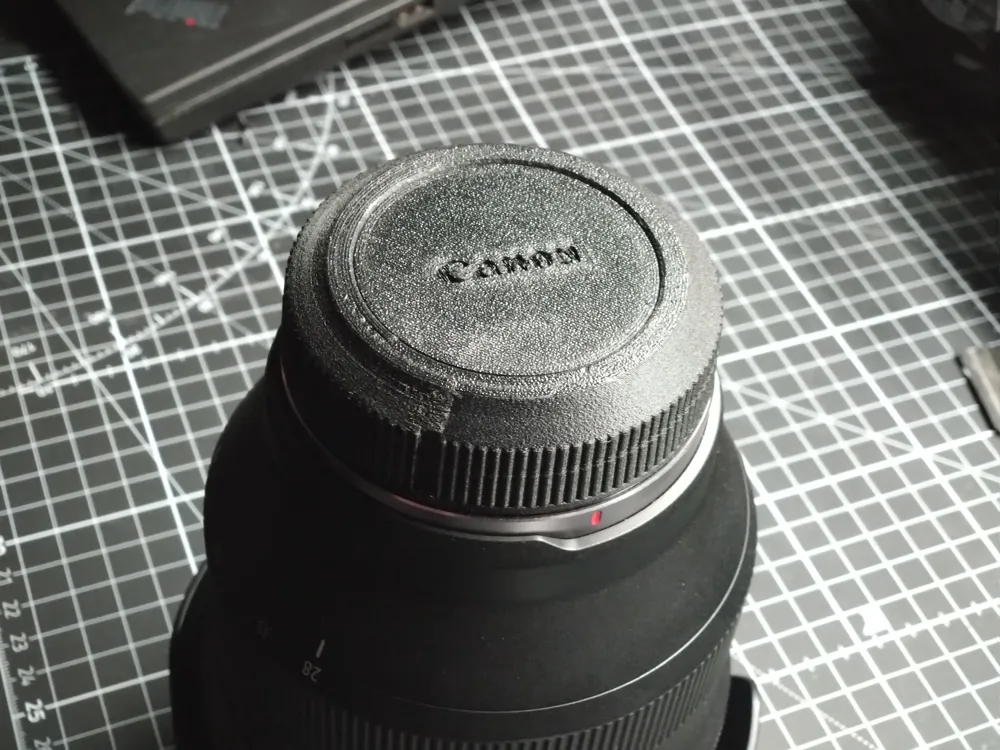

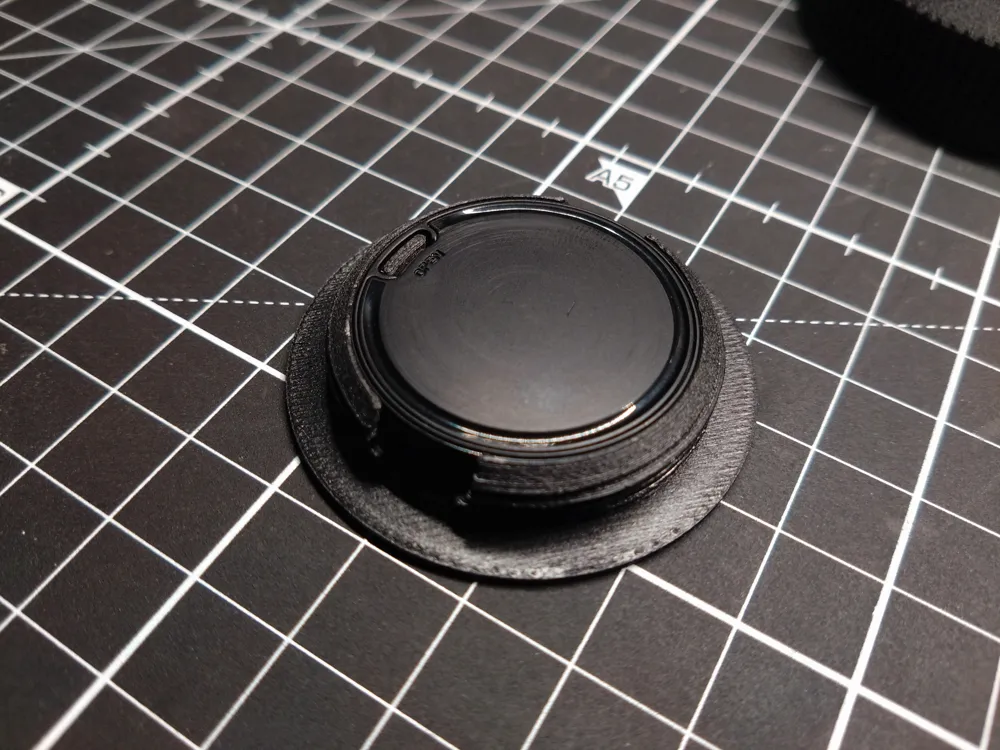

Back-side lenscap for Canon RF mount. Features a screw-in piece that fits an Android OTag tracker tag (also sold by different names).

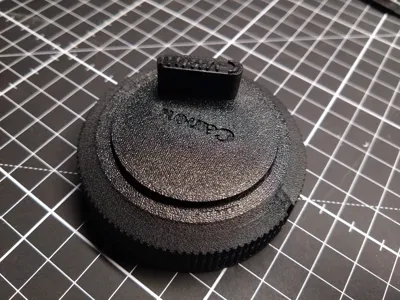

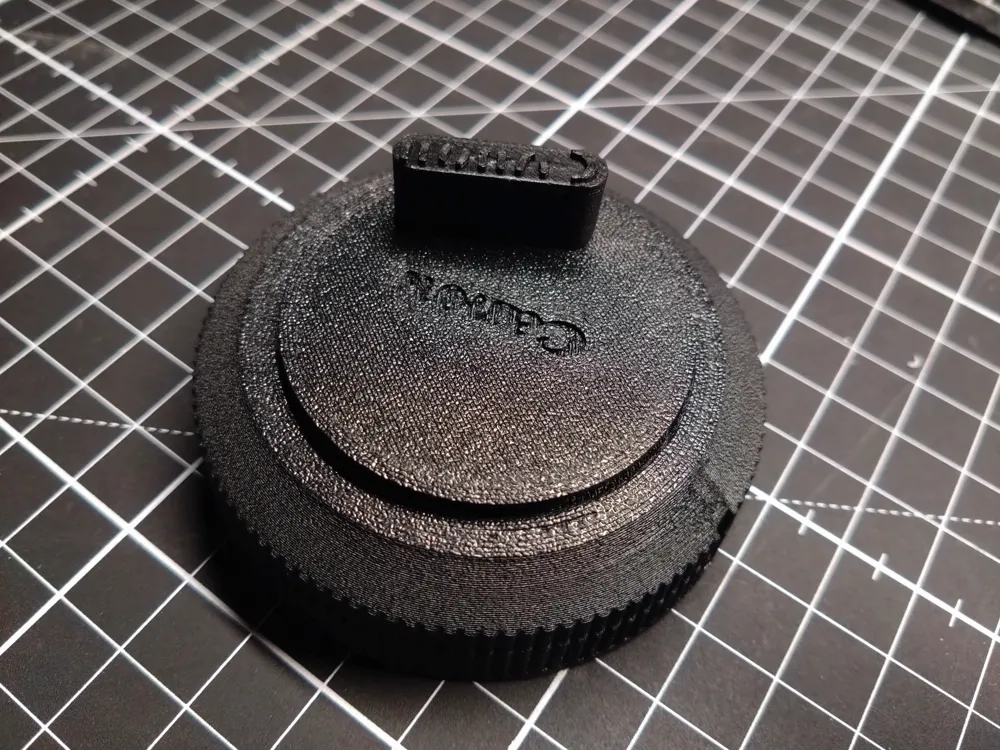

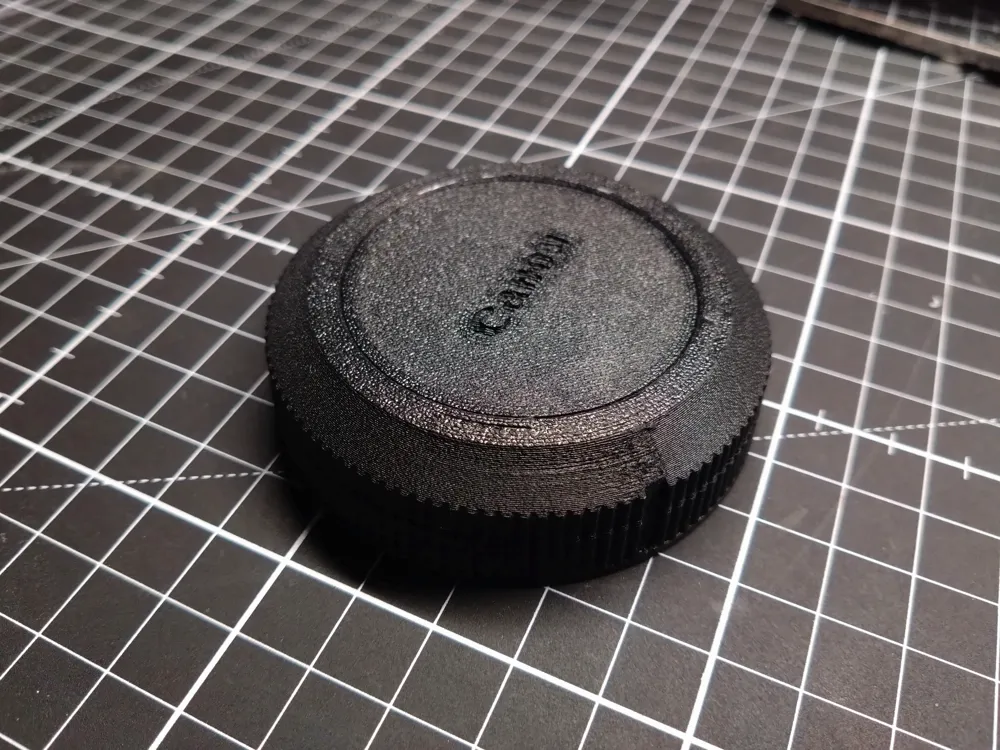

Screw in the tracker piece using the provided key that hooks into the Canon lettering. Thus the assambled lenscap will not show any indication of hiding a tracker tag.

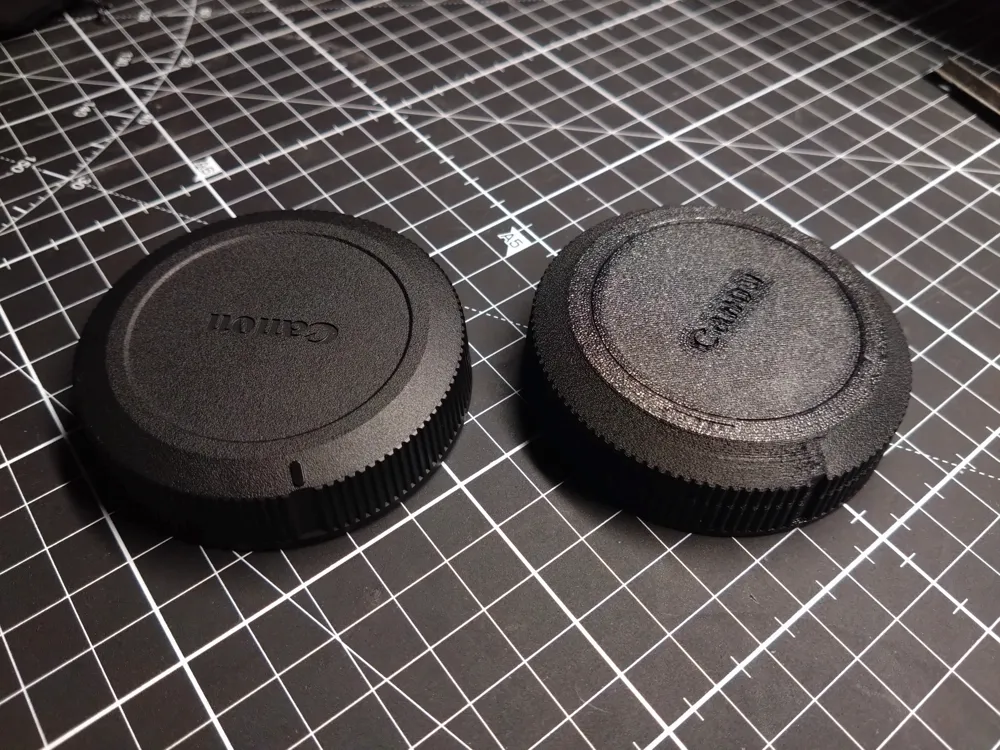

While providing sufficient space for a tag, this lenscap is just about 2mm thicker than an original Canon RF lenscap (see pictures), making this pretty handy to use.



Print support is a bit annoying to remove in the current version (tested with PETG-CF), so I recommend printing with a dedicated support filament. Yet when you do not want to use an AMS and are not shy of fiddling with some support, this print profile will just do the trick.
