Air Tag Holder for Bicycle

AirTag Holder for my Bicycle

After extensive consideration of where an AirTag could be securely and inconspicuously attached, I decided to mount it on the rear bicycle light.

Several reasons were decisive for this:

• Solid connection to the bicycle.
  The option under the bicycle saddle is not suitable for this purpose with a quick release.
• No shielding by metal surfaces.
  Installation in the frame could impair the signal.
• Visual and acoustic control possible.
  This makes it easy to check if the AirTag is still present.

Of course, there is also a disadvantage: battery replacement.
However, this only needs to be done every few years. Only two nuts and eight screws need to be loosened to open it – that's bearable.

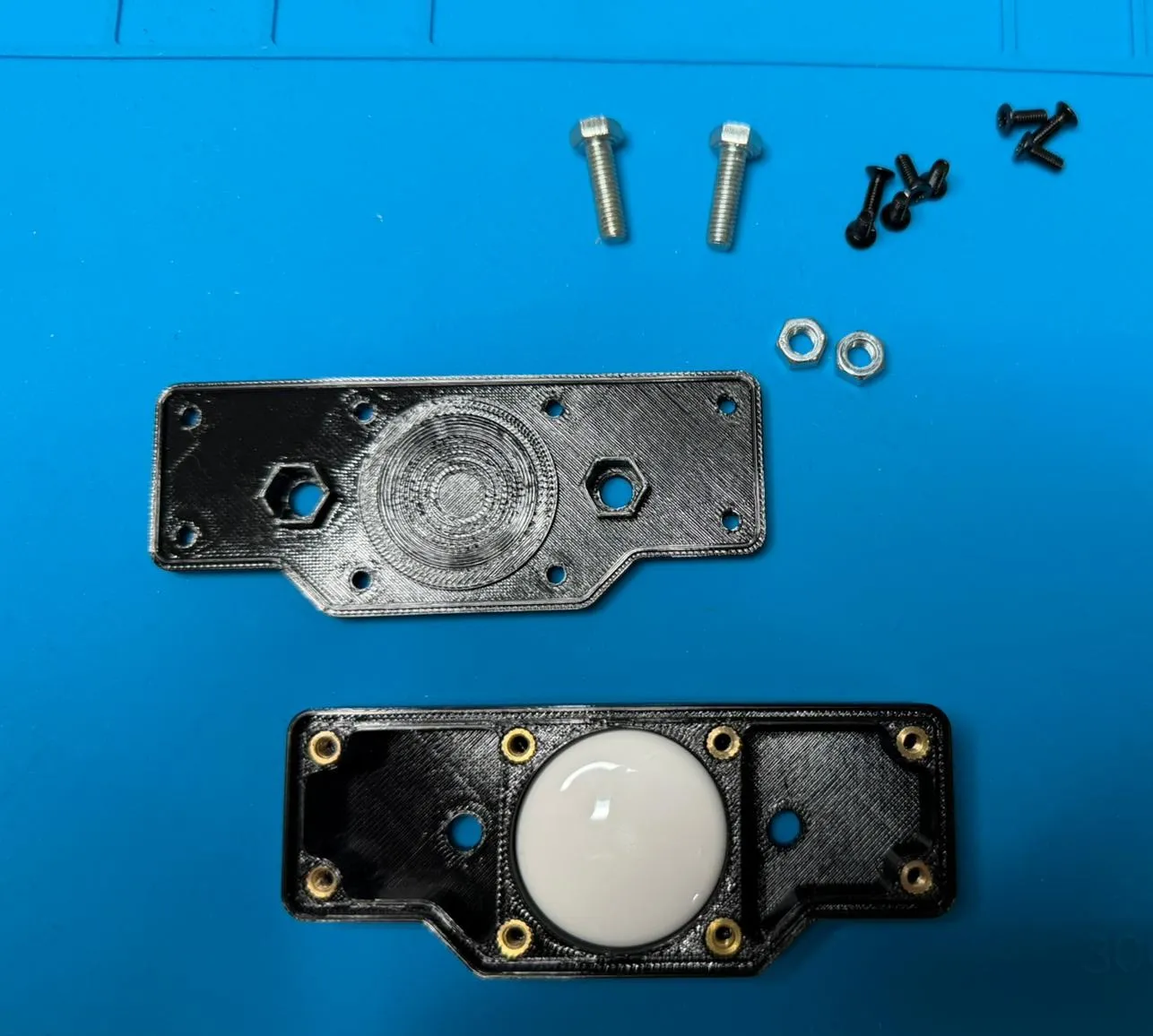

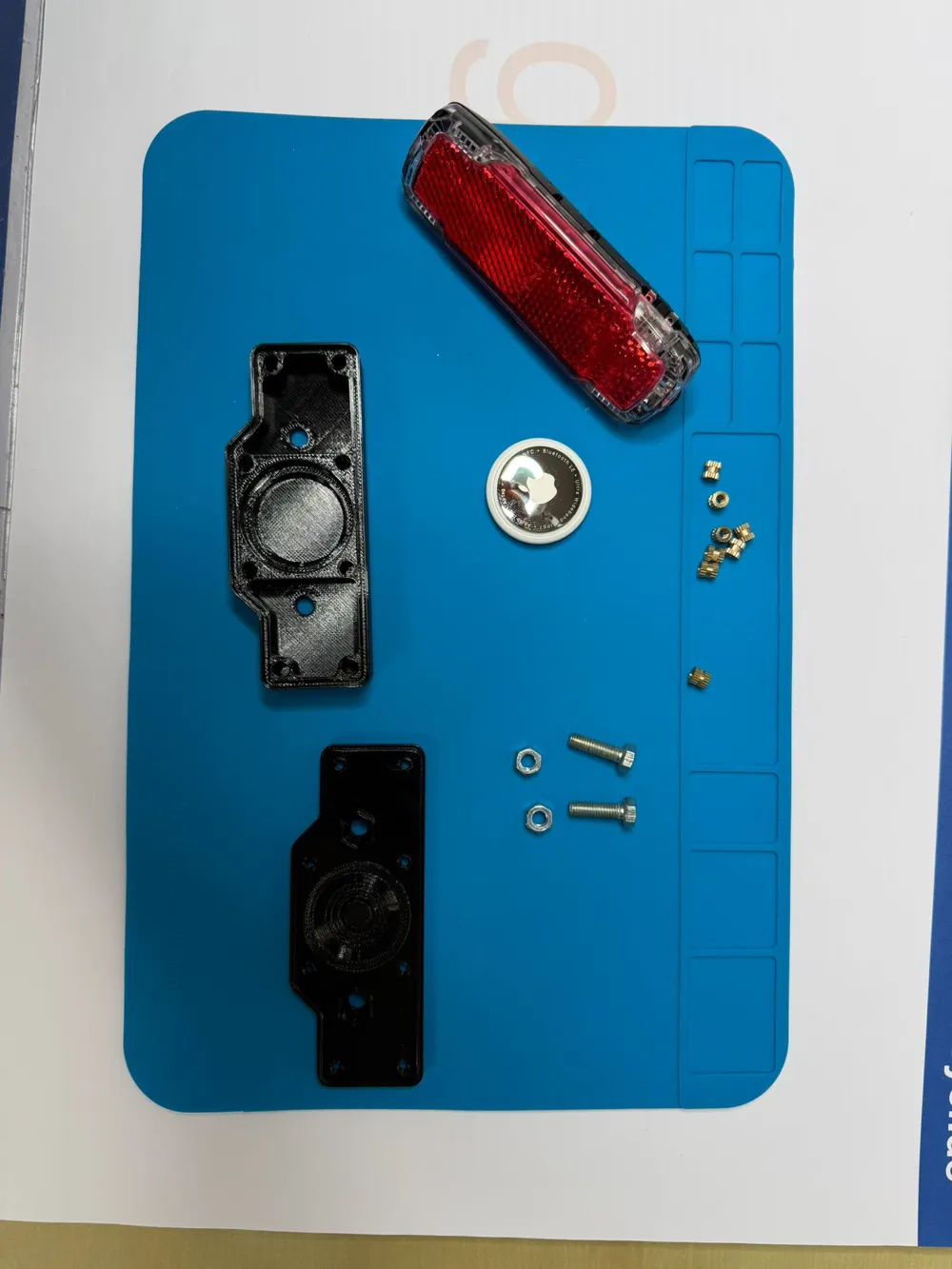

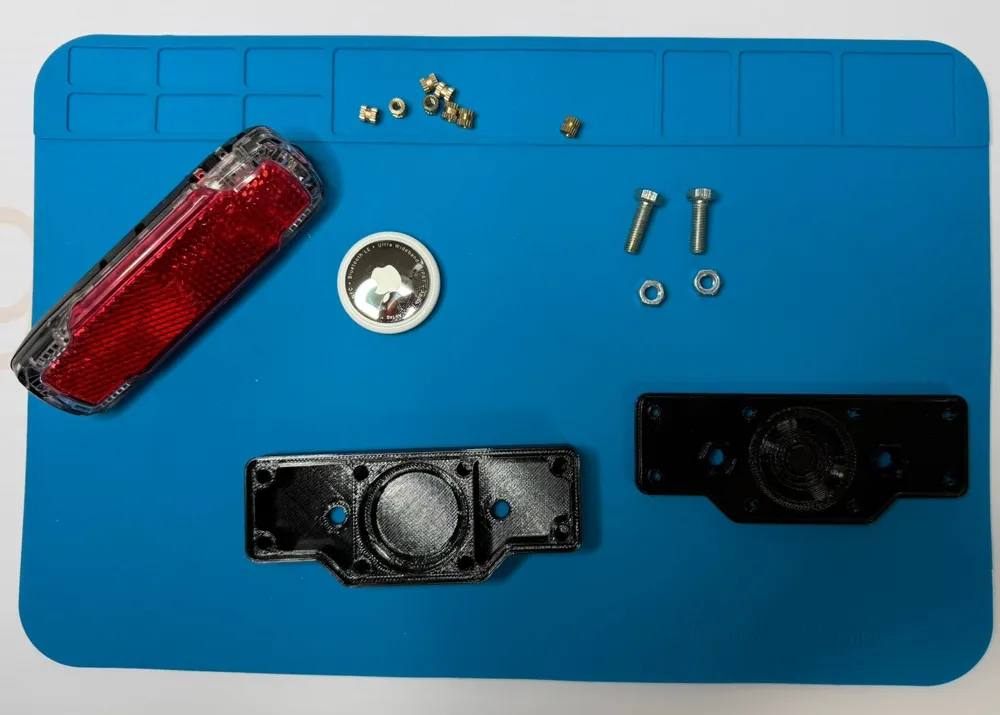

Required Material

• PETG, ABS or ASA filament
• 2 × M5 × 20 hex screws
• 2 × M5 nuts
• 8 × M3 heat-set inserts
• 8 × M3 × 8 mm countersunk screws
• 1 AirTag

Technical Data

• Profile 1 - Hole spacing for rear light mount: 50 mm
• Profile 2 - Hole spacing for rear light mount: 80 mm

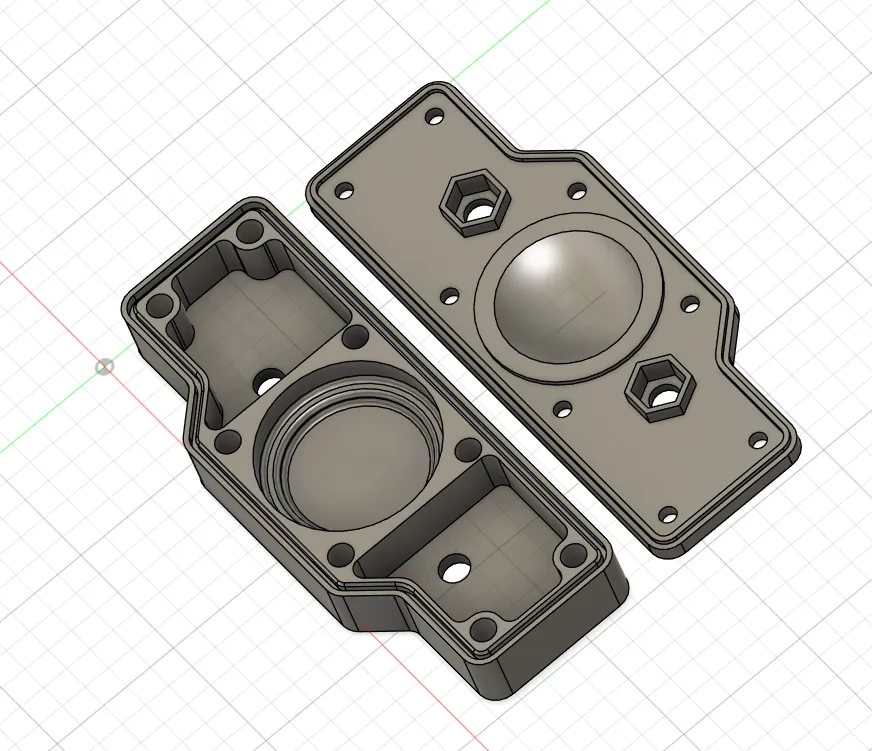

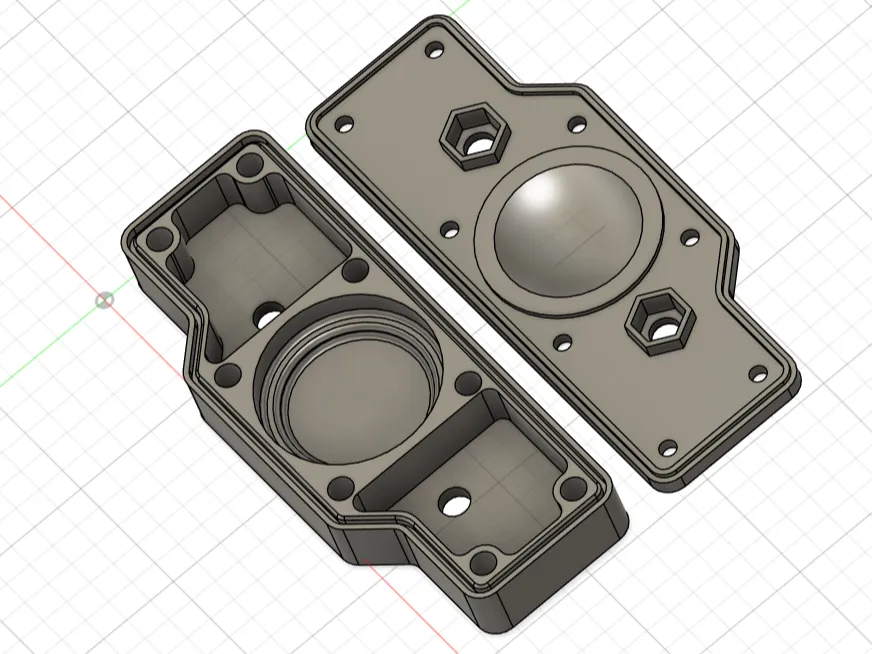

• Model dimensions (L × W × H): 100 × 39 × 177 mm

Assembly Instructions

Step 1:

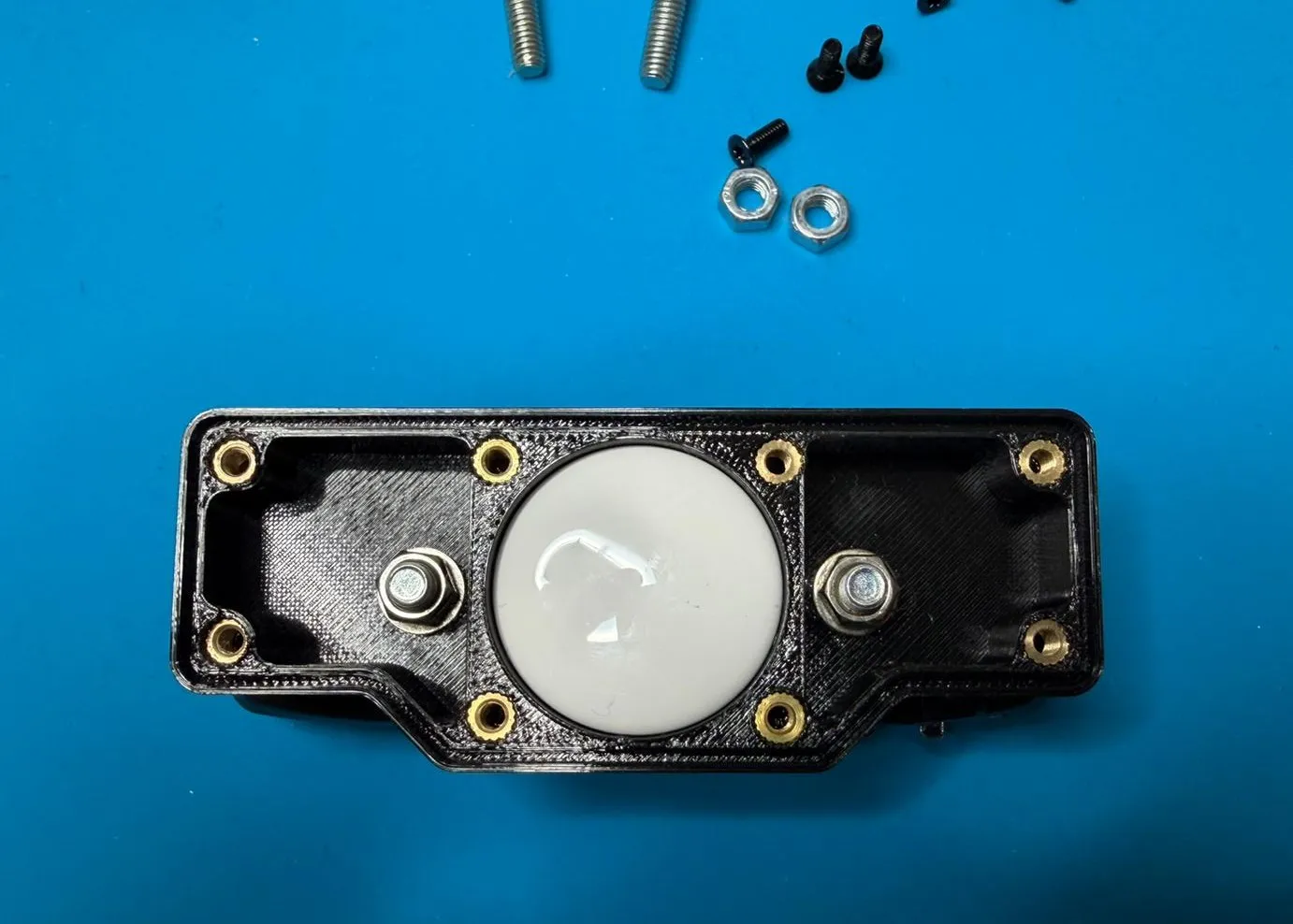

Insert heat-set inserts into the casing.

Step 2:

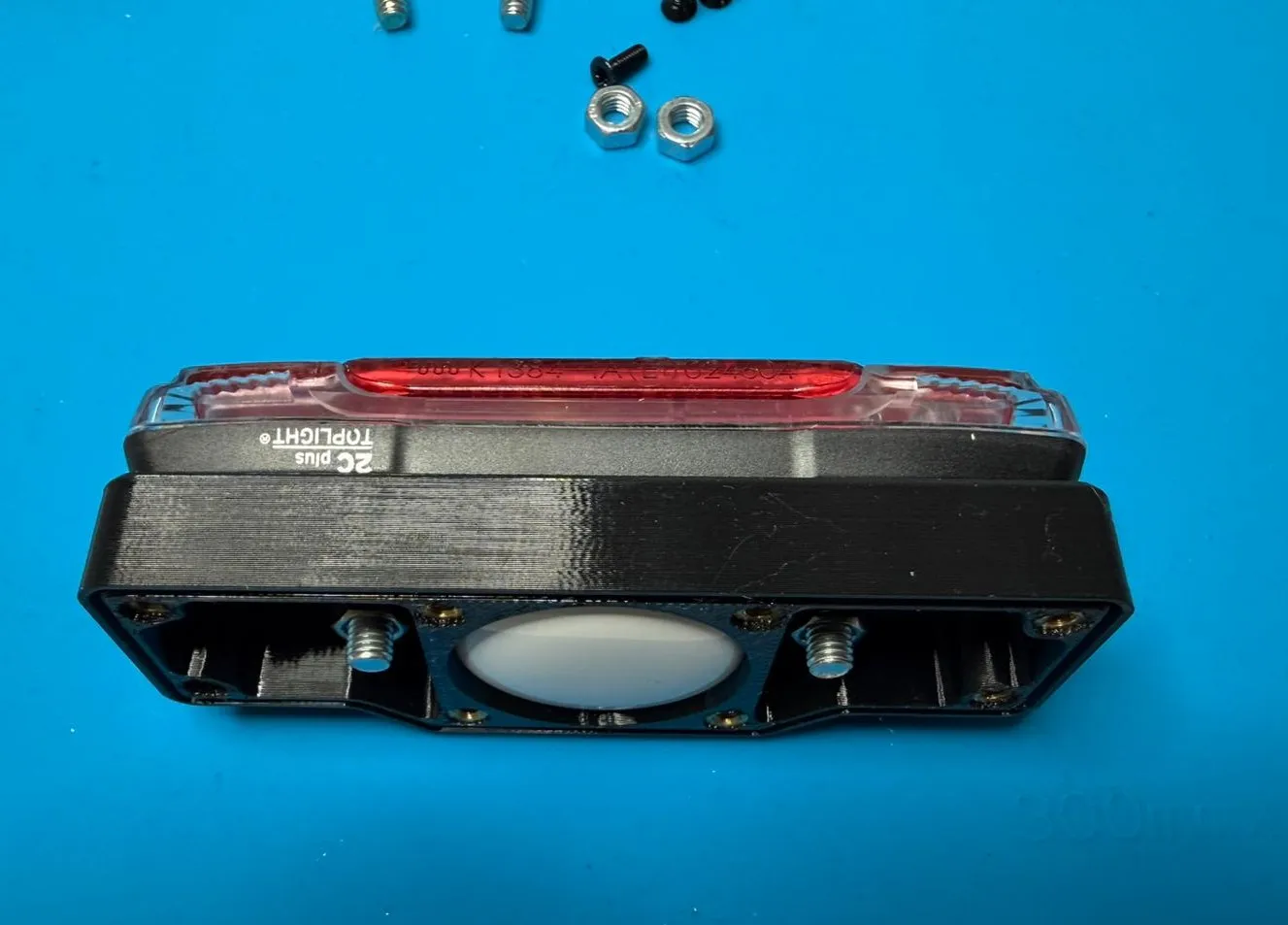

Screw the rear light to the casing.

Step 3:

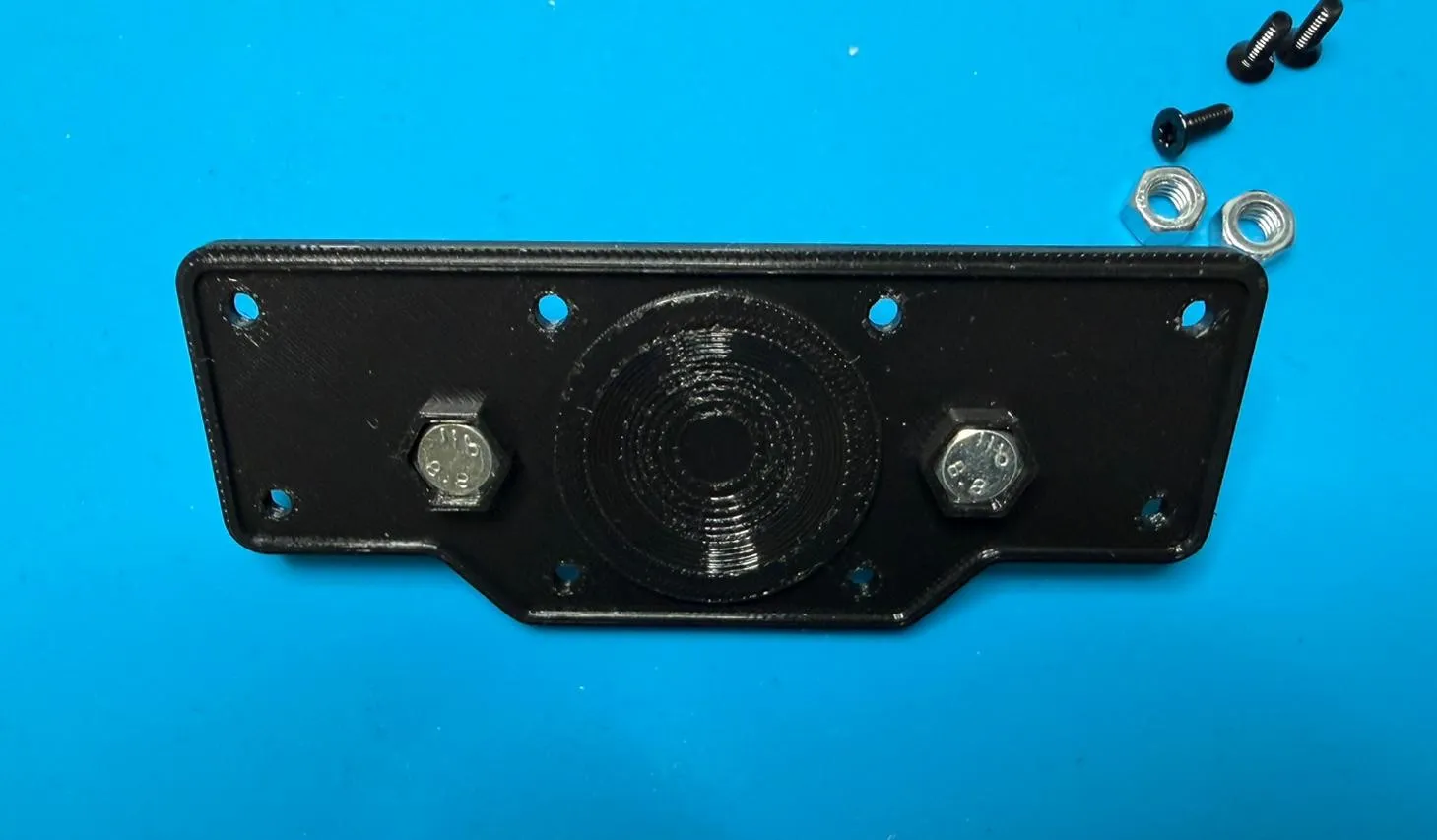

Insert M5 screws into the cover.

Step 4:

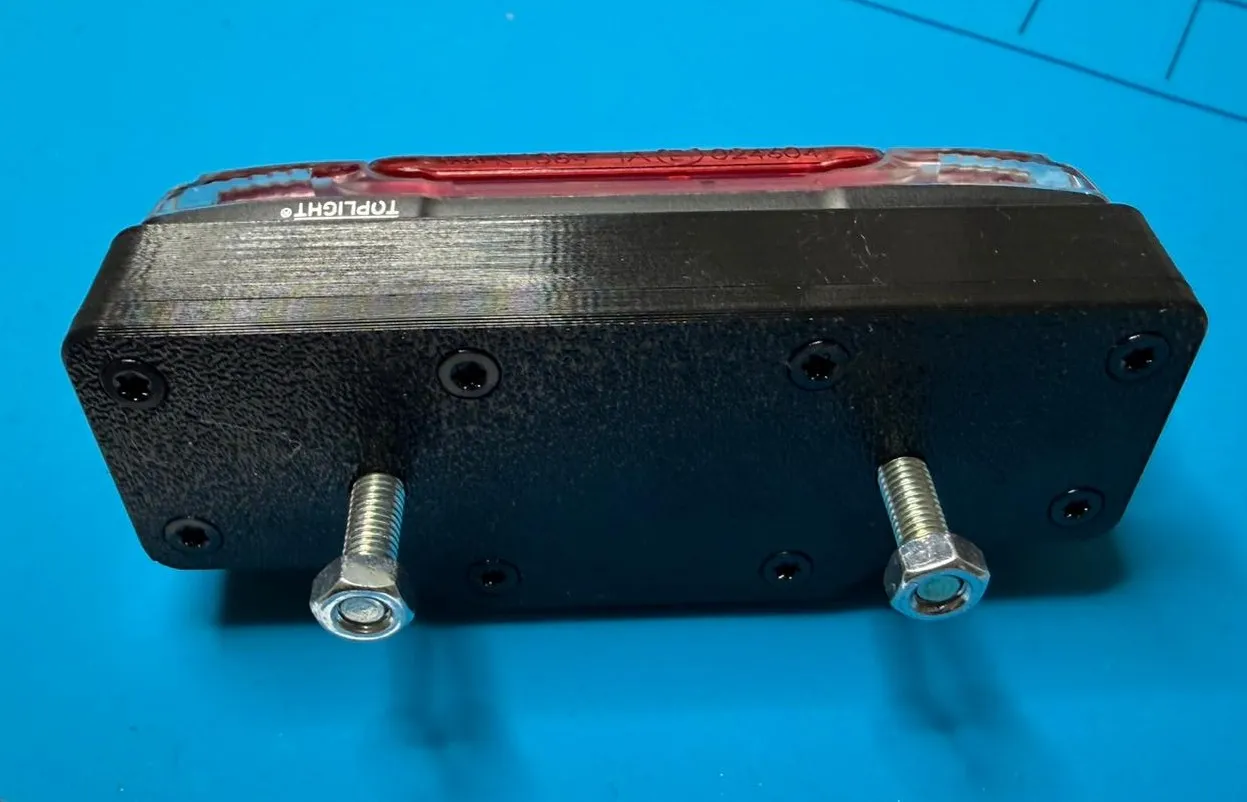

Place the AirTag in the designated position the right way up and screw it with the cover and the eight M3 countersunk screws.

Step 5:

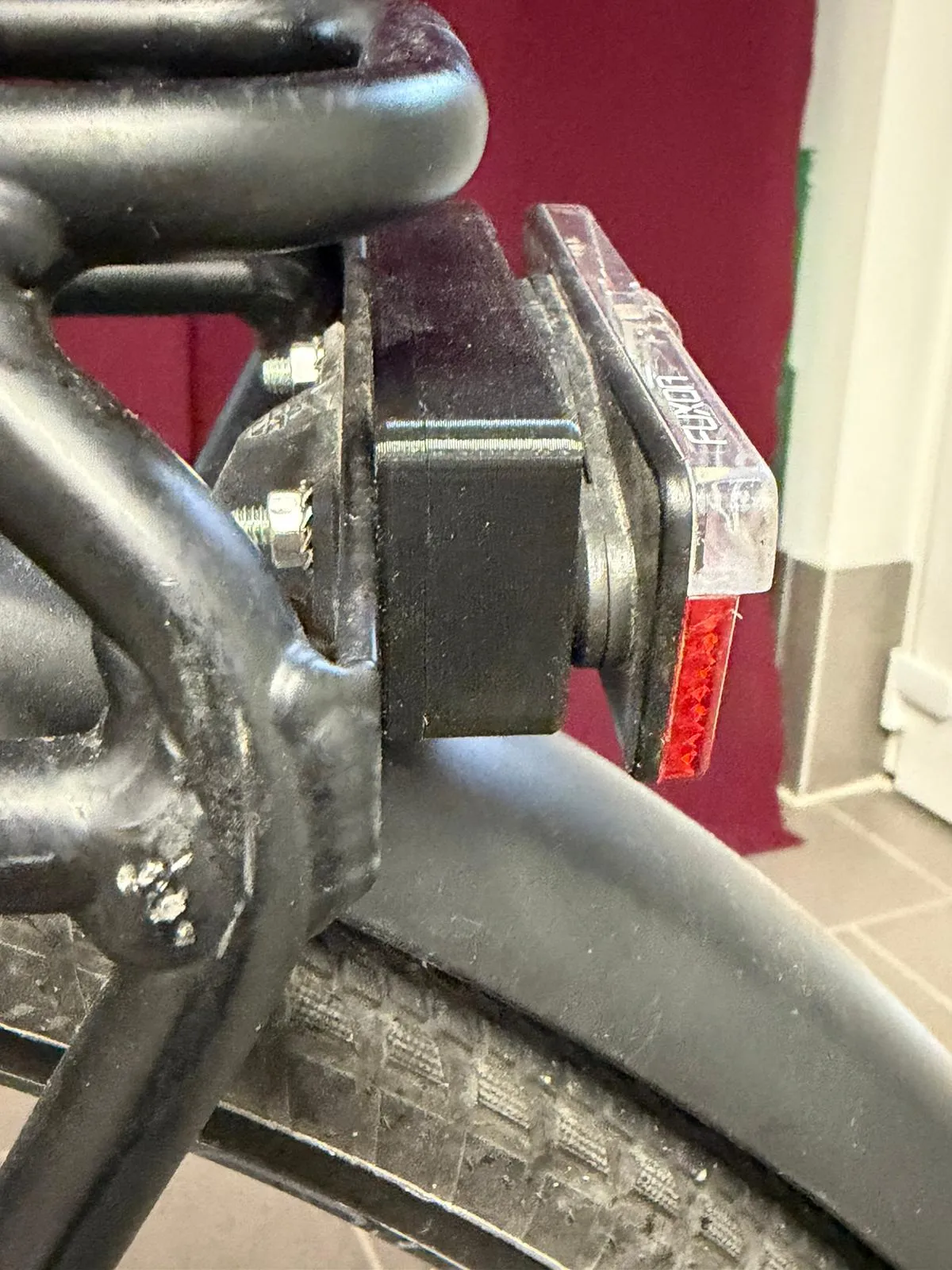

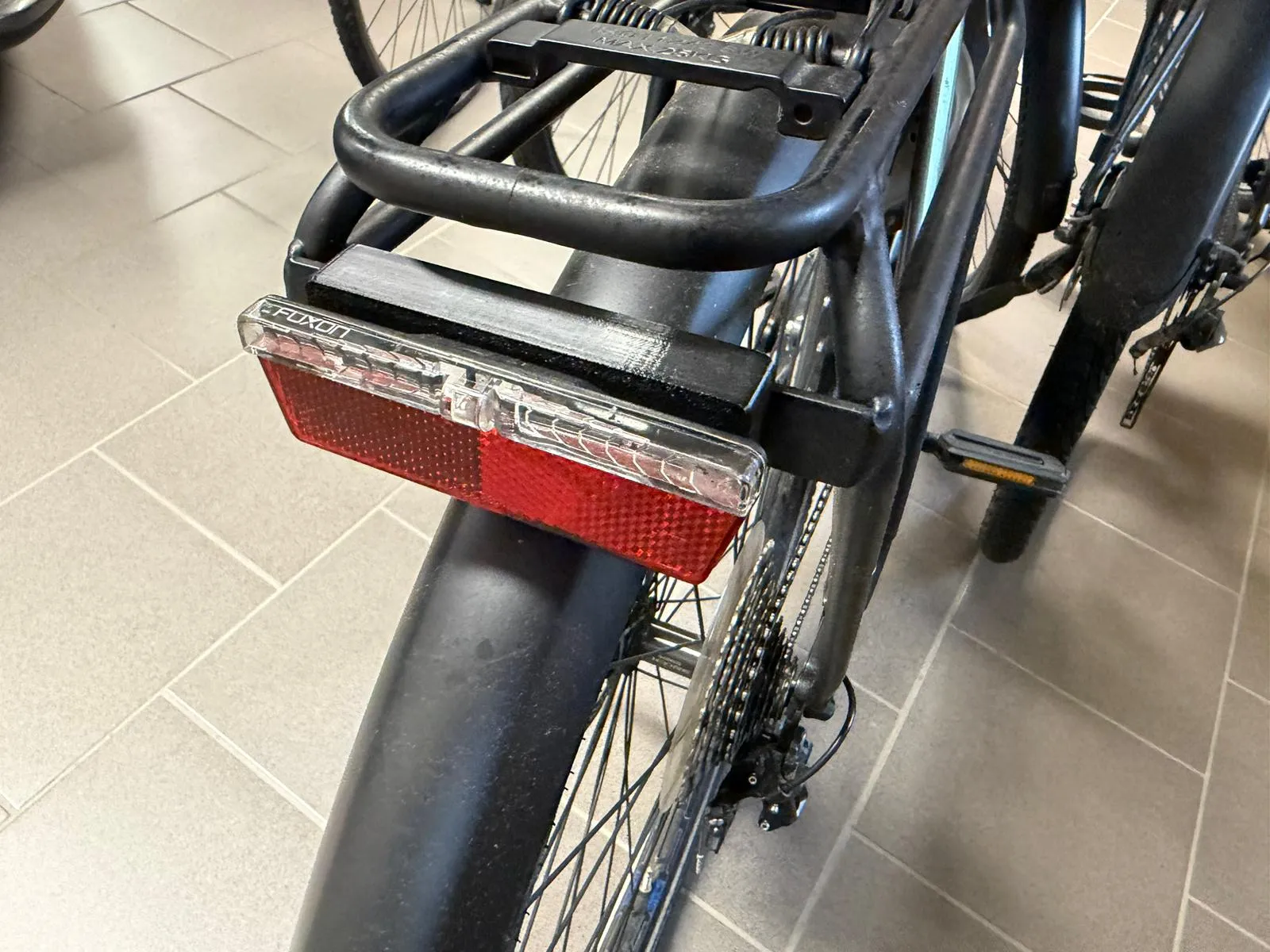

Mount the complete unit on the bicycle.

Have fun with it!
