[Modular Storage] BLOCKS / Floating Island Modular Desktop Storage Box

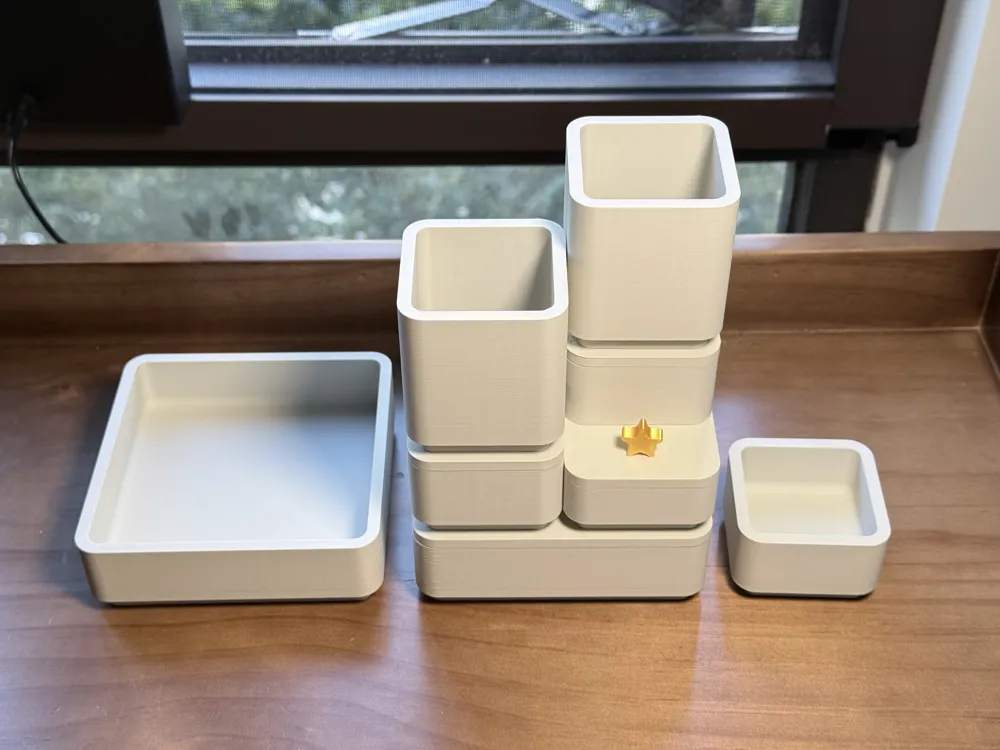

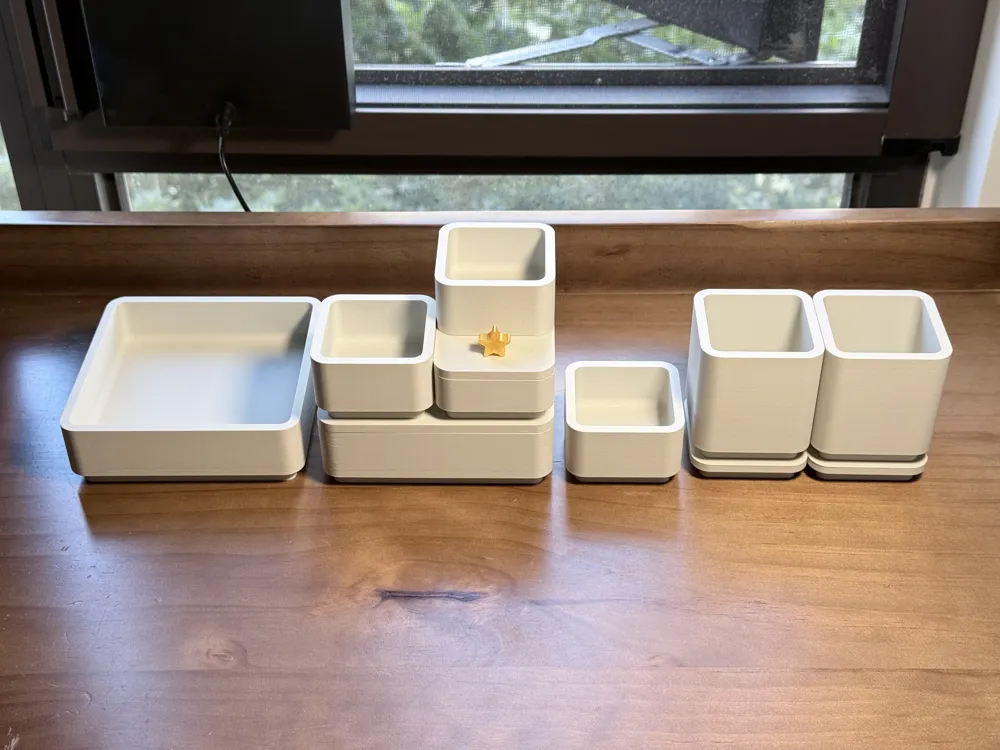

Modular desktop storage combination, freely stackable. The physical model is printed with Bambu Lab PLA Matte (Bone White).

Currently tested sizes are 6cm-12cm modules, no supports required, and can be perfectly assembled with default print parameters.

It is recommended to print one piece per plate. The test machine X1C may experience random deformation of the L-shaped slots when printing multiple pieces on the same plate, leading to assembly issues. If you need to print multiple pieces on the same plate, please test the first two layers first to observe whether the slot lines are twisted or deformed; only if the slot lines are straight can you continue printing the complete model. If you don't mind the details, you can also gently tap them in with a rubber hammer, which won't affect usage~

I. Part Numbers

M  Storage box main body

Tt  Adapter top cover

Tb Adapter base

The numbering format is: M-xxxx-xx  /  Tt-xxxx  /  Tb-xxxx

“xxxx”  represents the length and width dimensions, in cm

“xx”  represents the height dimension, in cm

For example: M-0606-03 represents a storage box main body with dimensions of 6cm X 6cm X 3cm.

II. Assembly Forms

Assembly form ① (from top to bottom): M + Tb + Tt + Tb + M

Assembly form ② (from top to bottom): M + Tb + M

Once the L-shaped slots are aligned, simply press gently to snap them in. Please clearly plan the assembly relationship before assembly to avoid difficulties in disassembling after snapping in.

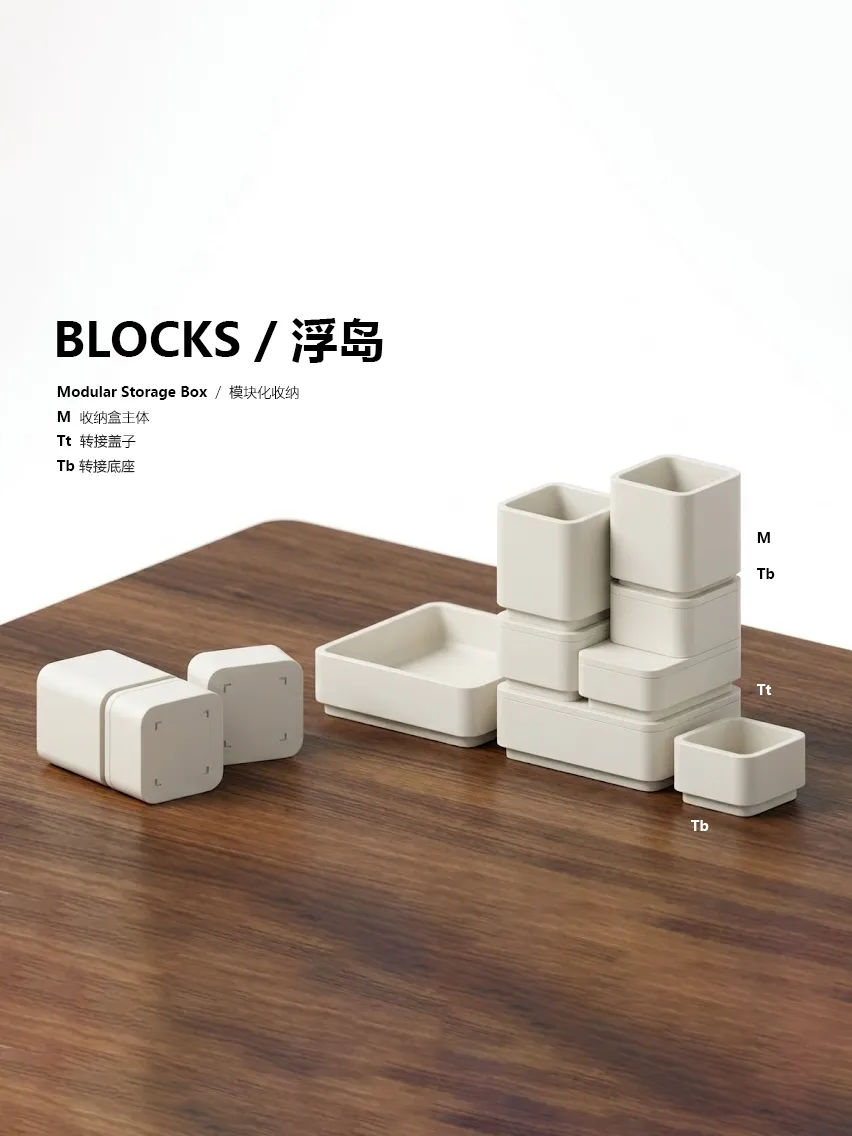

III. Cover Image Component List

6 *   M-0606-03

3 *   M-0606-06

1 *   M-0609-03

1 *   M-1209-03

1 *   M-1212-03

3 *   Tt-0606

1 *   Tt-0609

1 *   Tt-1209

2 *   Tb-0609

7 *   Tb-0606

2 *   Tb-1209

1 *   Tb-1212

The 3mf file has been pre-plated by part, choose the print quantity according to your needs.

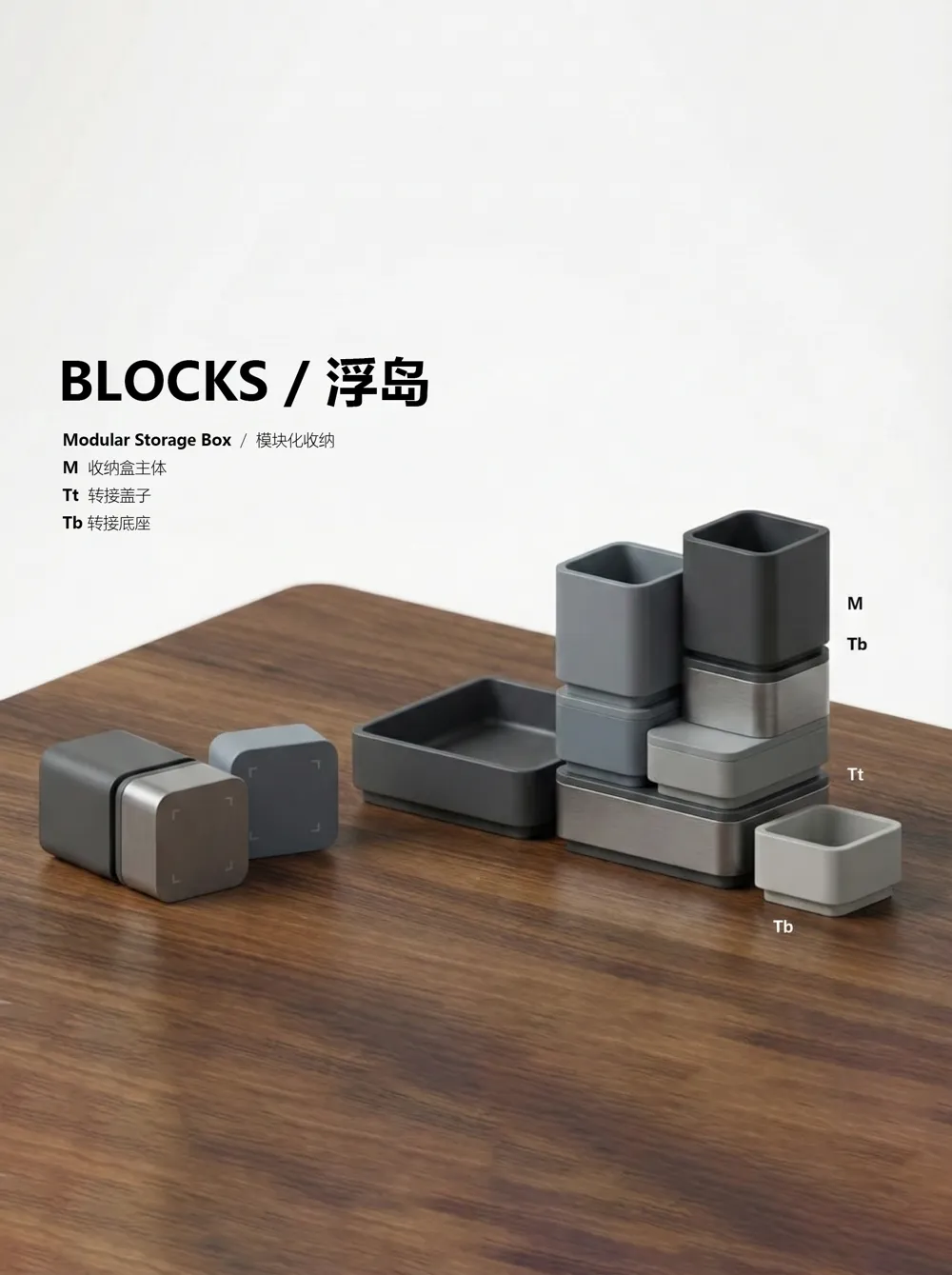

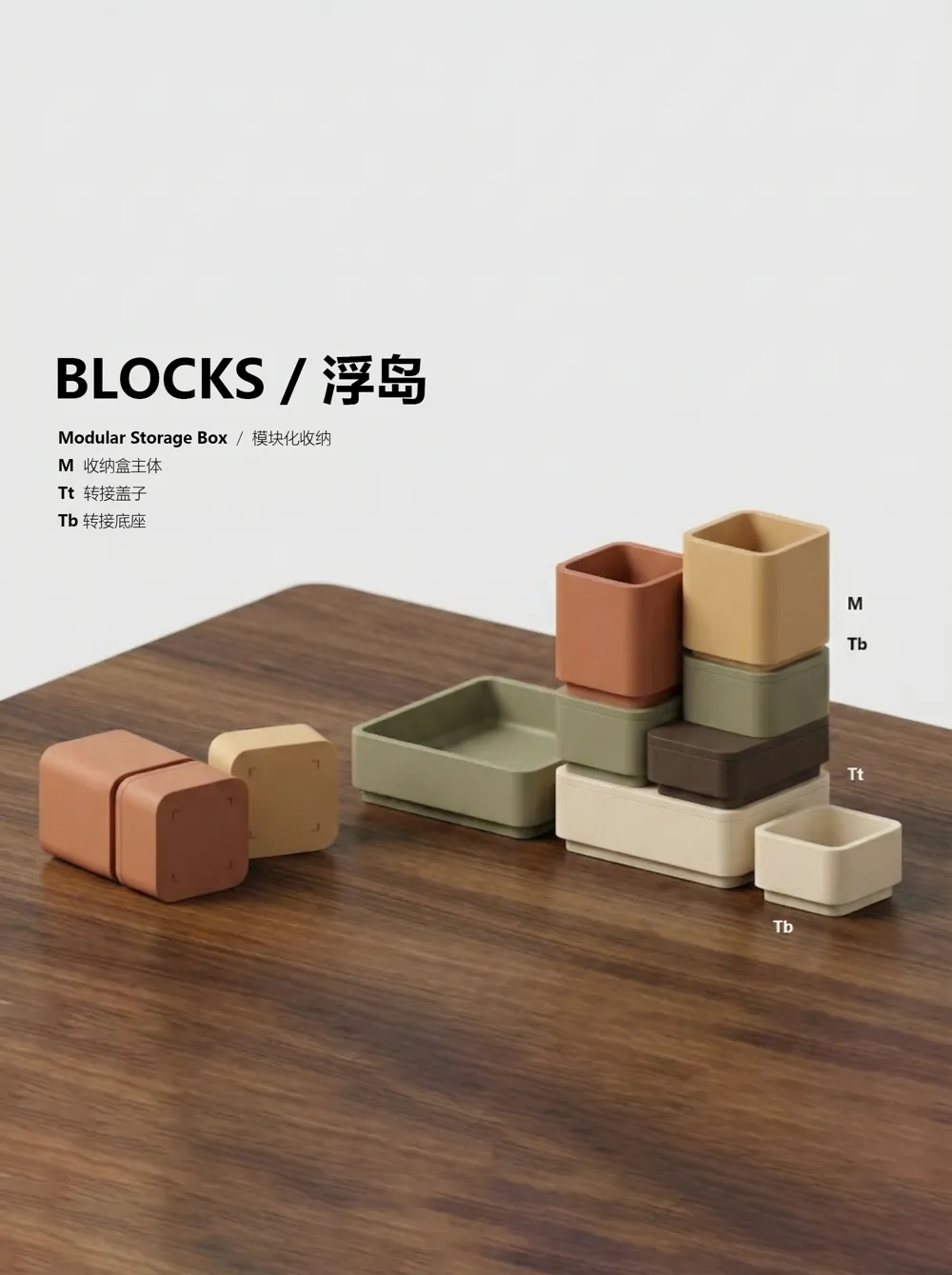

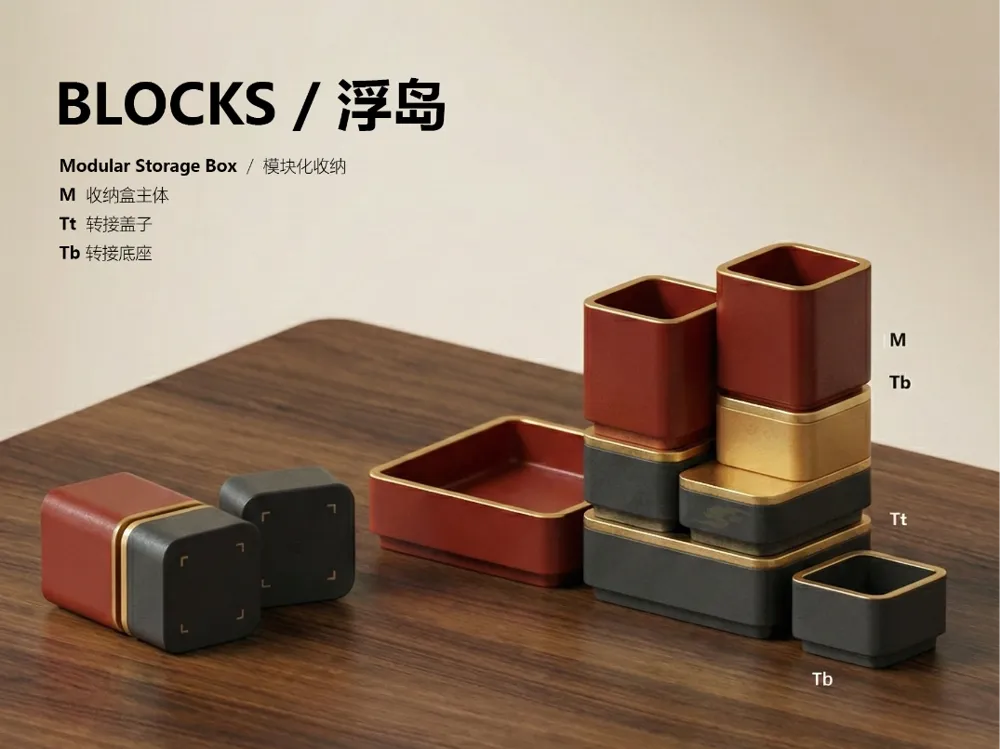

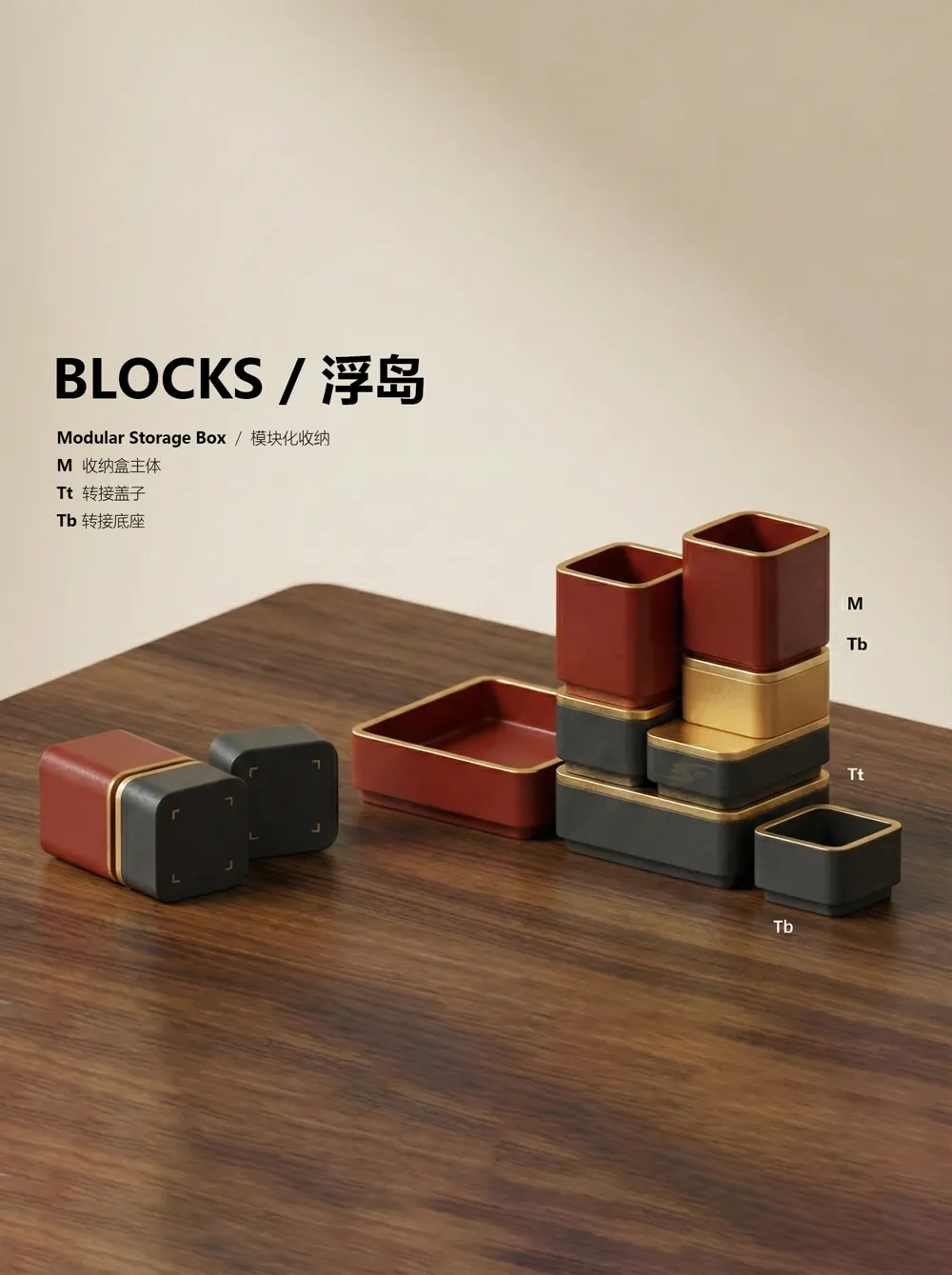

IV. Color Matching

Several color scheme references are provided in the model images, use them according to your preferences.

V. Future Development

More main bodies and functional modules are currently under development and testing. More sizes and functions will be added, such as SD/TF card slot modules, bank card/ID card modules, pen holder modules, and phone/watch stand modules. Please look forward to it!
