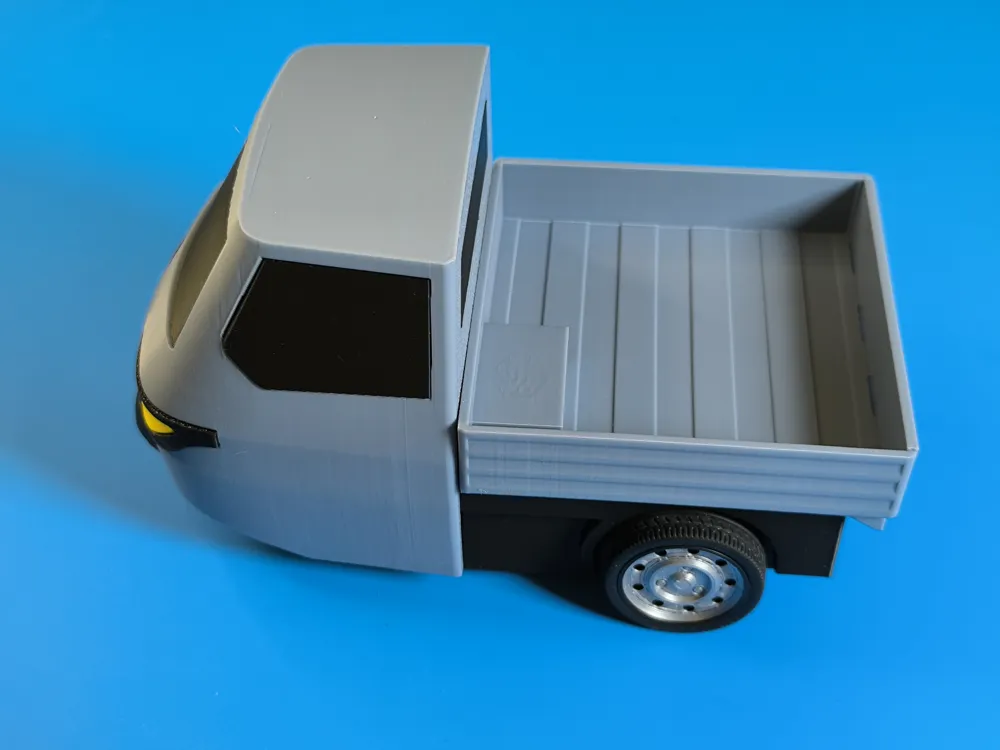

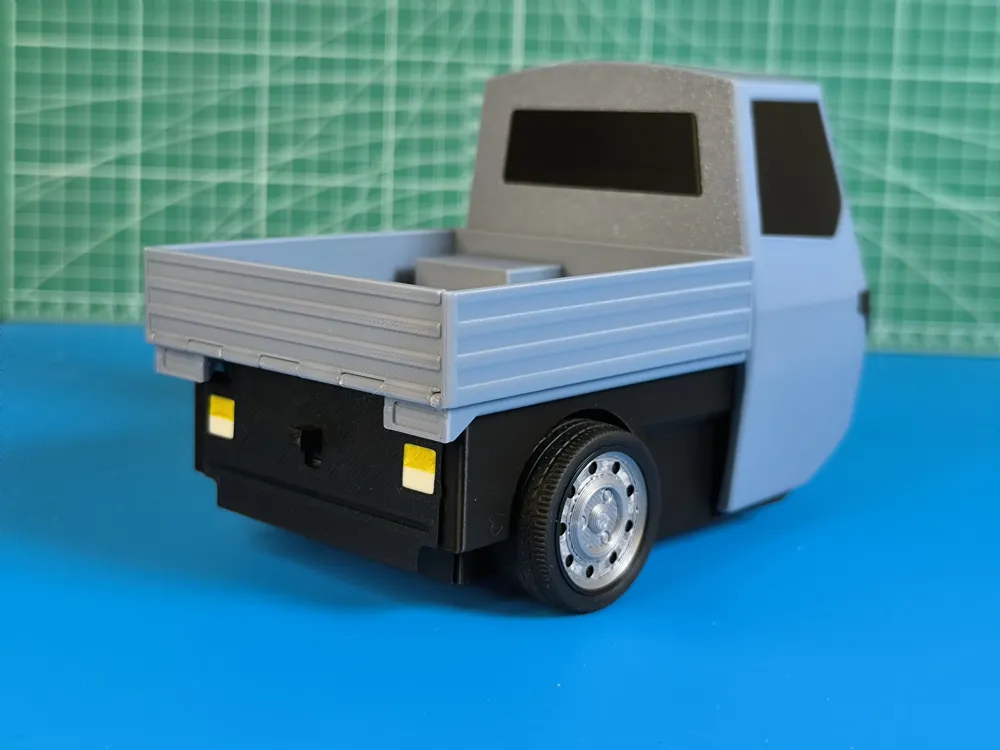

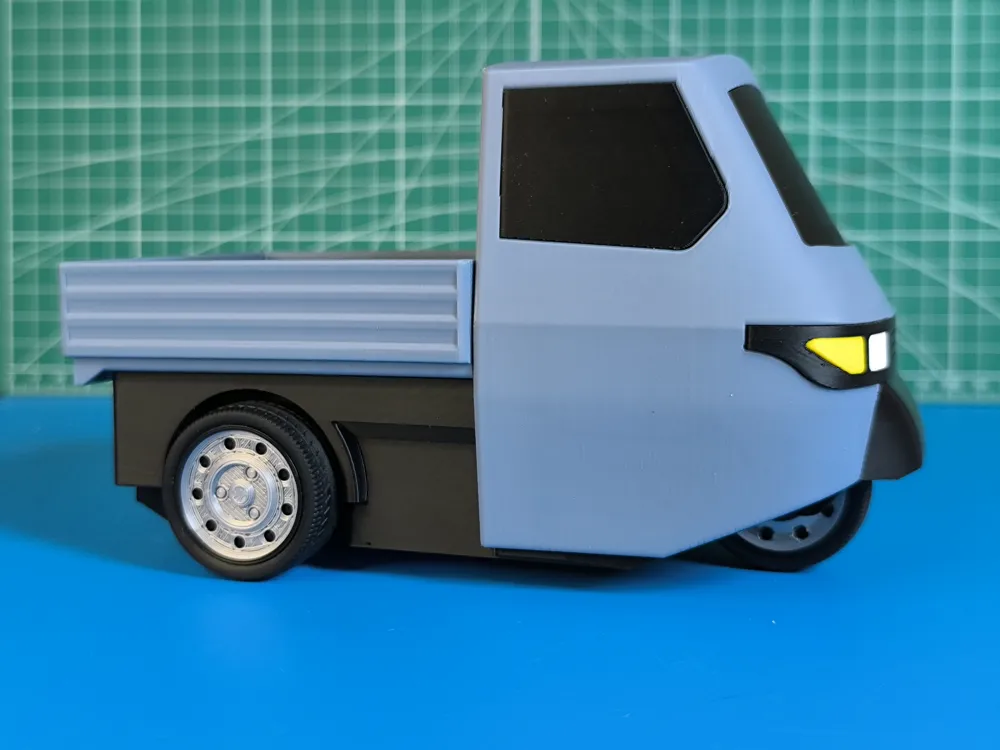

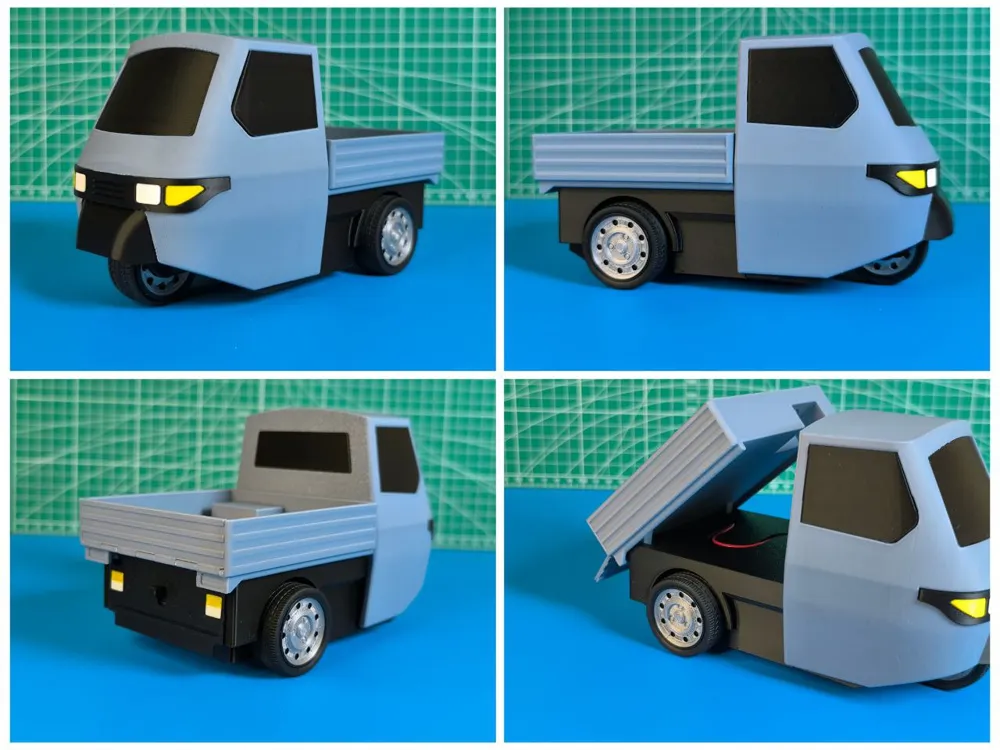

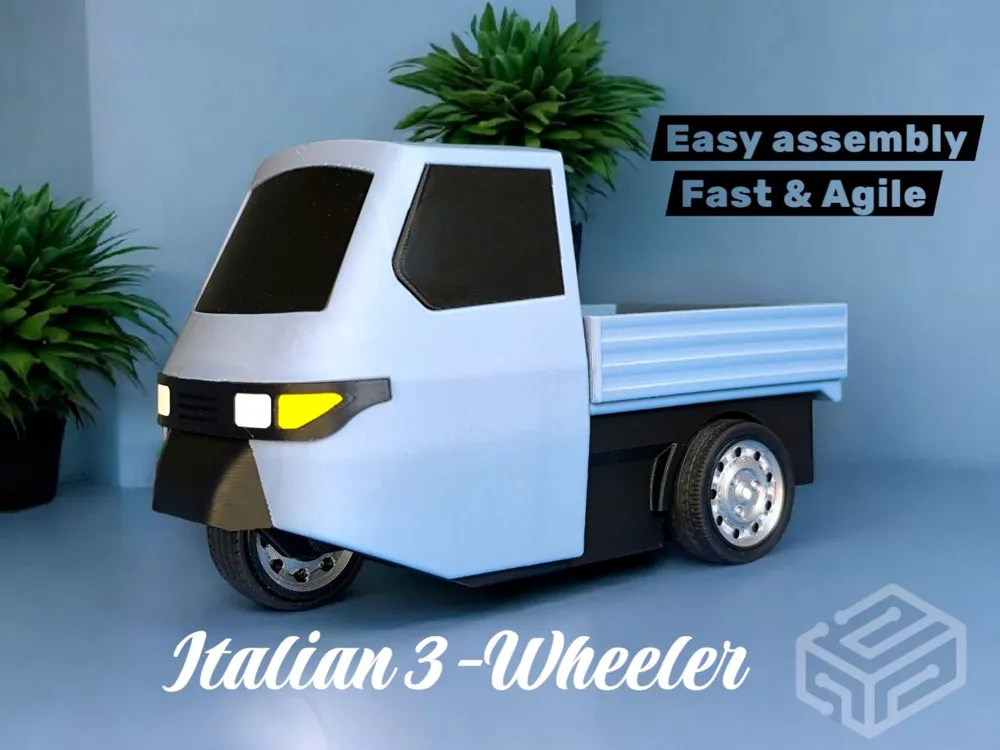

Italian 3-Wheeler

Proudly present the Italian 3-Wheel Truck, a super fast and agil little truck which fits nicely into the “Lift and Load" Combo.

It is heavily inspired by the Piaggio Ape 50, the world-famous three-wheeled small transporter. The CyberBrick-compatible model is at least as lively and agile as the original, and it’s incredibly fun to drive.

Boost Me (for free)

If you like this free model, it would be great to receive your support through a free boost. Functional Models take a lot of time! Thank you🤝

Features:

Super Fun to drive!
2 Micro DC Motors drive individual tires in the back
3 Speeds to choose
180° Servo steer the front wheel

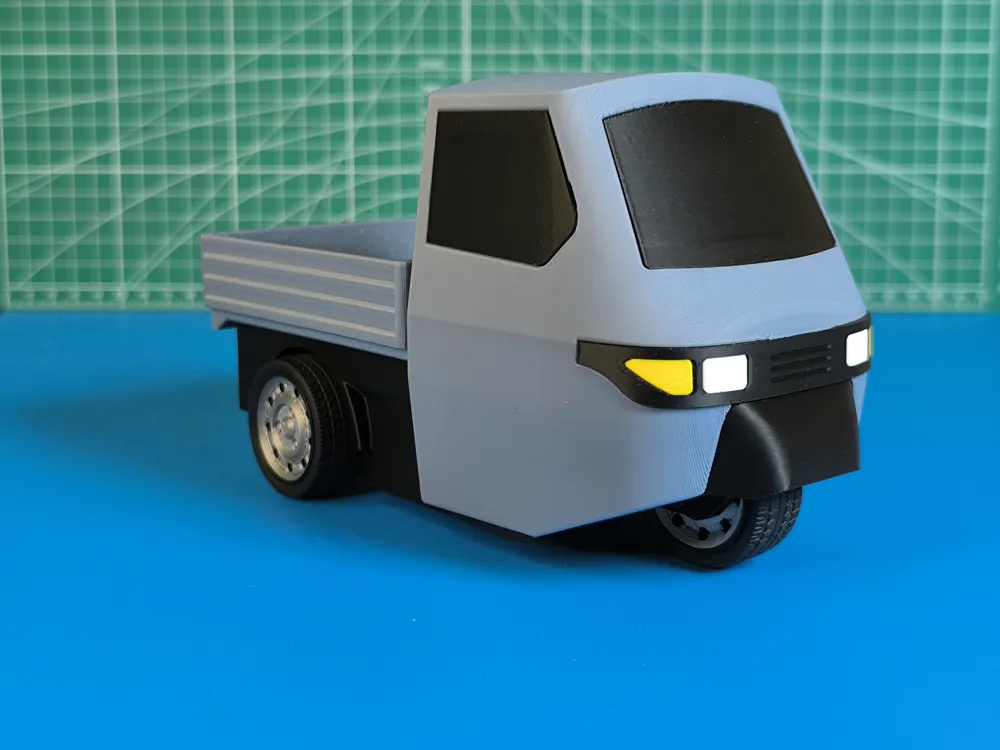

2 Front LED as programmable lights

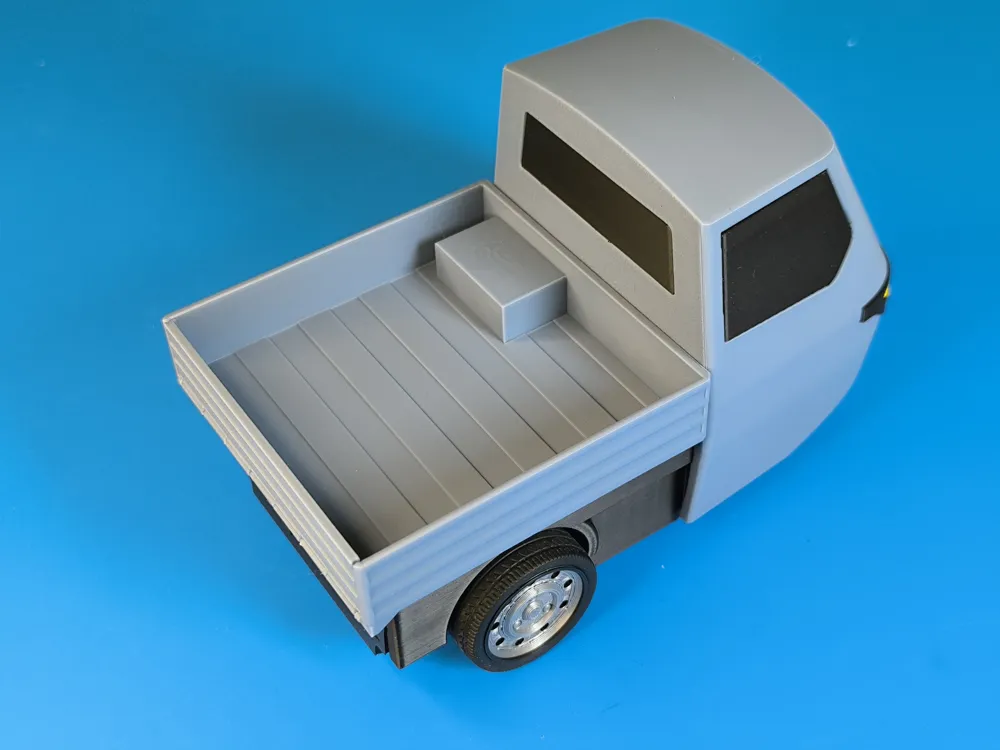

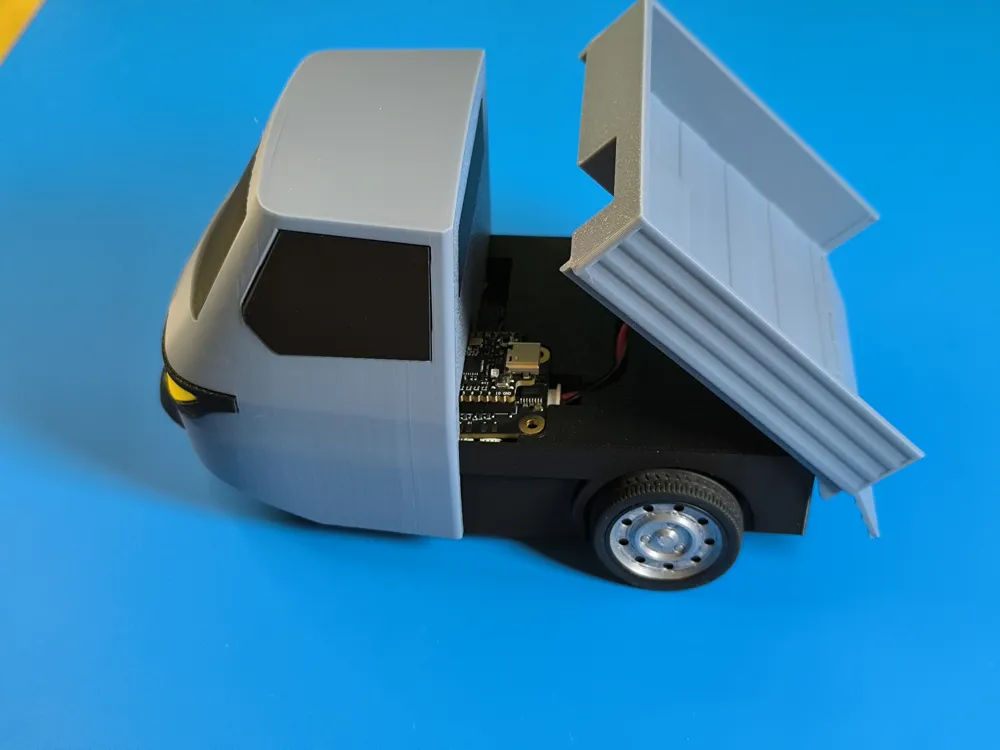

The cargo bed can be opened and, by tilting it, can also be easily unloaded.
Easy recharge solution

Another special feature is the very simple assembly. Aside from the two motor boxes, only one screw is used for the servo and another as an anchor point for a magnet. All other connections are plug-in. Makes it a grandiose Beginner Model!

Printing:

No support, nothing special.

Maker Supply:

The Beginner Kit is sufficient to build this, but I've linked the Ultimate Kit because it's relatively cheaper. It would be great if you used the link in the BOM, I receive a small commission for this. Keep in mind, not all parts are used from the kit, you can also check the individual parts in the assembly guide.

Assembly:

PDF Guide is attached

You can decide if you want the official gearbox or my Speed Gearbox for the two used motors.

1:11 https://makerworld.com/models/1994378

1:48 Assembly | Files

Steering:

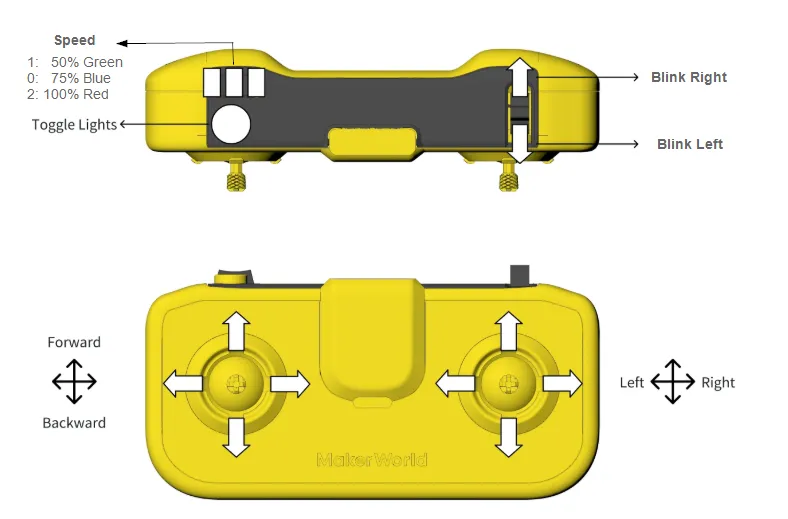

You can use the official remote or try out my remotes:

Recharge:

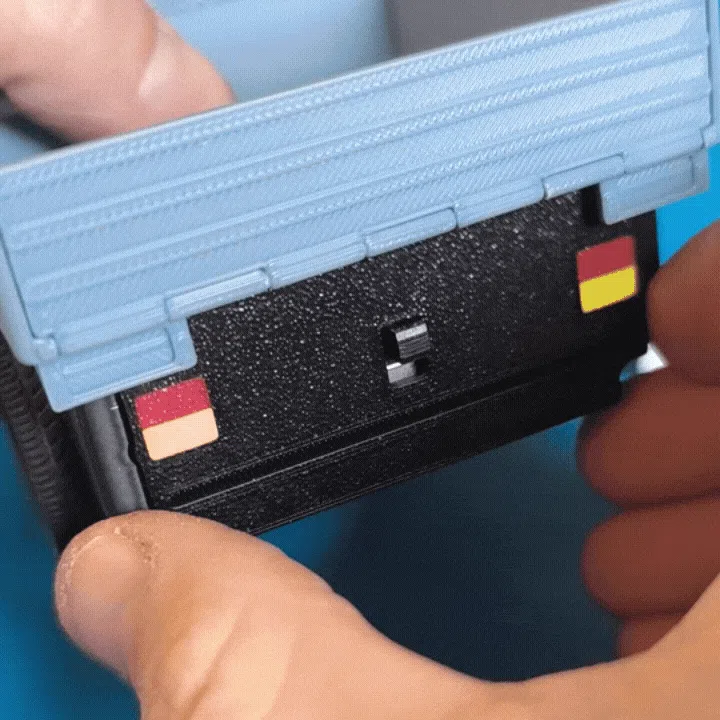

Simple remove the magnetic back, unplug the right cable and charge the battery pack.

Additional Info:

The three motor speeds are controlled via code snippets.

Instagram

Position 1: 50% speed, light glows green
Position 0: 75% speed, light glows blue
Position 2: 100% speed, light glows red

Mods:

TPU Tires Enable Drifting
Open Cabin Mod (Gift Mafia)

Happy Printing! Thanks for any download, like, follow, comment and boost.

I am very happy about your support, that is the motivation to create more models!
