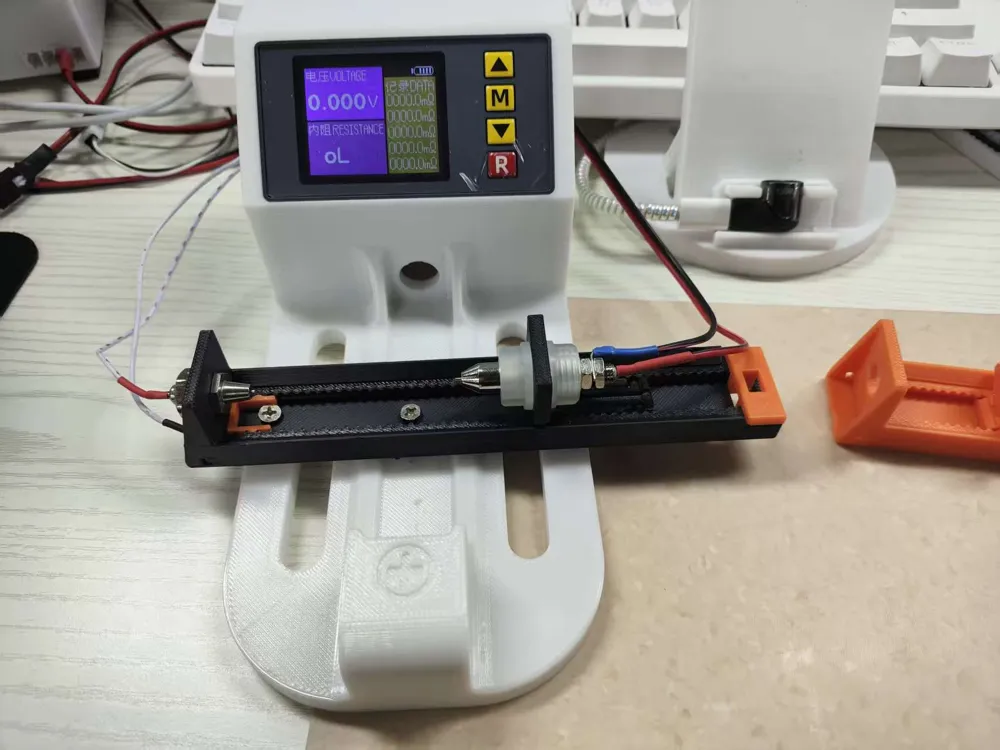

4-wire internal resistance test battery holder - quick adjust version 5
Print Profile(1)
Description

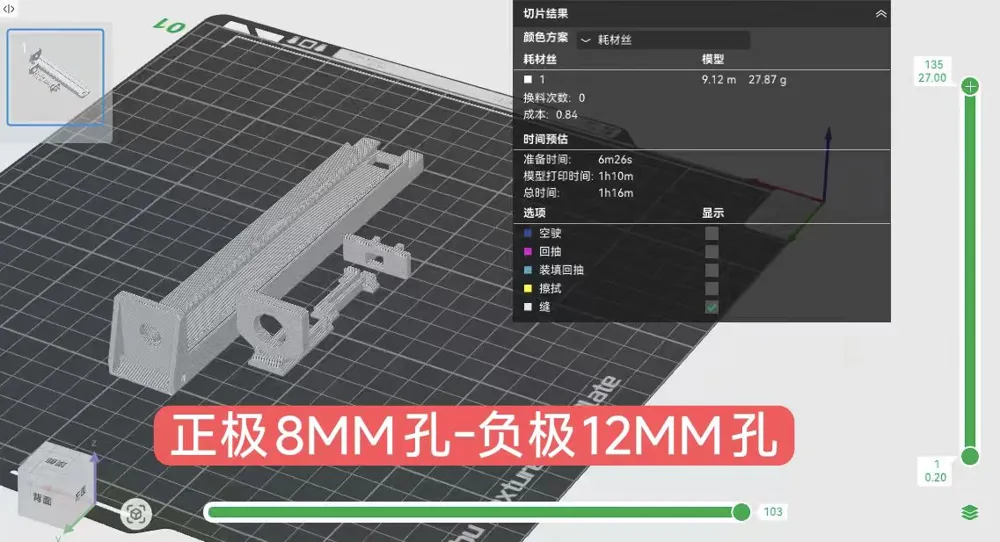

positive 8MM hole - negative 12MM hole

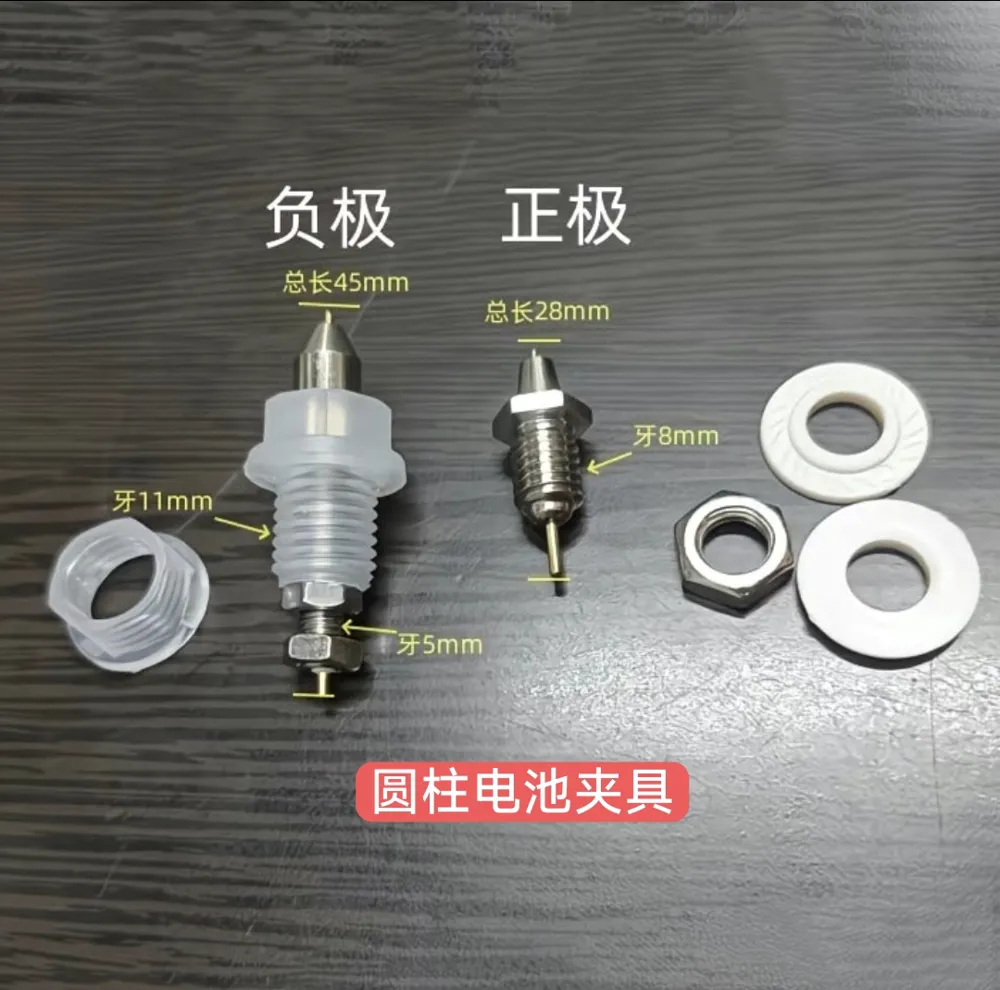

For accessories, search for cylindrical battery fixtures with 8MM positive and 11MM negative terminals

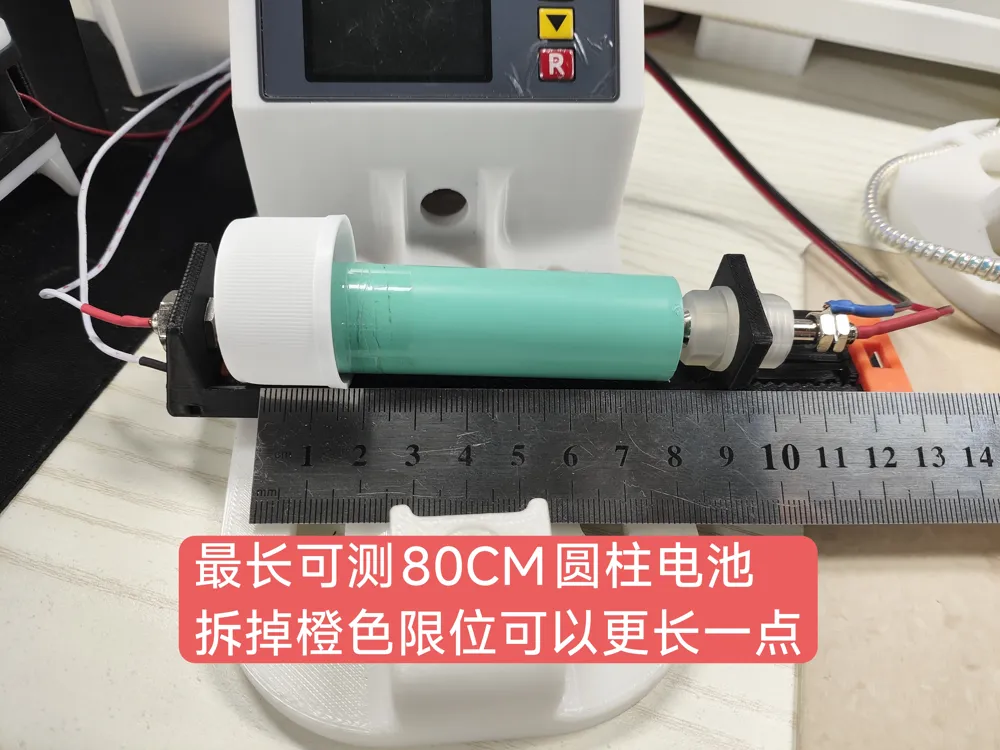

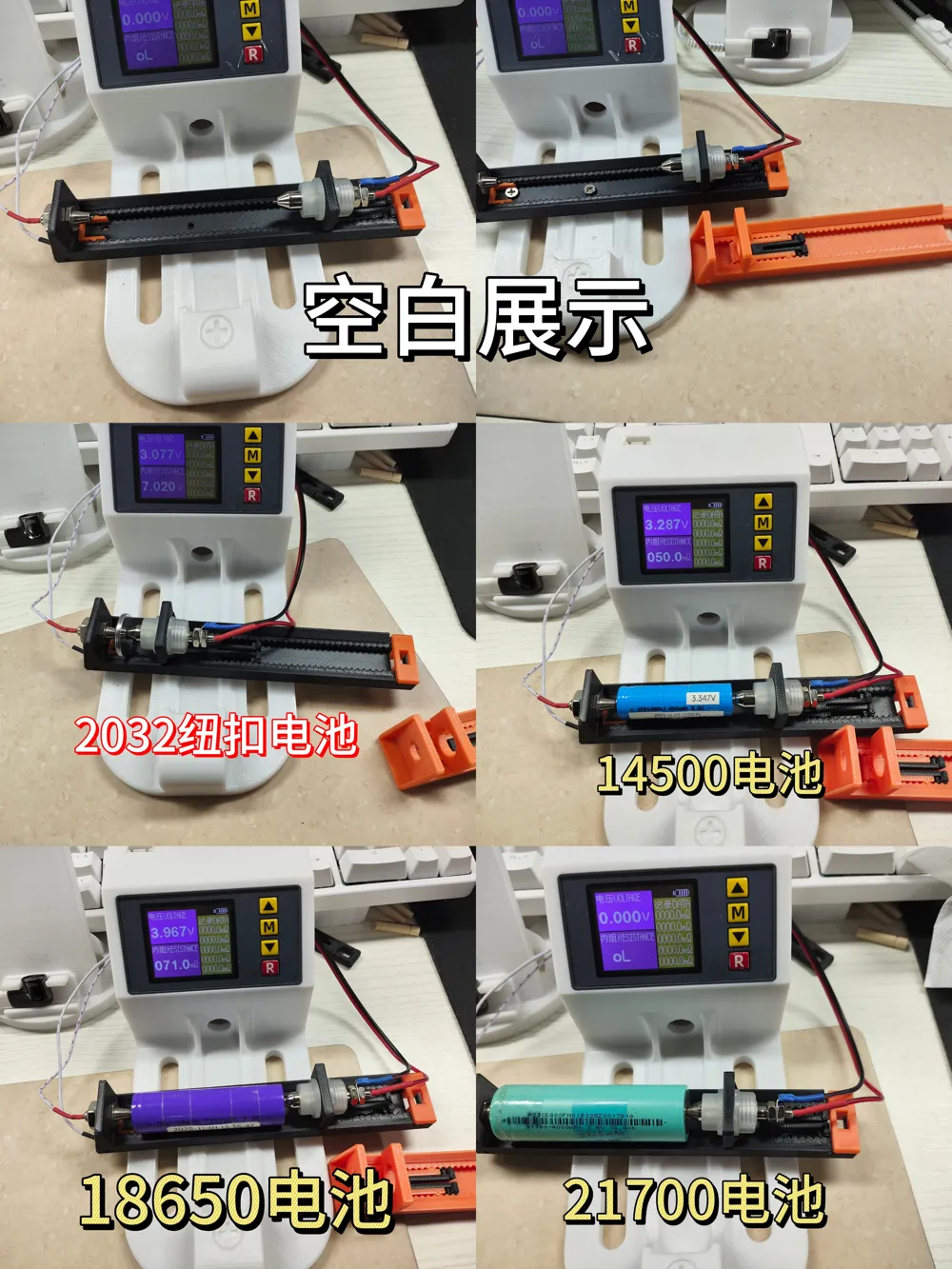

Without removing the limiters, it can measure up to approximately 80MM; removing the limiters allows for 90MM (If you need longer, you can leave a message with the battery model you want to clamp, and I'll make a special one for you)

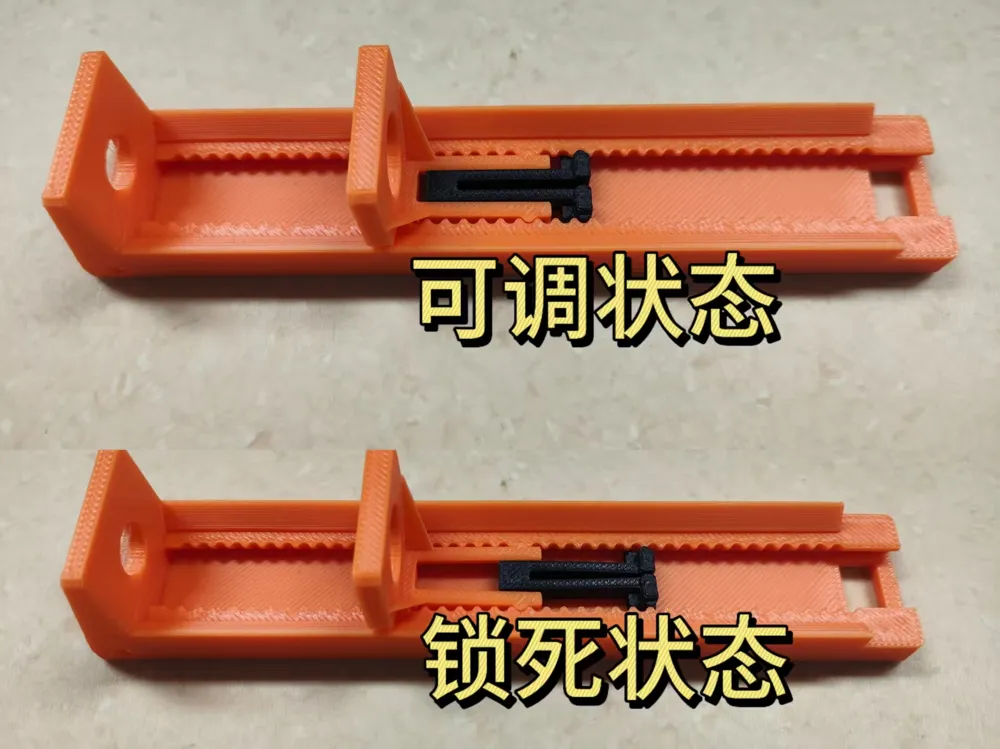

Length can be quickly adjusted and locked (similar to the locking mechanism of a utility knife, pull the clasp back to lock it)
