Bike Simplex Jockey Wheel 10T(PETG)

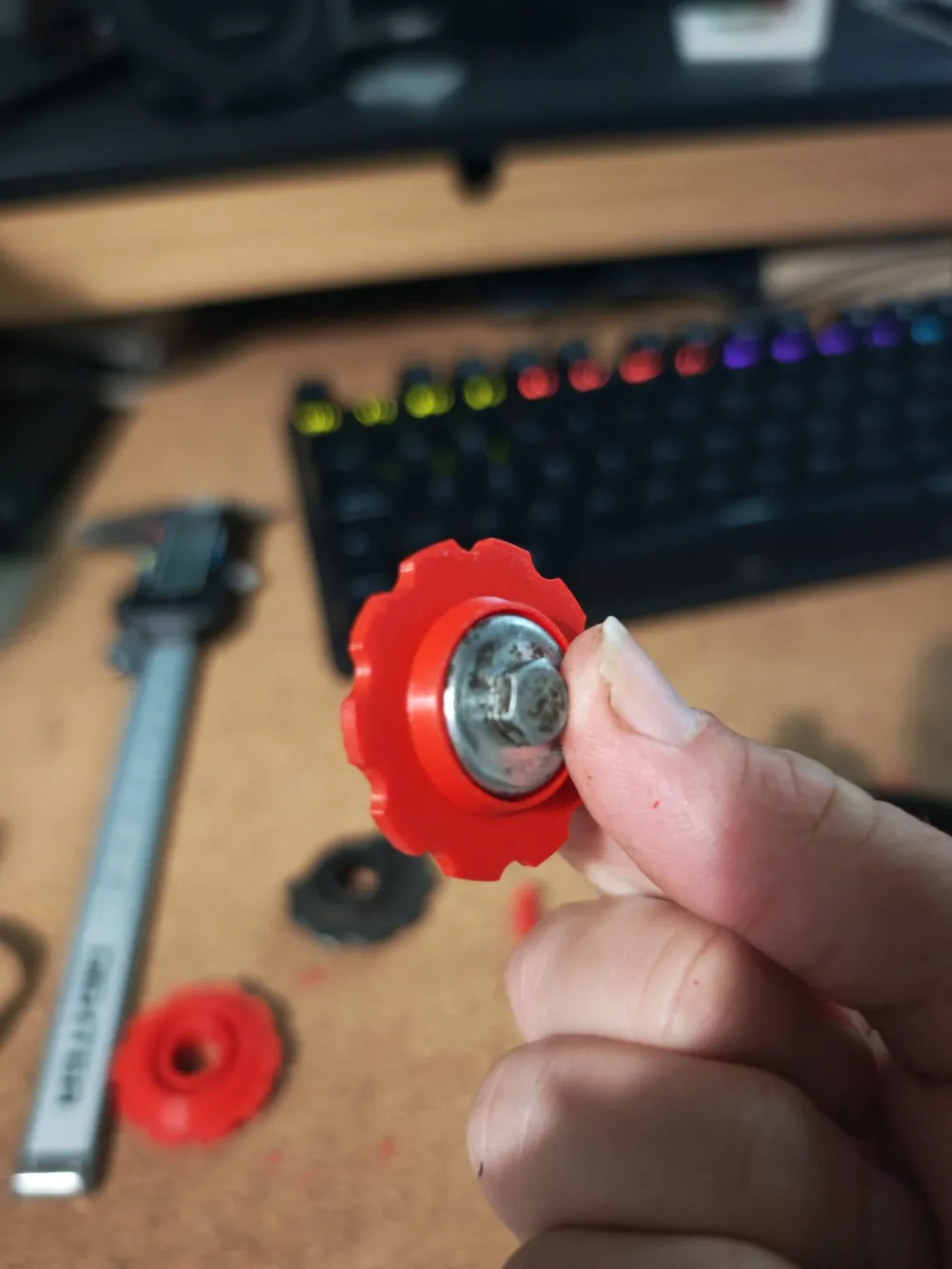

This project is a fully reverse-engineered replacement jockey wheel (roldana) for vintage Simplex / Peugeot 1980 bicycles, modeled from an original damaged pulley.
The original part is long discontinued, so this design offers a practical, durable alternative that preserves the bike’s functionality without altering its classic appearance.

🔧 Features

• Accurate 10-tooth profile modeled from a real Simplex pulley

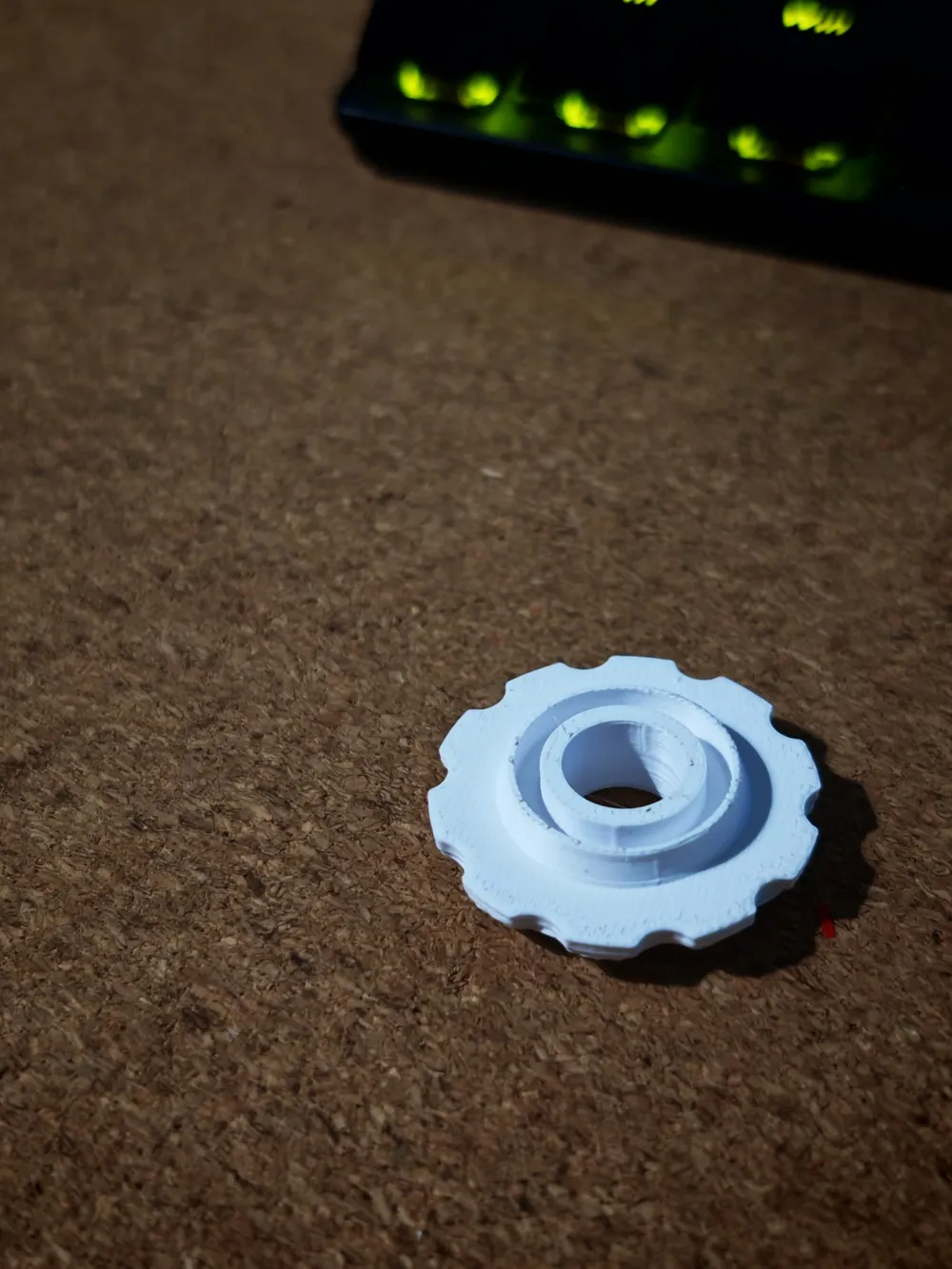

• Correct stepped hub geometry for original metal bushing fit

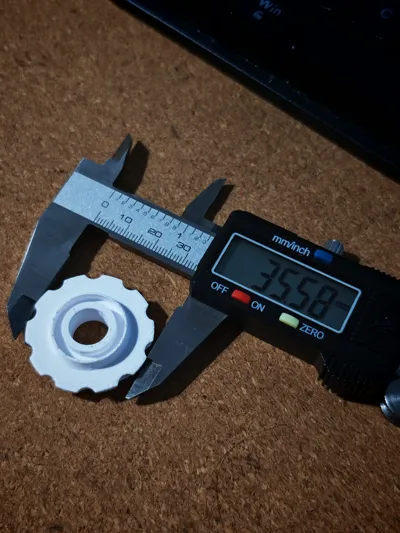

• Outer wheel thickness only 2.40 mm, matching vintage design

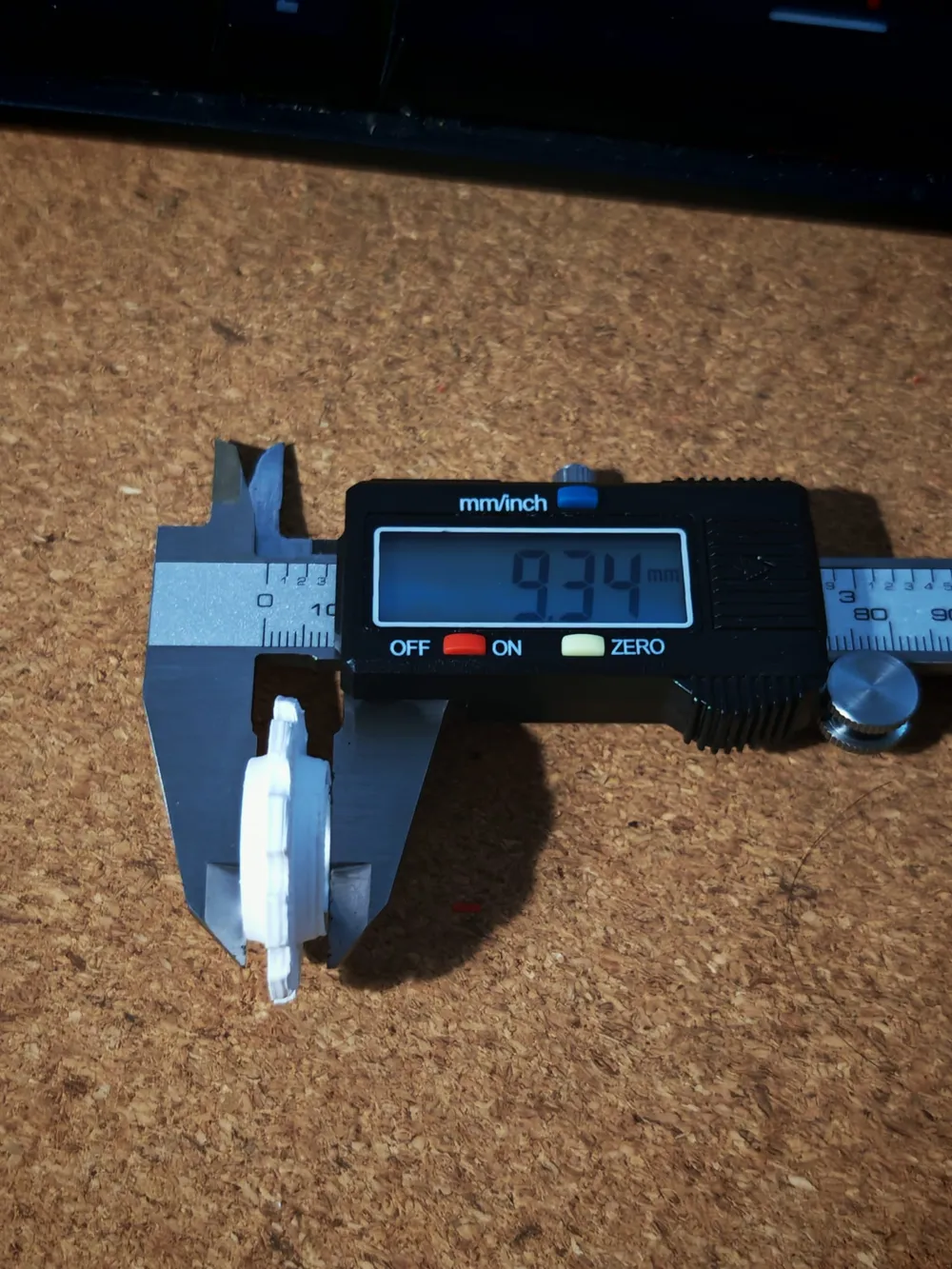

• Central hub thickness 9.27 mm, like the factory part
• PETG-friendly design with minimal supports needed

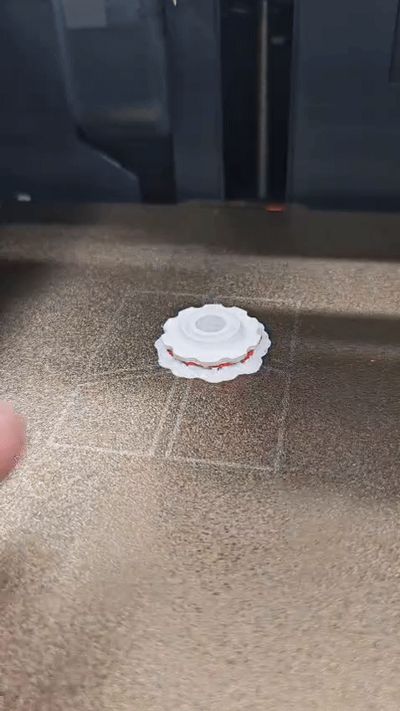

• Optional PLA supports for clean separation (multi-material compatible)

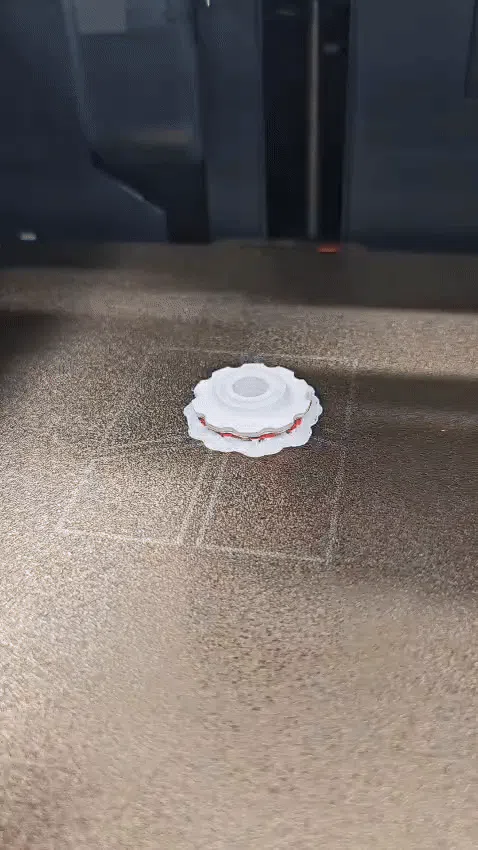

⚙️ Recommended Print Settings

• Material: PETG (final part) / PLA support on touching parts
• Layer height: 0.20 mm
• Perimeters: 4
• Infill: 80–100%

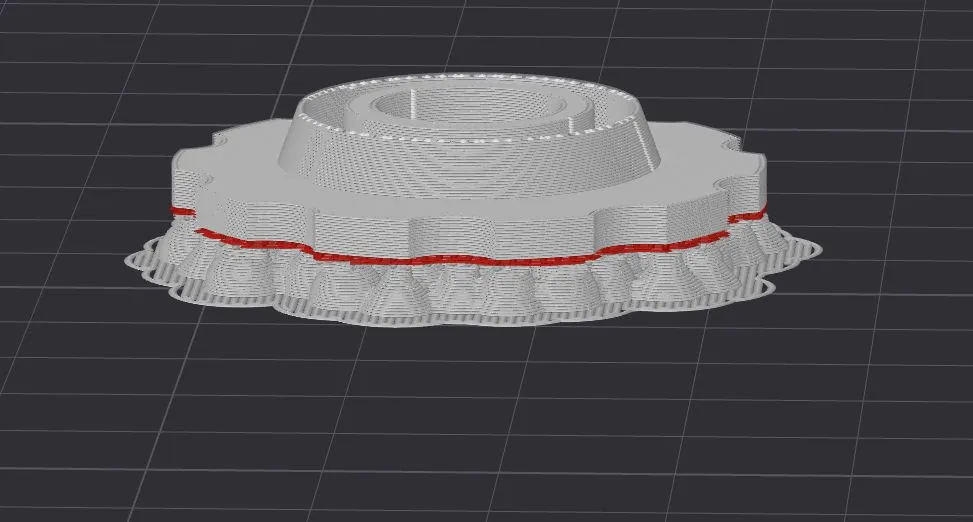

• Supports: Touching build plate only under inner cone, support critical regions only
• Tree supports: enabled (Branch Ø 3 mm, angle 45°)
• Cooling: 0% first layer, 40–60% afterwards
• First layer speed: 20 mm/s
• Bed temperature: 80–85 °C (PETG)

🧪 Notes

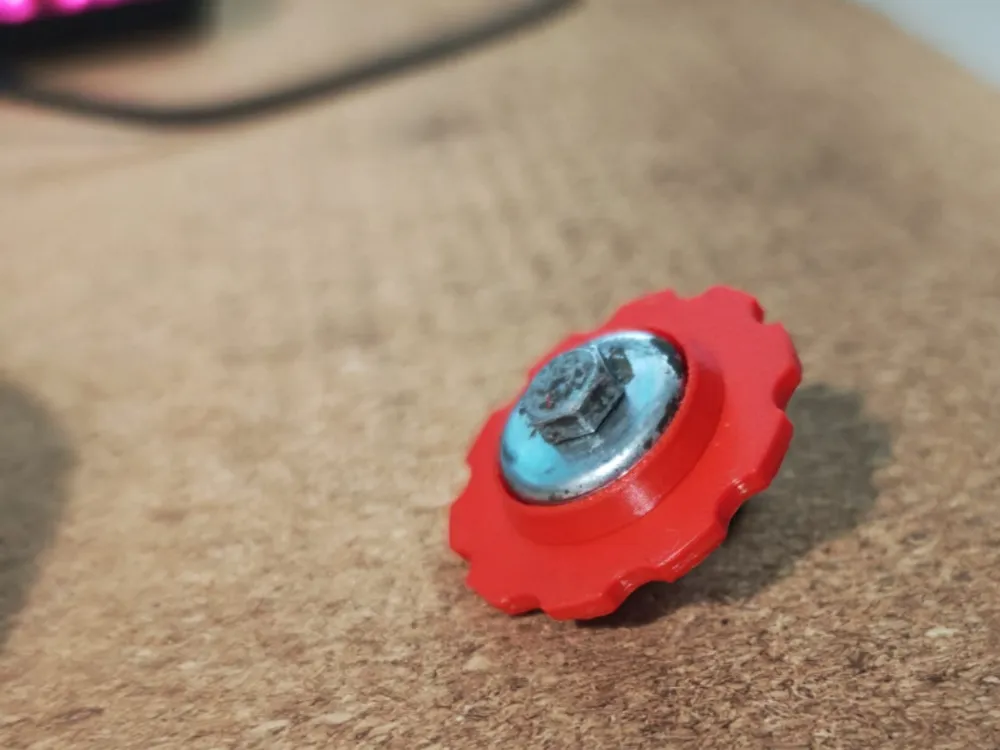

• The central bore is dimensioned for the original Simplex metal bushing.
• Slight scaling (±1%) in XY may improve press-fit depending on your printer.
• This part was developed as a faithful functional replacement, not as a modern derailleur upgrade — it is meant to preserve the authenticity of a vintage bicycle.

🚲 Compatible With

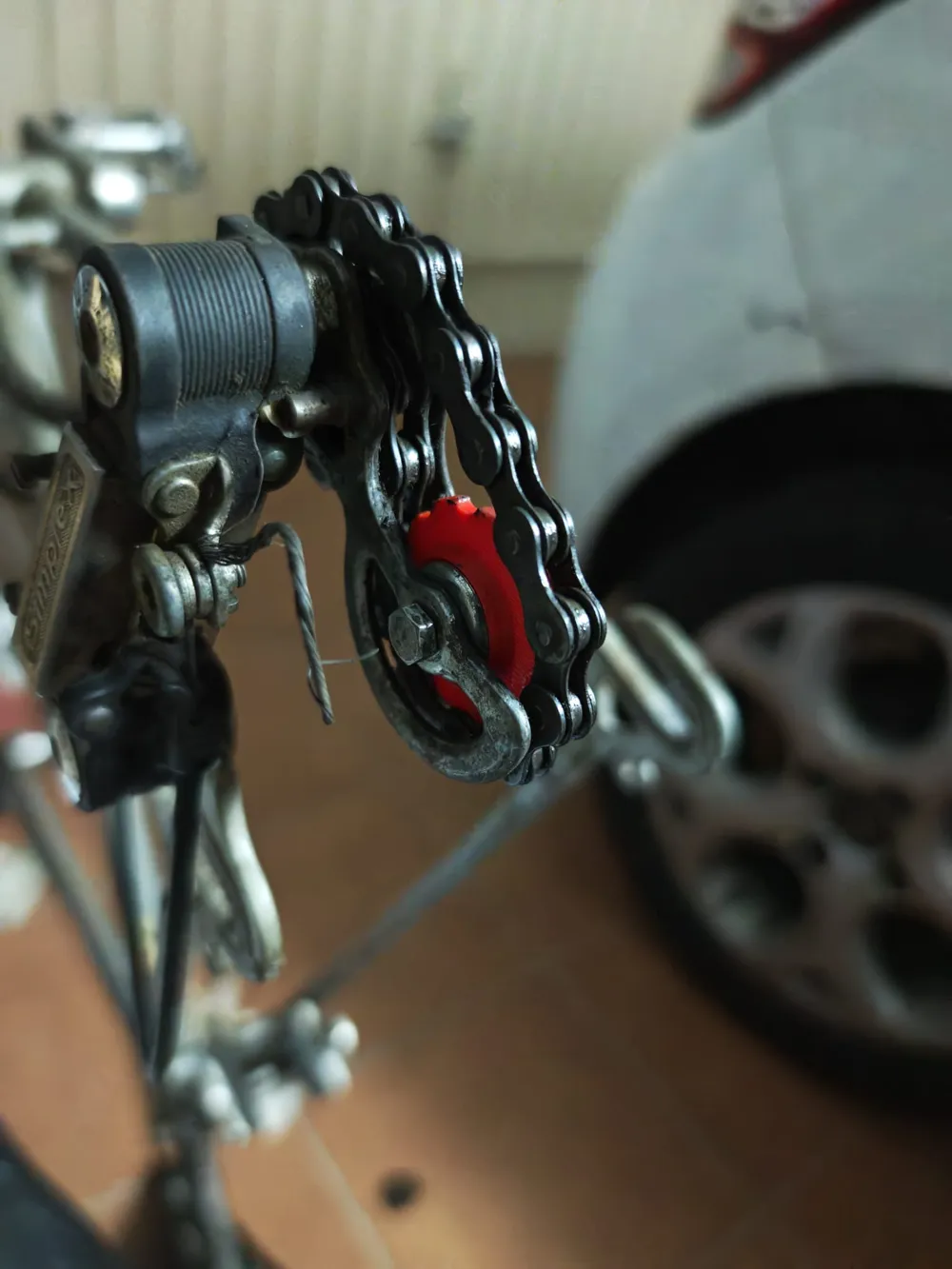

• Simplex rear derailleurs (Peugeot 1970–1990 era)
• SX, SJ, and other plastic-body Simplex units
• Many other French vintage bikes using the same standard
