RC Body Wheel arc cutter

Wheel arc cutter for RC bodyshell. Does need some hardware as below.

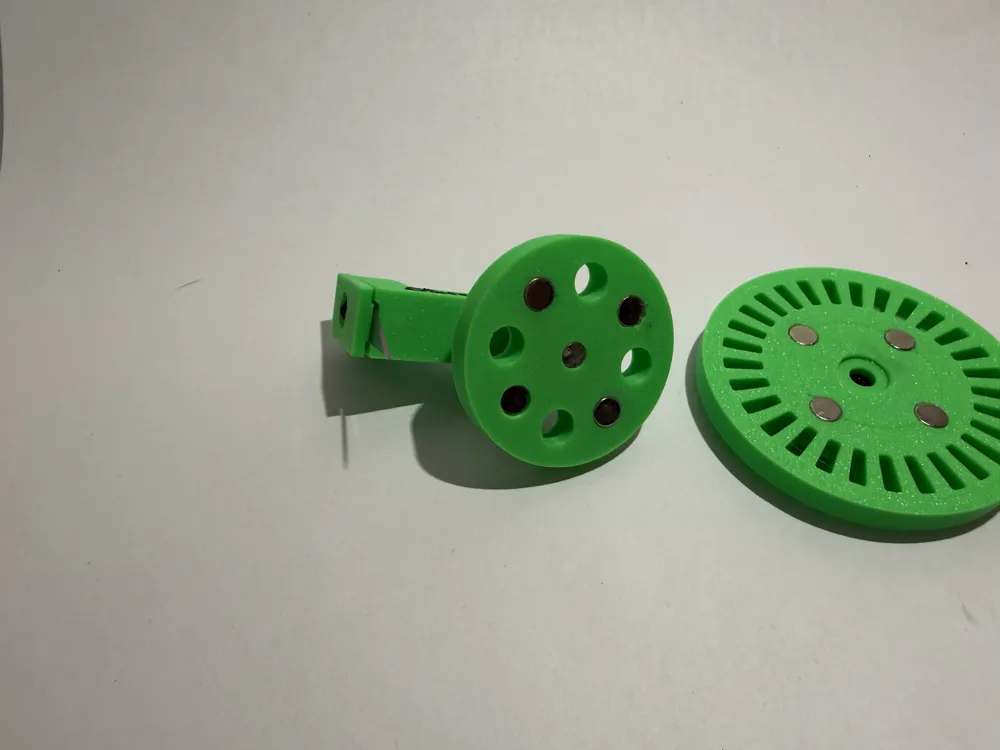

Important to place the magnets in the correct orientation so they attract to each other.

I fastened the magnets with superglue. Also there is STL of 5 X 8 x 2,5 bearing in the files if you want to use that instead.

• 4pcs 8 X 3mm magnets
• 14pcs 6 X 3mm magnets
• 2pcs 4 X 3 magnets

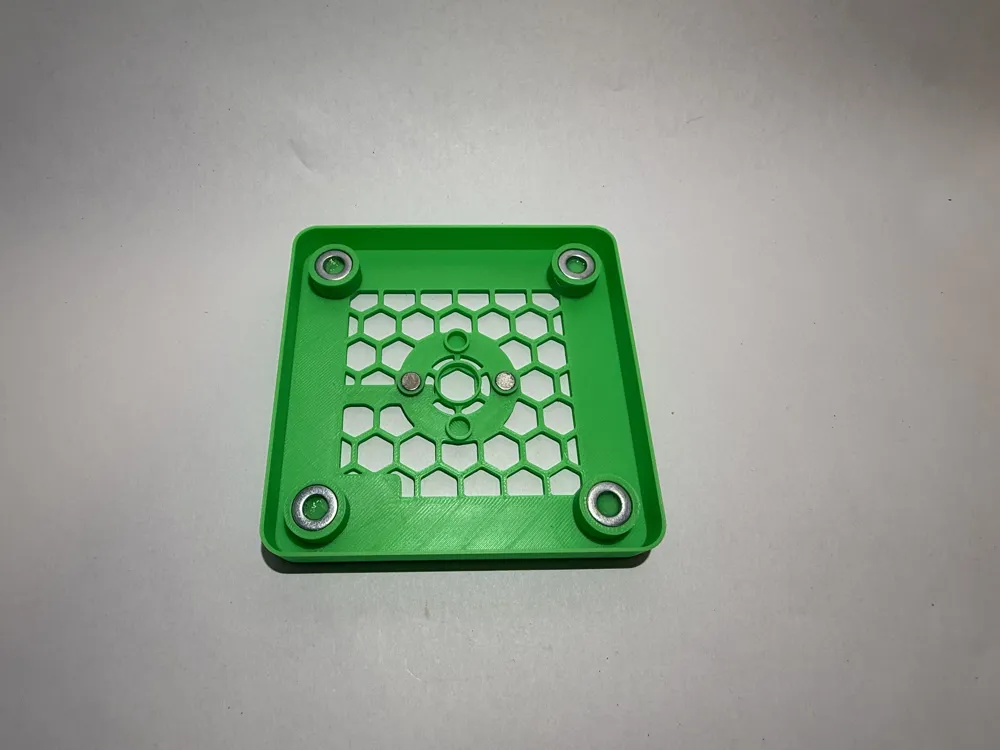

• 4pcs M6 carbon steel washer
• 1pcs M2,5 Heat insert
• 1pcs M2,5 X 5mm screw
• 2pcs M4 nut
• 1pcs M3 Heat Insert
• 1pcs M3 X 10mm screw
• 2pcs 5 X 8 X 2,5mm bearing
• 5mm shaft 33-35mm long
• 3 xato knife blades

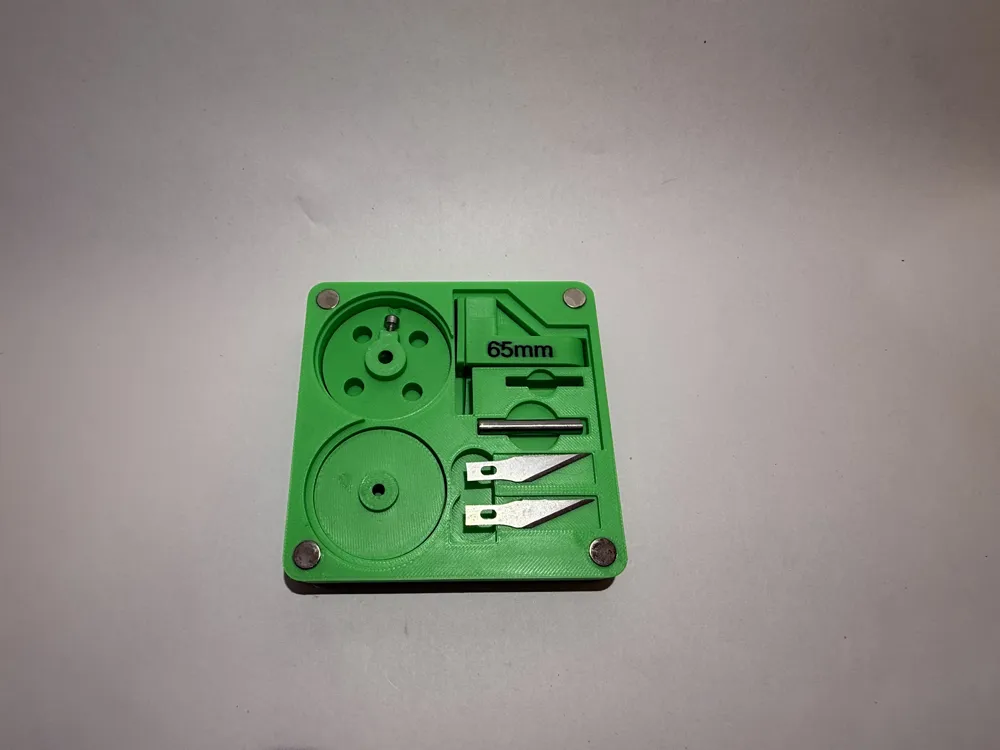

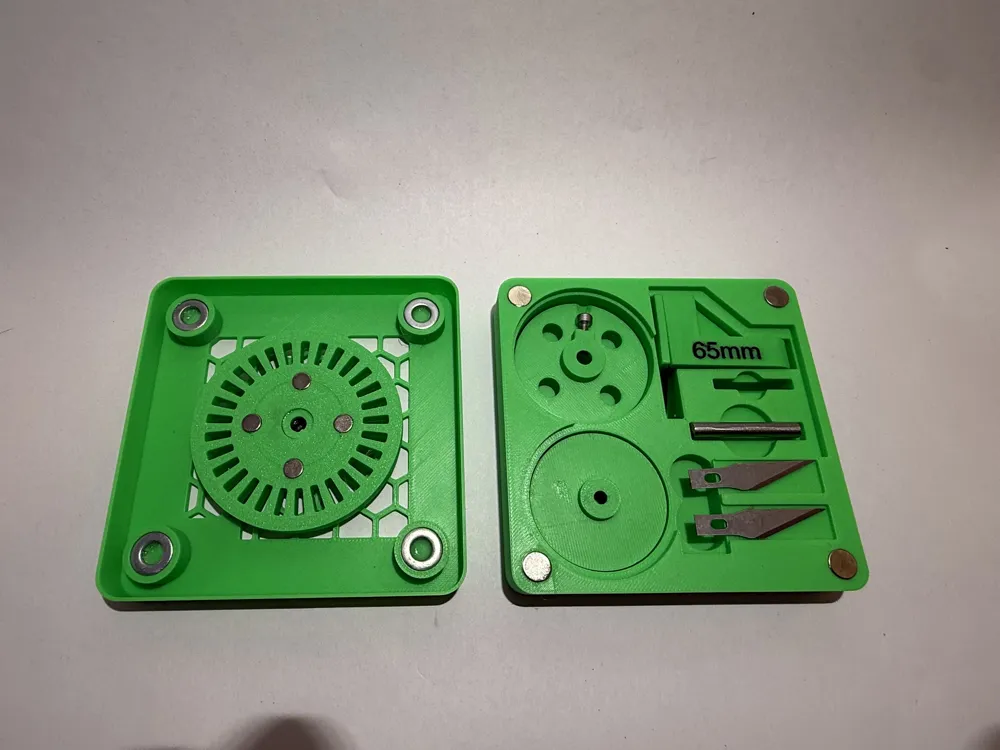

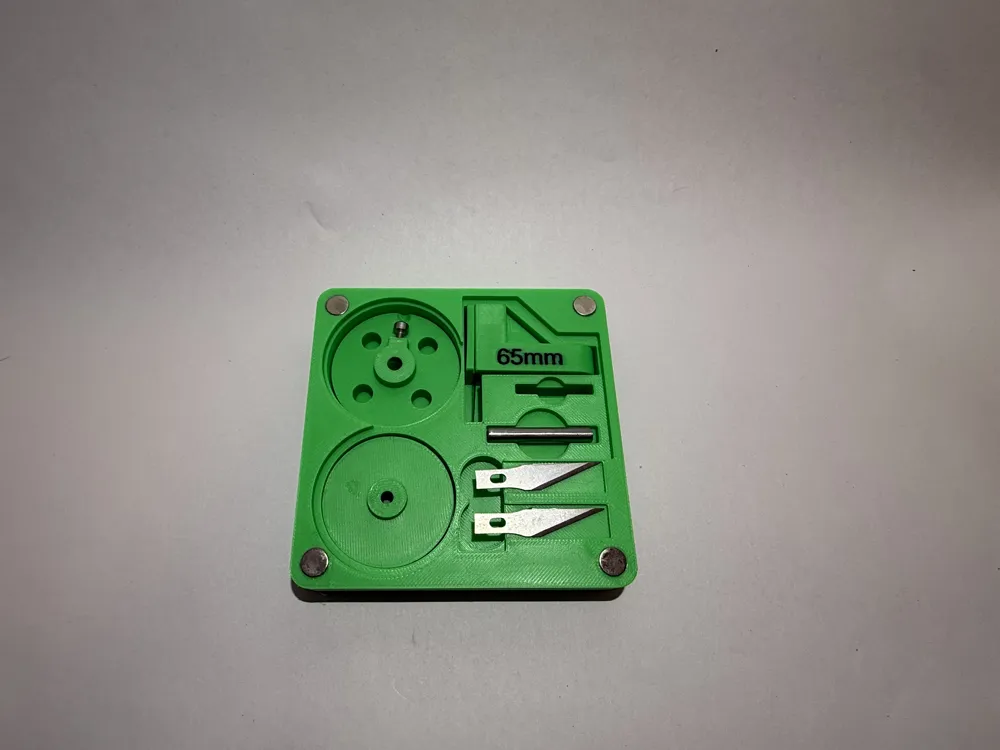

This is for the full assembly.

How to use

1. Mount wheels or setup wheels to car
2. Cut the approximately height line around the body
3. Mount body to car at desired position on body posts

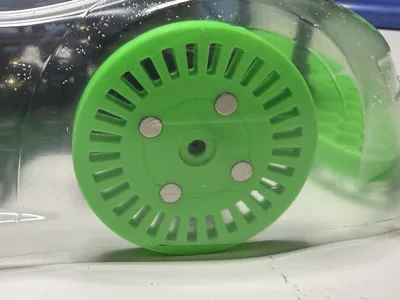

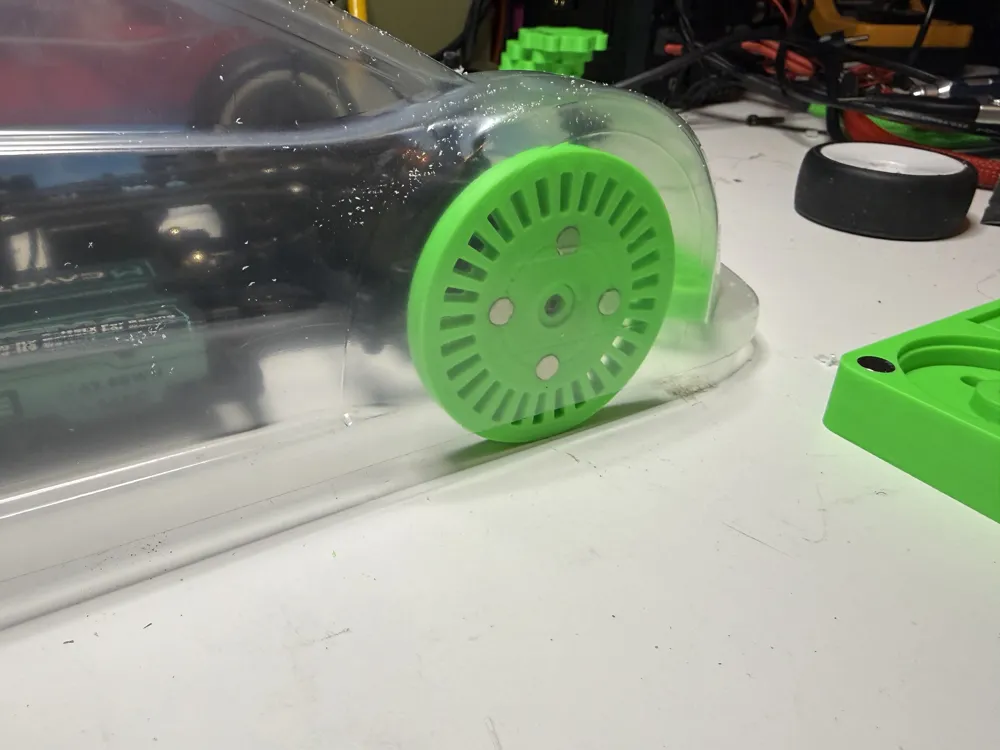

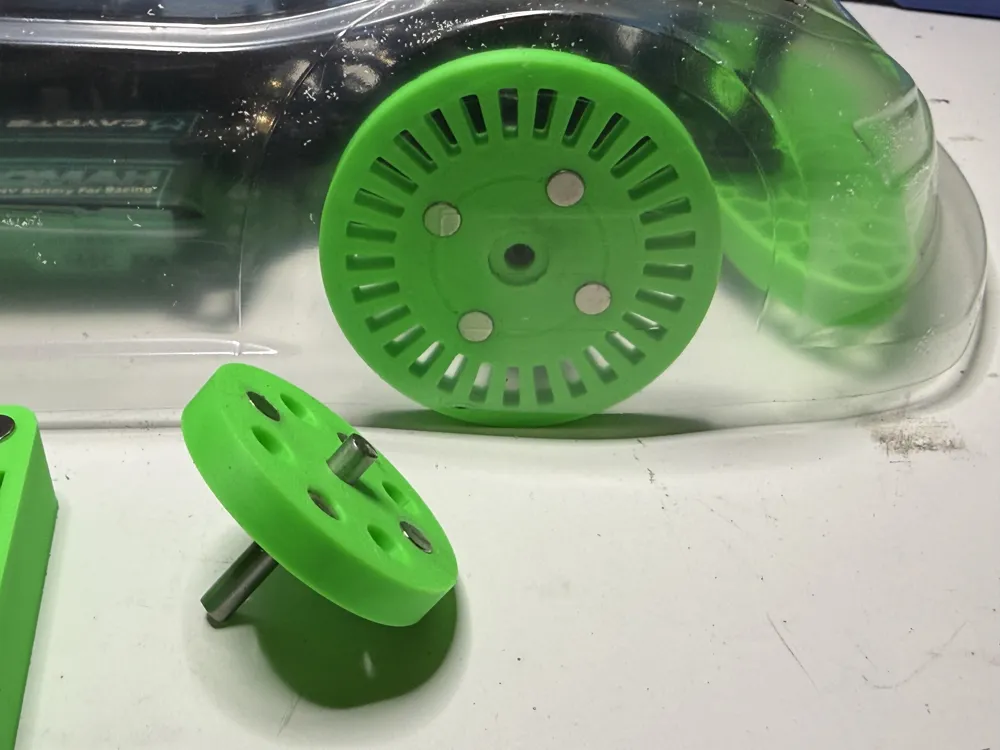

4. Screw the big magnetic adapter wheel to  the axel position that will be cut
5. Let all wheels of the car rest on a solid surface including the adapter wheel.
6. Optional: but recommended is to mark the centre spindle and cut a 5mm hole in the body with reamer to help secure the position of the knife.

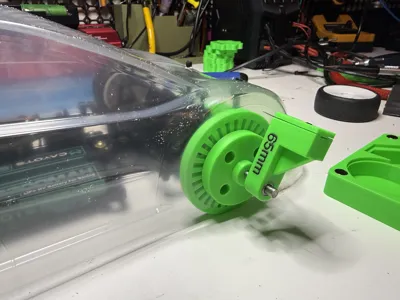

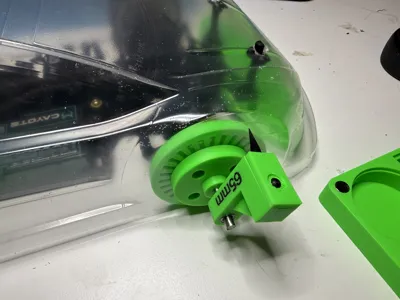

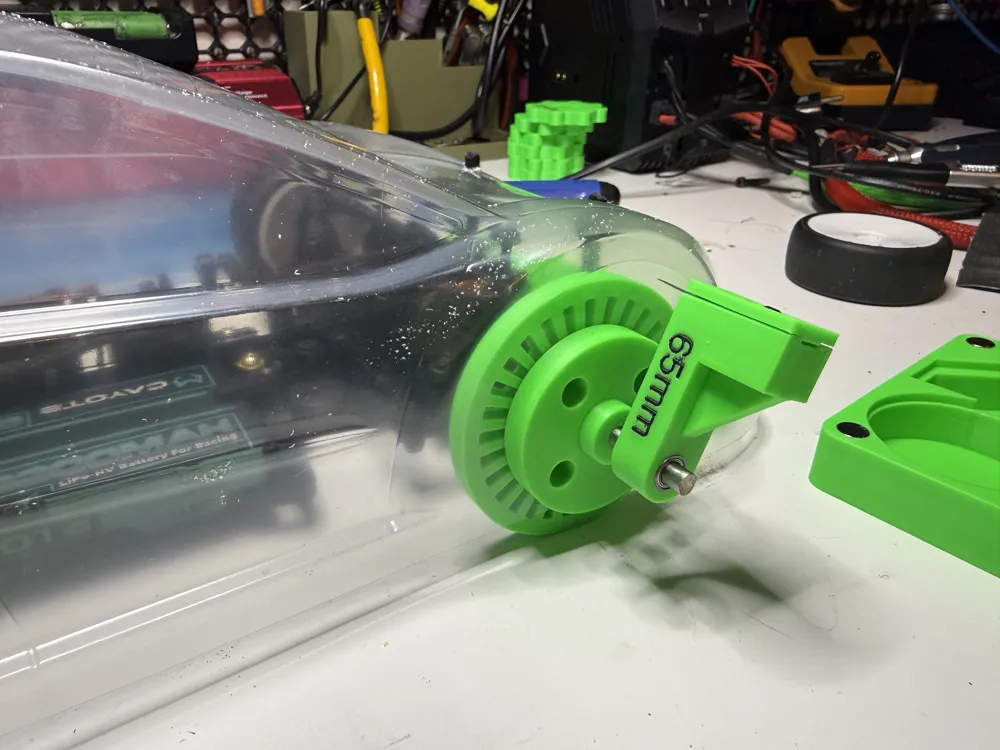

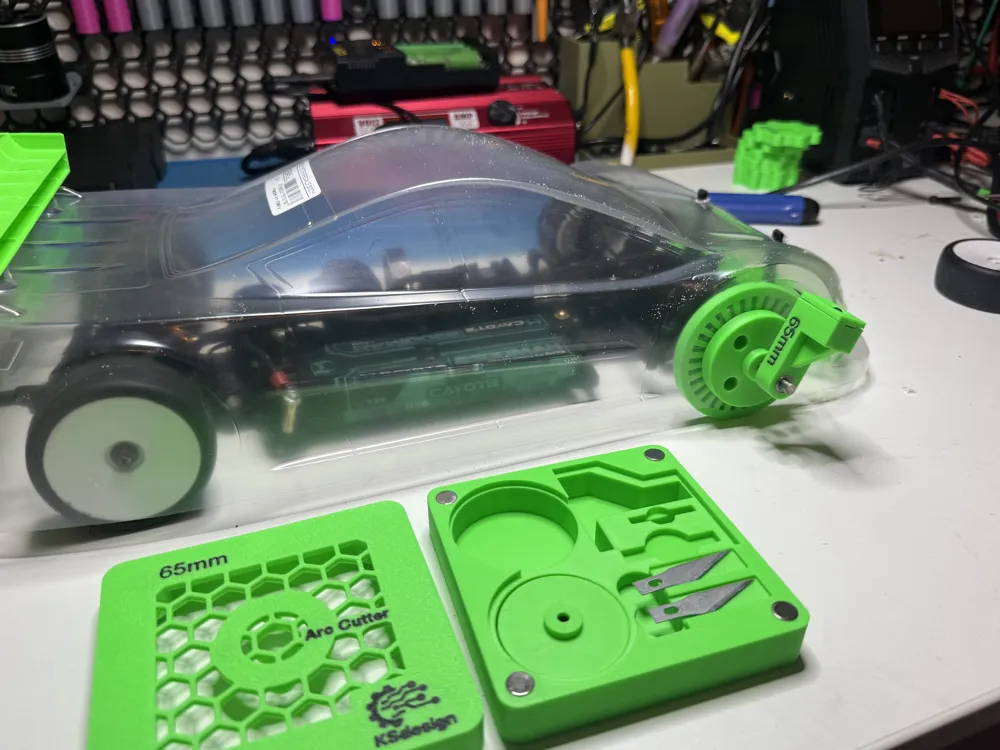

7. Mount the magnetic knife adapter outside the body centered on the  wheel adapter with the 5mm dowel pin just energiens true body.
8. Start to cut the line on the wheel arc in the body with small passes (optional just mark the cut line and cut with scissors)
9. Repeat for all the wheel arcs in the body.

Fixed radius knife holder: https://makerworld.com/en/models/2100835-wheel-arc-cutter-knife-holder-64-68mm#profileId-2271870

Adjustable Knife Holder: https://makerworld.com/en/models/2102018-adjustable-knife-holder-for-wheel-arc-cutter#profileId-2273214

Pen holder adjustable: https://makerworld.com/en/models/2105281-wheel-arc-cutter-pen-holder#profileId-2277018
