Nespresso Vertuo Pod Dispenser - Bottom Loading

📢 Update: 325mm Version Added!

I have uploaded an additional STL file for a 325mm height version, which utilizes the maximum Z-height of H-series printers, alongside the original 256mm model.

Unfortunately, since I do not own an H-series printer myself, I cannot provide a pre-sliced Print Profile for this specific size. If anyone with an H-series printer successfully prints the 325mm STL, I would highly appreciate it if you could upload and share your Print Profile! It would be a huge help to other users who want to print the taller version.

⚙️ Designer's Tip for Supports:

• You will need supports right in the top center of the dispenser opening.
• I highly recommend using the 'Support Painting' tool in your slicer to add custom supports only to that center area.
• I believe the left and right sides of the dispenser do not need supports, but please note that this is theoretically designed and hasn't been fully verified on the 325mm version yet. Please keep this in mind when slicing!


  Summary

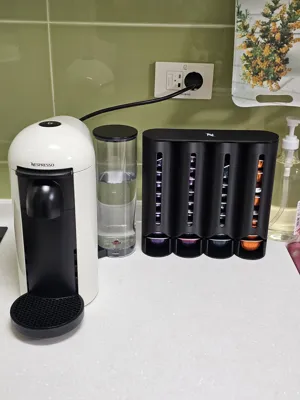

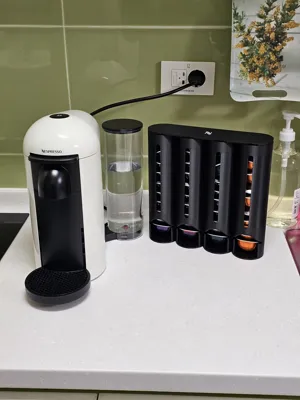

This is a custom-designed Nespresso Vertuo pod dispenser featuring a unique bottom-loading and bottom-dispensing mechanism. Designed to maximize space without damaging your walls.

🚀 Key Features

• Unique Bottom-Loading System: Unlike traditional dispensers that load from the top, this model allows you to refill capsules directly from the bottom. Perfect for under-cabinet setups where top access is limited.
• Drill-Free Installation: I designed this specifically to avoid drilling holes in kitchen walls or cabinets. It is a freestanding unit that is stable and easy to place anywhere.
• Maximized Capacity: The model height is optimized at 256mm, taking full advantage of the build volume on printers like the Bambu Lab X1/P1 series.
• 4 Separate Lines: Organize up to 4 different flavors neatly.

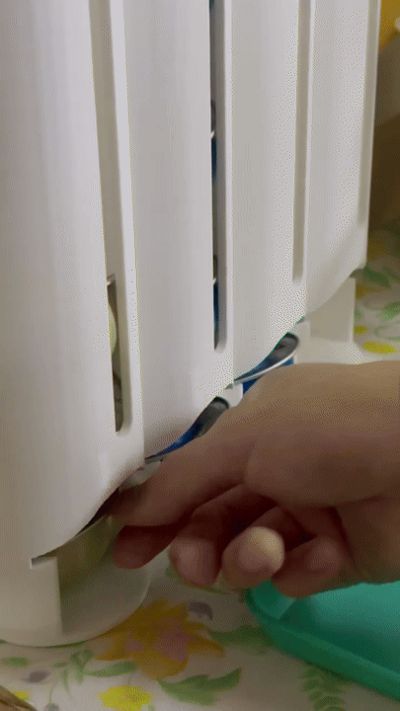

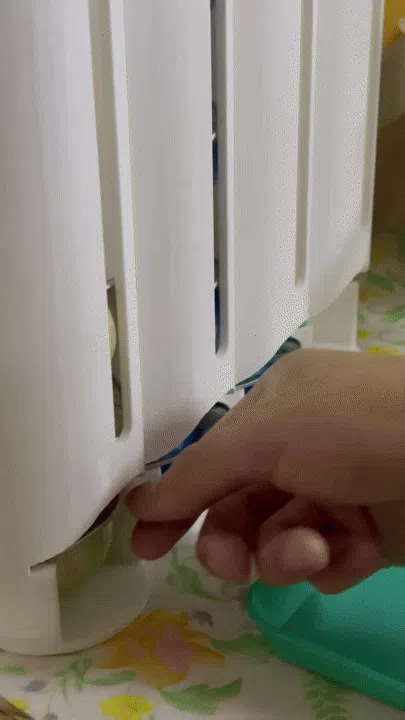

🎥 How it works

The internal latch design holds the pods securely.

Simply push a pod up into the slot to load it, and pull it out to dispense. It’s satisfying and efficient!

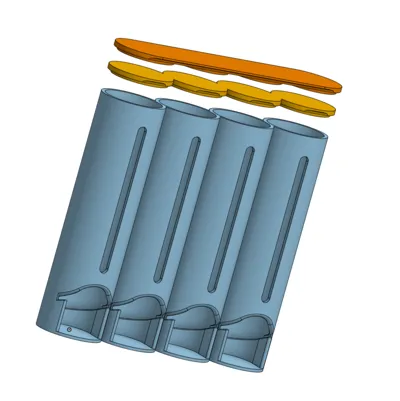

🧢 Two Cap Versions Included I provided two different STL files for the top lid, so you can choose the style you prefer:

• Logo Version: Features the Nespresso "N" logo.
• Clean Version: A plain, flat cap without any logo for a minimalist look.

🖨️ Print Settings

• Material: PLA, PLA+, or PETG recommended.
• Supports: Tree supports (but only on build plate)
• Infill: 10% - 20%
• Orientation: Print vertically as imported.
•

📝 Designer's Note I created this because I wanted a dispenser that didn't require damaging my kitchen with screws or adhesive tapes that leave residue. Since it loads from the bottom, you don't need extra clearance above the unit.
