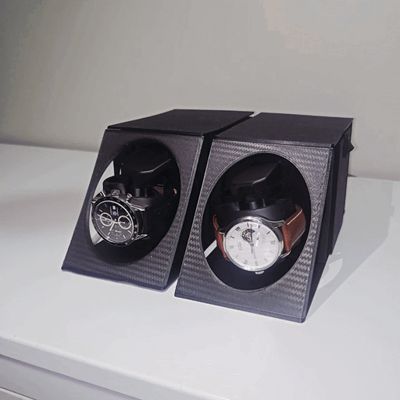

A major remake of the original OSWW, with the following key improvements:

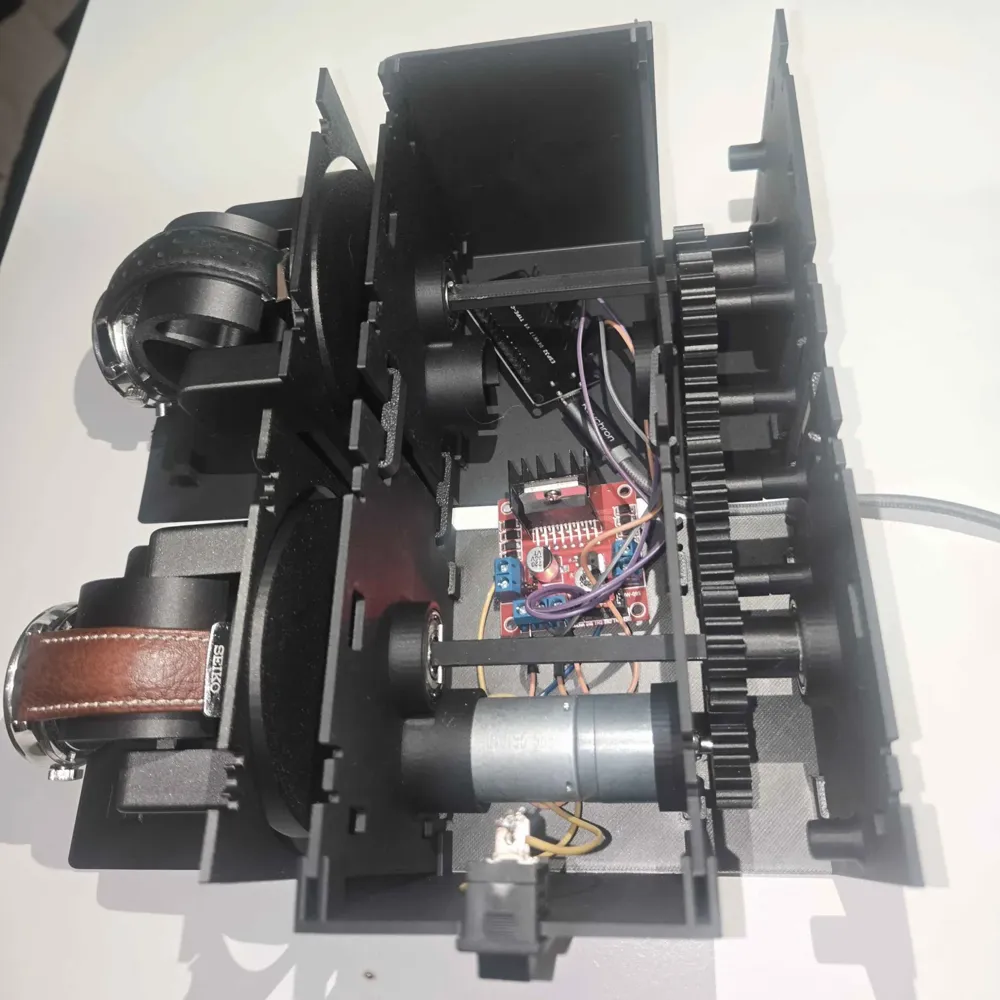

- Gears instead of belt drive for more reliable winding
- Covers for motor/wiring chamber

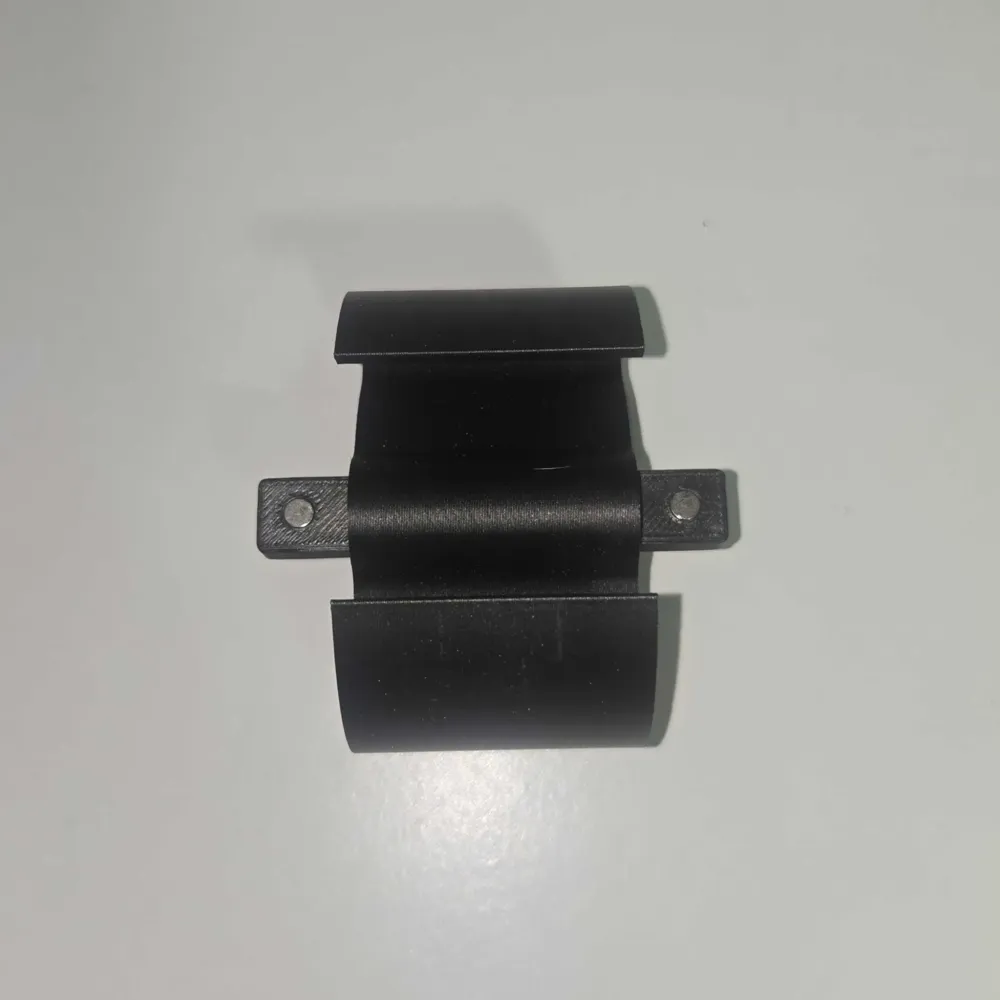

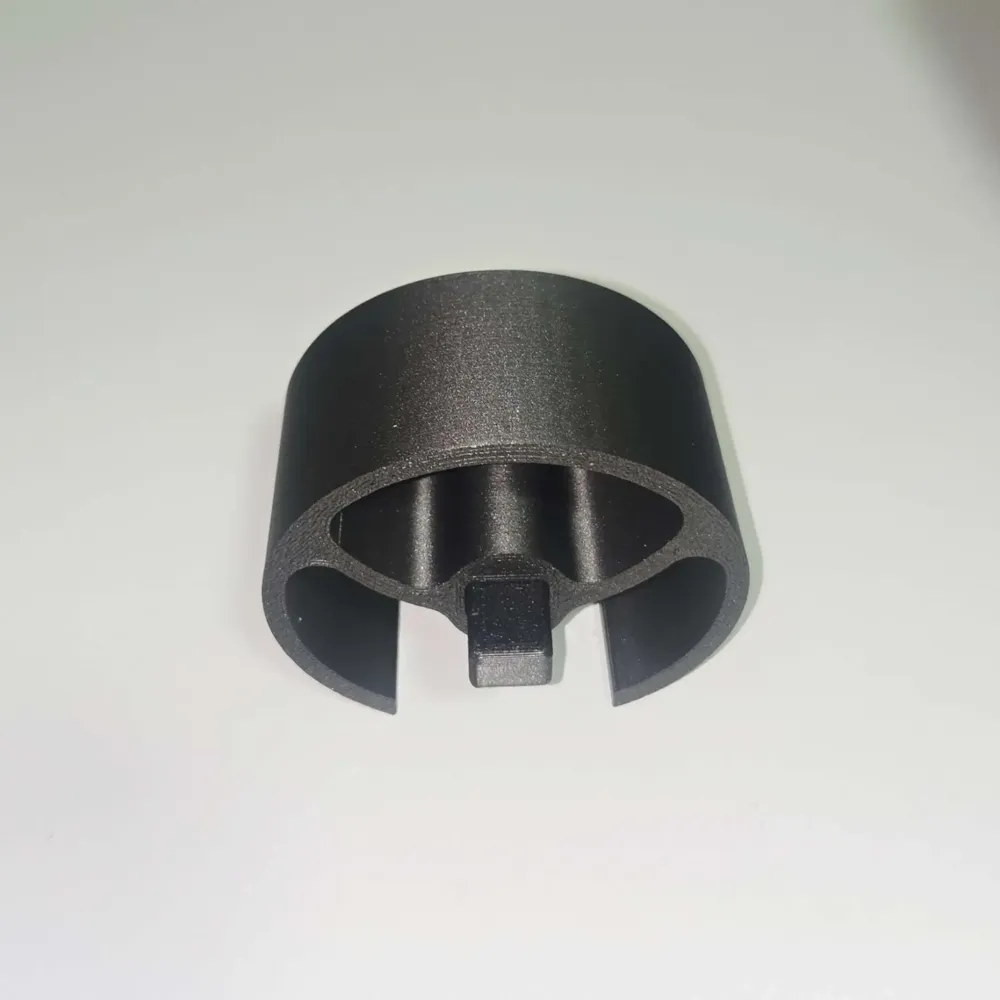

- Magnetic watch mount instead of tension for easier watch removal
- No glueing, rubber bands, heat set nuts or cutting metal rods required
- Far fewer screws
All the original features have been preserved:

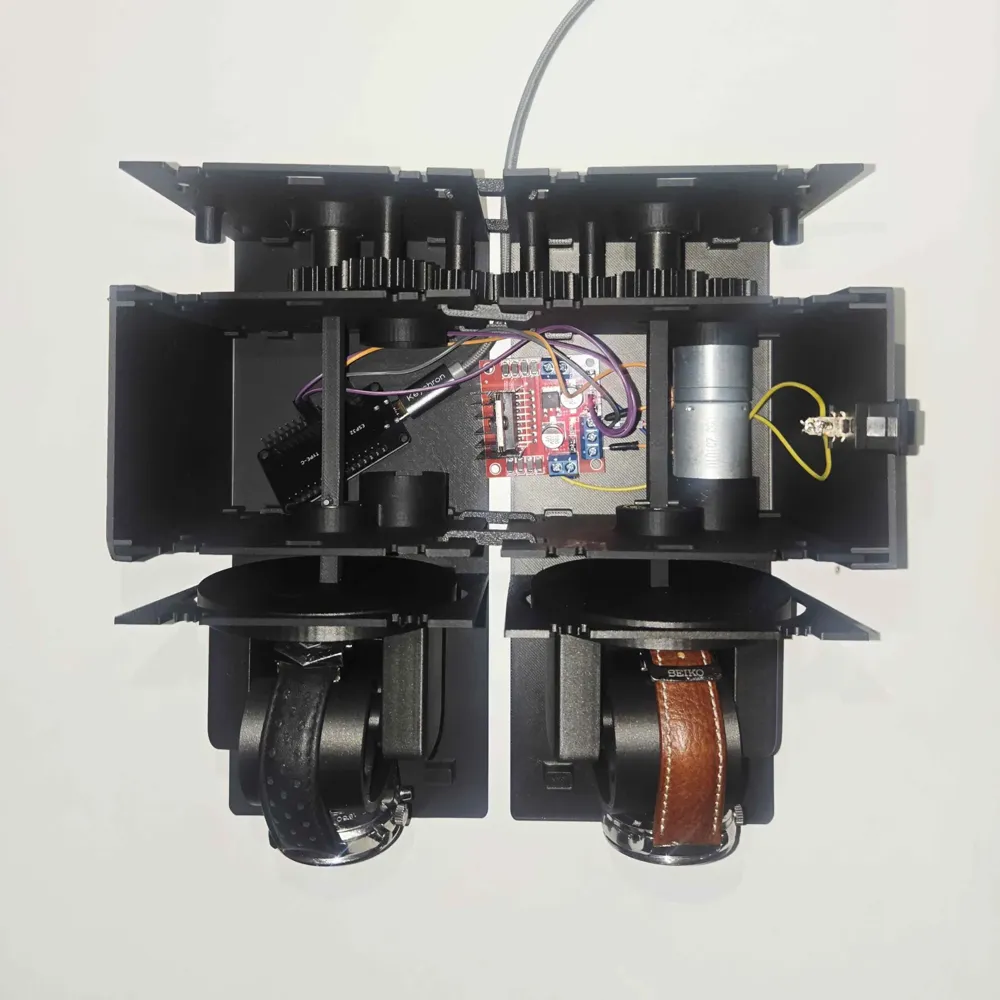

- Modular: keep adding watches either side, driven by a single motor
- Web UI / Home Assistant integration: courtesy of Winderoo
- Minimal electronics
- Simple print
Huge thanks to the original designers of OSWW and Winderoo.
Materials
Uses the same basic components as specified in the OSWW/Winderoo BoM docs, with the following exceptions:
- No cassette belts
- No glue
- No heat set nuts
- No 4mm Steel Rod
- No steel spring
- No felt
- Additional components (magnets and dowel to secure axle) are optional and are available in the Bambu store (see below)
Printing / Installation / Assembly

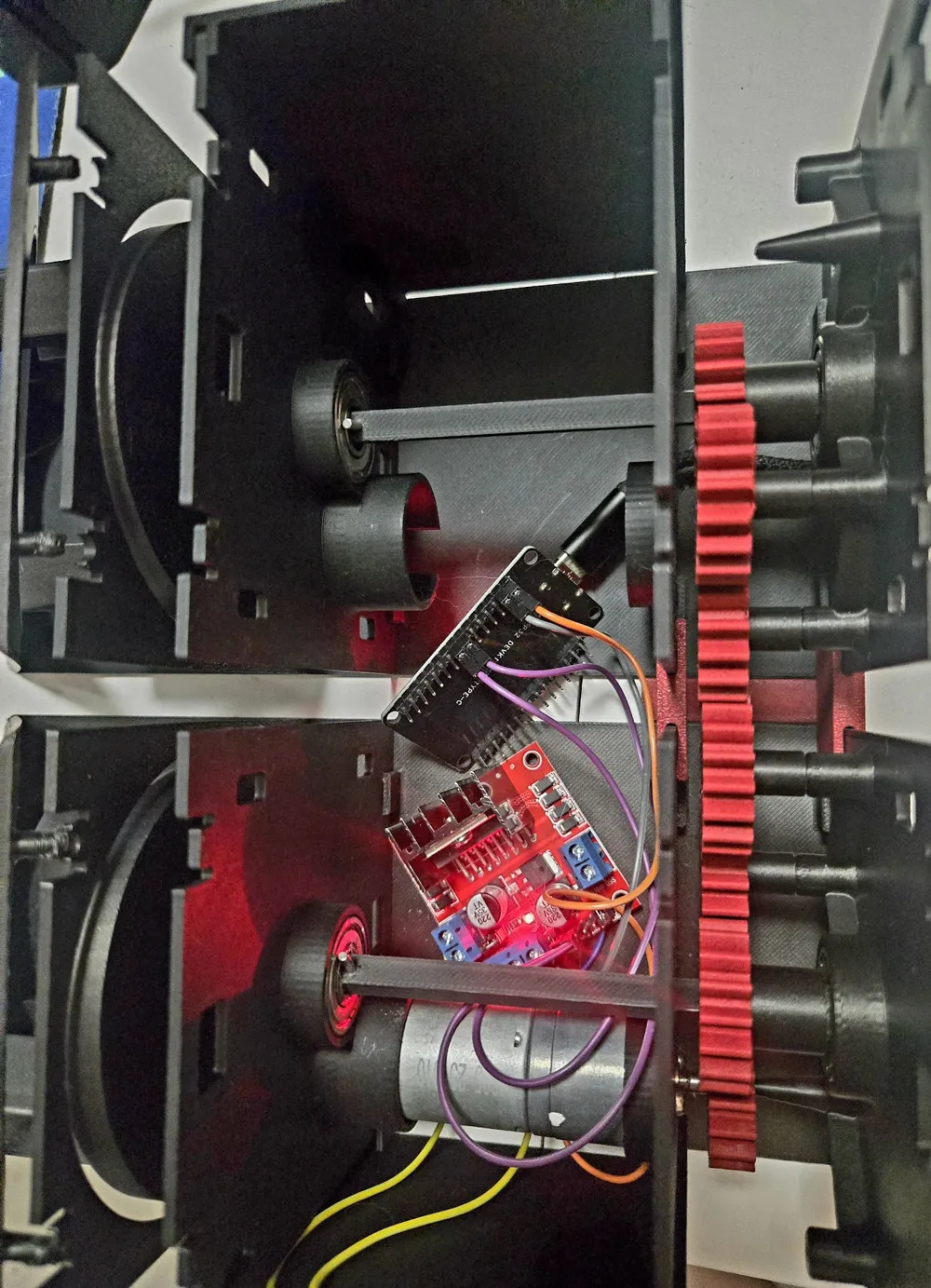

- Electronics: see OSWW / Winderoo wiring diagrams
- Software: see OSWW / Winderoo installation guides
- Printing: print everything and assemble as per photos
