DJI RC Pro (RM510) Mount for Mavic 3

DJI RC Pro (RM510) Wall Mount

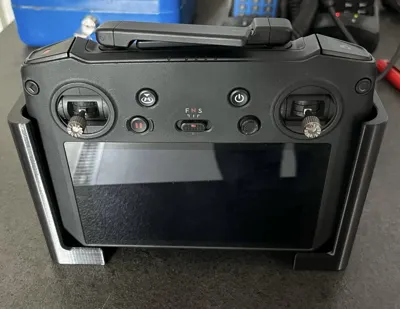

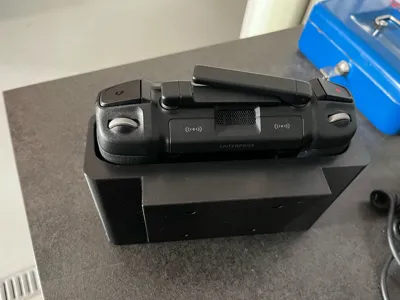

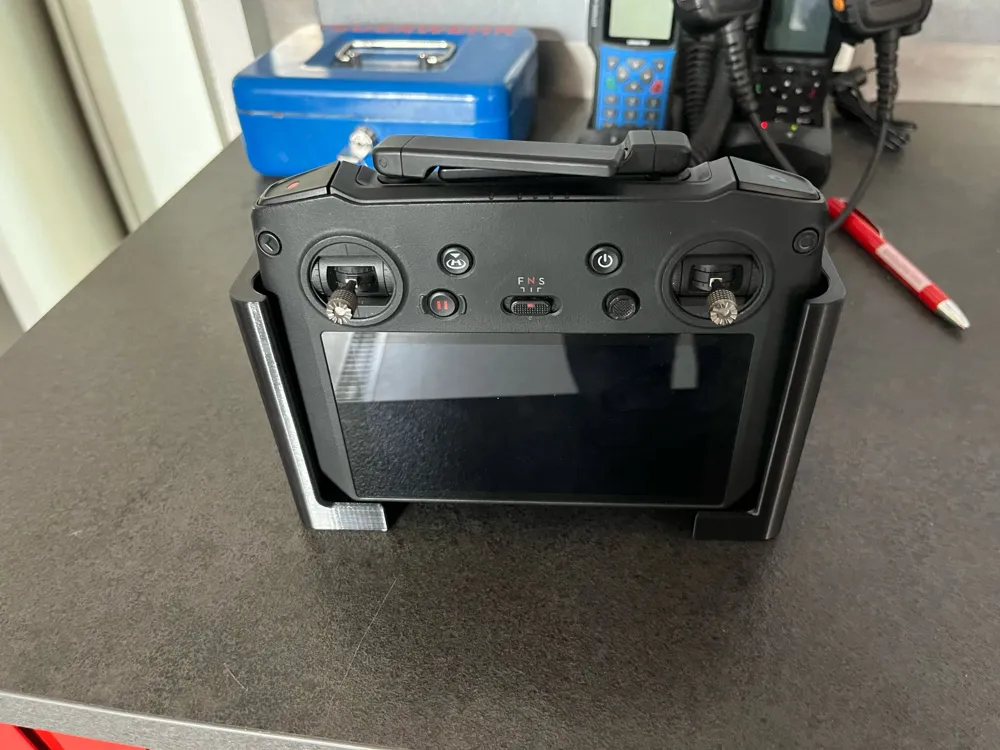

This wall mount is intended as a clean storage solution for the DJI RC Pro remote control (RM510) The controller is inserted from above and sits securely in the side guides – ideal for workshops, hobby rooms, or drone case walls, so the controller isn't lying around and is quickly accessible

Compatible Drones (DJI RC Pro)

The DJI RC Pro (RM510) is used with/supports the following drones, among others:

• DJI Mavic 3
• DJI Mavic 3 Cine
• DJI Air 2S
• DJI Mavic 3 Classic
• DJI Mavic 3 Pro

Note: DJI sometimes expands/changes compatibility via firmware If you want to be absolutely sure: quickly check the official DJI compatibility list

The mount is designed for RC Pro (RM510) – due to similar external dimensions, it may also work with the following controllers, but is not guaranteed (form details, radii, buttons/grips, antenna area, manufacturing tolerances):

DJI RC Pro (RM510) (Reference): 183.27 × 137.41 × 47.6 mm

• DJI RC (RM330): 168.4 × 123.7 × 46.2 mm (significantly smaller/lighter → may sit looser depending on tolerance)

• DJI Smart Controller (RM500): 177.5 × 121.3 × 40 mm -  (Fit possible, but not perfect)



If you test it: Feel free to give me feedback or post pictures in the comments (which controller + how it fits) – it helps everyone, thank you

Mounting

• Attach to the wall with screws (and suitable wall plugs) – depending on the surface
• Optional: If needed, make it quieter and scratch-free with (thin) rubber/felt strips in the contact areas

Print Recommendation

• Material: PETG (for toughness/temperature resistance) but PLA should also work
• 0.20mm layer, 3 walls/perimeters, 15% infill
• Support: not necessary

Disclaimer

DJI is a brand of DJI This model is not an original accessory and is not affiliated with DJI
