[Calibration] Elephant Foot Test Model Most Comprehensive Test
Print Profile(2)
Description
Boost Me (for free)
If you like this model, please boost me! Let's build a high-quality open-source sharing community together!

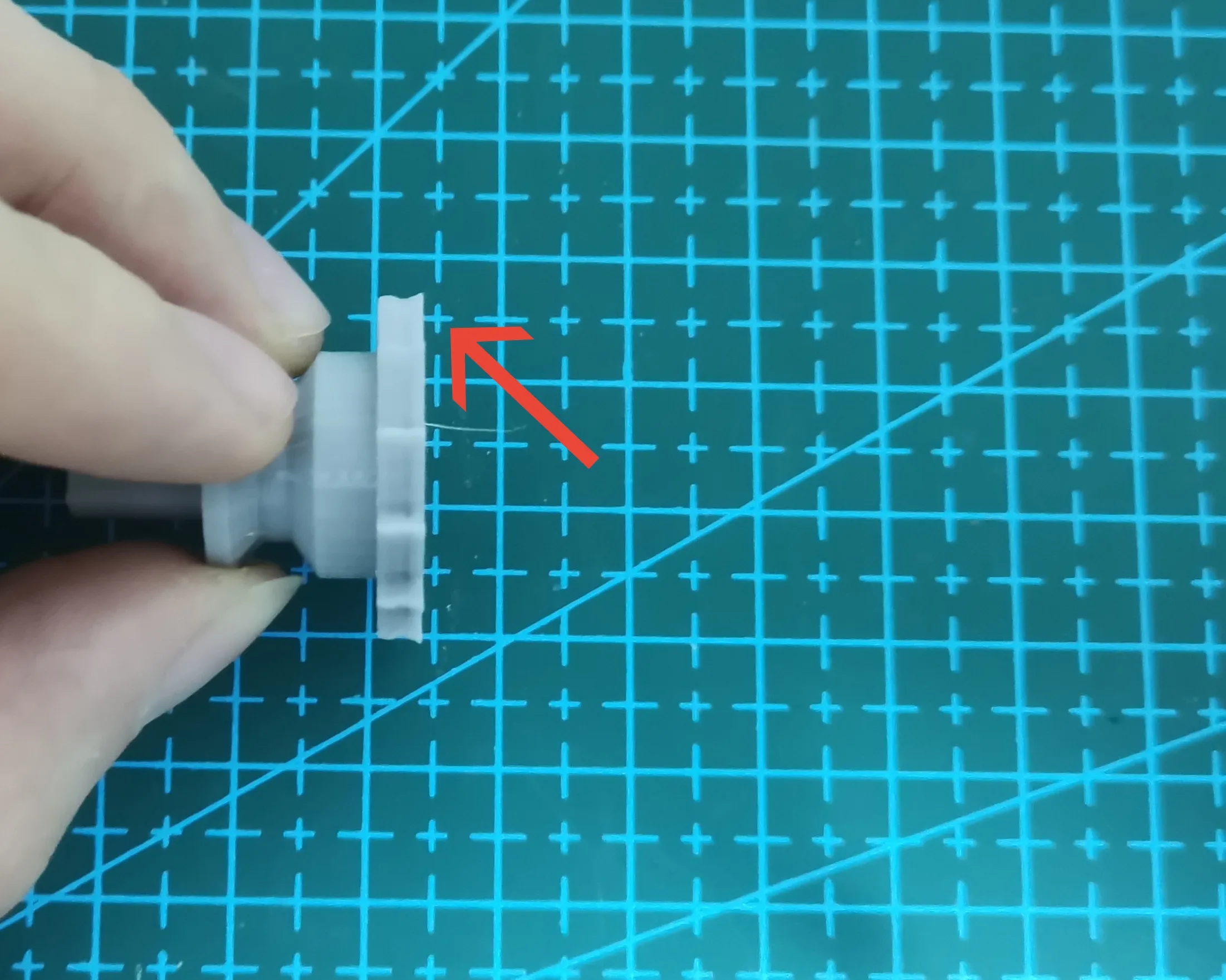

Elephant foot defect example model:
Other elephant foot defect examples:
As shown in the image above, the Z-axis is horizontal, and uneven depressions and protrusions appear on the inclined surface in that direction, preventing my model from being assembled.

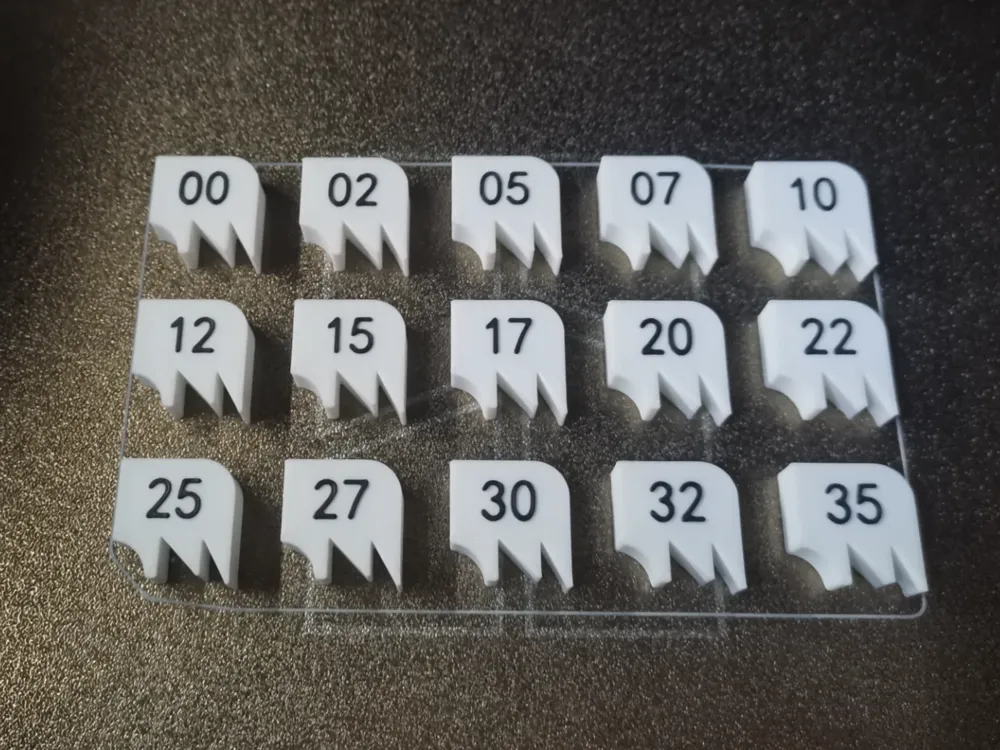

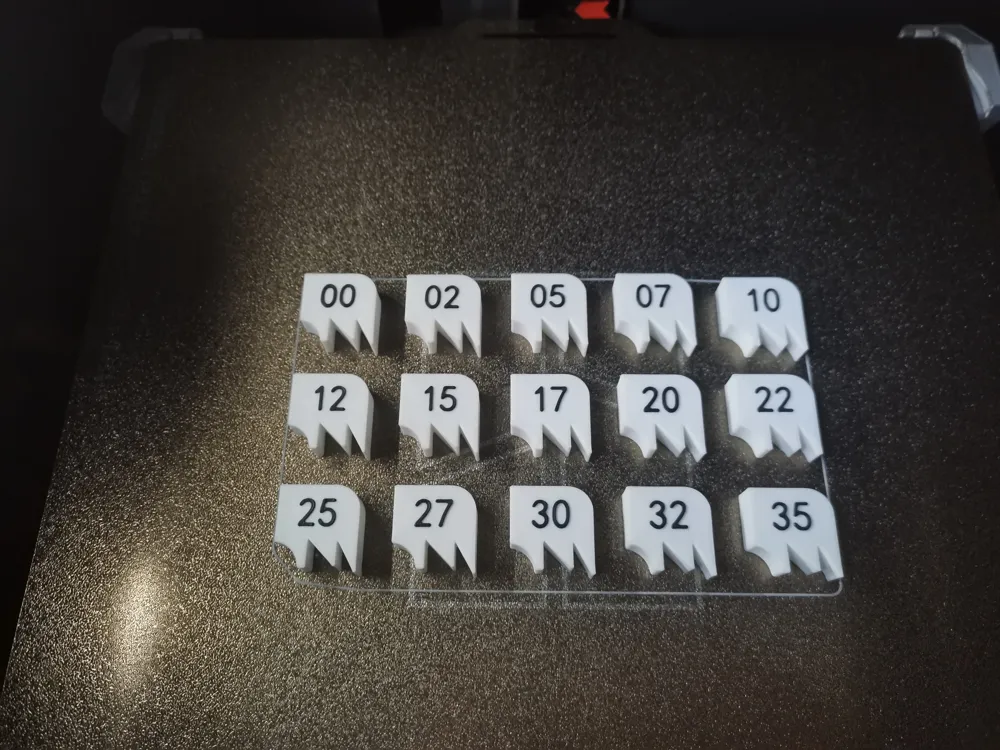

Most Comprehensive Elephant Foot Test Model
Includes right angles, internal fillets, external fillets, external sharp angles, internal sharp angles, totaling 7 test points.
Finer Step Size
The test step size is 0.025mm, allowing for more precise parameter selection.
Save Printing Time
Height is reduced to 12mm, shortening test time and reducing material waste.
Reasonable Test Range
The range is 0~0.35mm, starting the test from 0mm up to 0.35mm. Elephant foot compensation parameters larger than the outer wall line width will significantly affect print quality>, so the upper limit of this model is adjusted to 0.35.
If you have more questions, please feel free to add them so I can continue to modify the model.
Other Printing Test Models Include
Bridging flow rate testhttps://makerworld.com.cn/zh/models/1765477-xiao-zhun-qiao-jie-liu-liang-ce-shi#profileId-1947105
Quick retraction testhttps://makerworld.com.cn/zh/models/1838595-xiao-zhun-ti-du-hui-chou-ce-shi-kuai-su-ce-shi-6mi#profileId-2033617
Elephant foot correction testhttps://makerworld.com.cn/zh/models/1843737-xiao-zhun-xiang-jiao-ce-shi-mo-xing-zui-quan-mian#profileId-2039763
Fuzzy skin effect testhttps://makerworld.com.cn/zh/models/1888879-xiao-zhun-rong-mao-xiao-guo-ce-shi#profileId-2093118
I hope these test models can provide you with more accurate and stable print quality.
