2 axis ruler / xy table
Print Profile(1)
Description

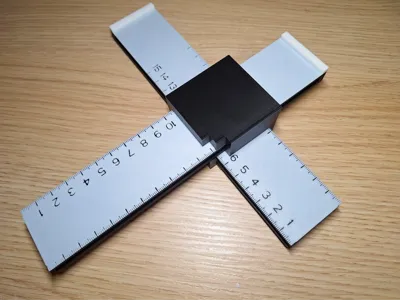

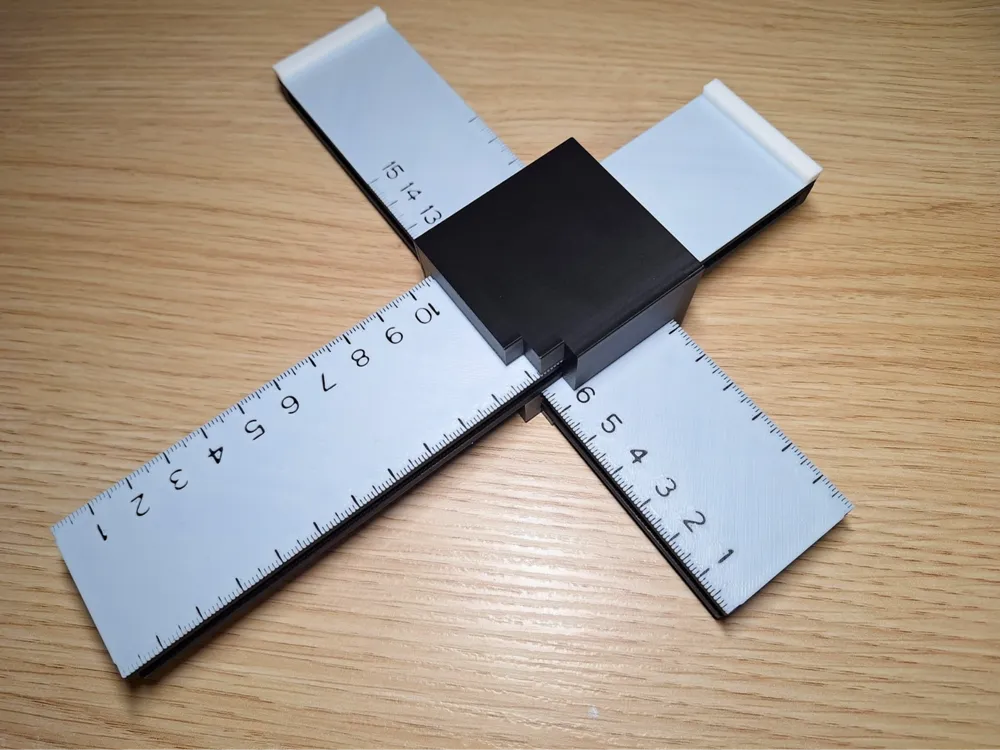

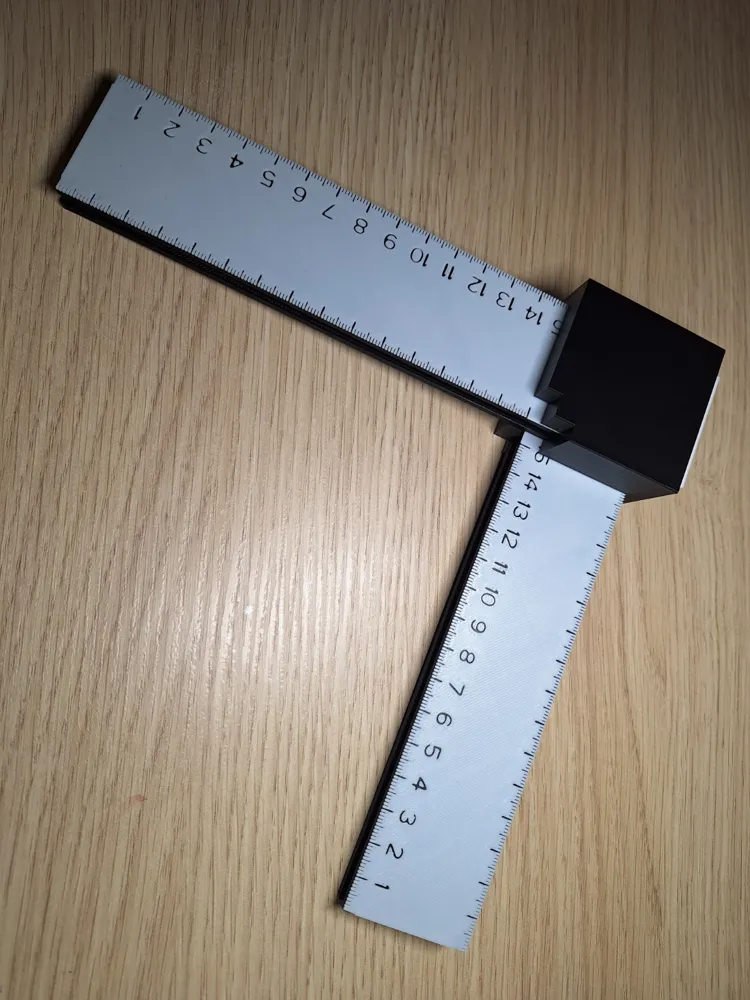

A two axis ruler / XY-adjusting device.
It was created to get a fairly exact positioning for a detector in respect to a flat surface.
Generally, tape your detector with some Kapton-Tape to one edge, the surface which should be measured to the other
Precision is somewhere between 0.1 and 1mm. Thus, it is more of a simple fix for fast estimations and measurements with low sensitivity for accuracy mistakes.

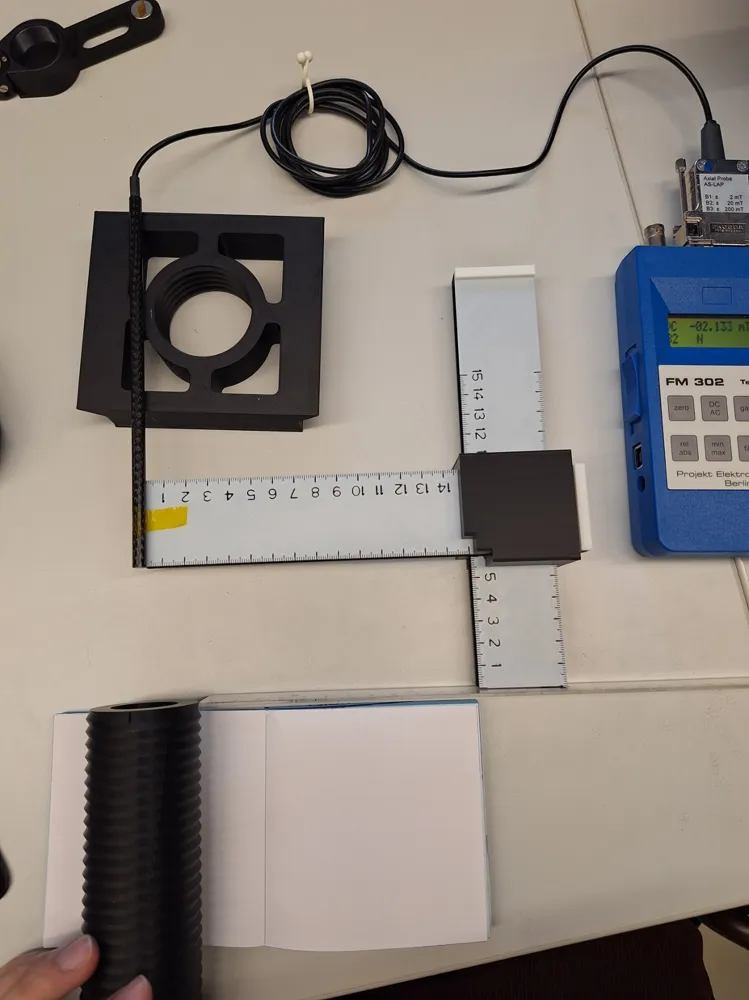

My application was measuring the magnetic field with a axial probe.

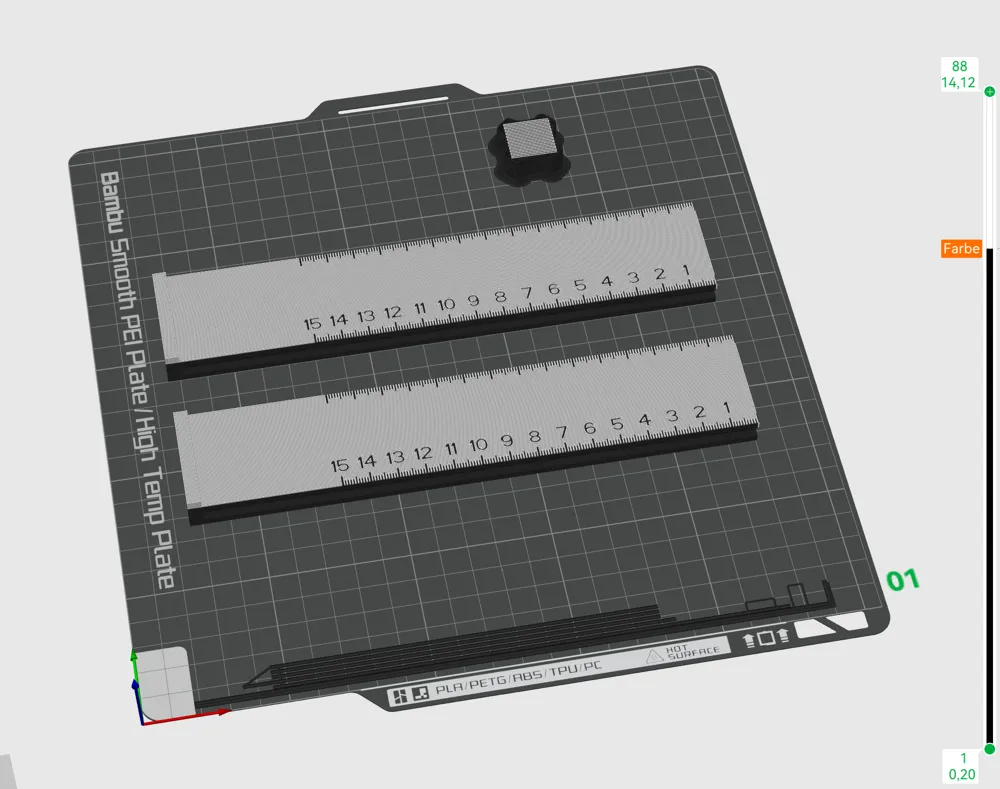

The two tone to make the scale readable is achieved with one filament change between layers. Thus, a AMS is not necessarily required.

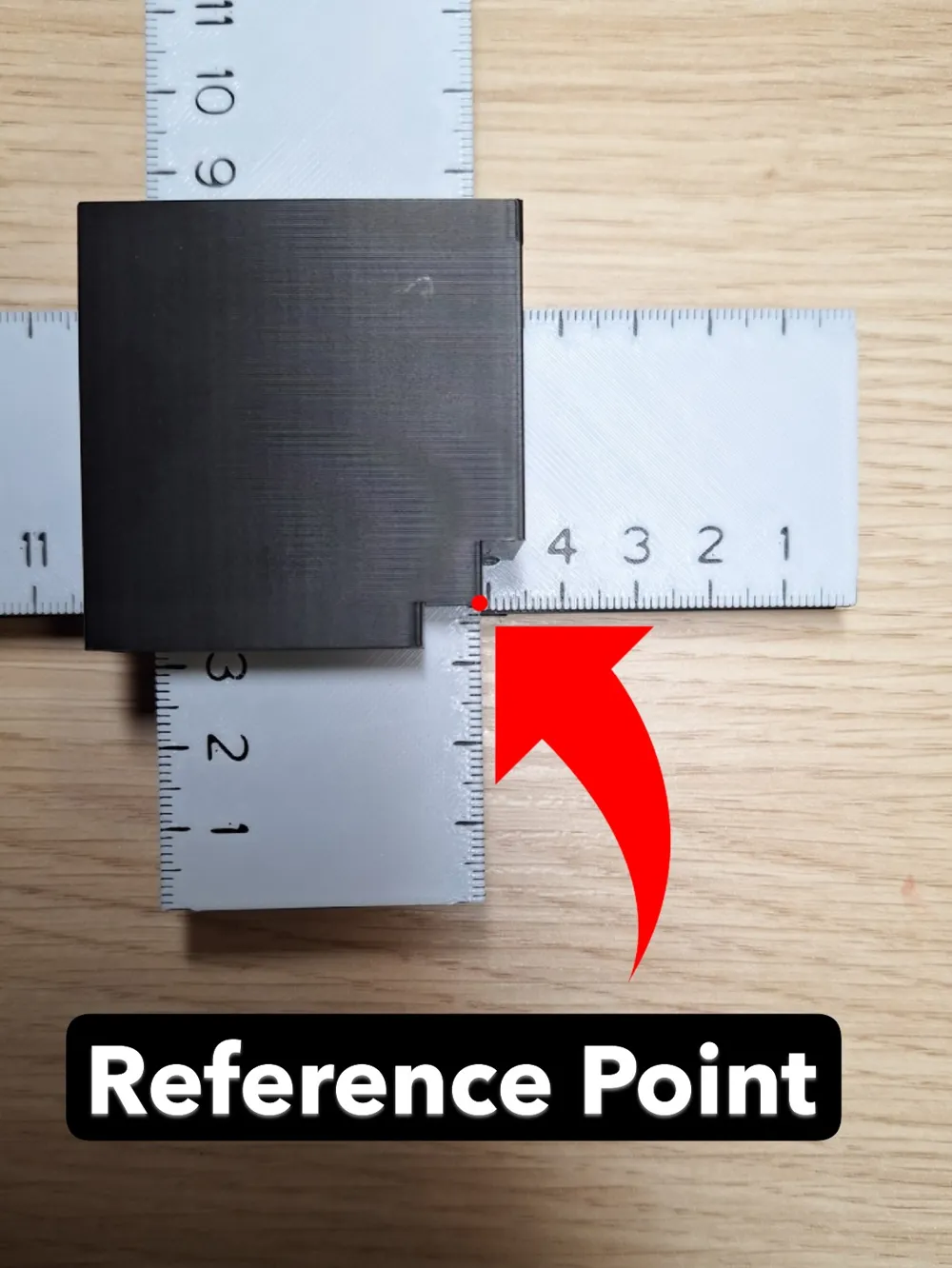

The real (0,0) point can not be reached without the ruler-edges going 4mm into the connector (otherwise, the connector would not work).
