RC Absima Sherpa Pro Radiator Lighting
Print Profile(1)
Description
Hello, if you remove the front 'angry eye' part of the Absima Sherpa Pro, the radiator grilles become clearly visible
I decided to design a radiator light that can be mounted normally inside using the original holes. Only slightly longer screws are needed for this

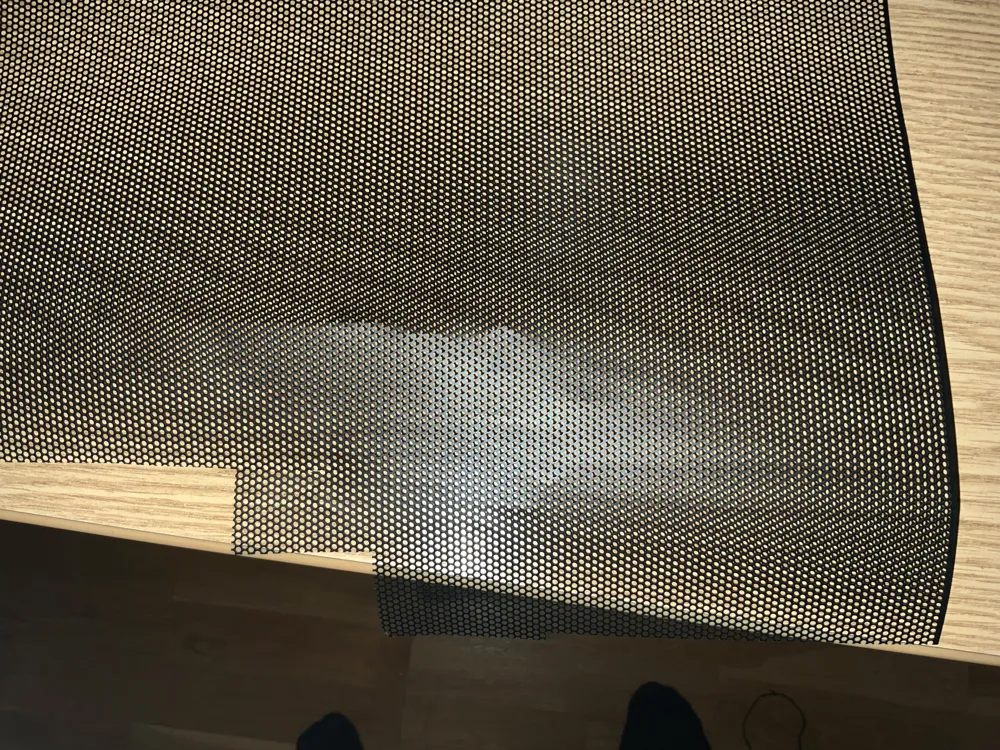

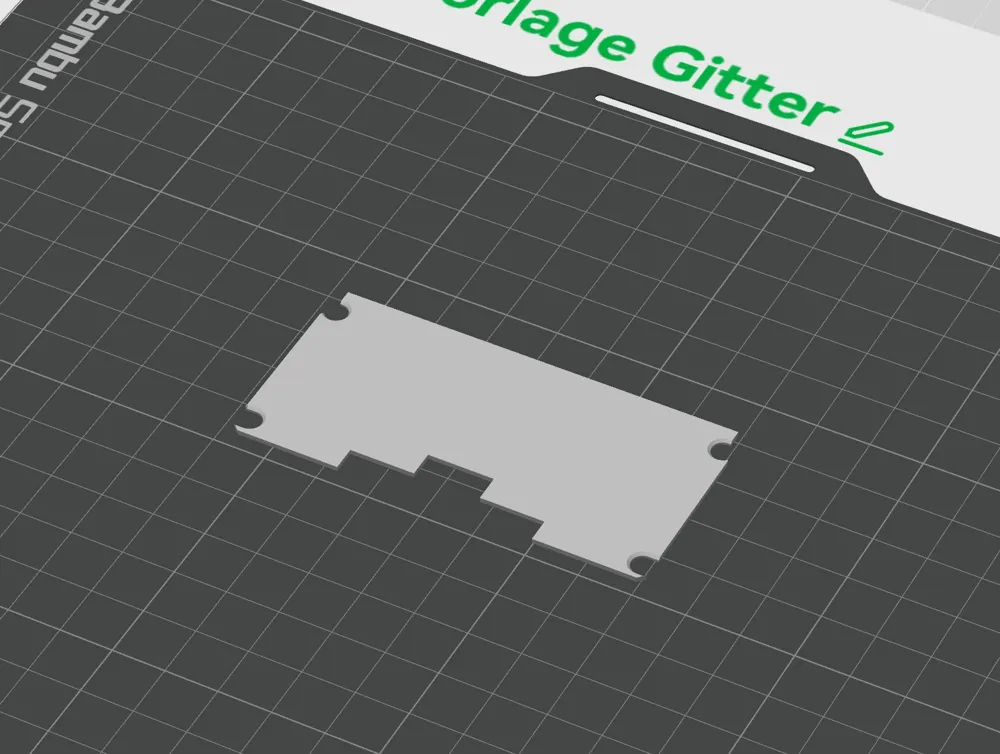

You can also cut a grille for it, a cutting template is included for printing (but it's not mandatory)

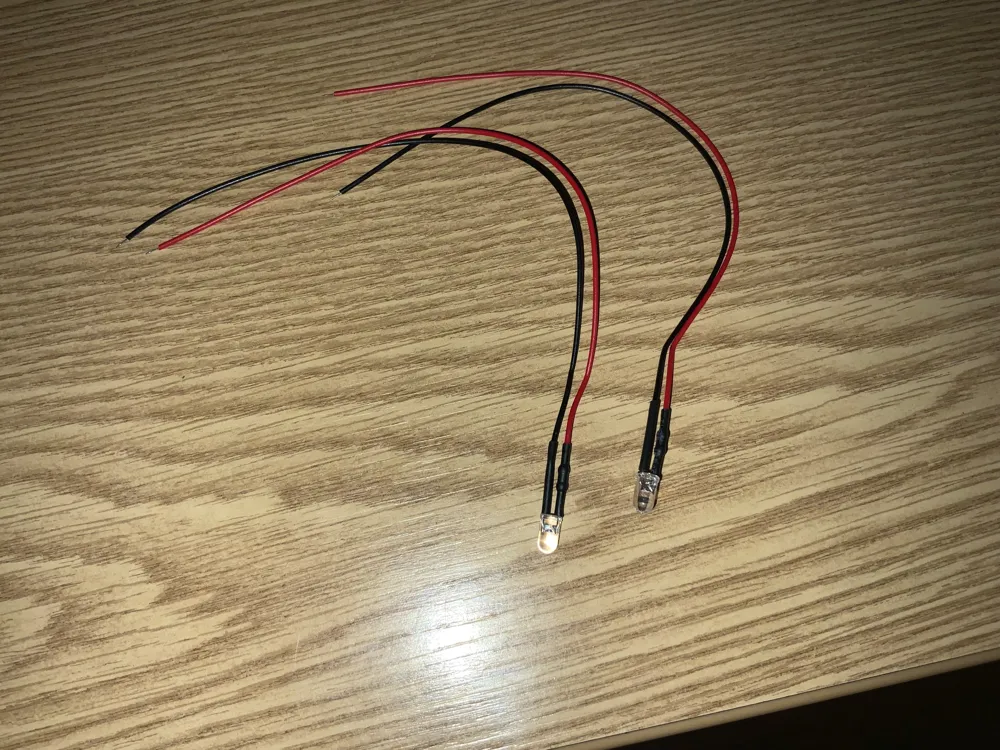

You then only need 5mm LED lamps (you can determine the light color yourself) in the picture, mine are red LEDs
For assembly:

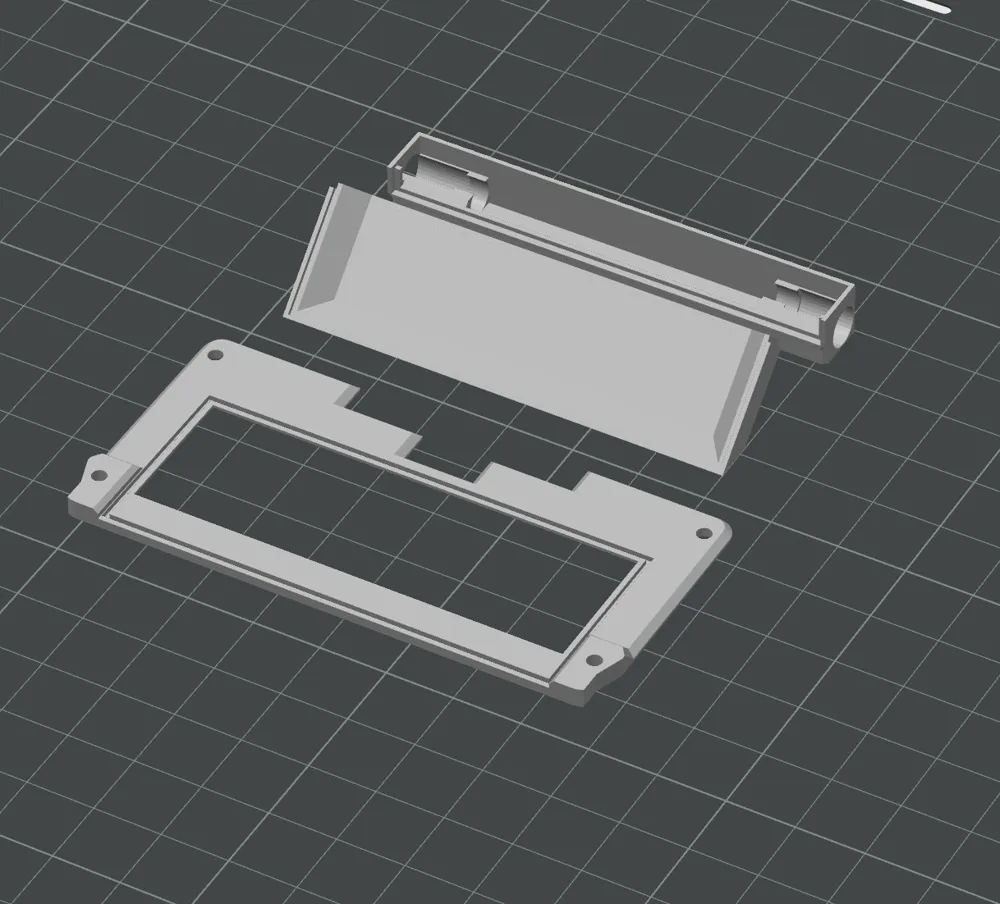

Parts 1 - 2 - 3 are then glued together, and if you wish, you should also glue in adhesive film (silver or aluminum) so that the light is better distributed

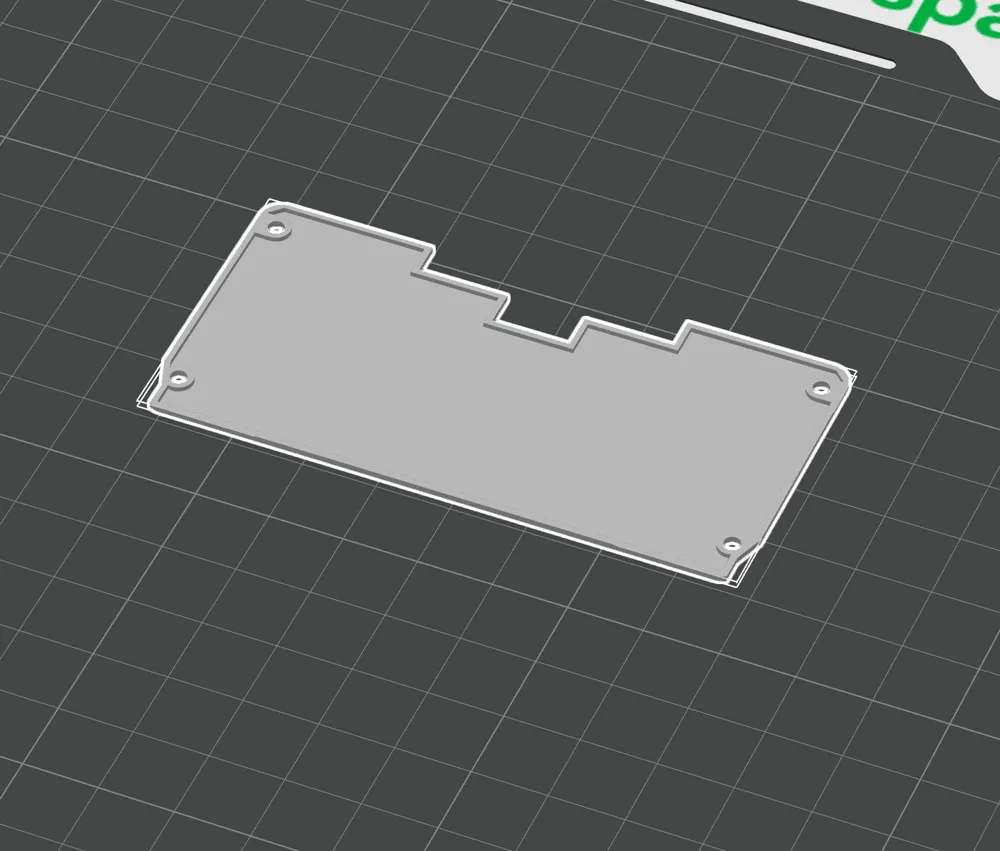

Once that is done, you can glue the protective glass to part 1 - 2 - 3 or just screw it directly with part (1-2-3) to the body
Of course, don't forget to insert the LEDs

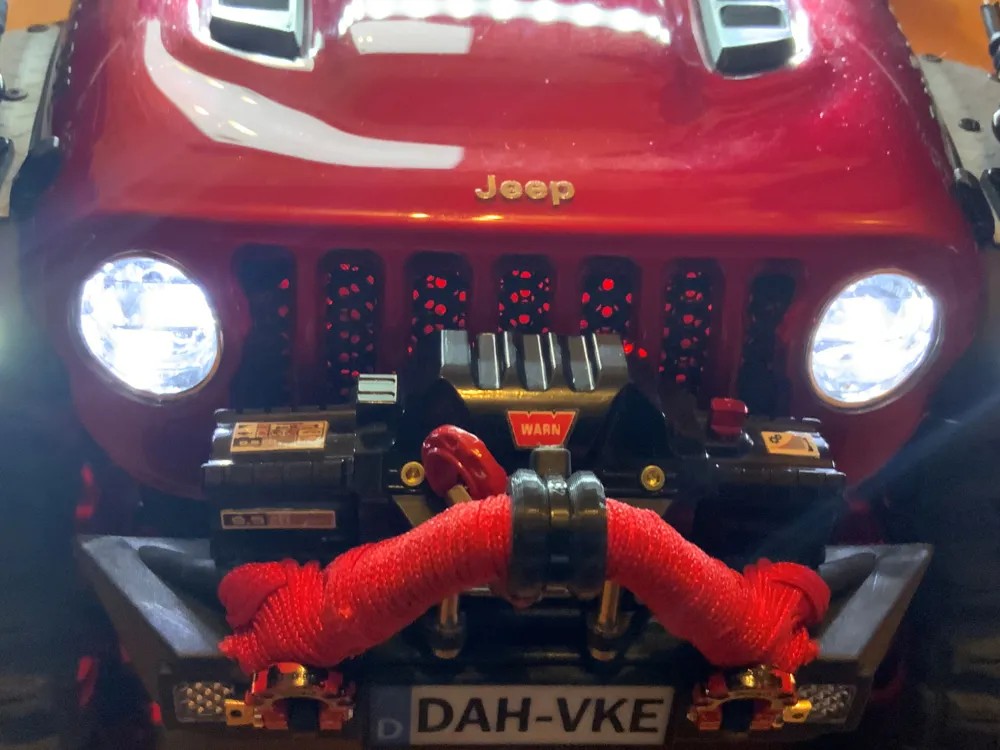

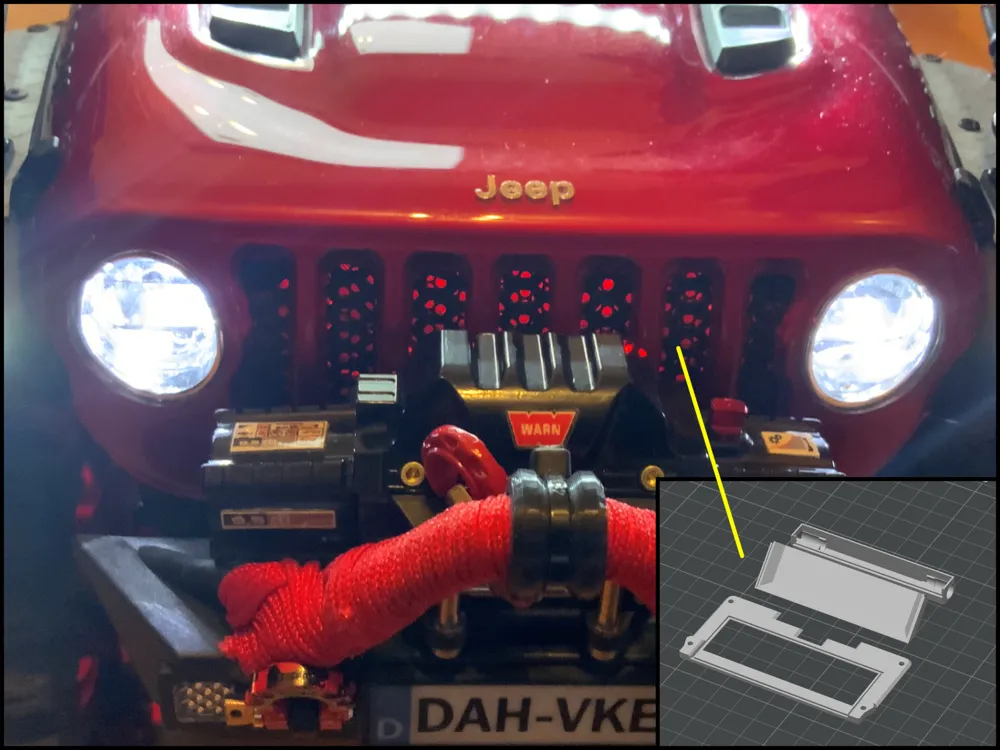

Then it's finished and should look like in the picture
It was printed in PETG in silver and transparent with a 0.4 hotend
Wishing you much fun printing
Boost Me (for free)
I would be very happy about a boost :)
